Summary of Contents for KMS UEGO CAN

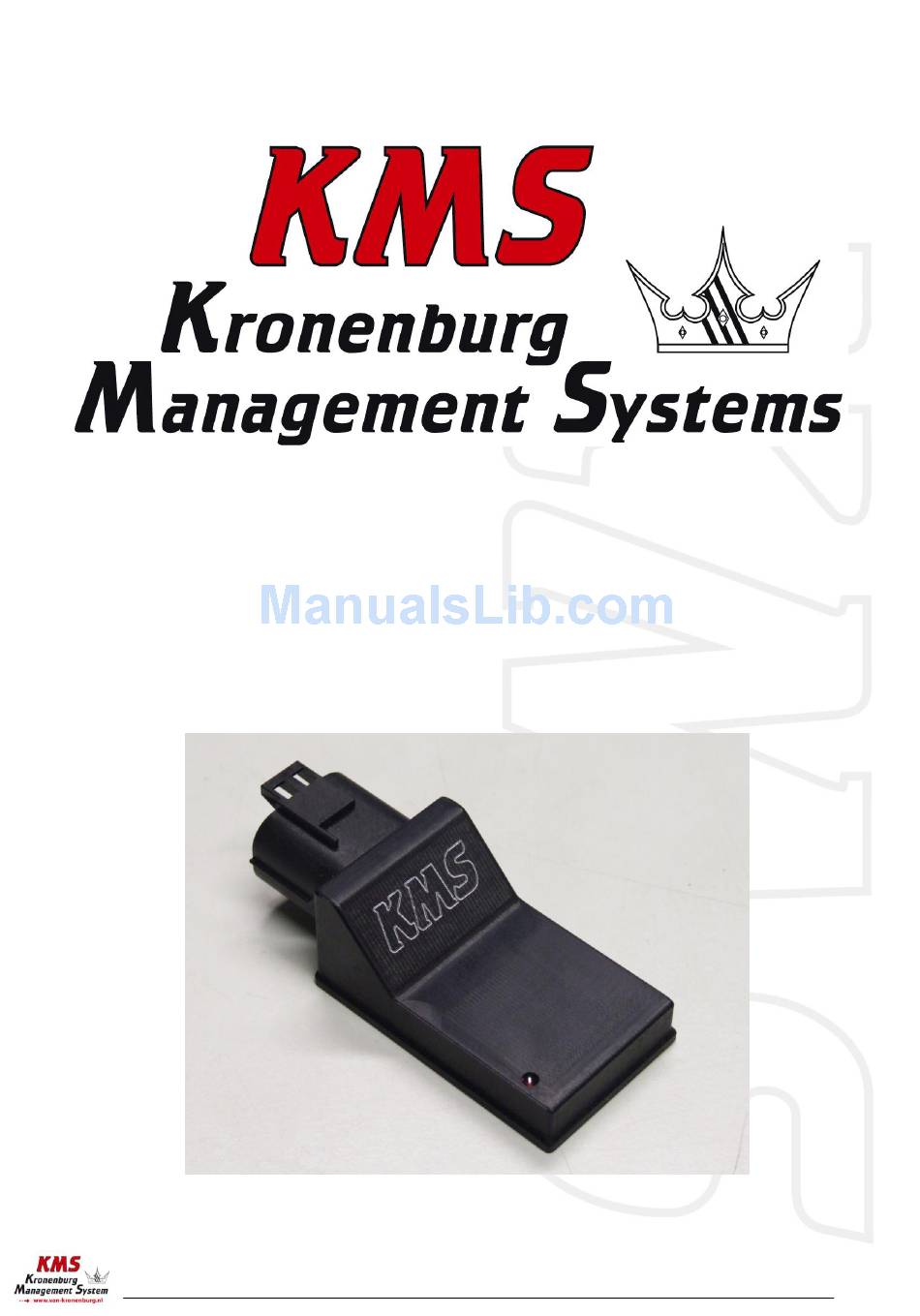

- Page 1 KMS UEGO CAN controller Part nr: 01-01-01-0009 KMS UEGO CAN controller manual Version 1.02...
- Page 2 Warning: don’t place the UEGO CAN controller and wires near any ‘high powered’ cables (sparkplug leads, etc), because of electrical interference. Included with the KMS UEGO CAN controller is a wiring loom which consists out of a main connector and four separate connectors with wires. The function and connection/wiring of these connectors is...
- Page 3 Single connector: heater ground Connect to ground (chassis) 3 pole connector (superseal): power/ground for the CAN controller and analog signal output to KMS ECU’s Connect as following: Connector pin Wire colour Function MD35 pin nr MP25 pin nr...
- Page 4 If the CAN Bus is connected to the KMS MP25, MA25(M), IA23 or FA23 ECU (using the serial to CAN converter) or the KMS MD35 ECU, it is not necessary to use a CAN terminating resistor plug. The KMS MD35 ECU and serial to CAN converter already have a terminating resistor.
- Page 5 4. Installation of the lambda sensor The lambda sensor used for the KMS UEGO CAN controller is a 6 wire LSU4.9 wideband Lambda sensor. The sensor included in this kit has the following specifications: Thread: M18x1,5 Spanner size: 22 Hexagon ...
- Page 6 Lambda is a measure of the Air to Fuel Ratio (AFR) that is independent of the type of fuel being used. The lambda value of the new UEGO CAN controller can vary between minimum 0,65 and maximum 1,5 lambda. This means the Air to fuel ratio for petrol lies between 9,5 and 22,1. The following table shows the AFR ratio’s for different fuels compared to the lambda value.
- Page 7 23.2 24.8 15.6 10.2 7. Fault tracing The UEGO CAN controller has a LED light for a simple fault tracing. The function of the LED light is described below: LED function Problem LED continuously on - No problem, controller is ok and ready to be used.
- Page 8 Appendix: Signal voltages serial communication KMS UEGO CAN controller manual Version 1.02...
