Sfere DDS1946 Operation Manual

Guide Rail Type Electric Energy Meter
Operation Manual
This manual is applied to the following models：
DDS1946/DDS1946-T/DDSF1946/DSS1946/DSSF1946
DSSD1946/DTS1946/DTS1946-T/DTSF1946/DTSD1946

1. Product introduction

Guide rail type electric energy meters are designed and produced according to user's real
electricity consumption situation by adopting advanced energy measurement IC and using digital
sampling processing and SMT technologies. They are used to measure the real-time parameters of
voltage, current, power, power factor, frequency and demand. They also have the functions such as
energy measurement, SOE, pulse and communication. This series of energy meters adopt modularity
structure with the features such as small volume, convenient installation and reliable working.

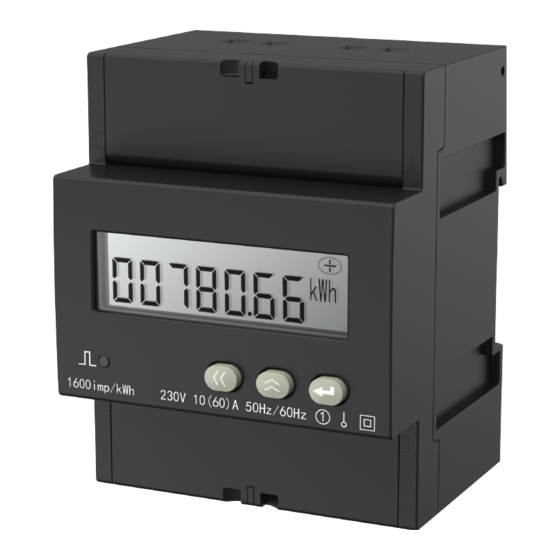

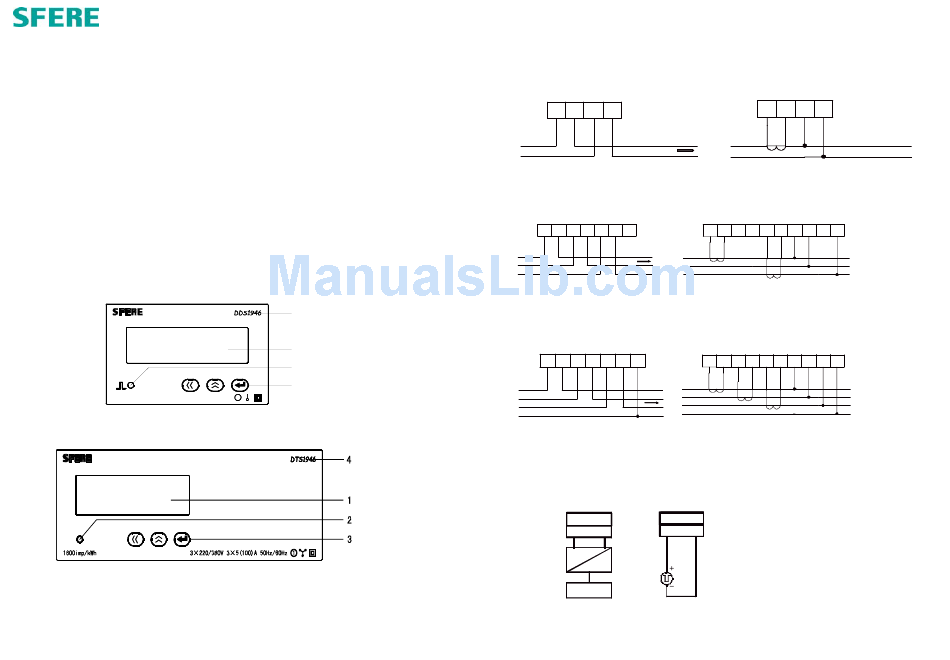

2. Panel description

Single phase guide rail type electric energy meter panel
3200imp/kWh 220V 5(30)A 50Hz/60Hz 1
Three phase guide rail type electric energy meter panel
1：Display interface 2：Energy pulse indication light 3：Buttons
4
1
2
3
4:Model
1

3. Installation and Wiring

3.1 Wiring mode

Single Phase
1 2 3 4
L
N
single phase direct connection
Three phase three wire
2 3 4 5 6 7
1
L1
L1
L2
L2
L3 L3
three phase three wire
direct connection
Three phase four wire
2 3 4 5 6 7
1
L1 L1
L2
L2
L3
L3
N
N
three phase four wire
direct connection
Signal terminal wiring diagram
energy pulse
communication
AP
A B
47
58 59
RS485
RS232
PC
1 2 3 4
L
*
N
single phase connection via CT
1 2 3 4 5 6 11 12 13 14
*
*
three phase three wire
connection via CT
1 2 3 4 5 6 11 12 13 14
*
*
*
three phase four wire
connection via CT
48
2
