Fitness Entertainment Solutions

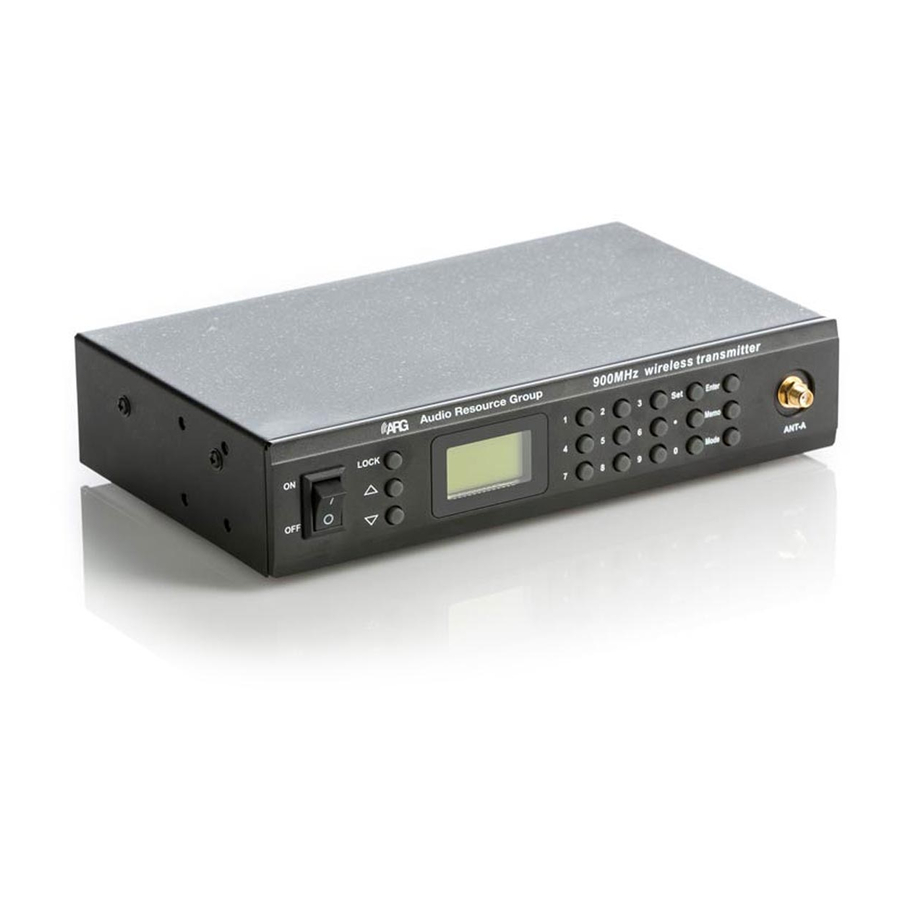

900 MHz Analog Transmitter
Model: ARG-900AT
Manual and User Guide
User Guide Part # ARG-OM017 – Rev B
Updated: 1/5/2017
Audio Resource Group, Inc. • 405 Main Ave W, Unit 4G • West Fargo, ND 58078 • ©2014 Audio Resource Group, Inc. • All Rights Reserved •
www.argaudio.com
Advertisement
Table of Contents
Related Manuals for ARG ARG-900AT
Summary of Contents for ARG ARG-900AT

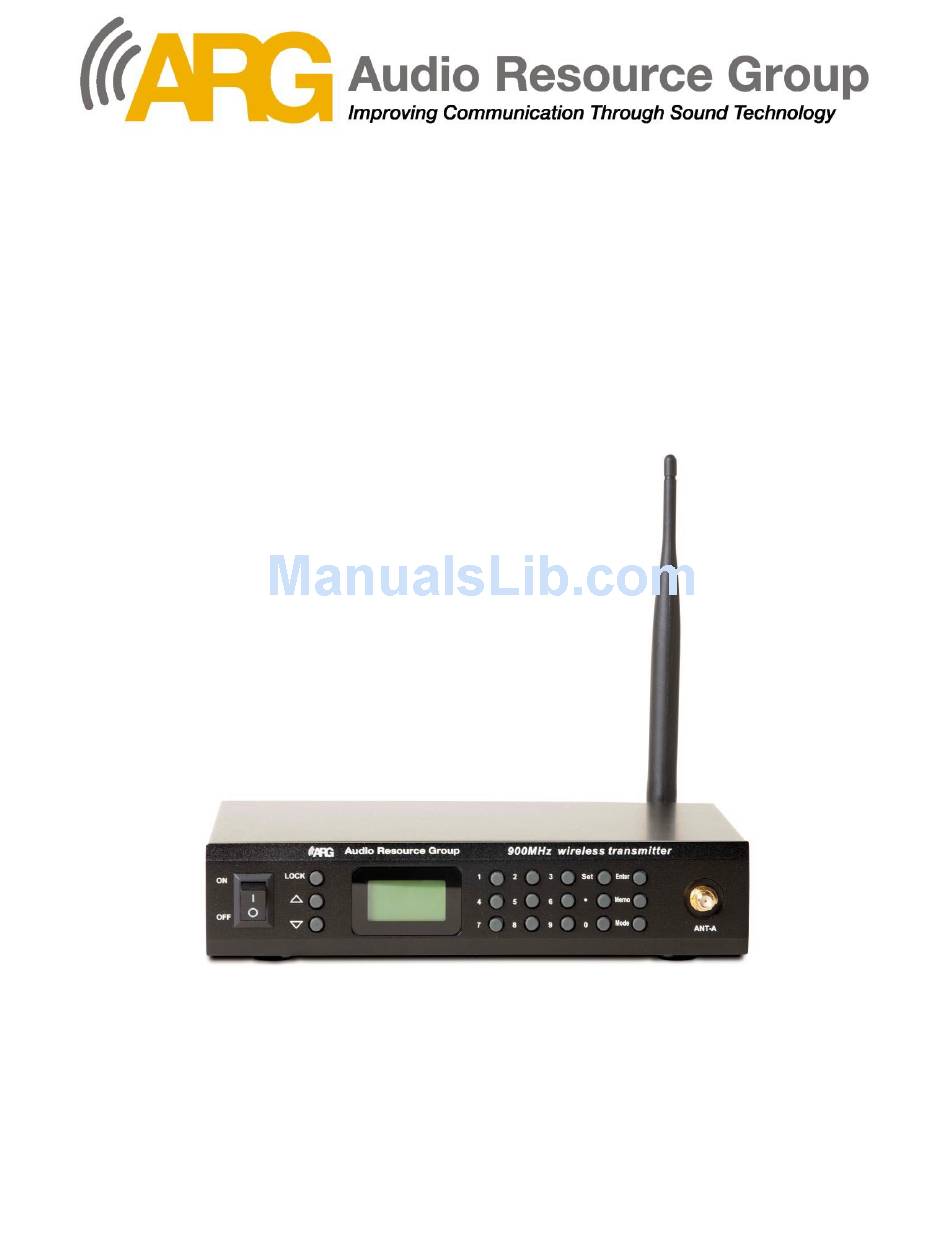

- Page 1 Model: ARG-900AT Manual and User Guide User Guide Part # ARG-OM017 – Rev B Updated: 1/5/2017 Audio Resource Group, Inc. • 405 Main Ave W, Unit 4G • West Fargo, ND 58078 • ©2014 Audio Resource Group, Inc. • All Rights Reserved •...
- Page 2 A rubber ducky antenna (ARG-AN3) The user manual The 9VDC power supply (ARG-PS017) A “tune to” sign to place on the tv. (ARG-CS001 and ARG-CS002) A wall mounting kit for the transmitter. A rack mounting kit for the transmitter(ARG-RP1) Two analog audio cables (ARG-CA023 and ARG-CA024) Optional Accessories: 6’...
- Page 3 Analog stereo line input icon INSTALLATION INSTRUCTIONS: Mounting the Transmitter - The ARG 900MHz transmitter is a universal unit designed to be compatible with most makes and models of televisions or audio devices. The transmitter can be mounted anywhere within the range of the length of cable being used for the audio connection including on the TV/audio device.
- Page 4 This connection requires the use of a fiber-optic or TOSLINK cable made specifically for this type of connection. (This cable is NOT included but is available from ARG, order #ARG- CA017 or purchase from local electronics retailer.) One end of the cable is inserted into the jack marked “Optical Audio Output”, “S/PDIF”...
- Page 5 “Enter” and then “Memory” to save the selected Frequency. Finally, lock the transmitter by pressing the “LOCK” button till the lock icon appears. Commonly Used Frequencies – The table below contains commonly used frequencies for reference: 900MHz Frequency to Channel Reference by Company Channel Cardio Theater MYE/Fantaay/True Broadcast Vision Old ARG/Cardiovision XTV-9T XTV-9TM 905.000 905.400 905.000 911.450...
- Page 6 Audio Resource Group, Inc. (ARG) develops, designs and distributes only high quality products that will provide users with many years of trouble-free service. Some of the products we distribute are sold exclusively by ARG. The following Warranty Statement defines the warranty periods for each product line and model of equipment distributed by Audio Resource Group, Inc.
- Page 7 The above stated warranty is exclusive and replaces all other warranties express of implied, including those of merchantability and fitness for a particular purpose. ARG will not be held liable for any other damages or loss including incidental or consequential damages and loss of profit or revenues from whatever cause including breach of warranty or negligence.
- Page 8 Phone: (888) 468-4552 Fax: (888) 373-4819 repairs@argaudio.com ARG Repairs and Return policies, programs, and pricing are subject to change without notice. Audio Resource Group, Inc. • 405 Main Ave W, Unit 4G • West Fargo, ND 58078 • ©2014 Audio Resource Group, Inc.
