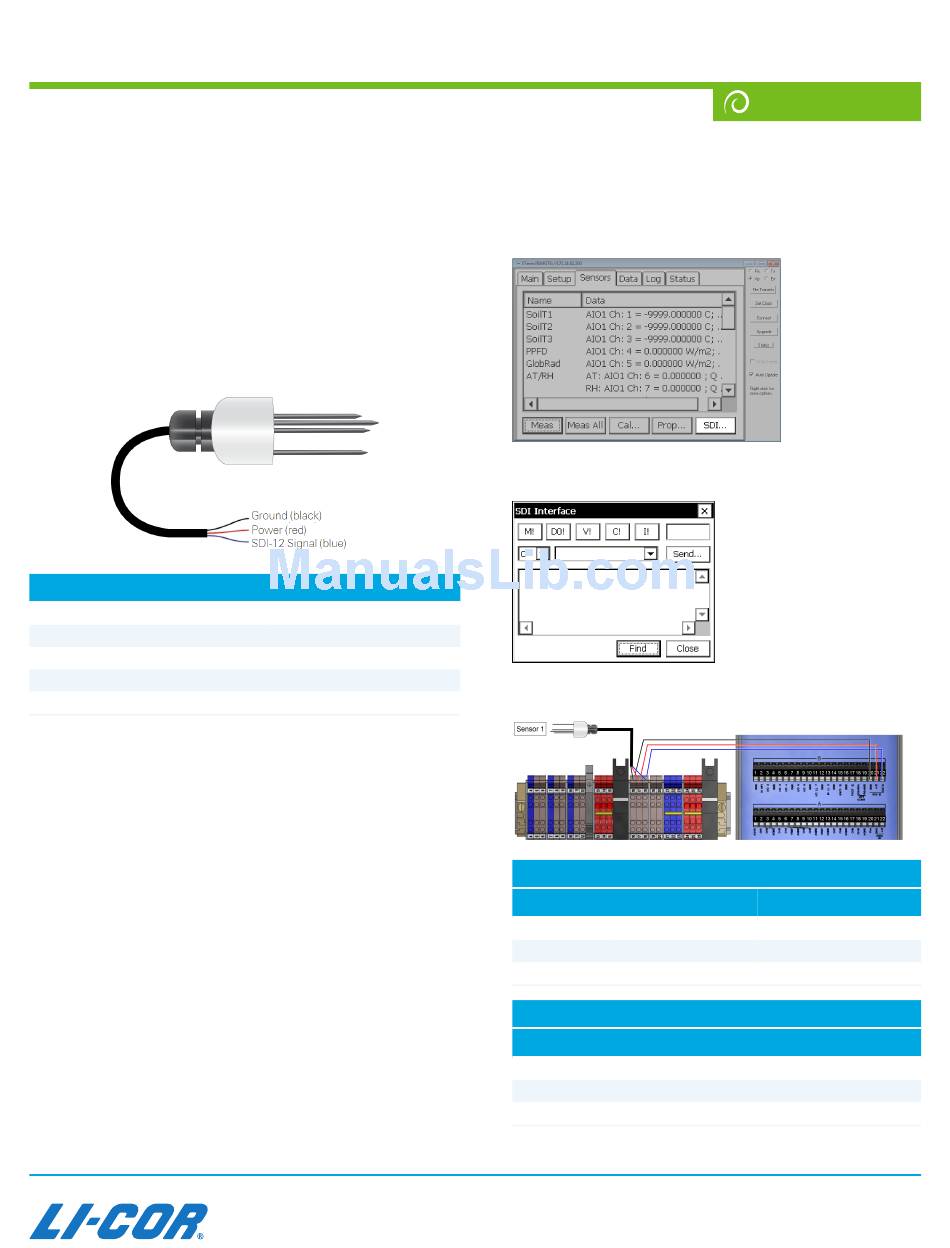

Soil Probe—Stevens Hydra Probe II
The Stevens Hydra Probe II measures soil moisture and
temperature and provides that data to the Sutron datalogger
using the SDI-12 communication protocol. This document
provides basic installation and operation guidelines for
using the Hydra Probe II in LI-COR eddy covariance
systems with a biomet system running Biomet_100,
Biomet_101, Biomet_102, and Biomet_103 programs. Refer
to the Hydra Probe II operating instructions for more
information: http://www.stevenswater.com/soil_moisture_
sensors/
Hydra Probe II
Operating Temperature Range:
Voltage Range:
Measurement Range:
Accuracy:
Power Requirements:
Addressing the Hydra Probe II for SDI-12
Communication
SDI (Serial Digital Interface) communication is a standard
for interfacing data recorders with micro-processor based
sensors. The SDI protocol enables data from multiple
sensors to be recorded over a single SDI connection. In
order to work, each SDI sensor must have a unique address.
This section describes how to address the Hydra Probe
II with the Sutron 9210B datalogger.
Stevens Hydra Probes are supported by datalogger programs
Biomet_100, Biomet_101, Biomet_102, and Biomet_103. For
custom programs, use the SDI-12 block and configure it as
described in Soil Probe Blocks (Stevens Hydra Probe II)
in the Biomet System instruction manual.
Connect to the Sutron 9210B datalogger using XTerm
1
software.
-10 to 65 °C
9 to 20 VDC
0.0 to Saturation
±0.03 m
/m
3
3
<1mA idle; 30 mA active
Be sure there are no SDI-12 sensors connected to the
datalogger yet.
Click on the Sensors tab. Click the SDI button on the
2
bottom right.
This will present a new SDI Interface window.
Sometimes this is referred to as entering Transparent Mode.
Connect the first Hydra Probe II sensor (the one you
3
will designate as Sensor 1).
Hydra Probe II; 1, 2, and 3
Color
Desc.
Black
Ground
Red
Power
Blue
SDI-12 Signal
Wire Lead Connections
Color
DIN Terminal
30 cm Black
16
30 cm Red
17
30 cm Blue
18
Installation Guide
DIN Terminal
16
17
18
Datalogger Terminal
SDI-12 GND (B20)
SDI-12 Power (B21)
SDI-12 Data (B22)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stevens Hydra Probe II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LI-COR Stevens Hydra Probe II

  • Page 1 Soil Probe—Stevens Hydra Probe II Installation Guide The Stevens Hydra Probe II measures soil moisture and Be sure there are no SDI-12 sensors connected to the temperature and provides that data to the Sutron datalogger datalogger yet. using the SDI-12 communication protocol. This document Click on the Sensors tab.
  • Page 2 You will need to give the sensor a unique address. For Figure 1. SDI addressing dialog. LI-COR biomet packages, the addresses are 1, 2, and 3. In the numeric dropdown menu (0* in Figure 1), select sensor 0, then click Send..
  • Page 3 Install the Soil Moisture Probes. Recommeneded depth of 5 cm below the soil surface. Press the probe into the soil until the base of the tines is flush with the soil. Be especially careful to avoid creating air pockets when inserting the probe. Air pockets around the tines will reduce the accuracy of measurements.
