Summary of Contents for Ocom OCBS-W700

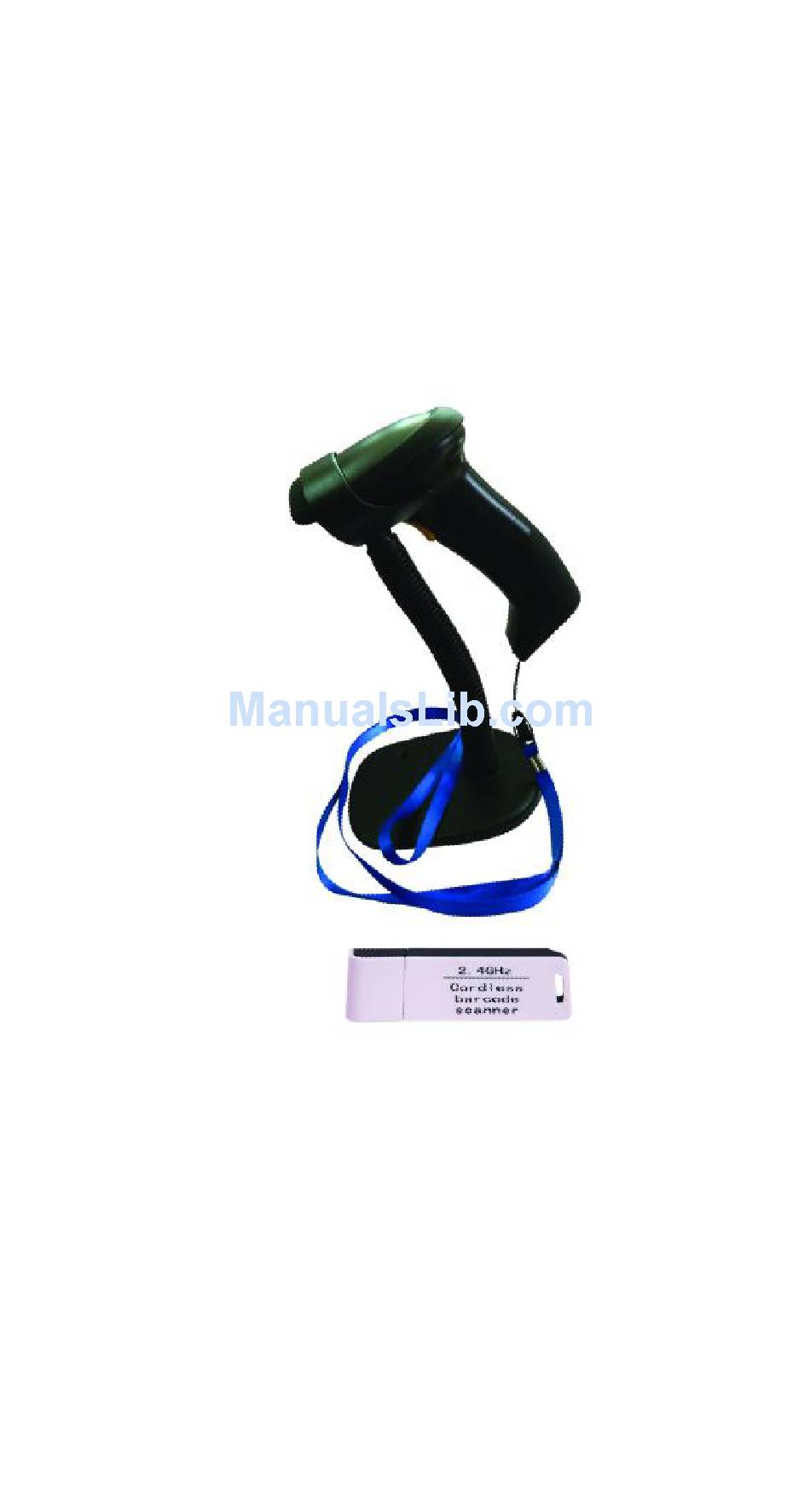

- Page 1 Setting Manual of Wireless Barcode Scanner （2.4GHz） REV: 02...
- Page 2 Special attention: 1. Immediate charging after battery alarms in using! 2. Receiving seat can upload data after inserting comput -er and waiting for 15 seconds (when LED light begins to flicker). 3. In the case of setting chaos and wireless scanning gun can not be used normally, please refer to Page 20 factory default.
- Page 3 2.4G Introduction of wireless scanning gun Respected customers，thank you for your choice of our wireless scanning gun! In order to ensure you can use it better, please carefully read the setting manual before using. 1. Adopts 2.4G wireless transmission, indoor transmission distance with obstacle is about 20 meters, outdoor transmission distance without obstacle can reach 100 meters.
- Page 4 lithium battery supply power, fully charge one time can be continuously used for more than 48 hours. About 20 seconds unused, it will shut down automatically and get into dormancy, the dormancy current is nearly 0, super-long standby.
-
Page 5: Table Of Contents
Contents Product accessories…………………….Page 6-6 Product parameters…………………..Page 6-7 Installation introduction………………..Page7-7 Operation instructions………………….Page7-9 Function setting…………………………Page9-11 Barcode setting………………………… Page11-13 Functions indication…………………..Page14-15 Common problems………..…………… Page16-21 Notes…………………………………….Page22-24 Product quality assurance……………..Page25-25 Factory default…………………….…..Page26-26 Warranty card…………………….Page27-27... -
Page 6: Product Accessories
Product accessories Quantity of Name of accessories accessories Hand-held scanning gun USB receivnig seat Charging wire Setting maunal (with warranty card) Sling Product parameters Function items Parameters 4mil(0.1mm)/5-60mm 5mil(0.12mm)/10-100mm Code reading depth 10mil(0.25mm)/15-250mm of field 35mil(0.89mm)/140-600mm 43mil(1.1mm)/150-800mm Visible red laser 650nM Light source type Scanning mode One-line scanning... -
Page 7: Installation Introduction
Function items Parameters Minimum 30% reflection Printing contrast difference 1／6 million Error rate Buzzer/Indicator light Indication way Maunal /Automatic Scanning way Hand-held machine size 7cm×4cm×16cm Hand-held machine weight 300g Material quality ABS+PC Drop test 2 meters free fall 2.4GHz Wireless frequency About100 meters in open place without interference Effective distance... - Page 8 doesn’t need set, this machine of leaving factory restores default 01 channel). 4. After receiving seat inserts computer, press scanning gun’s control for one time to wake up scanning gun (after wake-up, the scanning gun will have two continuous sounds of “drop, drop”, at the same time the blue LED lamp lights) to realize automatic matching, if need to re-match, need to be finished within 15s of receiver’s LED lights, when...
-
Page 9: Function Setting
by one in effective receiving range, buzzer will sound once when upload one barcode successfully. If fail, each barcode will sound three times continuously. Scanning ‘data total’ barcode will show total of cache barcode. Scanning ‘clear data’ can clear the cache. Under inventory mode, if cache is full, scanning barcode will appear buzzer sound for long time, at this time data should be uploaded computer and saved, if want to continue scan, need to clear data and then... - Page 10 The scanning gun restores set barcode “1”, and then scans “2”. Can also refer to Page 20’s factory default and operate. 2. Automatic scanning setting Scan and set barcode “automatic scanning”, the laser light always lights, place barcode in the right position of depth of field and to automatic scannning, and then carry out the second scanning after taking away.
-
Page 11: Barcode Setting
C Setting parameters (Setting channels under normal mode) Page 10/11 barcodes (0-9) under setting parameters are the parameters of channel setting and users’ ID setting. D Normal mode When leaving factory, the uniform setting is normal and immediate upload mode. The barcode successfully scanned and read within effective range will immediately be uploaded computer. - Page 12 2. Automatic scanning setting Automatic scanning 3. Channel setting CHSET (first set ten digits, and then set single digit, with a range of 01-20) 4. User ID setting IDSET (first set ten digits, and then set single digit, with a range of 00-99) ID display setting ID hidden setting...
- Page 13 6. Normal mode Normal mode SET 7. Collection mode Collection mode SET Data upload Data total Clear data...
-
Page 14: Functions Indication
Functions indication Action Representation contents Insert computer and match in 15 seconds, Receiving LED light always lingts and LED flickers end inserts after successful matching. First insert, computer computer will indicate and install hardware automatically. Scanning gun Buzzer sounds twice continuously, bule wakes up LED light lights. -
Page 15: Barcode Setting
When scan and read 3-7 items of “barcode setting”, buzzer will sound once for successful setting and blue LED light flickers once. Read code and upload successfully, buzzer sounds continuously Scanning gun twice (two sounds are continuous when mode signal is good, there will be about 0.5 function seconds interval between two sounds when setting... -
Page 16: Common Problems
Common problems The wireless scanning gun is a durable product, the general problems are caused by improperly setting parameters or unfamiliar of the operation and so on. The users only need to read this setting manual carefully and operate by it, the problems can be eliminated basically. - Page 17 Faults Reasons analysis Solutions performance 100 meters range without obstacles, 20 meters range with obstacles or Beyond the range of interference. If receiving or get the beyond the range, interference. it is difficult to receive it, please shorten to effective distance to receive.
- Page 18 Barcode gun setting is Ditto chaotic. This scanning gun supports international standard one Doesn’t read dimensional code The read code is not barcode. Some standard. barcodes not compiled according to the standard will not be able to read.
- Page 19 Low the barcode contrast ratio or change the barcode ratio by Code Doesn’t printing. If it is confirmed that printing read barcode printing code problems, it is necessary to problems improve the barcode printing quality. Scanning guns and barcodes need to keep a bevel angle to get Incorrect a best codes reading effect.
- Page 20 The lens of Use clean cloth wipe with scanning gun clear water, then use it is too dirty. after lens dried. sensitivity of code The code is Wipe out the dirt on the reading damaged and has codes or improve the code dirt, etc.
- Page 21 Refer introduction above. 2. If Scanning gun Data of the problem is not solved, setting is display turn off the receiving seat, incorrect or barcode is and restart the computer. computer input messy 3. Check whether the method is not set code.
-
Page 22: Notes
Notes Lithium battery maintenance The wireless gun is equipped with high capacity lithium battery, please maintenance it by routine maintenance of lithium battery, please especial pay attention to: A Avoid to set the scanning gun into the fire or expose in 60℃... - Page 23 3. Maintenance of dustproof lens on the scanning gun window Dustproof lens has great importance to code reading, please keep the lens clean to ensure the effect of code reading. the lens will cling to sweat in different temperature environments, or cling to dust due to long-term use, need to use clean cotton (do not use hard object to wipe out the lens which will leave scratches on it) wipe it with clear water, then use it after dried.
- Page 24 completion time is greatly been extended, you can carry out other operations until all data uploading is finished. 5. Noun explanation of barcode density and depth of field of code reading Barcode density is the minimum distance between white or black bars of the codes. Reading code depth of field refers to the effective reading code range of one certain density barcode, if you exceed the range of reading code, it will not sensitive to read code or you can’t read...
-
Page 25: Product Quality Assurance
Product quality assurance 1. Warranty regulations A Under normal circumstances, the company will provide free warranty for the product since the release date within 12 months, it will be provided life-long maintenance. B In the warranty period, if the maintenance is caused by product quality, we will not collect any maintenance free. -
Page 26: Factory Default
Factory default If the users set in chaos accidentally in use and the within 15 seconds scanning gun can't be used normally, of receiving seat access to computer, you can scan the following barcodes from top to bottom when the LED light bright, then it can restore to factory default. -
Page 27: Warranty Card
Warranty card (The contents of card need to be filled in by seller) If customers need to repair, please cut off the warranty card by the dotted line, and send it with product to us or the distributor. Thank you! ………………………………………………………………...
