- Page 1 SUPER SARGE OWNERS MANUAL...
-
Page 2: General Information

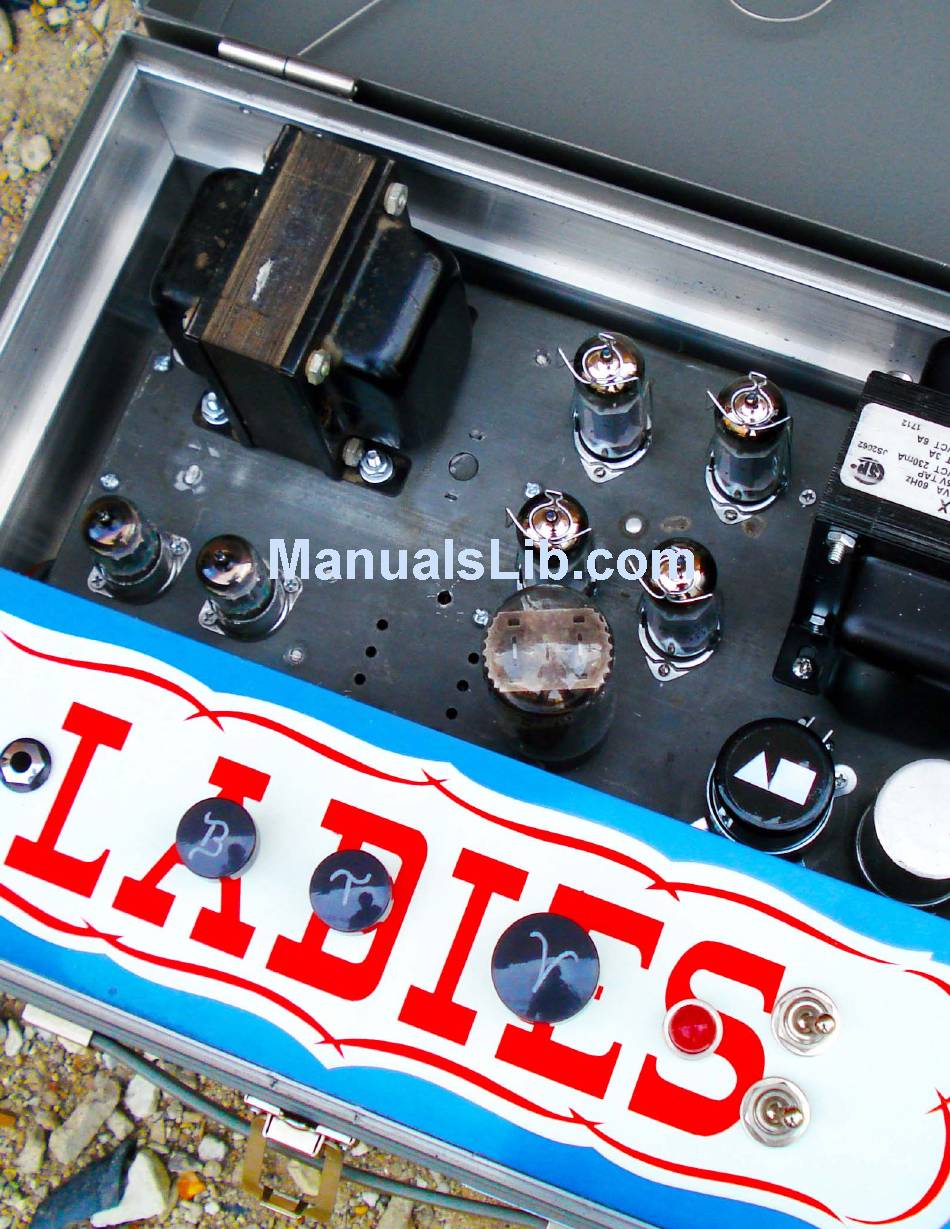

Congratulations on the purchase of your new Super Sarge! The Super Sarge uses four EL84 power tubes to double the power of Analog Outfitters’ flagship product, the Sarge. This model resulted from a collaborative effort between Analog Outfitters and Nels Cline of Wilco. - Page 3 1. 2A FUSE: The 2A SLO-BLO fuse protects the amp from electrical faults. 2. AC INPUT: The power supply of the Super Sarge will work with 120 volts. 3. 8 OHM SPEAKER JACK: Plug an 8 ohm speaker cabinet into this jack. Always make sure your speaker impedance matches the 8 ohm output impedance of the amplifier or it can cause damage to the output transformer.
-
Page 4: Maintenance And Care
If tensioning or cleaning of the tube sockets is needed, refer to a qualified amp technician. Repairs We thoroughly test each Super Sarge before it leaves our shop in order to make sure you are getting nothing less than optimal performance and tone. We stand behind our products with a 3-year limited warranty on parts and labor.
