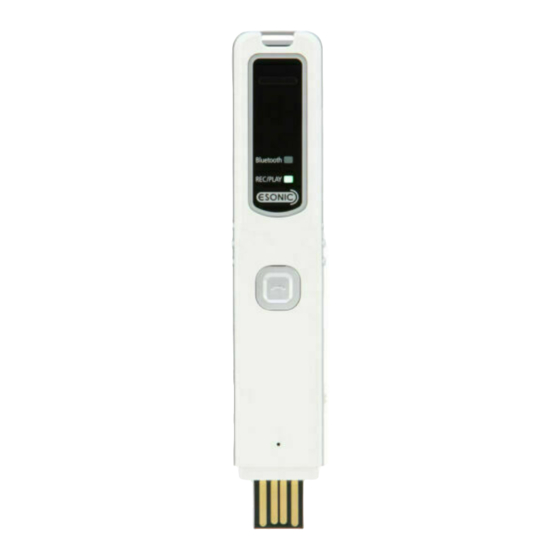

Esonic BR-20 User Manual

1. Charging before use

Please charge by using USB or DC adaptor(optional).
Green light is turned on at the LED of REC/PLAY during charging and green light blinks when charging is
completed.
Check ! Battery remains can be checked at the beginning of recording or playback.
Enough : 70 ~ 100%
Usual : 30 ~ 70 %
Short : less than 30%

2. Turning on power

Connecting to bluetooth device(pairing)

1)
A. For pairing, mobile device starts Bluetooth search.
B. Press the button of talk for 5 seconds until Bluetooth LED lights up in blue and red alternately, rapidly.
C. Select BR-20 which mobile device has searched.
Function
Power On/Off
Answering/ending call
Rejecting talk
Redialing last number
Adjusting volume
Battery status
User Manual
MODEL No. : BR-20
Battery remains
Until blue LED is turned on/of, press the button of talk for 1 second.
Press the button of talk.
Press the button of talk two times rapidly.
Press the button of talk while not talking over the phone.
Press the button of volume + or volume – on the side.
In case bluetooth LED blinks in red, battery is in shortage.
Operation
Green LED is turned on for 5 seconds
Green LED blinks for 5 seconds
No indication
Operation
