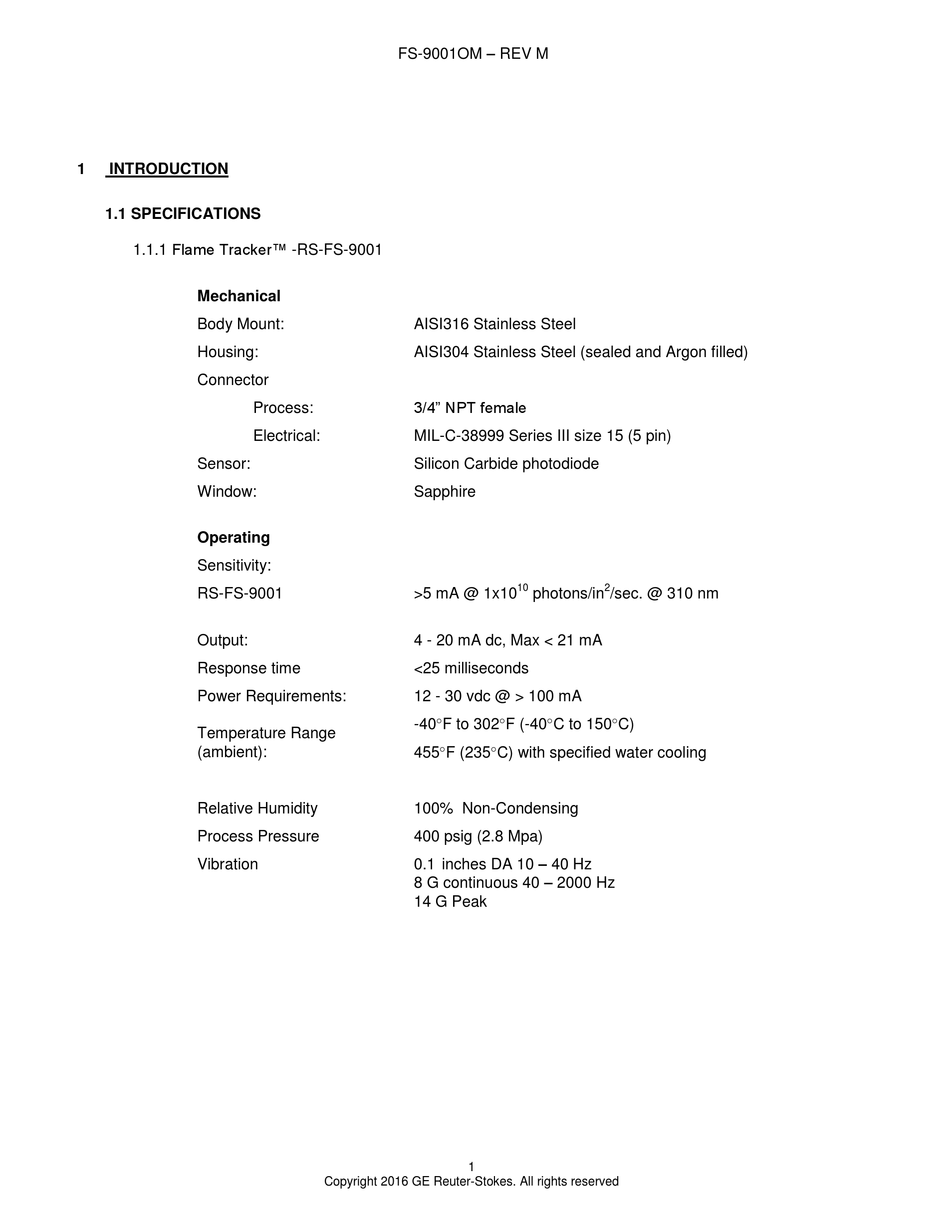

INTRODUCTION

1.1 SPECIFICATIONS

1.1.1 Flame Tracker™ -RS-FS-9001
Mechanical
Body Mount:
Housing:
Connector
Sensor:
Window:
Operating
Sensitivity:
RS-FS-9001
Output:
Response time
Power Requirements:
Temperature Range
(ambient):
Relative Humidity
Process Pressure
Vibration
FS-9001OM – REV M
AISI316 Stainless Steel
AISI304 Stainless Steel (sealed and Argon filled)
3/4" NPT female
Process:
Electrical: MIL-C-38999 Series III size 15 (5 pin)
Silicon Carbide photodiode
Sapphire
>5 mA @ 1x10
4 - 20 mA dc, Max < 21 mA
<25 milliseconds
12 - 30 vdc @ > 100 mA
-40F to 302F (-40C to 150C)
455F (235C) with specified water cooling
100% Non-Condensing
400 psig (2.8 Mpa)
0.1 inches DA 10 – 40 Hz
8 G continuous 40 – 2000 Hz
14 G Peak
