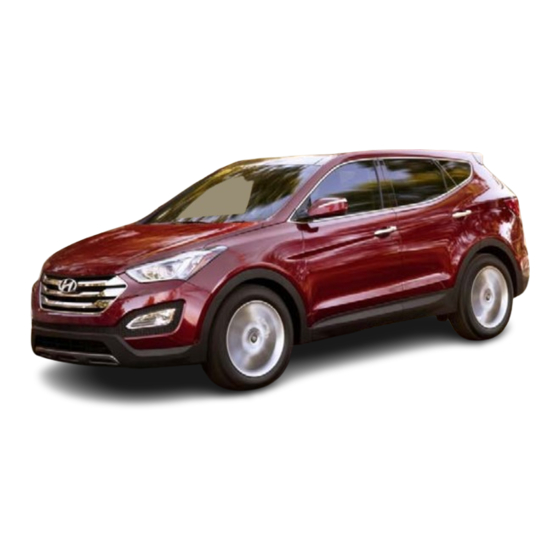

Hyundai SANTA FE Sport 2016 Quick Reference Manual

WALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES
☐
DRIVER SELECTABLE STEERING MODE– pages 35
- Demonstrate and explain the different
steering modes
☐
BLUETOOTH – pages 22 – 25
- Show phone compatibility website:
www.hyundaiusa.com/bluetooth
- Make a test call using Bluetooth with the customer's phone
- Demonstrate Voice Recognition (VR)
☐
BLUE LINK – page 26 – 27
- Assist with creating MyHyundai.com account
- Assist with Blue Link enrollment
- Show Blue Link Users Manual & tear out Voice
Commands/Quick Tip Card
- Encourage customers to press the Blue link button
☐
TIRE PRESSURE MONITORING SYSTEM
(TPMS) – page 34
Explain TPMS function to customer
- When illuminated, one or more tires are
under-inflated.
- Blinks for approximately one minute
then remains illuminated when there
is a malfunction with the TPMS
☐
VEHICLE SETTINGS – pages 12 – 15 and 29 – 30
- Demonstrate vehicle settings in instrument cluster
- Demonstrate navigation use, enter dealer address
- Show radio presets
☐ CLOCK – pages 31
- Demonstrate how to set clock (including daylight savings
setting for Navigation equipped vehicles)
MAINTENANCE
Scheduled Maintenance Normal Usage
1st: 3,000 or 6 mos.
Engine Oil and Filter (2.0 T-GDI)* Replace
Add'l: 5,000 or 6 mos.
Engine Oil and Filter (2.4 GDI)* Replace 7,500 or 12 mos.
At every Oil and
Fuel System Cleaner Additive Add
Filter Service
Tire Rotation Perform 7,500
Inspect
7,500
Air Cleaner Filter
30,000
Replace
Battery Condition Inspect 7,500
Vacuum Hose Inspect 7,500
Climate Control Air Filter Replace 15,000
Brake Hoses and Lines Inspect 15,000
Drive Shafts and Boots Inspect 15,000
Exhaust Pipe and Muffler Inspect 15,000
Front Brake Disc/Pads, Calipers Inspect 15,000
Rear Brake Disc/Pads Inspect 15,000
Steering Gear Box, Linkage & Boots,
Inspect 15,000
Lower/Upper Arm Ball Joint
Suspension Mounting Bolts Inspect 15,000
Propeller Shaft (AWD) Inspect 15,000
Brake Fluid Inspect 30,000
Fuel Filter Inspect 30,000
Fuel Lines, Fuel Hoses, and Connections Inspect 30,000
Fuel Tank Air Filter Inspect 30,000
Parking Brake Inspect 30,000
Vapor Hose and Fuel Filler Cap, Fuel Tank Inspect 30,000
Transfer Case Oil (AWD) Inspect 37,500
Rear Axle Oil (AWD) Inspect 37,500
Valve Clearance Inspect 60,000
1st: 60,000 or 72 mos.
Drive Belts Inspect
Add'l.: 15,000 or 24 mos.
1st: 60,000 or 60 mos.
Coolant Replace
Add'l.: 30,000 or 24 mos.
Spark Plugs (2.0 T-GDI) Replace 45,000 or 36 mos.
Spark Plugs (2.4 GDI) Replace 105,000 or 84 mos.
Automatic Transaxle Fluid No Check, No Service required
*Check the engine oil regularly between recommended oil change. Hyundai recommends Quaker State oil.
*See Owner's Manual for details.
Looking for more detailed information? This Quick Reference Guide does not replace your vehicle's Owner's Manual.
If you require additional information or are unsure of a specific issue, you should always refer to the vehicle's Owner's
Manual or contact your authorized Hyundai dealer.
The information contained in this Quick Reference Guide was correct at the time of printing; however, specifications
and equipment can change without notice. No warranty or guarantee is being extended in this Quick Reference Guide,
and Hyundai reserves the right to change product specifications and equipment at any time without incurring
obligations. Some vehicles are shown with optional equipment. Specifications apply to U.S. vehicles only. Please
contact your Hyundai dealer for current vehicle specifications.
Severe Usage*
Replace 3,000 or 3 mos.
Replace 3,750 or 6 mos.
Add Same As Normal
Perform 7,500
Inspect Same As Normal
Replace More Frequently
Inspect Same As Normal
Inspect Same As Normal
Replace More Frequently
Inspect Same As Normal
Inspect 7,500 or 6 mos.
Inspect Same As Normal
Inspect More Frequently
Inspect More Frequently
Inspect More Frequently
Inspect Same As Normal
Inspect 7,500 or 6 mos.
Inspect Same As Normal
Inspect Same As Normal
Inspect Same As Normal
Inspect Same As Normal
Inspect More Frequently
Inspect Same As Normal
Replace 75,000
Replace 75,000
Inspect Same As Normal
Inspect Same As Normal
Replace Same As Normal
Replace More Frequently
Replace More Frequently
Replace 60,000
