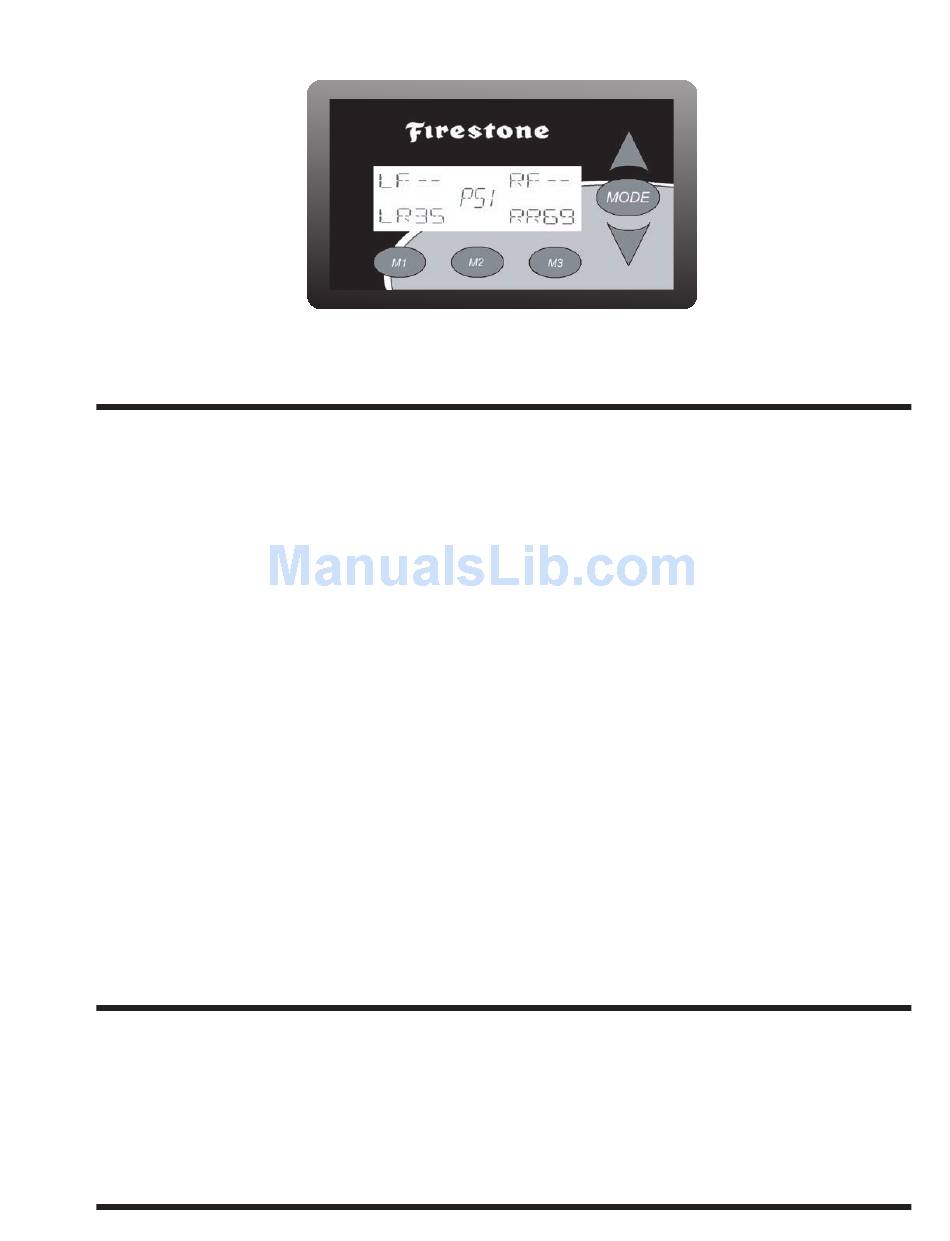

Light Duty Remote Air Command
INSTALLATION INSTRUCTIONS
Congratulations on your purchase of an Air Command
kit. This kit was designed to provide inflation control of
your air helper springs. This kit will be an asset to your
vehicle, meeting nearly all of your air supply needs.
Please take a few minutes to read through the
instructions to identify the components and learn how
to properly install your Air Command kit.
NOTE:
The Air Command kit can be used with all air helper
spring products. If you are installing an air suspen-
sion system, do not install the air line tubing to the air
springs as stated in the suspension system instruc-
tion manual. If you are adding the Air Command kit
to an existing air suspension system, you will need to
deflate the air springs and remove the air line tubing.
PARTS LIST
WIRELESS PAIRED SYSTEM
WIRELESS CONTROLLER
WIRELESS ECU
AIR COMPRESSOR
VALVE BLOCK
PRESSURE SENSOR
AIR LINE (18 FT)
21-8427
NOTE ON CONNECTING THE AIR LINE TUBING
Cut the air line tubing as squarely as possible. To con-
nect the air line tubing to the fittings, push the tubing
into the fittings as far as possible. If for any reason the
tubing must be removed, first release the air pressure
from the air helper spring. Push the collar towards
the body of the fitting and then pull out the tubing. To
reassemble, make sure the tubing is cut squarely and
push the tubing back into the fitting.
HARDWARE PACK (A21-760-2554)
9456
1
MALE FITTING
9366
1
1/4" FLAT WASHER
9455
1
3/16" FLAT WASHER
9377
1
1/4"-20 X 2-1/2" HEX BOLTS
9357
1
10-32 X 3/4" MACHINE SCREW
9054
2
10-32 X 1" MACHINE SCREW
1
10-32 NYLOCK NUT
1/4"-20 NYLOCK NUT
VELCRO TABS
NYLON TIE
THERMAL SLEEVE
12-12
2554
– 2 Corner
3055
1
4
8
2
2
4
6
2
4
15
2

Advertisement

loading

Summary of Contents for Firestone 2554

  • Page 1 If you are adding the Air Command kit to an existing air suspension system, you will need to deflate the air springs and remove the air line tubing. PARTS LIST HARDWARE PACK (A21-760-2554) WIRELESS PAIRED SYSTEM 9456 MALE FITTING...
  • Page 2 2 Corner System 2554 Figure “A” 12V BAT. – TERMINAL NUTS FUSE BOX (TIGHTEN FINGER TIGHT) RED w/ 20 AMP FUSE (+ TO BATTERY) GROUND (BLACK) VIOLET YELLOW WHITE (+ IGNITION) WHITE PRESSURE SENSORS WIRE HARNESS & CONNECTOR (TAN/WHITE, VIOLET/WHITE, GREEN)
  • Page 3 STEP 1— MOUNT THE COMPRESSOR Disconnect the negative battery cable. Select a convenient location to mount the compressor. This location should pro- vide ample airflow and be protected from airborne debris. The mounting surface should be rigid to support the compressor. The compressor is oil-less and can be mounted in any orienta- tion necessary for installation.
  • Page 4 Once the system has been turned on (press any of the buttons), the MODE and ARROW keys are used to cycle through the screen and make selections to inflate/deflate the air springs. Pressing the MODE button once will display an arrow pointing at the Front Left (FL) corner. Pressing the up/down button at this time will change the pressure in the air spring.
