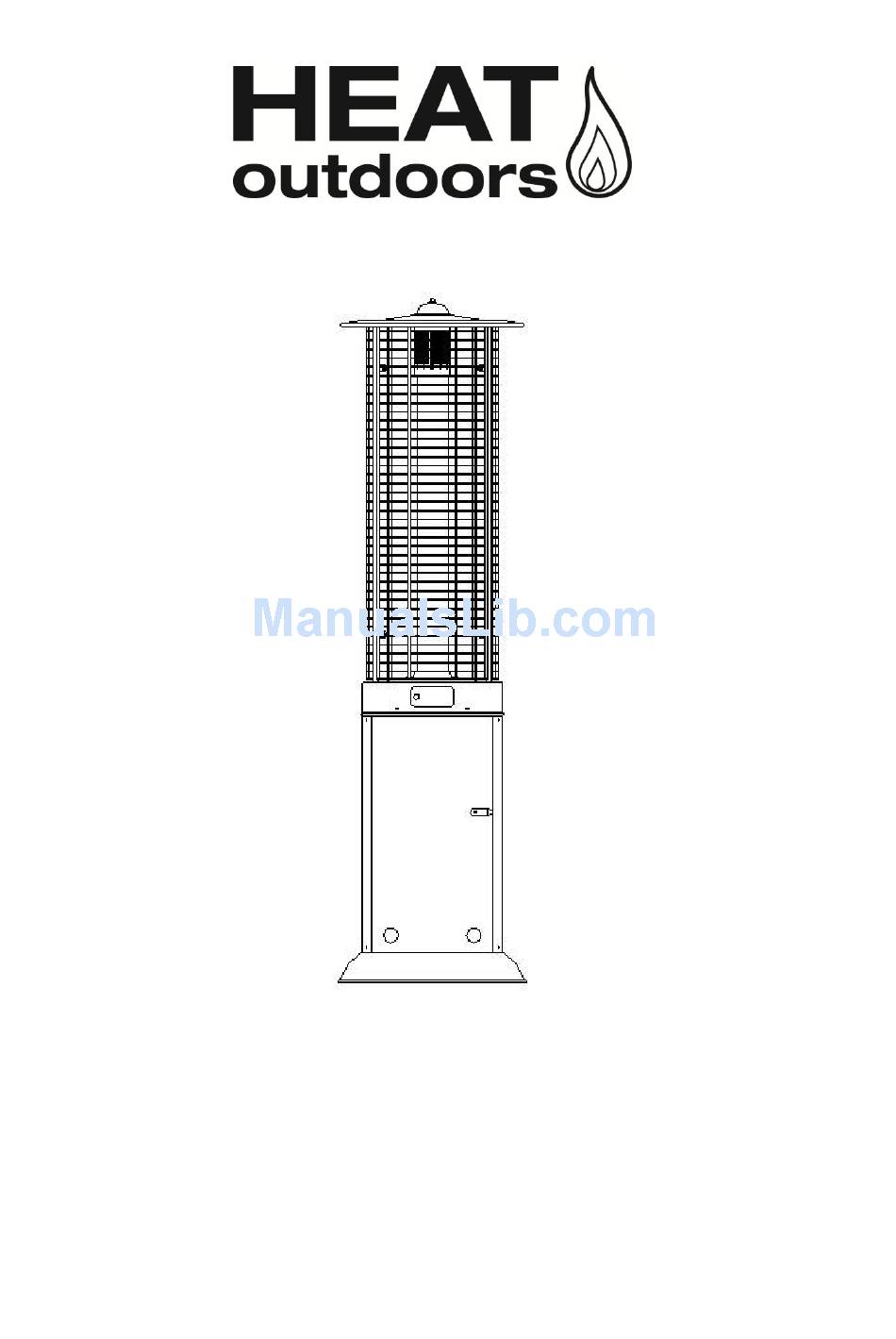

Heat Outdoors Goliath Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Goliath and is the answer not in the manual?

Questions and answers

Related Manuals for Heat Outdoors Goliath

Summary of Contents for Heat Outdoors Goliath

  • Page 3 CAUTION PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION.  This round flame heater is for outdoor use only (see attached diagrammatical representations of outdoor areas).  This outdoor heater is not intended to be installed on recreational vehicles and/or boats. ...

  • Page 4: Heater Location

    HEATER LOCATION • The heater is primarily for outdoor use only (see diagrammatical representations of outdoor areas). Do not use it for indoors or in an enclosed area. Always ensure that adequate fresh air ventilation is provided. • Do not use the heater for the heating of domestic premises. •...

  • Page 5: Gas Requirements

    GAS REQUIREMENTS  Use propane or LPG only  The heater is designed for use with 11-15kg cylinder. Maximum size of cylinder suitable for the appliance, w/ regulator attached, is 42cm x 73cm. Inner dimension of stand within the side panels is φ...

  • Page 6: Leakage Test

    LEAKAGE TEST Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness check must be performed at the installation site due to possible mishandling in shipment or excessive pressure being applied to the heater. The heater must be checked with a full cylinder. 1.

  • Page 7: Specification

    SPECIFICATION  For outdoor use only  Use propane only  Burner pressure: 28-30/37 mbar  Pilot injector: 0.20 mm  Burner injector: 1.8 mmm  Nominal heat input: 12 kW  Consumption: 450 g/hr – 870 g/hr  Weight: 30.2kg ...
  • Page 8 Step 2 2-1 To release the glass tube, remove the reflector by; 2-2. Undo the 6 x nuts on the top reflector; 2-3 Remove reflector and carefully take out glass tube and remove from its packaging Step 3 3-1 Check the ceramic cord is in place where the glass is about to be positioned at each end; 3-2 Ensure the steel grippers are in place as shown below over the chord.
  • Page 9 Step 5 5-1. Place the heater section on top of the base aligning the 5 holes in each section 3-2 Connect the supports to the heater chassis on the top with five M8 x15 mm screws Step 6 6-1. Connect the rubber hose to the heater gas intake beneath the burner 6-2, Attach jubilee clip over hose and gas intake valve and tighten.

  • Page 10: Operation

    OPERATION TO TURN ON THE HEATER WARNING 1. Turn on the valve of the gas supply cylinder. 2. Press and turn the variable control knob to PILOT position (counter- clockwise The whole gas system, hose, 90°). regulator, pilot or burner should be inspected for leak 3.

  • Page 11: Cleaning And Care

    REPLACING THE GAS CYLINDER WARNING 1. Close the valve of the gas cylinder. 2. Disconnect the regulator from the cylinder following the instructions that came with your regulator. 1. Charging cylinder must be undertaken in a 3. Replace the cylinder. flame-free atmosphere.
  • Page 12 SERVICING It is recommended that before using the heater after a period of 3 months or before the start of the heating season the owner should:  Check the condition of the gas cylinder.  Check the hose assembly for any wear damage. If the hose and regulator assembly is damaged or more than 5 years old replace with an approved hose and regulator assembly.

  • Page 13: Problems Check List

    PROBLEMS CHECK LIST PROBLEM PROBABLE CAUSE SOLUTION   There is no spark at pilot when the Igniter electrode positioned Replace igniter electrode.  control knob is pressed in and turned wrong. Replace electrode.   counterclockwise to Pilot position Igniter electrode broken.
  • Page 14 PROBLEM PROBABLY CAUSE SOLUTION   Slight smoke and odour during initial Residue from manufacturing Will stop after approx. 30 operation. processes. minutes of operation.   Thick black smoke. Blockage in burner. Turn off the heater and let it cool.
  • Page 16 Unit 9 Stort Valley Industrial Estate, Stansted Road, Bishop’s Stortford Hertfordshire CM23 2TU Tel: 01279 466 500 E-mail: info@heat-outdoor.co.uk Web: www.heat-outdoors.co.uk...
