Optiview NVR16P16-4K User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network Video Recorder User's Manual
V 2.7.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVR16P16-4K and is the answer not in the manual?

Questions and answers

Related Manuals for Optiview NVR16P16-4K

Summary of Contents for Optiview NVR16P16-4K

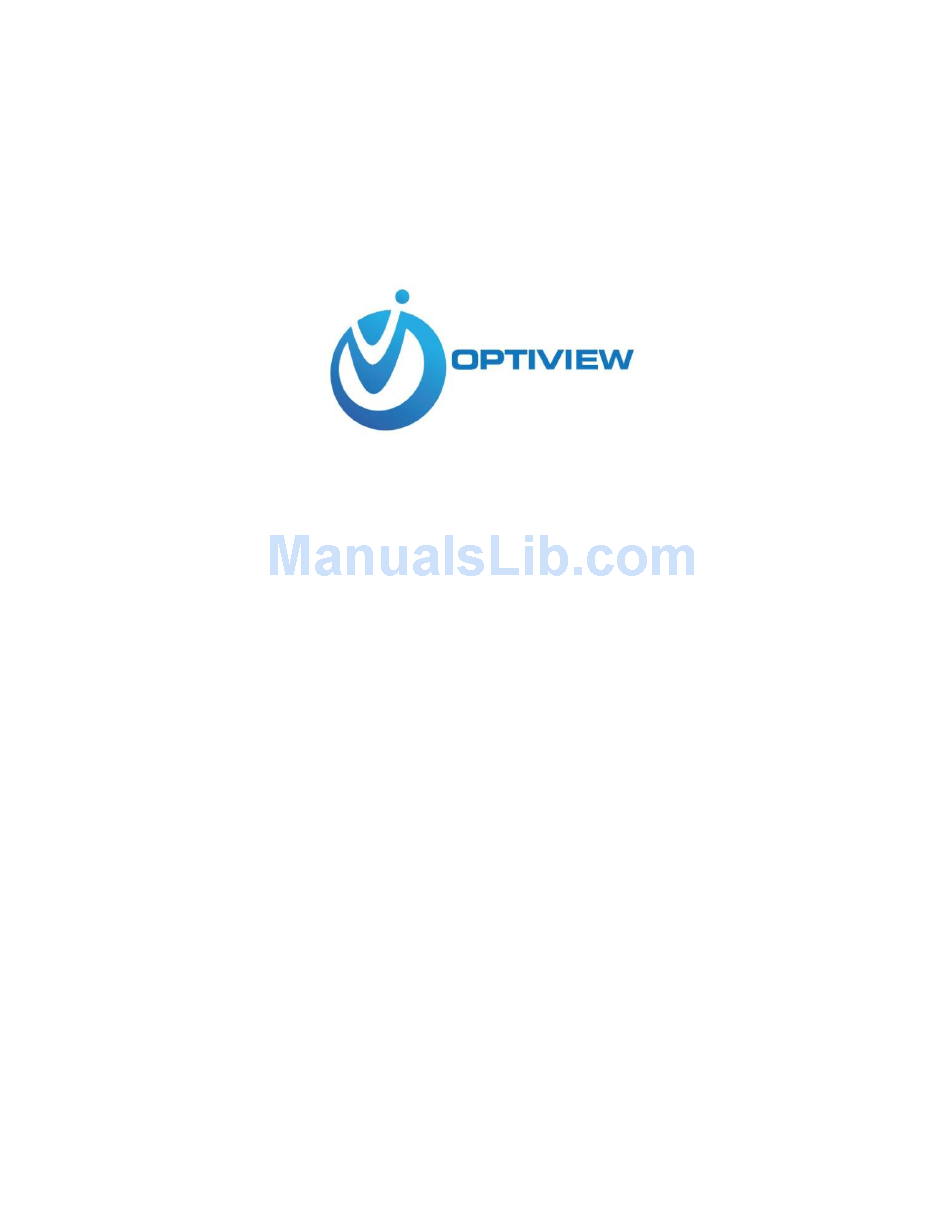

  • Page 1 Network Video Recorder User’s Manual V 2.7.0...

  • Page 2: Table Of Contents

    NVR16P16-8 / NVR32P16-8 with RAID ............... 8 1.3.4 1.3.5 NVR128-4K ......................... 10 NVR8P8-4K ......................... 12 1.3.6 NVR16P16-4K / NVR32P16-4K .................. 15 1.3.7 Front Panel and Rear Panel ..................... 17 Front Panel ........................17 2.1.1 NVR16P16-4K / NV432P16-4K .................. 18 2.1.2 NVR128-4K .........................
  • Page 3 Boot up ........................130 4.1.1 4.1.2 Shutdown ........................131 Change/Reset Password ....................131 4.2.1 Change Password ..................... 131 Reset Password ......................132 4.2.2 Startup Wizard ......................... 133 Navigation Bar ......................... 137 Main Menu ......................... 138 4.4.1 4.4.2 Dual-screen operation ....................138 Output Screen ......................
  • Page 4 Picture Playback ......................229 4.11.3 4.12 Backup ..........................230 4.12.1 File Backup ........................230 4.12.2 Import/Export ......................231 Backup Log ....................... 232 4.12.3 USB Device Auto Pop-up ..................233 4.12.4 4.13 Alarm ..........................234 Detect Alarm ......................234 4.13.1 4.13.2 IVS (Optional) ......................
  • Page 5 Event ......................... 347 5.8.3 5.8.4 Storage ........................366 Setting ........................372 5.8.5 Information ........................384 Version ........................384 5.9.1 Log ..........................384 5.9.2 5.9.3 Online User ....................... 385 5.10 Playback .......................... 385 5.10.1 Search Record ......................386 File List ........................386 5.10.2 Playback ........................

  • Page 6: Welcome

    Welcome Thank you for purchasing our network video recorder! This user’s manual is designed to be a reference tool for your system. Please open the accessory bag to check the items one by one in accordance with the list below. Contact your local retailer ASAP if something is missing or damaged in the bag.

  • Page 7: Important Safeguards And Warnings

    Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The product must be grounded to reduce the risk of electric shock. We assume no liability or responsibility for all the fires or electric shock caused by improper handling or installation.
  • Page 8  Keep away from extreme hot places and sources；  Avoid direct sunlight；  Keep away from extreme humid places；  Avoid violent vibration；  Do not put other devices on the top of the NVR；  Be installed in well ventilated place; do not block the vent. Accessories...
  • Page 9 antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. IEEE 802.11b, 802.11g or 802.11n (20MHz) operation of this product in the U.S.A. is firmware- limited to channels 1 through 11. IEEE 802.11n (40MHz) operation of this product in the U.S.A.

  • Page 10: Features And Specifications

    1 Features and Specifications 1.1 Overview This series NVR is a high performance network video recorder. This series product support local preview, multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation, and remote management and control function. This series product supports centre storage, front-end storage and client-end storage.

  • Page 11: Specifications

     Through network, sending audio/video data compressed by IPC or NVS to client-ends, then the data will be decompressed and display.  Support max 128 connections at the same time. Network  Transmit audio/video data by HTTP, TCP, UDP, MULTICAST, Monitor RTP/RTCP and etc.
  • Page 12 Operation Embedded Linux real-time operation system System Operation WEB/Local GUI Interface Video MPEG4，MJPG，H.264，H.265 Decode Compres sion Decode H.264/H.265: Max supports 64-channel D1, or 32-channel 720P, Capacity 16-channel 1080P or 4-channel 4K decode. Video 8/16/32/64-ch network compression video input Video Input Video 1-channel VGA analog video output.

  • Page 13: Nvr16P16-4 / Nvr32P16-4

    Network One RJ45 10/100/1000Mbps self-adaptive Ethernet port. Connecti Power One power socket. Power adapter power supplying. Input DC 12V-4A Port power. Power One button. At the rear panel. Button Power On-off Button Receiver Window General Indicator One power status indicator light. Light One network status indicator light.
  • Page 14 Audio Audio G.711a, G.711u, PCM, G726 (The bidirectional talk supports Parameters Compression G.711a, G.711u, PCM only.) Standard Video Input 8/16/32/64-ch network compression video input 1- channel VGA Video Output 2- channel HDMI. Video Parameters Video Compression H.264 Standard Window Split 1/4/8/9/16/25/36/64-screen.
  • Page 15 Record Mode Manual recording, motion detection recording, schedule recording and alarm recording. Priority: Manual recording>card number recording-> alarm recording>motion detection recording>schedule recording. Multi-Channel Max support 16-channel 1080P playback at the same time. Playback Functions Motion Detect Each screen supports 396/330((PAL 22×18, NTSC 22×15) detection zones.

  • Page 16: Nvr16P16-8 / Nvr32P16-8 / Nvr32-8

    1.3.3 NVR16P16-8 / NVR32P16-8 / NVR32-8 NVR16P16-8 / NVR32P16-8 / NVR32-8 Specifications Main Processor Industrial embedded micro processor Operation System Embedded LINUX system System 8/16/32/64-channel main stream supports System Resources 80/160/320/320Mbps User Interface WEB, local GUI Audio Audio Input 1-ch MIC bidirectional talk audio input Parameters Audio Output 1-ch MIC bidirectional talk audio output...

  • Page 17: Nvr16P16-8 / Nvr32P16-8 With Raid

    RS232 Port 1 RS232 port. To debug and transmit COM data. RS485 Port 1 RS485 port. To control peripheral PTZ and etc. Support various protocols. USB Port 2 USB 2.0 ports at the front panel and 2 USB3.0 ports at the rear panel.
  • Page 18 System 8/16/32/64-channel series product support 8/16/32/64-channel System Resource connection respectively. main stream bandwidth supports 48/96/192/192Mbps. Operation Embedded Linux real-time operation system System Operation WEB/Local GUI Interface Video H.264/MJPEG Decode Compres sion Decode Max supports 32-channel D1, or 16-channel 720P, or 8-channel 1080P Capacity decode.

  • Page 19: Nvr128-4K

    RS485 One RS485 port to control PTZ. Support various protocols. port USB2.0 4 peripheral USB2.0 ports. Two at the front panel and two at the rear panel. Port Network Two RJ45 10/100/1000 One RJ45 10/100/1000 Two RJ45 10/100/1000 Connecti Mbps self-adaptive Mbps self-adaptive...
  • Page 20 48/96/192/192Mbps. Operation Embedded Linux real-time operation system System Operation WEB/Local GUI Interface Video H.264/MJPEG Decode Compres sion Decode Max supports 32-channel D1, or 16-channel 720P, or 8-channel 1080P Capacity decode. Video 8/16/32/64-ch network compression video input Video Input Video 1-channel VGA analog video output. Output HDMI 1-ch HDMI output.

  • Page 21: Nvr8P8-4K

    Network Two RJ45 10/100Mbps self-adaptive Ethernet ports. Connecti Power One power port. Input 100V～240V，50~60Hz. Port Power One button. At the rear panel. Button Power One button. At the front-panel. On-off Button Support IR remote control Receiver Window Clock Built-in clock. General Indicator One power status indicator light.
  • Page 22 General Model (S2) (S2) with (S2) with with 16 PoE (S2) ports Series Series ports ports Series Series Industrial embedded micro processor System Main Processor Embedded Linux operation system 8/16/32-chann 4-channel 8-channel 16/32-channel System series series product series product series product Resources product main...
  • Page 23 General Model (S2) (S2) with (S2) with with 16 PoE (S2) ports Series Series ports ports Series Series Funciton Record Mode Manual record, motion detect record, schedule record, alarm record. The record priority: Manual record>Alarm record>Motion detect record>Schedule record Multiple-Chann Max 8-channel 1080P playback el Playback Motion Detect...

  • Page 24: Nvr16P16-4K / Nvr32P16-4K

    Dimensions(m 320mm × 48.2mm × 375mm(D*H*W) Weight 3.2Kg (No HDD) 4.1Kg (No HDD) Installation Desk/rack installation Mode NVR16P16-4K / NVR32P16-4K 1.3.7 Model General 4K 1.5U (S2) 4K 1.5U (S2) with 16 PoE ports series Industrial embedded micro processor System Main...
  • Page 25 Model General 4K 1.5U (S2) 4K 1.5U (S2) with 16 PoE ports series Video Output 1-channel VGA video output, 1-channel HDMI output Video H.264 Compression Standard Window Split 1/4/8/9/16/32-window Alarm Alarm Input 16-channel input 4-channel output:3-channel relay output, 1-channel 12V control Alarm Output MPEG4/MJPG/H.264/H.265 Decode...

  • Page 26: Front Panel And Rear Panel

    Model General 4K 1.5U (S2) 4K 1.5U (S2) with 16 PoE ports series PoE Port HDMI Port One port VGA Port One port Power Port 1 power socket. Power adapter 1 power socket. Power adapter power supplying mode. power supplying mode.

  • Page 27: Nvr16P16-4K / Nv432P16-4K

    The blue light is on when the power connection is USB2.0 port Connect to peripheral USB 2.0 storage device, mouse, burner and etc. 2.1.1 NVR16P16-4K / NV432P16-4K The front panel is shown as in Figure 2-11. Figure 2-11 Please refer to the following sheet for front panel button information.
  • Page 28 Name Icon Function Power button, press this button for three seconds to boot up Power button or shut down NVR. In textbox, click this button to switch between numeral, Shift Shift English(Small/Capitalized),donation and etc. Activate current control, modify setup, and then move up and down.

  • Page 29: Nvr128-4K

    In normal playback or pause mode, click this button to Reverse/Pau reverse || se/6 playback In reverse playback, click this button to pause playback. In playback mode, playback the next video In menu setup, go to down ward of the dropdown list. ►│...
  • Page 30 Please refer to the following sheet for front panel button information. Name Icon Function Power button Press it once to turn on the device. Press it for a long time to turn off the device (Usually we do not recommend). Press power button for a long time or pull out the power cable may result in device auto restart.

  • Page 31: Rear Panel

    2.2 Rear Panel 2.2.1 NVR8P8-2 The professional 8 channel 8 PoE ports rear panel is shown as below. See Figure 2-45. Figure 2-45 Icon Port Name Function 10M/100M/1000Mbps self-adaptive Ethernet port. Network port Connect to the network cable. High definition audio and video signal output port. It High Definition transmits uncompressed high definition video and...
  • Page 32 Icon Port Name Function Audio output port. It is to output the analog audio signal MIC OUT Audio output port to the devices such as the sound box.  Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

  • Page 33: Nvr16P16-4K / Nvr32P16-4K

    NVR16P16-4K / NVR32P16-4K 2.2.2 The Beneficio 1.5U with sixteen PoE ports series NVR rear panel is shown as below. See Figure 2-50. Figure 2-50 Please refer to the following sheet for detailed information. Name Function Power switch Power on-off button...
  • Page 34 Name Function Audio output port. It is to output the analog audio MIC OUT Audio output port signal to the devices such as the sound box.  Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback. VIEDEO OUT Video output port CVBS output...

  • Page 35: Nvr16P16-8 / Nvr32P16-8 / Nvr32-8

    Name Function USB2.0 port USB2.0 port. Connect to mouse, USB storage device, USB burner and etc. RS-232 RS232 debug It is for general COM debug to configure IP address COM. or transfer transparent COM data. High definition audio and video signal output port. It High Definition transmits uncompressed high definition video and...
  • Page 36 Please refer to the following sheet for detailed information. Name Function Power switch Power on-off button Power input port Input AC 100~240V. Network port 10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable. eSATA eSATA port External SATA port. It can connect to the device of the SATA port.

  • Page 37: Nvr8P8-4K

    Name Function Ground Alarm input ground end.  NO1～NO5 5 groups of alarm output ports. (Group 1：port Alarm output port 1 NO1～C1,Group 2:port NO2～C2,Group 3:port ～5 C1～C5 NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the alarm device.
  • Page 38 Name Function USB2.0 port. Connect to mouse, USB storage USB2.0 port device, USB burner and etc. 10M/100M/1000Mbps self-adaptive Ethernet port. Network port Connect to the network cable. RS-232 debug It is for general COM debug to configure IP RS-232 COM. address or transfer transparent COM data.

  • Page 39: Nvr16P16-4 / Nvr32P16-4

    Name Function NO1 ～ C1,Group 2:port NO2 ～ C2,Group 1～3 3:port NO3～C3）).Output alarm signal to the alarm device. Please make sure there is C1～C3 power to the external alarm device.  NO：Normal open alarm output port.  C：Alarm output public end. RS485_A port.
  • Page 40 Power input port Input AC 100~240V. MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup. Audio output port. It is to output the analog audio MIC OUT Audio output port signal to the devices such as the sound box.

  • Page 41: Nvr32P16-8 / Nvr32-8 With Raid Series

    +12V power output port. It can provide the power +12V to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A. Network port One 10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable. eSATA eSATA port External SATA port.
  • Page 42 VIEDEO Video output port CVBS output...
  • Page 43 Port Name Function  1～16 There are four groups. The first group is from Alarm input port 1 port 1 to port 4, the second group is from port 5 ～16 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16.

  • Page 44: Nvr128-4K

    Port Name Function High definition audio and video signal output port. It transmits uncompressed high definition video and High Definition HDMI multiple-channel data to the HDMI port of the Media Interface display device. HDMI version is 1.3. The two HDMI ports to output video from different video sources.
  • Page 45 Port Name Function  1～16 There are four groups. The first group is from Alarm input port 1 port 1 to port 4, the second group is from port 5 ～16 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16.
  • Page 46 Port Name Function High definition audio and video signal output port. It transmits uncompressed high definition video and High Definition HDMI multiple-channel data to the HDMI port of the Media Interface display device. HDMI version is 1.3. The two HDMI ports to output video from different video sources.

  • Page 47: Alarm Connection

    2.3 Alarm Connection Alarm Port 2.3.1 The alarm port is shown as below. See Figure 2-81. The following figure is based on the professional 2U series. Figure 2-81 Icon Function 1～16 ALARM1～ALARM16. The alarm becomes activated in the low level. NO1 C1，NO2 C2，NO3 C3，NO4 Four NO activation output groups.

  • Page 48: Alarm Input And Output Port

    Figure 2-82 Note There are two alarm input types: NO/NC. When connect the ground port of the alarm device to the NVR, you can use any of the GND ports Connect the NC port of the alarm device to the alarm input port (ALARM) of the NVR. When there is peripheral power supplying for the alarm device, please make sure it is earthed with the NVR....

  • Page 49: Pc-End To The Device-End

    Between touches with different 1000VAC 1minute polarity Between touch and winding 1000VAC 1minute Between touches with same Surge voltage 1500V (10×160us) polarity 3ms max Length of open time 3ms max Length of close time Longevity Mechanical 50×106 (3Hz) Electrical 200×103 (0.5Hz) Temperature -40℃...

  • Page 50: Mouse Operation

    Login the Web and then enable the corresponding channel real-time monitor. Please refer to the above interface (Figure 2-83) to enable bidirectional talk. Listening Operation At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the device-end.

  • Page 51: Remote Control

    In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. Right click In real-time monitor mode, pops up shortcut menu. mouse Exit current menu without saving the modification. Press middle In numeral input box: Increase or decrease numeral value.
  • Page 52 Forward Various forward speeds normal speed playback. Slow play Multiple slow play speeds or normal playback. Next record In playback mode, playback the next video. Previous record In playback mode, playback the previous video. Play/Pause In pause mode, click this button to realize normal playback.
  • Page 53 In motion detection interface, working with direction keys to complete setup. In text mode, click it to delete character. 0-9 number key Input password, channel switch channel. Shift is the button to switch the input method.

  • Page 54: Device Installation

    3 Device Installation Note: All the installation and operations here should conform to your local electric safety rules. 3.1 Check Unpacked NVR When you receive the NVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the NVR can protect most accidental clashes during transportation.

  • Page 55: Smart 1U Series

    horizontally . After the HDD is in the proper position, the columns on the two sides can lock the screw holes of the HDD to secure When you remove the HDD, please refer to the following figure to pull the spring up and then remove the HDD.
  • Page 56 ○ ○ Put the cover in accordance with Secure the screws in the rear panel and the side panel. the clip and then place the upper cover back. Mini 1U/Compact 1U Series 3.3.3 ○ ○ ○ . Loosen the screws of the upper Fix four screws in the HDD Place cover and side panel.
  • Page 57 1U Series 3.3.4 The following figures are based on the professional 1U with 8 PoE ports series. ② ③ ○ 1 Fix four screws in the HDD (Turn Place the HDD in accordance with Loosen the screws of the upper cover and side panel.
  • Page 58 ① Use the screwdriver to loose the screws of the rear ② Put the HDD to the HDD bracket in the chassis panel and then remove the front cover. and then line up the four screws to the four holes in the HDD.
  • Page 59 ③ ④ Connect to the HDD data cable to the main board After connect the cable, put the front cover and the HDD port respectively. Loosen the power cable back to the device and then fix screws of the rear of the chassis and connect another end of the power panel.
  • Page 60 ①Line up the handle to the HDD side (without ②Use the screwdriver to fix the handle on the the interface) HDD. 3U Series 3.3.8 ①Use four screws to secure the HDD. ②Put the HDD to the HDD box at the front panel of the device.

  • Page 61: Connection Sample

    collides with the front panel 3.4 Connection Sample NVR8P8-2 3.4.1 Please refer to Figure 3-9 for connection sample. The following figure is based on our beneficio 1U with 8 PoE ports product. Figure 3-9 NVR16P16-4 / NVR32P16-4 3.4.2 Please refer to Figure 3-11 for connection sample.

  • Page 62: Nvr16P16-8 / Nvr32P16-8

    The following interface is based on the beneficio 4K 1.5U series product. Figure 3-12 3.4.3 NVR16P16-8 / NVR32P16-8 Please refer to Figure 3-14 for connection sample. The following interface is based on the 2U with 16PoE ports series product. Figure 3-14...

  • Page 63: Nvr128-4K

    NVR128-4K 3.4.4 Please refer to Figure 3-23 for connection sample. Figure 3- 4 Local Basic Operation 4.1 Boot up and Shutdown Boot up 4.1.1 Caution Before the boot up, please make sure: For device security, please connect the NVR to the power adapter first and then connect the device to the power socket....

  • Page 64: Shutdown

    the system is in multiple-channel display mode by default. Shutdown 4.1.2 Note  When you see corresponding dialogue box “System is shutting down…” Do not click power on-off button directly. Do not unplug the power cable or click power on-off button to shutdown device directly when device is running (especially when it is recording.)...

  • Page 65: Reset Password

    For reset information, please refer to chapter 4.2.2. Figure 4-1 Click Cancel button, system pops up the following interface for you to confirm. See Figure 4-2. Check the box here, system will not pop up the change password interface the next time. Figure 4-2 Reset Password 4.2.2...

  • Page 66: Startup Wizard

    Figure 4-3 System pops up the following dialogue box, please answer the security questions and then input the new password twice. See Figure 4-4. Figure 4-4 4.3 Startup Wizard After device successfully booted up, it goes to startup wizard. Click Cancel/Next button, you can see system goes to login interface. Tips Check the box Startup button here, system goes to startup wizard again when it boots up the next time.
  • Page 67 Figure 4-5 Click Smart add, Cancel button or Next button, system goes to login interface. See Figure 4-6. System consists of three accounts: Username: admin. Password: admin. (administrator, local and network) Username: 888888. Password: 888888. (administrator, local only)  Username: default. Password: default (hidden user). Hidden user “default” is for system interior use only and can not be deleted.
  • Page 68 Figure 4-7 Click Next button, you can go to network interface. See Figure 4-8. For detailed information, please refer to chapter 4.14. Figure 4-8 Click Next button, you can set P2P function. Scan the QR code, download the App to the cellphone, you can use the smart phone to add the device.
  • Page 69 Figure 4-9 Click Next button, you can go to remote device interface. See Figure 4-10. For detailed information, please refer to chapter 4.5. Figure 4-10...

  • Page 70: Navigation Bar

    Click Next button, you can go to Schedule interface. See Figure 4-11. For detailed information, please refer to chapter 4.10.2. Figure 4-11 Click Finish button, system pops up a dialogue box. Click the OK button, the startup wizard is complete. See Figure 4-12.

  • Page 71: Main Menu

    4.4.1 Main Menu Click button to go to the main menu interface. Dual-screen operation 4.4.2 Important This function is for some series only. Click to select screen 2, you can view an interface shown as below. See Figure 4-14. It is a navigation bar for screen 2.

  • Page 72: Channel Info

    Click button , system goes to alarm status interface. It is to view device status and channel status. Please refer to chapter 4.17.1.4. 4.4.9 Channel Info Click , system goes to the channel information setup interface. It is to view information of the corresponding channel.
  • Page 73 When the network camera(s) and the NVR are in the same router or switch, you can use smart add function to add all network cameras to the NVR at the same time. There are two ways for you to go to the smart add interface. From the startup wizard, click Smart add button.
  • Page 74 Figure 4-19 Click smart add button, you can see device enables DHCP function. See Figure 4-20. Figure 4-20...
  • Page 75 System pops up the following interface for you to confirm IP information if there are several IP segments. See Figure 4-21. Figure 4-21 Now you can see system is auto adding IPC to the corresponding channels. See Figure 4-22. Figure 4-22...

  • Page 76: Camera

    You can see the following dialog box after system successfully added network cameras. See Figure 4-23. Figure 4-23 4.6 Camera 4.6.1 Registration From Main menu->Setting->Camera->Registration, you can see the following interface. See Figure 4-24. Device search: Click the button; you can search all network cameras in the same network segment. Channel: It is the device channel number.
  • Page 77 Figure 4-24 Modify: Click Modify button, you can see the following interface. See Figure 4-25.  Name: Change current channel name.  Protocol: Select protocol from the dropdown list.  IP Address: Input IP address here.  TCP port: Input TCP port value. ...

  • Page 78: Short-Cut Menu

    Figure 4-25 4.6.2 Short-Cut Menu In the preview interface, for the channel of no IPC connection, you can click the icon “+” in the centre of the interface to quickly go to the registration interface (Figure 4-24.). See Figure 4-26. Figure 4-26 4.6.3 Image From main menu->setting->camera->image, you can see the image interface is shown as below.
  • Page 79 Brightness: It is to adjust monitor window bright. The value ranges from 0 to 100. The default value is 50. The larger the number is, the bright the video is. When you input the value here, the bright section and the dark section of the video will be adjusted accordingly. You can use this function when the whole video is too dark or too bright.

  • Page 80: Channel Name

    Figure 4-27 4.6.4 Channel Name From main menu->Setting->Camera-Channel name, you can see an interface shown as in Figure 4-28. It is to modify channel name. It max supports 31-character. Please note you can only modify the channel name of the connected network camera. Figure 4-28...

  • Page 81: Upgrade

    4.6.5 Upgrade Note Right now, the NVR can upgrade the IPC via the USB device or WEB. You can upgrade 8 network cameras of the same model (or the NVR supported) at the same time. It is to update the network camera. From main menu->setting->camera->remote, the interface is shown as below.

  • Page 82: Built-In Switch Setup

    4.6.7 Built-in Switch Setup The built-in switch function is for product of PoE port. From Main menu->Setting->Network->Switch, you can set switch IP address, subnet mask, gateway and etc. See Figure 4-31. Figure 4-31 4.7 Preview After device booted up, the system is in multiple-channel display mode. See Figure 4-32.Please note the displayed window amount may vary.

  • Page 83: Preview Control Interface

    If you want to change system date and time, you can refer to general settings (Main Menu->Setting- >System->General). If you want to modify the channel name, please refer to the display settings (Main Menu->Camera->CAM name) Please refer to the following sheet for detailed information. Recording status Video loss Motion detection...

  • Page 84: Right Click Menu

    Put the middle button at the centre of the zone you want to zoom in, and move the mouse, you can view an interface shown as in Figure 4-35. Figure 4-35 Right click mouse to cancel zoom and go back to the original interface. Manual record function It is to backup the video of current channel to the USB device.

  • Page 85: Preview Display Effect Setup

    Search: Click it to go to Search interface to search and playback a record file. Record control: Enable/disable record channel. Alarm output: It is to set alarm output mode. Camera registration: Search and add a remote device. Alarm output: Generate alarm output signal manually. Main menu: Go to system main menu interface....
  • Page 86 Please refer to the following sheet for detailed information. Item Note Period There are two periods in one day. You can set different sharpness, brightness, and contrast setup for different periods. Effective Time Check the box here to enable this function and then set period time.
  • Page 87 4.7.4.2 Display From Main Menu->Setting->System->Display, you can go to the following interface. See Figure 4-38. Here you can set menu and video preview effect. All you operation here does not affect the record file and playback effect. Figure 4-38 Now you can set corresponding information. Display the intelligent rule(s): Check the box to enable IVS function, system can display IVS rule on the preview interface.

  • Page 88: Preview Tour Parameters

    VGA+HDMI2: It is for dual-screen operation. Please select from the dropdown list according to your actual situation. Click Apply button, system needs to restart to activate new setup. For example, 32+4 means for VGA, system max supports 32-window split and for HDMI2, system max supports 4-window split.

  • Page 89: Fish Eye (Optional)

    Set preview display mode: On the preview interface, right click mouse, you can view right-click menu. Now you can select preview window amount and channel. Set channel display mode: On the preview interface, if you want to change channel 1 and channel 16 position, please right click channel 1 video window and then drag to the channel 16 video window, release button, you can change channel 1 and channel 16 position....
  • Page 90 Figure 4-41. Figure 4-41 Now you can see an interface shown as in Figure 4-42. You can set fish eye installation mode and display mode. Note: For the non-fish eye channel, system pops up dialogue box to remind you it is not a fish eye channel and does not support de-warp function....
  • Page 91 There are three installation modes: ceiling mount/wall mount/ground mount. The different installations modes have different de-warp modes. Please refer to the following sheet for detailed information. Installation modes Icon Note 360°panorama original view （Ceiling mount） 1 de-warp window+1 panorama stretching panorama stretching view （Ground mount）...

  • Page 92: Ptz

    4.8.2 Fish eye de-warp during playback On the main menu, click search button. Select 1-window playback mode and corresponding fish eye channel, click to play. Right click , you can go to the de-warp playback interface. For detailed information, please refer to chapter 4.8.1.
  • Page 93 Figure 4-44 If you are connecting to network PTZ, the PTZ type shall be remote. See Figure 4-45. Figure 4-45 PTZ Control 4.9.2 After completing all the setting please click save button. Right click mouse (click “Fn” Butto n in the front panel or click “Fn”...
  • Page 94 Figure 4-46 The PTZ setup is shown as in See Figure 4-47. Please note the commend name is grey once device does not support this function. The PTZ operation is only valid in one-window mode. Here you can control PTZ direction, speed, zoom, focus, iris, preset, tour, scan, pattern aux function, light and wiper, rotation and etc.
  • Page 95 zone you dragged, the higher the speed. Figure 4-48 Name Function function Shortcut Function function Shortcut  Zoom Near  ► │ │ Focus Near   Iris close Open In Figure 4-47, click to open the menu, you can set preset, tour, pattern, scan and etc. See Figure 4-49.
  • Page 96 Click , you can go to the following interface to set preset, tour, pattern, and scan. See Figure 4-50. Figure 4-50 Preset Setup In Figure 4-50, click preset button and use eight direction arrows to adjust camera to the proper position. The interface is shown as in Figure 4-51.
  • Page 97 Figure 4-52 Pattern Setup In Figure 4-50, click Pattern button and input pattern number. Click Begin button to start direction operation. Or you can go back to Figure 4-47 to operate zoom/focus/iris/direction operation. In Figure 4-50, click End button. Figure 4-53 Scan Setup In Figure 4-50, click Scan button.
  • Page 98 Figure 4-54 4.9.2.2 Call PTZ Function Call Preset In Figure 4-49, input preset value and then click to call a preset. Click again to stop call. Call Pattern In Figure 4-49, input pattern value and then click to call a pattern. Click again to stop call.

  • Page 99: Record And Snapshot

    Figure 4-55 4.10 Record and Snapshot The record/snapshot priority is: Alarm->Motion detect->Schedule. 4.10.1 Encode 4.10.1.1 Encode Encode setting is to set IPC encode mode, resolution, bit stream type and etc From Main menu->Setting->System->Encode, you can see the following interface. See Figure 4-56. Channel: Select the channel you want....
  • Page 100 Figure 4-56 4.10.1.2 Overlay Click overlay button, you can see an interface is shown in Figure 4-57. Cover area: Here is for you to cover area section. You can drag you mouse to set proper section size. In one channel video, system max supports 4 zones in one channel. You can set with Fn button or direction buttons....
  • Page 101 Figure 4-57 4.10.1.3 Snapshot Here you can set snapshot mode, picture size, quality and frequency. See Figure 4-58. Snapshot mode: There are two modes: regular and trigger. If you set regular mode, you need to set snapshot frequency. If you set trigger snapshot, you need to set snapshot activation operation. Image size: Here you can set snapshot picture size....

  • Page 102: Schedule

    Figure 4-58 Figure 4-59 4.10.2 Schedule The record type priority is: Alarm>Motion detect>Regular. 4.10.2.1 Schedule Record Set record time, record plan and etc. Please note system is in 24-hour record by default after its first boot up. In the main menu, from Main menu->Setting->Storage->Schedule, you can go to schedule menu. See Figure 4-63.
  • Page 103  Channel: Please select the channel number first. You can select “all” if you want to set for the whole channels.  : Sync connection icon. Select icon of several dates, all checked items can be edited or together. Now the icon is shown ...
  • Page 104 Figure 4-62 Please check the box to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu. There are color bars for your reference. Green color stands for regular recording, yellow color stands for motion detection and red color stands for alarm recording.
  • Page 105 Figure 4-64 Quick Setup Copy function allows you to copy one channel setup to another. After setting in channel 1, click Copy button, you can go to interface Figure 4-65. You can see current channel name is grey such as channel 1. Now you can select the channel you want to paste such as channel 5/6/7.
  • Page 106 Figure 4-66 From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface. See Figure 4-67. Select the snapshot channel from the dropdown list and then select snapshot mode as Timing (Schedule) from the dropdown list and then set picture size, quality and snapshot frequency. Figure 4-67...

  • Page 107: Motion Detect Record/Snapshot

    In the main menu, from Main menu->Setting->Storage->Schedule, you can go to schedule menu. See Figure 4-63. Here you can set snapshot period. There are total six periods in one day. Please refer to chapter 4.10.2.1 for detailed setup information. The setup steps are general the same. Figure 4-68 Note Please note the trigger snapshot has the higher priority than regular snapshot.
  • Page 108 Figure 4-69 Select motion detect from the event type dropdown list. Select a channel from the dropdown list and then check the enable button to enable motion detect function. Click Region Select button to set motion detect zone. There are 396(PAL)/330(NTSC) small zones.
  • Page 109 Click Copy button to copy current setup to other channel(s). Click OK button to complete motion detect record setup. Figure 4-70 Figure 4-71 4.10.3.2 Motion Detect Snapshot From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface. See Figure 4-72. In Figure 4-72, select trigger snapshot from the dropdown list and then set picture size, quality and snapshot frequency.

  • Page 110: Alarm Record/Snapshot

    Figure 4-72 4.10.4 Alarm Record/Snapshot 4.10.4.1 Alarm Record Before you set alarm setup information, please go to chapter 2.3 to connect alarm input and alarm output cable (such as light, siren and etc). The record priority is: Alarm>Motion detect>Regular. In the main menu, from Setting->Event-> Alarm, you can see alarm setup interface. See Figure 4-73. Alarm in: Here is for you to select channel number....
  • Page 111 Figure 4-73 From Mani menu->Setting->Storage->Schedule, you can go to Figure 4-63. Select alarm channel, period and the record type shall be alarm. Please refer to chapter 4.10.2. Click Copy button to copy current setup to other channel(s). Click OK button to save alarm record information. 4.10.4.2 Alarm Snapshot Please refer to Step a) to step c) of chapter 4.10.3.2 to enable timing snapshot.

  • Page 112: Manual Record/Snapshot

    Figure 4-74 4.10.5 Manual Record/Snapshot You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed. 4.10.5.1 Manual Record Right click mouse select manual record main menu, from Setting->Storage->Manual Record. Manual record menu is shown as in Figure 4-75. Tips You can click Rec button on the front panel (if possible) to go to the Manual Record interface.

  • Page 113: Holiday Record/Snapshot

    Figure 4-75 Check the box here to select manual record channel(s). You can see the corresponding indicator light on the front panel is on. Channel: It is to display device all channels. Manual: It has the highest priority. Enable corresponding channel to record no matter what period applied in the record setup.
  • Page 114 Figure 4-76 Click Add new holiday button, you can see an interface shown as in Figure 4-77. Here you can set holiday date name, repeat mode, start time/end time and etc. Figure 4-77 Click Add button to complete holiday setup. Now you can enable holiday setup and then click Apply button.

  • Page 115: 7Other Record/Snapshot

    4-78. Now you can set period and record type of holiday time. Please refer to chapter 4.10.2.1 for detailed setup information. Figure 4-78 Click OK button to set holiday record setup. 4.10.6.2 Holiday Snapshot Set Holiday date first. Please refer to step a) to step c) of chapter 4.10.6.1. From Main menu->Setting->Storage->Schedule, you can go to schedule interface.
  • Page 116 Figure 4-79 Please refer to the following sheet for more information. Name Function  Here is to display the searched picture or file. Display  Support 1/4/9/16-window playback. (It depends on the product channel window amount).  Here you can select to search the picture or the recorded file. ...
  • Page 117  channel In 4-window playback mode: you can select 4 channels according to your selection requirement.  pane. In 9-window playback mode, you can switch between 1-8, 9-16 and etc channels.  In 16-window playback mode, you can switch between1-16, 17-32 and etc channels.
  • Page 118 │ to begin frame by frame playback. In frame by frame playback mode, click ►/ to restore normal playback. ► Slow play In playback mode, click it to realize various slow play modes such as slow play 1, slow play 2, and etc. Fast forward ...
  • Page 119 supports customized path setup. After select or create new folder, click the Start button to begin the backup operation. The record file(s) will be saved in the specified folder.  Check the file again you can cancel current selection. System max supports to display 32 files from one channel.
  • Page 120 When the system is in full-screen playback mode, left click the mouse in the Digital screen. Drag your mouse in the screen to select a section and then left click zoom mouse to realize digital zoom. You can right click mouse to exit. Manually switch During the file playback process, you can switch to other channel via the...
  • Page 121 right corner to search records by time. See image on the left side of the Figure 4-81 For example, input time 11:00.00 and then click Search , you can view all the record files after 11:00.00 (The records includes current time.). See image on the right side of the Figure 4-81 Double click a file name to playback.

  • Page 122: Picture Playback

    Here you can set to begin playback from previous N seconds of the mark time. Note Usually, system can playbacks previous N seconds record if there is such kind of record file. Otherwise, system playbacks from the previous X seconds when there is such as kind of record. Mark Manager...

  • Page 123: Backup

    4.12 Backup 4.12.1 File Backup In this interface, you can backup record file to the USB device. a) Connect USB burner, USB device or portable HDD and etc to the device. b) From Main menu->Backup, you can go to the Backup interface. See Figure 4-84 Figure 4-84 c) Select backup device and then set channel, file start time and end time.

  • Page 124: Import/Export

    Figure 4-85 h) Click backup button, system begins burning. At the same time, the backup button becomes stop button. You can view the remaining time and process bar at the left bottom. Note  During backup process, you can click ESC to exit current interface for other operation (For some series product only).

  • Page 125: Backup Log

    Figure 4-86  Export: Please connect the peripheral device first and then go to the following interface. Click Export button, you can see there is a corresponding “Config_Time” folder. Double click the folder, you can view some backup files. Import: Here you can import the configuration files from the peripheral device to current device. need to select a folder first.

  • Page 126: Usb Device Auto Pop-Up

    Figure 4-87 b) Select log type and then set start time/end time, click Search button, you can see log time and event information. Click to view detailed log information. c) Select log items you want to save and then click backup button, you can select a folder to save them.

  • Page 127: Alarm

    Figure 4-88 4.13 Alarm 4.13.1 Detect Alarm In the main menu, from Setting to Detect, you can see motion detect interface. See Figure 4-89.There are three detection types: motion detection, video loss, tampering. 4.13.1.1 Motion Detect After analysis video, system can generate a motion detect alarm when the detected moving signal reached the sensitivity you set here.
  • Page 128 Latch: when motion detection complete, system auto delays detecting for a specified time. The value ranges from 1-300(Unit: second) Show message: System can pop up a message to alarm you in the local host screen if you enabled this function. Alarm upload: System can upload the alarm signal to the network (including alarm centre) if you enabled current function....
  • Page 129 Figure 4-89 Figure 4-90...
  • Page 130 Figure 4-91 Figure 4-92...
  • Page 131 Figure 4-93 Motion detect here only has relationship with the sensitivity and region setup. It has no rel ationship with other setups. 4.13.1.2 Tampering When someone viciously masks the lens, or the output video is in one -color due to the environments light change, the system can alert you to guarantee video continuity.
  • Page 132 Figure 4-94 4.13.1.3 Video Loss In Figure 4-89, select video loss from the type list. You can see the interface is s hown as in Figure 4- 95. This function allows you to be informed when video loss phenomenon occurred. You can enable alarm output channel and then enable show message function.

  • Page 133: Ivs (Optional)

    Figure 4-95 4.13.2 IVS (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! From main menu->Setting->Event, you can go to the IVS interface. It includes four interfaces: Tripwire/intrusion/object/scene. 4.13.2.1 Tripwire （Optional） Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! System generates an alarm once there is any object crossing the tripwire in the specified direction.
  • Page 134 Figure 4-96 Check the Enable box to enable tripwire function. Click Rule setup to draw the tripwire. See Figure 4-97. Figure 4-97 Select SN (Line1/2/3/4) and direction, and then input customized rule name. Line1/2/3/4: System supports four tripwires. Each SN stands for one tripwire....
  • Page 135 Direction ( ): System can generate an alarm once there is any object crossing in the specified direction. Now you can draw a rule. Left click mouse to draw a tripwire. The tripwire can be a direct line, curve or polygon.
  • Page 136 the icon is shown as . Click to delete a record type from one period.  In Figure 4-92. Click button after one date or a holiday, you can see an interface shown as in Figure 4-93. Alarm output: when an alarm occurs, system enables peripheral alarm devices. Latch: when tripwire complete, system auto delays detecting for a specified time.
  • Page 137 Figure 4-100 Figure 4-101 4.13.2.2 Intrusion (Cross warning zone) （Optional） Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! System generates an alarm once there is any object entering or exiting the zone in the specified direction. From main menu->Setting->Event->IVS->Intrusion, the intrusion interface is shown as below.
  • Page 138 Figure 4-102 Check the enable box to enable intrusion function. Click Rule setup to draw the zone. See Figure 4-103. Figure 4-103 Select SN (Area1/2/3/4) and direction, and then input customized rule name. Area1/2/3/4: System supports four zones. Each SN stands for one zone. Direction ): System can generate an alarm once there is any object enter/exit (Or both) the zone....
  • Page 139 Click to delete the corresponding rule. You can refer to the chapter 4.13.2.1 to set parameters. 4.13.2.3 Object Detect （Optional） Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! For the same channel, the object detect and the intrusion can not be valid at the same time. System generates an alarm when the object missing/abandoned object alarm occurs.
  • Page 140 Select SN (object1/2/3/4) and direction, and then input customized rule name. Object1/2/3/4: System supports four zones. Each SN stands for one zone. Direction ( ): For icon , system can generate an alarm once the object left in the one for the specified time.. For icon , system can generate an alarm once the object is out of the zone for the specified time.

  • Page 141: Face Detect (Optional)

    4.13.3 Face Detect (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! When camera detects human face, system can generate an alarm. From main menu->Setting->Event->Face detect, the interface is shown as in Figure 4-107. Face ROI: Check the box here, system can enhance the human face display pane....

  • Page 142: Alarm Output

    Threshold: It is to set intensity change threshold. The smaller the value is, the higher the sensitivity is. Log: Check the box here, system can record audio detect alarm log.  You can refer to the chapter 4.13.2.1 t to set other parameters. Figure 4-108 4.13.5 Alarm output From Main menu->Setting->Event->Alarm output, you can see an interface shown as in Figure 4-109.

  • Page 143: Alarm Setup

    Figure 4-109 Please highlight icon to select the corresponding alarm output. After all the setups please click OK button, system goes back to the previous menu. 4.13.6 Alarm Setup In the main menu, from Setting->Event->Alarm, you can see alarm setup interface. Alarm in: Here is for you to select channel number....
  • Page 144 screen prompt, alarm upload, email will not be activated again. After 10s, if system detects another alarm signal, it can generate an alarm since the anti-dither time is out. Alarm output: The number here is the device alarm output port. You can select the corresponding ports(s) so that system can activate the corresponding alarm device(s) when an alarm occurred....
  • Page 145 Figure 4-110 Figure 4-111...
  • Page 146 Figure 4-112 Figure 4-113...
  • Page 147 Figure 4-114 Figure 4-115...

  • Page 148: Abnormality

    Figure 4-116 Please highlight icon to select the corresponding function. After setting all the setups please click save button, system goes back to the previous menu. 4.13.7 Abnormality There are two types: Disk/Network.  Disk: Disk error, no disk, no space. See Figure 4-117 and Figure 4-118. ...
  • Page 149 Figure 4-117 Figure 4-118...

  • Page 150: Network

    Figure 4-119 4.14 Network 4.14.1.1 TCP/IP The single network adapter interface is shown as in Figure 4-120 and the dual network adapters interface is shown as in Figure 4-121. Network Mode : Includes multiple access, fault tolerance, and load balancing ...
  • Page 151 IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP address format and you can access via them. MAC address: The host in the LAN can get a unique MAC address. It is for you to access in the LAN. It is read-only....
  • Page 152 Figure 4-120 Figure 4-121 4.14.1.2 Connection The connection setup interface is shown as in Figure 4-122. Max connection: system support maximal 128 users. 0 means there is no connection limit. TCP port: Default value is 37777....
  • Page 153 UDP port: Default value is 37778. HTTP port: Default value is 80. HTTPS port: Default value is 443. RTSP port: Default value is 554. Important: System needs to reboot after you changed and saved any setup of the above four ports. Please make sure the port values here do not conflict.
  • Page 154 Figure 4-123 4.14.1.3.2 Advanced Click Advanced, you can see an interface shown as below. See Figure 4-124. IPv4 address: Input WIFI AP IP address. IPv4 netmask: Input WIFI AP network mask. IPv4 gateway: Input WIFI AP gateway. Start IP/End IP: Input start IP and end IP of the network cameras. The NVR can allocate the IP addresses in the range you specified here....
  • Page 155 Figure 4-124 4.14.1.4 WIFI The WIFI interface is shown as below. See Figure 4-125. Enable: Check the box here to enable WIFI function. Refresh: You can click it to search the hotspot list again. It can automatically add the information such as the password if you have set it before....
  • Page 156 Figure 4-125 WIFI working status: Here you can view current connection status. Please note: After successful connection, you can see WIFI connection icon at the top right corner of the preview interface. When the hotspot verification type is WEP, system displays as AUTO since the device can not detect its encryption type....
  • Page 157 APN: It is the wireless connection server. It is to set you access the wireless network via which method. AUTH: It is the authentication mode. It supports PAP/CHAP. Dial number: Please input 3G network dialup number you got from your ISP. User name: It is the user name for you to login the 3G network....
  • Page 158 Figure 4-127 4.14.1.7 DDNS DDNS setup interface is shown as in Figure 4-128. You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In other words, this PC is a DNS (domain name server). In network DDNS, please select DDNS type and highlight enable item.
  • Page 159 Figure 4-128 Please note DDNS type includes: CN99 DDNS, NO-IP DDNS, Quick DDNS, Dyndns DDNS and sysdns DDNS. All the DDNS can be valid at the same time, you can select as you requirement. Private DDNS function shall work with special DDNS server and special Professional Surveillance Software (PSS).
  • Page 160 the device IP. User name: It is optional. You can input your commonly used email address. Important Do not register frequently. The interval between two registrations shall be more than 60 seconds. Too many registration requests may result in server attack. System may take back the domain name that is idle for one year.
  • Page 161 Figure 4-129 Figure 4-130 4.14.1.9 IP Filter IP filter interface is shown as in Figure 4-131. You can add IP in the following list. The list supports max 64 IP addresses. System supports valid address of IPv4 and IPv6. Please note system needs to check the validity of all IPv6 addresses and implement optimization.
  • Page 162 Type: You can select trusted site and blacklist from the dropdown list. You can view the IP address on the following column. Start address/end address: Select one type from the dropdown list, you can input IP address in the start address and end address. Now you can click Add IP address or Add IP section to add. For the newly added IP address, it is in enable status by default.
  • Page 163 Figure 4-132 4.14.1.10 Email The email interface is shown as below. See Figure 4-133. SMTP server: Please input your email SMTP server IP here. Port: Please input corresponding port value here. User name: Please input the user name to login the sender email box. Password: Please input the corresponding password here....
  • Page 164 Figure 4-133 4.14.1.11 FTP You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP service. Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-U Administrator. Now you can set user password and FTP folder. Please note you need to grant write right to FTP upload user.
  • Page 165 or not. See Figure 4-135. Figure 4-135 System also supports upload multiple NVRs to one FTP server. You can create multiple folders under this FTP. FTP interface is shown as in Figure 4-136. Please highlight the icon in front of Enable to activate FTP function. Here you can input FTP server address, port and remote directory.
  • Page 166 4.14.1.12 SNMP SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network management frame of the network management system. The SNMP widely used in many environments. It is used in many network device, software and system. You can set in the following interface.
  • Page 167 Figure 4-138 Here you can set a multiple cast group. Please refer to the following sheet for detailed information. IP multiple cast group address  -224.0.0.0-239.255.255.255 -“D” address space The higher four-bit of the first byte=”1110”  Reserved local multiple cast group address -224.0.0.0-224.0.0.255 -TTL=1 When sending out telegraph -For example...
  • Page 168 After you logged in the Web, the Web can automatically get multiple cast address and add it to the multiple cast groups. You can enable real-time monitor function to view the view. Please note multiple cast function applies to special series only. 4.14.1.14 Alarm Centre This interface is reserved for you to develop.
  • Page 169 Figure 4-140 2) The proxy server software developed from the SDK. Please open the software and input the global setup. Please make sure the auto connection port here is the same as the port you set in the previous step. 3) Now you can add device.
  • Page 170 Figure 4-141 Android: Open Google Play app in your smart phone. Search gDMSS Lite or gDMSS Plus, download it and install. iOS: Open App Store app in your smart phone. Search iDMSS Lite or iDMSS Plus, download it and install. Please follow the steps listed below.
  • Page 171 Figure 4-142 4.14.1.17 Easy Space This function allows you to upload motion detect record or snapshot image to the dropbox and etc. The easy space interface is shown as below. See Figure 4-143. Please select the easy space address from the dropdown list and then input corresponding user name and password.
  • Page 172 Note： The uploaded file is for sub stream only. Please go to record control interface (main stream- >setting->Storage->Record) and then select sub stream. The easy space function uses upload bandwidth. Usually the recommended upload bandwidth shall be more than 512kbps and please make sure the network is stable. The easy space upload data adopts safe SSL encryption connection.
  • Page 173 You can view all connected network adapter names (including Ethernet, PPPoE, WIFI, and 3G), you can click the button on the right panel to begin Sniffer. Click the grey stop button to stop. Please note system can not Sniffer several network adapters at the same time. After Sniffer began, you can exit to implement corresponding network operation such as login WEB, monitor.

  • Page 174: Hdd Setup

    Figure 4-146 4.15 HDD Setup Here you can view HDD information such as type, status, total capacity, record time and etc. The operation includes format, resume from error, change HDD property (Read write, Read-only). Here you can also set alarm and HDD storage position. 4.15.1 Format From Mani-menu->Setting->Storage->HDD Manager, you can go to HDD management interface.

  • Page 175: Hdd Information

    Figure 4-147 b) Select a HDD and then select format from the dropdown list. Click Execute button. c) Click OK button to complete the setup. You can see system needs to restart to activate current setup. 4.15.2 HDD Information Here is to list hard disk type, total space, free space, and status. See Figure 4-148. ○...
  • Page 176 Figure 4-148 In Figure 4-148, click one HDD item, the S.M.A.R.T interface is shown as in Figure 4-149. Figure 4-149...

  • Page 177: Advanced

    Parameter Function SATA 1 here means there is 1 HDD. For different series product, the max HDD amount may vary, When HDD is working properly, system is shown as O. . “_” means there is no HDD. You can view the HDD amount the device connected to; * means the second HDD is current working HDD.
  • Page 178 Figure 4-150 Please select the correspond group from the dropdown list and then click Apply button. Click main stream/sub stream/snapshot button to set corresponding HDD group information. See Figure 4-151 through Figure 4-153. Figure 4-151...

  • Page 179: Hdd Detect

    Figure 4-152 Figure 4-153 4.15.4 HDD Detect Note This function is for some series product only. The HDD detect function is to detect HDD current status so that you can clearly understand the HDD performance and replace the malfunction HDD.
  • Page 180 There are two detect types:  Quick detect is to detect via the universal system files. System can quickly complete the HDD scan. If you want to use this function, please make sure the HDD is in use now. If the HDD is removed from other device, please make sure the write-data once was full after it installed on current device.
  • Page 181 Figure 4-155 Click View, you can see the detailed information such as detect result, backup and S.M.A.R.T. See Figure 4-156 and Figure 4-157. Figure 4-156...

  • Page 182: Raid Manager

    Figure 4-157 4.15.5 RAID Manager Important Please make sure your purchased product support the RAID function, otherwise you can not see the following interface. Right now, RAID supports Raid0, Raid1, Raid5, Raid6, and Raid10. Local hotspare supports Raid1, Raid5, Raid6, and Raid10. 4.15.5.1 RAID Config It is for you to manage RAID HDD.
  • Page 183 Figure 4-158 4.15.5.2 Hotspare disks Click Hotspare disks tab name, you can add the hot spare HDD. See Figure 4-159. The type includes two options: Global: It is global hotspare disk. When any RAID becomes degrading, it can replace and build the RAID....

  • Page 184: Basic Setups

    Figure 4-159 4.16 Basic Setups Set NVR basic setup, device setup and other setups. 4.16.1 Device Setup From Main menu->Setting->System->General, you can go to the general interface. See Figure 4-161. Pack duration: Here is for you to specify record duration. The value ranges from 0 to 120 minutes. Default value is 60 minutes....

  • Page 185: Data And Time

    IPC Time Sync: You can input an interval here to synchronize the NVR time and IPC time. Startup wizard: Once you check the box here, system will go to the startup wizard directly when the system restarts the next time. Otherwise, it will go to the login interface. Mouse sensitivity: You can set double click speed via dragging the slide bard.

  • Page 186: Holiday

    Figure 4-161 4.16.3 Holiday Please refer to chapter 4.10.6 for detailed information. 4.17 Device Maintenance and Manager 4.17.1 System Info 4.17.1.1 Version From main menu->Info->System->version, you can go to version interface. Here is for you to view some version information. See Figure 4-162. Please note the following figure for reference only.
  • Page 187 Figure 4-162 4.17.1.2 BPS Here is for you to view current video bit rate (kb/s) and resolution. See Figure 4-163. Figure 4-163 4.17.1.3 Online User Here is for you manage online users connected to your NVR. See Figure 4-164.
  • Page 188 You can click button to disconnect or block one user if you have proper system right. System detects there is any newly added or deleted user in each five seconds and refresh the list automatically. Figure 4-164 4.17.1.4 Remote Device Information From main menu->info-Event, here you can view the channel status of the remote device, connection log and etc.
  • Page 189 Figure 4-165 4.17.1.5 Remote 4.17.1.5.1 Device Status Here you can view the IPC status of the corresponding channel such as motion detect, video loss, tampering, alarm and etc. See Figure 4-166. IPC status: : Front-end does not support. : Front-end supports. : There is alarm event from current front-end....
  • Page 190 Figure 4-166 4.17.1.5.2 Firmware It is to view channel, IP address, manufacturer, type, system version, SN, video input, audio input, external alarm and etc. See Figure 4-167. Figure 4-167...

  • Page 191: Log

    4.17.2 Log From Main menu->Info->Log, you can go to the following interface. See Figure 4-168. Start time/end time: Pleased select start time and end time, then click search button. You can view the log files in a list. System max displays 100 logs in one page. It can max save 1024 log files. Please use page up/down button on the interface or the front panel to view more....

  • Page 192: Voice

    4.17.3 Voice Note This function is for some series product only. The audio function is to manage audio files and set schedule play function. It is to realize audio broadcast activation function. 4.17.3.1.1 File Manage Here you can add audio file, listen to the audio file, or rename/delete audio file. Here you can also set audio volume.

  • Page 193: Account

    Figure 4-171 4.17.3.1.2 Schedule It is to set schedule broadcast function. You can play the different audio files in the specified periods. See Figure 4-172. Figure 4-172 4.17.4 Account Here is for you to implement account management. See Figure 4-173. Here you can: Add new user...
  • Page 194 Modify user Add group Modify group Modify password. For account management please note: For the user account name and the user group, the string max length is 6-byte. The backspace in front of or at the back of the string is invalid. There can be backspace in the middle. The string includes the valid character, letter, number, underline, subtraction sign, and dot....
  • Page 195 4.17.4.1.1 Add User Click modify user button in Figure 4-173 , the interface is shown as in Figure 4-174. Please input the user name, password, select the group it belongs to from the dropdown list. Then you can check the corresponding rights for current user. For convenient user management, usually we recommend the general user right is lower than the admin account.
  • Page 196 Figure 4-175 Click Set button, you can set six periods in one day. See Figure 4-176. Check the box after the period, you can enable current setup. Figure 4-176...
  • Page 197 4.17.4.1.2 Modify user Click , you can go to the following interface to change user information. See Figure 4- 177. For admin, 888888, and default (hidden user), you can not change period setup. Figure 4-177 4.17.4.1.3 Change Password In Figure 4-177, check the Modify password box, you can change password. Please input old password, and then input new password twice to confirm.
  • Page 198 Figure 4-178 Click add group button in Figure 4-178 , the interface is shown as below. See Figure 4-179. Here you can input group name and then input some memo information if necessary. There are total 98 rights such as control panel, shut down, real-time monitor, playback, record, record file backup, PTZ, user account, system information view, alarm input/output setup, system setup, log view, clear log, upgrade system, control device and etc.

  • Page 199: Update

    4.17.4.1.5 Security Question The security question is shown as below. See Figure 4-180. Here you can change security questions. Figure 4-180 4.17.5 Update 4.17.5.1 Local Update From Mani menu->Setting->Info->Update, you can go to the following interface. See Figure 4-181. Insert USB device that contain the upgrade file. Click Start button and then select the .bin file.

  • Page 200: Default

    Figure 4-181 4.17.5.2 Uboot When device is booting up, it can auto detect the USB device and the update file on it. It can auto update once there is proper upgrade file. Important  USB device root directory shall have “u-boot.bin.img” and “update.img” files. USB device shall be FAT32 mode....

  • Page 201: Rs232

    Please highlight icon to select the corresponding function. After all the setups please click OK button, system goes back to the previous menu. Warning! After you use default function, some your customized setup may lose forever! Please think twice before you begin the operation! Figure 4-182 4.17.7 RS232...

  • Page 202: Auto Maintain

    Parity: None After completing all the setups please click save button, system goes back to the previous menu. Figure 4-183 4.17.8 Auto Maintain Here you can set auto-reboot time and auto-delete old files setup. You can set to delete the files for the specified days.

  • Page 203: Logout /Shutdown/Restart

    4.17.9 Logout /Shutdown/Restart From Mani menu->Operation->Shutdown, you can see an interface shown as in Figure 4-185. Shutdown: System shuts down and turns off power. Logout: Log out menu. You need to input password when you login the next time. Restart: reboot device. If you shut down the device, there is a process bar for your reference, system waits for 3 seconds and then shut down (You can not cancel).

  • Page 204: Web Operation

    5 Web Operation 5.1 General Introduction The device web provides channel monitor menu tree, search, alarm setup, system setup, PTZ control and monitor window and etc. Important The following operation is based on 32-channel series device. Preparation 5.1.1 Before log in, please make sure: Network connection is right...
  • Page 205 Thirdly, according to the <PoE port>---<Channel> map, system can know the previous mapping channel of current PoE port. System can select current channel if it is free. Otherwise, it goes to the next step: Fourthly, system goes to find the first idle channel it can get. Generally speaking, once you insert PoE, system follow the steps listed above to find the channel available.

  • Page 206: Lan Mode

    Figure 5-2 After installation, the interface is shown as below. See Figure 5-3. Figure 5-3 Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. 5.2 LAN Mode For the LAN mode, after you logged in, you can see the main window.
  • Page 207 Section 1: there are six function buttons: Live（chapter 0）, setup (chapter 5.8), info (Chapter 5.9), playback (chapter 5.10), alarm (chapter 5.11), and logout (chapter 5.12). Section 2: There are monitor channels successfully connected to the NVR. Please refer to Figure 5-4 for main stream and extra stream switch information. Figure 5-4 Section 3: Open all.

  • Page 208: Real-Time Monitor

    The Web can playback the saved (Extension name is dav) files in the PC-end. Click local play button, system pops up the following interface for you to select local play file. See Figure 5-8. Figure 5-8 Section 7：Zero-channel encoding. Please refer to chapter 5.6 for detailed information. Section 8: PTZ operation panel.

  • Page 209: Ptz

    In section 2, left click the channel name you want to view, you can see the corresponding video in current window. On the top left corner, you can view device IP(172.11.10.11), channel number(1), network monitor bit stream(2202Kbps) and stream type(M=main stream, S=sub stream). See Figure 5-10. Figure 5-10 On the top right corner, there are six unction buttons.
  • Page 210 Parameter Function  Select Preset from the dropdown list. Preset  Turn the camera to the corresponding position and Input the preset value. Click Add button to add a preset.  Select Tour from the dropdown list. Tour  Input preset value in the column. Click Add preset button, you have added one preset in the tour.

  • Page 211: Image/Alarm-Out

    5.5 Image/Alarm-out Select one monitor channel video and then click Image button in section 9, the interface is shown as Figure 5-13. Image 5.5.1 Here you can adjust its brightness, contrast, hue and saturation. (Current channel border becomes green). Or you can click Reset button to restore system default setup. Figure 5-13 Alarm output 5.5.2...

  • Page 212: Wan Login

    Figure 5-15 5.7 WAN Login In WAN mode, after you logged in, the interface is shown as below. See Figure 5-16. Figure 5-16 Please refer to the following contents for LAN and WAN login difference. 1) In the WAN mode, system opens the main stream of the first channel to monitor by default. The open/close button on the left pane is null.

  • Page 213: Setup

    Figure 5-17. Figure 5-17 Important The window display mode and the channel number are by default. For example, for the 16-channel, the max window split mode is 16. 3) Multiple-channel monitor, system adopts extra stream to monitor by default. Double click one channel, system switches to single channel and system uses main stream to monitor.
  • Page 214 Figure 5-18 Figure 5-19 Please refer to the following sheet for parameter information. Parameter Function Click Device search button, you can view the searched device Device search information on the list. It includes device IP address, port, device name, manufacturer and type. Select a device in the list and then click Add button, system can connect the device automatically and add it to the Added device list.
  • Page 215 Parameter Function Delete Click , you can delete the remote connection of the corresponding channel. There are two connection types. You can use the network to connect Type to the camera or use the WIFI. The means current network camera connection mode is general; the means current network camera mode is hotspot.
  • Page 216 Figure 5-20 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. It divides one day (24 hours) to two periods. You can set Period different hue, brightness, and contrast for different periods. It is to adjust monitor video brightness and darkness level.
  • Page 217 attractive if the value is too low. The recommended value ranges from 40 to 60. Gain The gain adjust is to set the gain value. The smaller the value is, the low the noise is. But the brightness is also too low in the dark environments.
  • Page 218 video according to the device feature (The general bright of the video or there is IR light or not.)  B/W: The device outputs the black and white video.  Sensor: It is to set when there is peripheral connected IR light.
  • Page 219 PAL：1～25f/s；NTSC：1～30f/s. Frame Rate  Bit Rate Main stream: You can set bit rate here to change video quality. The large the bit rate is, the better the quality is. Please refer to recommend bit rate for the detailed information.  Extra stream: In CBR, the bit rate here is the max value.
  • Page 220 Image size It is the same with the resolution of the main stream. It is to set the image quality. There are six levels. Quality It is to set snapshot frequency. The value ranges from 1s to 7s. Interval Or you can set customized value. The max setup is 3600s/picture.
  • Page 221 The storage path interface is shown as in Figure 5-24. Here you can set snap image saved path in the preview interface) and the record storage path ( in the preview interface).The default setup is C:\PictureDownload and C:\RecordDownload. Please click the Save button to save current setup. Figure 5-24 5.8.1.4 Channel Name Here you can set channel name.

  • Page 222: Network

    Figure 5-26 5.8.2 Network 5.8.2.1 TCP/IP The TCP/IP interface is shown as in Figure 5-27. Figure 5-27 Please refer to the following sheet for detailed information. Parameter Function Mode There are two modes: static mode and the DHCP mode.  The IP/submask/gateway are null when you select the DHCP mode to auto search the IP.
  • Page 223 IP/submask/gateway manually.  If you select the DHCP mode, you can view the IP/submask/gateway from the DHCP.  If you switch from the DHCP mode to the static mode, you need to reset the IP parameters.  Besides, IP/submask/gateway and DHCP are read-only when the PPPoE dial is OK.
  • Page 224 number if necessary. UDP port The default value is 37778. You can input the actual port number if necessary. HTTP port The default value is 80. You can input the actual port number if necessary. HTTPS The default value is 443. You can input the actual port number if necessary.
  • Page 225 Click Advanced butto, the interface is shown as below. See Figure 5-30. Figure 5-30 Please refer to the following sheet for detailed information. Parameter Function Input WIFI AP IP address. IPv4 address Input WIFI AP network mask. IPv4 netmask Input WIFI AP gateway. IPv4 gateway Input start IP and end IP.
  • Page 226 Figure 5-31 Please check the box to enable WIFI function and then click the Search SSID button. Now you can view all the wireless network information in the following list. Double click a name to connect to it. Click Refresh button, you can view latest connection status. 5.8.2.5 3G 5.8.2.5.1 CDMA/GPRS The CDMA/GPRS interface is shown as in Figure 5-32.
  • Page 227 Parameter Function WLAN type Here you can select 3G network type to distinguish the 3G module from different ISP. The types include WCDMA， CDMA1x and etc. APN/Dial No. Here is the important parameter of PPP. Authorization It includes PAP,CHAP,NO_AUTH. Pulse interval It is to set time to end 3G connection after you close extra stream monitor.
  • Page 228 5.8.2.6 PPPoE The PPPoE interface is shown as in Figure 5-34. Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated. Device connects to the internet via PPPoE after reboot.
  • Page 229 Please refer to the following sheet for detailed information. Parameter Function Server Type You can select DDNS protocol from the dropdown list and then enable DDNS function. Server IP DDNS server IP address Server Port DDNS server port. Domain Name Your self-defined domain name.
  • Page 230 Figure 5-36 5.8.2.9 Email The email interface is shown as in Figure 5-37. Figure 5-37 Please refer to the following sheet for detailed information. Parameter Function Please check the box here to enable email function. Enable Input server address and then enable this function. SMTP Server Port Default value is 25.
  • Page 231 Parameter Function Anonymity For the server supports the anonymity function. You can auto login anonymously. You do not need to input the user name. password and the sender information. The user name of the sender email account. User Name The password of sender email account. Password Sender email address.
  • Page 232 Figure 5-38 Please refer to the following sheet for detailed information. Parameter Function Check the corresponding box to enable PAT function. Status Display UPnP function status. It is corresponding to the UPnP mapping information on the router. Check the box before the service name to enable current PAT service. Otherwise, the service is null.
  • Page 233 Figure 5-39 Please refer to the following sheet for detailed information. Parameter Function The listening port of the proxy program of the device. It is a SNMP Port UDP port not a TCP port. The value ranges from 1 to 65535. The default value is 161 It is a string.
  • Page 234 packet, multiple-cast is the best option to reduce the broad width and the CPU load. The source host can just send out one data to transit. This function also depends on the relationship of the group member and group of the outer. Figure 5-40 5.8.2.13 Auto Register The auto register interface is shown as below.
  • Page 235 Figure 5-42 5.8.2.15 HTTPS In this interface, you can set to make sure the PC can successfully login via the HTTPS. It is to guarantee communication data security. The reliable and stable technology can secure the user information security and device safety. See Figure 5-43. Note You need to implement server certificate again if you have changed device IP....
  • Page 236 Figure 5-44 You can see the corresponding prompt. See Figure 5-45. Now the server certificate is successfully created. Figure 5-45 5.8.2.15.2 Download root certificate In Figure 5-43, click button, system pops up a dialogue box. See Figure 5-46. Figure 5-46 Click Open button, you can go to the following interface.
  • Page 237 Figure 5-47 Click Install certificate button, you can go to certificate wizard. See Figure 5-48. Figure 5-48 Click Next button to continue. Now you can select a location for the certificate. See Figure 5-49.
  • Page 238 Figure 5-49 Click Next button, you can see the certificate import process is complete. See Figure 5-50. Figure 5-50 Click Finish button, you can see system pops up a security warning dialogue box. See Figure 5-51. Figure 5-51...
  • Page 239 Click Yes button, system pops up the following dialogue box, you can see the certificate download is complete. See Figure 5-52. Figure 5-52 5.8.2.15.3 View and set HTTPS port From Setup->Network->Connection, you can see the following interface. See Figure 5-53. You can see HTTPS default value is 443.

  • Page 240: Event

    device status and SN. Figure 5-54 Event 5.8.3 5.8.3.1 Video detect 5.8.3.1.1 Motion Detect After analysis video, system can generate a video loss alarm when the detected moving signal reached the sensitivity you set here. The motion detect interface is shown as in Figure 5-55.
  • Page 241 Figure 5-55 Figure 5-56...
  • Page 242 Figure 5-57 Figure 5-58 Figure 5-59...
  • Page 243 Figure 5-60 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. Please select a channel from the dropdown list. Period Motion detection function becomes activated in the specified periods.
  • Page 244 Parameter Function Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. Alarm upload System can upload the alarm signal to the centre (Including alarm centre. Message When 3G network connection is OK, system can send out a message when motion detect occurs.
  • Page 245 5.8.3.1.3 Tampering The tampering interface is shown as in Figure 5-62. After analysis video, system can generate a tampering alarm when the detected moving signal reached the sensitivity you set here. For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. Figure 5-62 5.8.3.2 IVS (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not...
  • Page 246 Figure 5-63 Check the Tripwire box to enable tripwire function. Select SN (Line1/2/3/4) and direction, and then input customized rule name. No. and Line1/2/3/4: System supports four tripwires. Each SN stands for one tripwire. Direction: There are three options: A->B, B->A, both. System can generate an alarm once there is any object crossing in the specified direction....
  • Page 247 Click to draw filter object. See Figure 5-65. Figure 5-65 Select the blue line and then use mouse to adjust zone size. Note Each rule can set two sizes (min size/max size). Once the object is smaller than the min size or larger than the max size, there is no alarm.
  • Page 248 Figure 5-66 Check the Intrusion box to enable intrusion function. Select SN (Area1/2/3/4) and direction, and then input customized rule name. No. and Area1/2/3/4: System supports four zones. Each SN stands for one zone. Direction: There are three options: A->B, B->A, both. System can generate an alarm once there is any object enter/exit (Or both) the zone....
  • Page 249 Figure 5-67 For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. 5.8.3.2.3 Object Detect Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! For the same channel,the object detect and the intrusion can not be valid at the same time. From main menu->Setup->Event->IVS->Object, the object interface is shown as below.
  • Page 250 Check the Object box to enable object detect function. Select SN (object1/2/3/4) and rule type, and then input customized rule name. No. and Object1/2/3/4: System supports four zones. Each SN stands for one zone. Rule type: Please select from the dropdown list. There are two types: Missing object detect/abandoned object detect....
  • Page 251 Figure 5-70 For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. 5.8.3.3 Face Detect (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! When camera detects human face, system can generate an alarm. From main menu->Setup->Event->Face detect, the interface is shown as in Figure 5-71.
  • Page 252 5.8.3.4 Audio Detect (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! System can generate an alarm once it detect the audio input is abnormal or audio volume changes. From main menu->Setup->Event->Audio detect, you can see an interface shown as in Figure 5-72. Input abnormal: Check the box here, system can generate an alarm once the audio input is abnormal....
  • Page 253 Figure 5-73 Figure 5-74...
  • Page 254 Figure 5-75 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable this function. Please select a channel from the dropdown list. Period This function becomes activated in the specified periods. There are six periods in one day.
  • Page 255 Parameter Function Show message System can pop up a message to alarm you in the local host screen if you enabled this function. Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. Alarm upload System can upload the alarm signal to the centre (Including alarm centre).
  • Page 256 setup. For setup information, please refer to chapter 5.8.3.5.1. Figure 5-77 5.8.3.5.4 IPC Offline Alarm The IPC offline alarm interface is shown as in Figure 5-78. System can generate an alarm once the network camera is offline. For setup information, please refer to chapter 5.8.3.5.1.
  • Page 257 5.8.3.6 Abnormality It includes six types: No disk, disk error, disks no space, disconnect, IP conflict, MAC conflict. See Figure 5-79 through Figure 5-84. Figure 5-79 Figure 5-80 Figure 5-81 Figure 5-82...
  • Page 258 Figure 5-83 Figure 5-84 Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: No disk, disk error, disk no space, net Type disconnection, IP conflict and MAC conflict. You can set one or more items here. Less than: You can set the minimum percentage value here (For disk not space only).

  • Page 259: Storage

    Parameter Function Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. 5.8.4 Storage 5.8.4.1 Schedule In this interfaces, you can add or remove the schedule record setup. See Figure 5-85. There are four record modes: general (auto), motion detect, alarm and MD&alarm. There are six periods in one day.
  • Page 260 Figure 5-87 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Pre-record Please input pre-record time here. The value ranges from 0 to 30. Redundancy Check the box here to enable redundancy function. Please note this function is null if there is only one HDD.
  • Page 261 Parameter Function 5/6/7. If you want to save current setup of channel 1 to all channels, you can click the first box “ALL”. Click the OK button to save current copy setup. Click the OK button in the Encode interface, the copy function succeeded.
  • Page 262 Figure 5-90 5.8.4.3 Record Control The interface is shown as in Figure 5-91. Figure 5-91 Please refer to the following sheet for detailed information. Parameter Function Here you can view channel number. Channel The number displayed here is the max channel amount of your device.
  • Page 263 It has the highest priority. Manual Enable corresponding channel to record no matter what period applied in the record setup. Stop current channel record no matter what period applied in the Stop record setup. Check the corresponding All button, you can enable or disable all Start all/ stop all channels record.
  • Page 264 Figure 5-93 5.8.4.5 Storage 5.8.4.5.1 Main Stream The main stream interface is shown as in Figure 5-94. Here you can set corresponding HDD group to save main stream. Figure 5-94 5.8.4.5.2 Sub Stream The sub stream interface is shown as in Figure 5-95. Here you can set corresponding HDD group to save sub stream.

  • Page 265: Setting

    Figure 5-95 5.8.4.5.3 Snapshot The snapshot interface is shown as in Figure 5-96. Here you can set corresponding HDD group to save snapshot picture. Figure 5-96 5.8.5 Setting 5.8.5.1 General The general interface includes general, date/time and holiday setup. 5.8.5.1.1 General The general interface is shown as in Figure 5-97.
  • Page 266 Please refer to the following sheet for detailed information. Parameter Function It is to set device name. Device ID Device No. It is device channel number. Language You can select the language from the dropdown list. Please note the device needs to reboot to get the modification activated.
  • Page 267 There are two options: 24-H and 12-H. Time Format The time zone of the device. Time zone It is to set system time. It becomes valid after you set. System time Sync PC You can click this button to save the system time as your PC current time.
  • Page 268 5.8.5.2.1 User name In this interface you can add/remove user and modify user name. See Figure 5-100. Figure 5-100 Add user: It is to add a name to group and set the user rights. See Figure 5-101. There are three default users: admin/888888 and hidden user “default”. Hidden user “default”...
  • Page 269 Modify user It is to modify the user property, belonging group, password and rights. See Figure 5-102. Modify password It is to modify the user password. You need to input the old password and then input the new password twice to confirm the new setup. Please click the OK button to save. Please note, the password ranges from 1-digit to 6-digit.
  • Page 270 Add group: It is to add group and set its corresponding rights. See Figure 5-104. Please input the group name and then check the box to select the corresponding rights. It includes: shutdown/reboot device, live view, record control, PTZ control and etc. Figure 5-104 Modify group Click the modify group button, you can see an interface is shown as in Figure 5-105.
  • Page 271 5.8.5.3 Display Display interface includes GUI, TV adjust, Tour and zero-channel encoding. 5.8.5.3.1 Display Here you can set background color and transparency level. See Figure 5-106. Figure 5-106 Please refer to the following sheet for detailed information. Parameter Function Resolution There four options:...
  • Page 272 Original scale Click the Set button to select a channel, it can restore original scale. Auto logout Here is for you to set auto logout interval once login user remains inactive for a specified time. Value ranges from 0 to 60 minutes. 0 means there is no standby time.
  • Page 273 The alarm output interface is shown as below. See Figure 5-108 Here you can set alarm output mode: auto/manual/stop. Figure 5-108 5.8.5.5 Default The default setup interface is shown as in Figure 5-109. Here you can select Network/Event/Storage/Setting/Camera. Or you can check the All box to select all items.
  • Page 274 Figure 5-110 Please refer to the following sheet for detailed information. Parameter Function Click to select import file. Browse It is to import the local setup files to the system. Import It is to export the corresponding WEB setup to your local PC. Export 5.8.5.7 Auto maintain The auto maintain interface is shown as in Figure 5-111.
  • Page 275 Figure 5-112 5.8.5.9 RS232 The RS232 interface is shown as in Figure 5-113. Figure 5-113 Please refer to the following sheet for detailed information. Parameter Function Select the corresponding dome protocol. Protocol Default setup is console. Select the baud rate. Baud Rate Default setup is 115200.
  • Page 276 Figure 5-114 Figure 5-115 Please refer to the following sheet for detailed information. Parameter Function Select speed dome connected channel. Channel There are two options: local/remote. PTZ Type Please select remote type if you are connecting to the network PTZ. Please select local type if you are using RS485 to the PTZ camera.

  • Page 277: Information

    Parameter Function The value ranges from 1 to 2. Default setup is 1. Please set according Stop bit to the speed dome dial switch setup. Parity The options include non/odd/even/space/null. Default setup is none. Please set according to the speed dome dial switch setup. Information Version 5.9.1...

  • Page 278: Online User

    Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type operation, event operation, record operation, user management, log clear. Set the start time of the requested log. Start time Set the end time of the requested log.

  • Page 279: Search Record

    Figure 5-119 5.10.1 Search Record Please set record type, record date, window display mode and channel name. Select Date You can click the date on the right pane to select the date. The green highlighted date is system current date and the blue highlighted date means it has record files. Window Split...

  • Page 280: Playback

    Figure 5-122 5.10.3 Playback Select a file you want to play and then click Play button, system can begin playback. You can select to playback in full-screen. Please note for one channel, system can not playback and download at the same time.

  • Page 281: Download

    5.10.4 Download Select the file(s) you want to download and then click download button, you can see an interface shown as in Figure 5-124. The Download button becomes Stop button and there is a process bar for your reference. Please go to you default file saved path to view the files. Figure 5-124 5.10.5 Load more It is for you to search record or picture.
  • Page 282 Check the file(s) you want to download and there are two options for you to save the file(s). Download to local Click Download to local, system pops up the following interface for you to set record format and saved path. See Figure 5-126. Figure 5-126 You can click OK to download and view the download process.

  • Page 283: Alarm

    Figure 5-128 Set record format and saved path, you can click OK to download and view the download process. After the download operation, you can see corresponding dialog box. 5.10.5.3 Watermark Watermark interface is shown as In Figure 5-129. Please select a file and then click Verify button to see the file has been tampered with or not Figure 5-129 5.11 Alarm...

  • Page 284: Log Out

    Figure 5-130 Please refer to the following sheet for detailed information. Type Parameter Function Alarm Video loss System alarms when video loss occurs. Type Motion detection System alarms when motion detection alarm occurs. Tampering System alarms when camera is viciously masking. Disk full System alarms when disk is full.

  • Page 285: Un-Install Web Control

    Figure 5-131 5.13 Un-install Web Control You can use web un-install tool “uninstall web.bat” to un-install web control. Please note, before you un-installation, please close all web pages, otherwise the un-installation might result in error...
  • Page 286 6 Glossary DHCP: DHCP (Dynamic Host Configuration Protocol) is a network protocol. It is one of the TCP/IP protocol cluster. It is principally used to assign temporary IP addresses to computers on a network. DDNS: DDNS (Dynamic Domain Name Server) is a service that maps Internet domain names to IP addresses.

  • Page 287: Faq

    7 FAQ Questions Solutions  NVR can not boot up Input power is not correct.  properly. Power connection is not correct.  Power switch button is damaged.  Program upgrade is wrong.  HDD malfunction or something wrong with HDD ribbon. ...
  • Page 288 Questions Solutions  Front panel PTZ error  PTZ decoder setup, connection or installation is not correct.  Cable connection is not correct.  PTZ setup is not correct.  PTZ decoder and NVR protocol is not compatible. NVR can not control PTZ. ...
  • Page 289 Questions Solutions  Alarm setup is not correct. Alarm signal can not been  Alarm output has been open manually. disarmed.  Input device error or connection is not correct.  Some program versions may have this problem. Please upgrade your system.

  • Page 290: Daily Maintenance

    Questions Solutions  Please make sure the IPC has booted up.  IPC network connection is right and it is online  IPC IP is in the blacklist.  I can not connect to the The device has connected to the too many IPC. It can not transmit the video.
  • Page 291 Otherwise it may result in HDD malfunction. Please make sure the device is away from the direct sunlight or other heating sources. Please keep the sound ventilation. Please check and maintain the device regularly....

  • Page 292: Appendix A Hdd Capacity Calculation

    Appendix A HDD Capacity Calculation Calculate total capacity needed by each device according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.

  • Page 293: Appendix B Compatible Network Camera List

    Appendix B Compatible Network Camera List Please note all the models in the following list for reference only. For those products not included in the list, please contact your local retailer or technical supporting engineer for detailed information. Manufact Model Version Video Encode Audio/Vid...
  • Page 294 Manufact Model Version Video Encode Audio/Vid Protocol － √ Cannon VB-M400 H264 Private √ MPix2.0DIR XNETM112011 H264 ONVIF 1229 √ VIPBL1.3MIR XNETM210011 H264 ONVIF 1229 √ IGC-2050F XNETM210011 H264 ONVIF 1229 √ CP PLUS CP-NC9-K 6.E.2.7776 H264 ONVIF/Private √ CP-NC9W-K 6.E.2.7776 H264 Private...
  • Page 295 Manufact Model Version Video Encode Audio/Vid Protocol √ HIDC-0100P h.2.2.1824 H264 ONVIF √ HIDC-1300V 2.0.0.21 H264 ONVIF √ HICC-1300W 2.0.1.7 H264 ONVIF √ HICC-2300 2.0.0.21 H264 ONVIF √ HDZ20HDX H20130114NS H264 ONVIF － √ LW342-FP H264 Private － √ LNB5100 H264 ONVIF －...
  • Page 296 Manufact Model Version Video Encode Audio/Vid Protocol √ D5118 1.7.8.9310-A1. H264 Private 5288 √ IM10C10 1.6.13.9261-O2 H264 Private .4657 √ DD4N-X 01.02.0015 MPEG4 Private √ DD423-X 01.02.0006 MPEG4 Private √ D5220 1.8.3-FC2-2012 H264 Private 0614-1.9320-A 1.8035 √ Samsung SNB-3000P 2.41 H264、MPEG4 ONVIF/Private √...
  • Page 297 Note  This manual is for reference only. Slight difference may be found in the user interface.  All the designs and software here are subject to change without prior written notice.  All trademarks and registered trademarks are the properties of their respective owners. ...
