PR Elecronics 5333 Manual

2-wire programmable transmitter 5333v113-uk

Advertisement

Quick Links

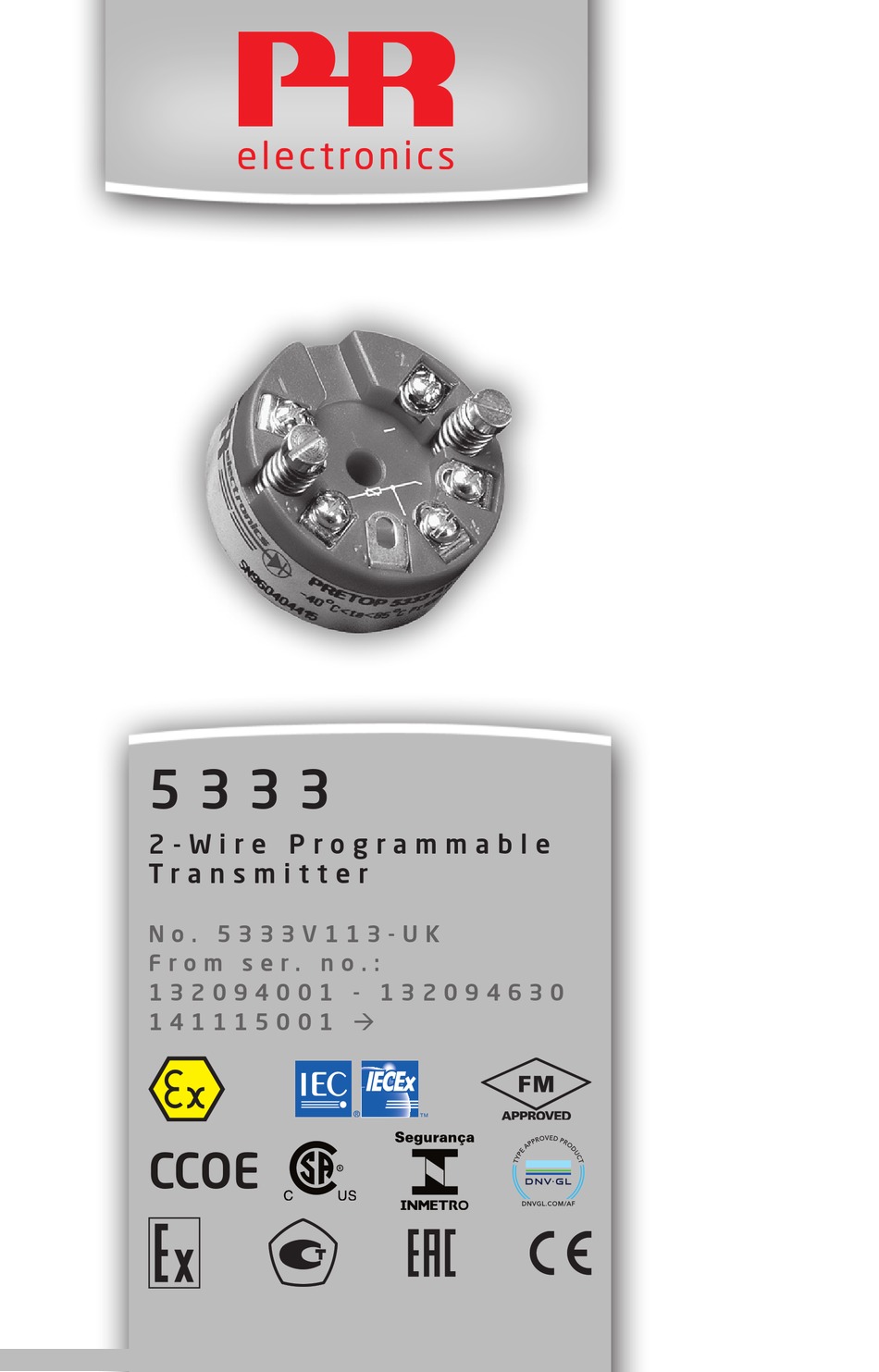

5 3 3 3
2 - W i r e P r o g r a m m a b l e
T r a n s m i t t e r
N o . 5 3 3 3 V 1 1 3 - U K
F r o m s e r . n o . :
1 3 2 0 9 4 0 0 1 - 1 3 2 0 9 4 6 3 0
1 4 1 1 1 5 0 0 1 
CCOE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5333 and is the answer not in the manual?

Questions and answers

Summary of Contents for PR Elecronics 5333

  • Page 1 5 3 3 3 2 - W i r e P r o g r a m m a b l e T r a n s m i t t e r N o . 5 3 3 3 V 1 1 3 - U K F r o m s e r .
  • Page 2 Revision Notes The following list provides notes concerning revisions of this document. Rev. ID Date Notes 13/45 IECEx and INMETRO approvals added 15/14 PESO/CCOE approval added GOST approval replaced with EAC approval 17/07 FM installation drawing updated INMETRO installation drawings updated 1707...
  • Page 3: Table Of Contents

    2-WIRE PROGRAMMABLE TRANSMITTER 5333 Contents Application ....................Technical characteristics ..............Mounting / installation ................. Applications....................Order: 5333 ....................Electrical specifications................ Connections ....................Block diagram ................... Programming .................... Mechanical specifications ..............10 Mounting of sensor wires ..............10 Appendix ....................11 ATEX Installation Drawing - 5333A ..........
  • Page 4: Application

    • The RTD and resistance inputs have cable compensation for 3-wire connection. Mounting / installation • For DIN form B sensor head mounting. In non-hazardous areas the 5333 can be mounted on a DIN rail with a special fitting. 5333V11 3 -UK...
  • Page 5: Applications

    APPLICATIONS 2-wire installation in control room RTD to 4...20 mA 2-wire installation in control room Resistance to 4...20 mA 5 33 3 V 1 13 - UK...
  • Page 6: Order: 5333

    Order: 5333 Type Version 5333 Standard CSA, FM, ATEX, IECEx & INMETRO Electrical specifications Specifications range: -40°C to +85°C Common specifications: Supply voltage, DC Standard ..............8...35 V CSA, FM, ATEX, IECEx & INMETRO ....8...30 V Internal power dissipation Standard ..............
  • Page 7 Accuracy, the greater of general and basic values: General values Absolute Temperature Input type accuracy coefficient ≤ ±0.1% of span ≤ ±0.01% of span / °C Basic values Basic Temperature Input type accuracy coefficient ≤ ±0.3°C ≤ ±0.01°C/°C Lin. R ≤...
  • Page 8: Current Output

    Output: Current output: Signal range ............... 4...20 mA Min. signal range ............16 mA Updating time ............135 ms Load resistance............≤ (V - 8) / 0.023 [Ω] supply Load stability ............. < ±0.01% of span / 100 Ω Sensor error detection: Programmable ............
  • Page 9: Connections

    CONNECTIONS Input: RTD, 2-wire RTD, 3-wire Resistance, 2-wire Resistance, 3-wire Output: 2-wire installation 5 33 3 V 1 13 - UK...
  • Page 10: Block Diagram

    BLOCK DIAGRAM 5333V11 3 -UK...
  • Page 11: Programming

    PROGRAMMING • Loop Link is a communications interface that is needed for programming 5333. • For programming please refer to the drawing below and the help functions in PReset. • Loop Link is not approved for communication with modules installed in hazardous (Ex) areas.
  • Page 12: Mounting Of Sensor Wires

    Mechanical specifications Mounting of sensor wires ø 6 mm 20.2 m m 33 mm ø 44 mm Wires must be mounted between the metal plates. 5333V11 3 -UK...
  • Page 13: Appendix

    APPENDIX ATEX Installation Drawing - 5333A ATEX Installation Drawing - 5333D IECEx installation drawing - 5333A IECEx installation drawing - 5333D FM Installation Drawing - 5333D CSA Installation Drawing - 5333D INMETRO Instruções de Segurança - 5333A INMETRO Instruções de Segurança - 5333D 5 33 3 V 1 13 - UK...
  • Page 14 5333QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 5333A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 15 5333QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 5333D the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 16 5333QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes: In a potentially explosive gas atmosphere, the transmitter shall be mounted in an enclosure in order to provide a degree of protection of at least IP20 according to EN60529. If the transmitter is installed in an explosive atmosphere requiring the use of equipment of category 1 G, 1 M or 2 M, and if the enclosure is made of aluminum, if must be installed such, that ignition sources due to impact and friction sparks are excluded.
  • Page 17 5333QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5333A or 5343A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 18 5333QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5333D or 5343B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 19 5333QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes. In a potentially explosive gas atmosphere, the transmitter shall be mounted in a metal form B enclosure in order to provide a degree of protection of at least IP20 according to IEC60529. If however the environment requires a higher degree of protection, this shall be taken into account.
  • Page 20 5300Q502 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM FM Installation Drawing Model 5331D, 5333D and 5343B Non Hazardous Location Hazardous (Classified) Location Class I,Division1, Groups, A,B,C,D T4..T6 Associated Apparatus Class I, Zone 0, AEx ia IIC T4..T6 or Barrier with Ambient temperature limits entity Parameters: T4: ‐40 to + 85 deg. Celcius T6: ‐40 to + 60 deg. Celcius UM <...
  • Page 21 5300Q502 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM The entity concept The Transmitter must be installed according to National Electrical Code (ANSI-NFPA 70) and shall be installed with the enclosure, mounting, and spacing segregation requirement of the ultimate application. Equipment that is FM-approved for intrinsic safety may be connected to barriers based on the ENTITY CONCEPT.
  • Page 22 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM CSA Installation drawing 533XQC03 Hazardous area Non Hazardous Area T4: -40 ≤ Ta ≤ 85ºC T6: -40 ≤ Ta ≤ 60ºC Module 5331D, 5333D Terminal: 3,4,5,6 Only passive, or non-energy storing devices such as RTD’s and Thermocouples may be connected Barrier...
  • Page 23 5333QB02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Desenho de Instalação INMETRO Para instalação segura do 5333A ou 5343A o seguinte deve ser observado. O modo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
  • Page 24 5333QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Desenho de Instalação InNMETRO Para instalação segura do 5333D ou 5343B o seguinte deve ser observado. O modo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
  • Page 25 5333QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Notas de Instalação. Em uma atmosfera de gás potencialmente explosiva, o transmissor deve ser montado em um enclousure a fim de garantir um grau de proteção de no mínimo IP20 de acordo com ABNT NBR IEC60529.
  • Page 26 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearization, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analog and digital signals as well as HART signals between sensors / I/P converters / frequency signals and control systems in Ex zone 0, 1 &...
  • Page 27  www.prelectronics.fr  sales-fr@prelectronics.com  www.prelectronics.de  sales-de@prelectronics.com  www.prelectronics.es  sales-es@prelectronics.com  www.prelectronics.it  sales-it@prelectronics.com  www.prelectronics.se  sales-se@prelectronics.com  www.prelectronics.com  sales-uk@prelectronics.com  www.prelectronics.com  sales-us@prelectronics.com  www.prelectronics.cn  sales-cn@prelectronics.com Head office Denmark www.prelectronics.com PR electronics A/S sales@prelectronics.dk Lerbakken 10 tel.
