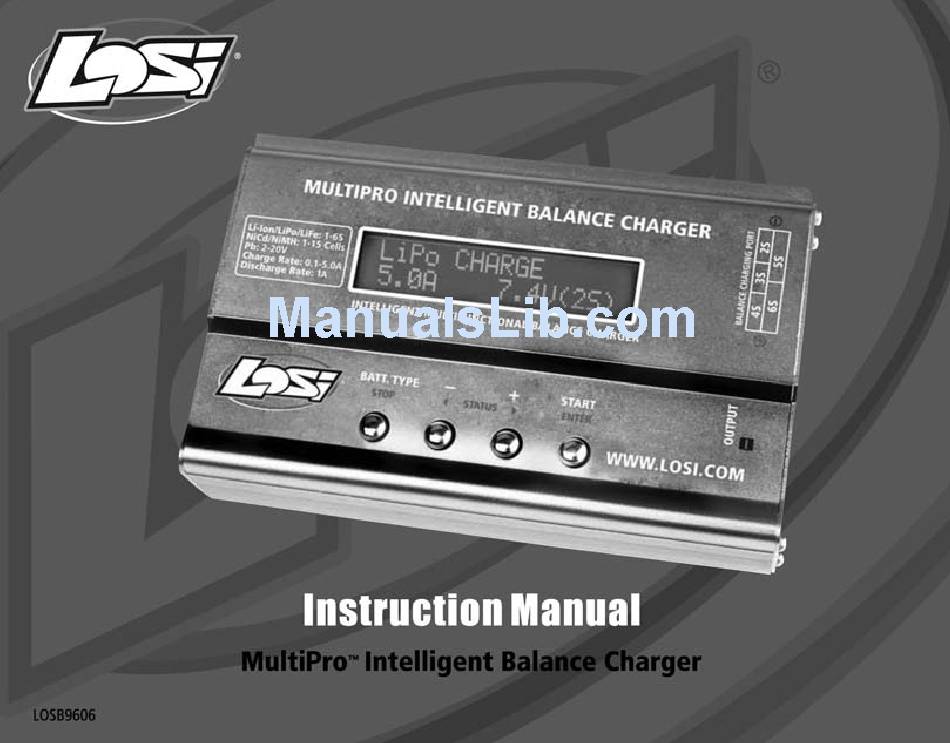

Team Losi MultiPro Instruction Manual

Team Losi MultiPro Instruction Manual

Intelligent balance charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiPro and is the answer not in the manual?

Questions and answers

Related Manuals for Team Losi MultiPro

Summary of Contents for Team Losi MultiPro

  • Page 2: Specifications

    INTRODUCTION INTRODUCTION Thank you for purchasing the MultiPro™ Intelligent Balance Charger by Losi. This product is a rapid charger with a high performance microprocessor and specialized operating software. Please read this operating manual completely before using this product. Specifications Operating voltage range: DC 11.0 - 18.0 V...

  • Page 3: Special Features

    SPECIAL FEATURES Optimized operating software The MultiPro™ charger features an automatic charging function that sets the operating current during the process of charging or discharging. This can prevent overcharging of lithium batteries which could lead to a battery fire or explosion. It will disconnect the circuit automatically and alarm the user once a malfunction is detected.
  • Page 4 SPECIAL FEATURES Maximum safety Delta-peak sensitivity: The automatic charge termination is based on the principle of delta-peak voltage detection. When the battery’s voltage exceeds the threshold, the process will be terminated automatically. Automatic charging current limit You can set the upper limit of the charging current when charging NiCd and NiMH batteries. This is useful for NiMH batteries of low impedance and capacity when using the ‘AUTO’...

  • Page 5: Cyclic Charging/Discharging

    SPECIAL FEATURES Cyclic charging/discharging One to five cycles and continuous process of charge<>discharge to help balance and stimulate the battery’s activity.

  • Page 7: Lithium Polymer Balance Charge Program Connection Diagram

    CONNECTION DIAGRAM LITHIUM POLYMER BALANCE CHARGE PROGRAM CONNECTION DIAGRAM This diagram shows the correct way to connect your battery to the MultiPro™ charger while charging in the balance charge program mode. WARNING: Failure to connect as shown in this diagram will damage the charger.

  • Page 8: Warning And Safety Notes

    WARNING AND SAFETY NOTES WARNING AND SAFETY NOTES These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or, at worst, it can cause a fire. Never leave the charger unattended when it is connected to its power supply.
  • Page 9 WARNING AND SAFETY NOTES NiCd/NiMH Voltage level: 1.2V/cell Allowable fast charge current: 1-2C (depending upon the performance of the cell) Discharge voltage cutoff level: 0.85V/cell (NiCd), 1.0V/cell (NiMH) Li-ion Voltage level: 3.6V/cell Max. charge voltage: 4.1V/cell Allowable fast charge current: 1C or less Discharge voltage cutoff level: 2.5V/cell or higher...
  • Page 10 WARNING AND SAFETY NOTES To avoid short circuit between the charge leads, always connect the charge cable to the charger first, then connect the battery. Reverse the sequence when disconnecting. Do not connect more than one battery pack to this charger at any time. Never attempt to charge or discharge the following types of batteries: A battery pack which consists of different types of cells (including different manufacturers).
  • Page 11 WARNING AND SAFETY NOTES Please keep in mind the following points before charging: Did you select the appropriate program suitable for the type of battery that you are charging? Did you set up adequate current for charging or discharging? Have you checked the battery voltage? Lithium battery packs can be wired in parallel and in series, e.g.
  • Page 12 WARNING AND SAFETY NOTES Always refer to the battery manufacturer’s recommendations for charging current and duration. This is especially important for lithium batteries. Make sure that the polarity is correct when connecting your battery to the charger. This is particularly important for lithium batteries.

  • Page 13: Program Flow Chart

    WARNING AND SAFETY NOTES Program flow chart Start Program Select LiXX Enter LiXX Charge LiXX Balance Lithium Battery Fast Charge Bat. Type Stop LiXX LiXX Discharge Storage Start Enter Program Select NiMH Charge NiMH NiMH NiMH Battery ‘Aut/Man’ Discharge Cycle Bat.
  • Page 14 WARNING AND SAFETY NOTES This charger uses default settings for typical use when it is first connected to a 12V power supply. The screen displays the information on the following pages in sequence and the user can change the parameter on each screen. If you need to alter the parameter value in the program, press the ‘Start/Enter’...
  • Page 15 WARNING AND SAFETY NOTES The screen shows nominal voltage of the lithium battery. There are three types of L iF e L iF e L i F e lithium batteries: LiFe (3.3V), Li-ion (3.6V), and LiPo (3.7V). It is critically important V .
  • Page 16 WARNING AND SAFETY NOTES There is a 3-pin port on the left side of the charger used as a USB interface or temperature sensor port. When configured to display temperature, you can display the surface temperature of your battery using the optional temperature probe .

  • Page 17: Lithium (Lilo/Lipo/Life) Program

    Safety Timer Calculation Safety Timer Calculation When charging NiCd or NiMH batteries, divide the capacity by current, then divide the result by 11.9. Use this as the number of minutes for the safety timer setting. If the charger stops at this time threshold about 140% of the capacity will have been fed in to the battery.

  • Page 18: Charging A Lithium Battery In Balance Mode

    Charging a lithium battery Charging a lithium battery The left side of the first line shows the type of battery you have selected. The value on the left side of the second line is the current L iPo BALANCE you have selected. After setting the current and voltage, press the 2.0A 11.1V(3S) ‘START/ENTER’...

  • Page 19: Individual Cell Connection Diagram (Pin Assignment Of 8-Pin)

    Charging a lithium battery Individual Cell Connection Diagram (pin assignment of 8-pin) L iP o 1S L iP o 2S Top V ie w Top V ie w 1 c e l l 1 c e l l 2 c e l l 2 c e l l 3 c e l l 3 c e l l...

  • Page 20: Fast Charging A Lithium Battery

    Fast charging and storage preparation of a lithium battery Fast charging a lithium battery As the charger reaches the end of the charging cycle, the charging current will drop. A specific CV process will be reduced to end the L i P o F A S T CHG 2.0A 11.1V(3S)

  • Page 21: Discharging A Lithium Battery

    Storage preparation of and discharging a lithium battery At this screen you can set up the current and voltage of the battery L i P o STORAGE pack. Charging and discharging will adjust the voltage level of the 2.0A 11.1V(3S) battery to the appropriate storage level.

  • Page 22: Voltage Balancing And Monitoring While Discharging

    Voltage balancing and monitoring while discharging Voltage balancing and monitoring while discharging The processor monitors voltage of each cell in the battery pack during storage preparation and discharging. To use this feature you must connect the balance leads from your battery to the charger. If the charger detects any abnormalities it will terminate the process automatically.

  • Page 23: Discharging A Nicd/Nimh Battery

    Discharging a NiCd/NiMH battery This screen on the previous page shows the real-time status of the battery while charging. Press the ‘BATT TYPE/STOP’ key to stop charging. The charger will play a chime to alert you to the end of the charge process.

  • Page 24: Pb (Lead-Sulphuric Acid) Battery Program

    Charge/discharge and discharge/charge cycle of a NiCd/NiMH battery Charge/discharge and discharge/charge cycle of a NiCd/NiMH battery You can select the sequence you want on the left and the number of cycles on nsitivity N I M H CYCLE the right. You can balance, refresh, and break-in the battery with this function. D.Pea k Defa ult D C H G >...

  • Page 25: Discharging A Pb Battery

    Charging a Pb battery Charging a Pb battery Set up the charge current on the left and nominal voltage on the right. P b C H A R G E Range of charge current is 0.1-5.0A, the voltage should match the battery 4.0A 12.0V(6P) being charged.

  • Page 26: Data Storage Program

    Data storage program Data storage program For your convenience, this charger has a data storage and load program. It can store five different battery programs to suit the different specifications for your batteries. You can recall program data when charging or discharging without setting up the program again. Press the ‘START/ENTER’ key to make it blink, then press the ‘+’...

  • Page 27: Load Data Program

    Load data program Load data program This program loads the data stored in the ‘save data’ program. Press the ‘START/ENTER’ key to make the field blink and press and hold ‘+’ or ‘-’ for more than three seconds to load the data. P R O G RAM SELECT LOAD DATA Start...
  • Page 28 Various information in the program E n d V o l tage The end voltage is displayed when the program is finished. 12.6V(3s) C a p a city Cutoff 5000mAh S a f e t y T i m e r 200 min U S B / T e m p S e l e c t The 3-pin connector is configured as a USB port.

  • Page 29: Warning And Error Information

    Warning and error information Warning and error information This charger incorporates a variety of functions for the system to verify processes and the state of the electronics. In the event of an error, the screen will display the cause of the error and will emit an audible sound.
  • Page 30 Warning and error information The voltage is higher than what is set. Please check the number of cells in B A T T E R Y C H E C K the battery pack. H I G H V O L T A G E Voltage in one cell of the battery pack is too low.

  • Page 31: Warranty And Service

    Warranty and service Warranty and service Warranty Period Exclusive Warranty - Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase by the Purchaser. Limited Warranty (a) This warranty is limited to the original Purchaser (”Purchaser”) and is not transferrable.

  • Page 32: Damage Limits

    Warranty and service Damage Limits: HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCT, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted.

  • Page 33: Questions, Assistance, And Repairs

    Warranty and service Questions, Assistance, and Repairs: Your local hobby store and/or place of purchase cannot provide warranty support or repair. Once assembly, setup or use of the Product has been started, you must contact Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance.

  • Page 34: Non-Warranty Repairs

    Warranty and service Non-Warranty Repairs: Should your repair not be covered by warranty the repair will be completed and payment will be required without notification or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for repair you are agreeing to payment of the repair without notification.
  • Page 35 Warranty and service United Kingdom: Electronics and engines requiring inspection or repair should be shipped to the following address: Horizon Hobby UK Units 1-4 Ployters Rd Staple Tye Harlow, Essex CM18 7NS United Kingdowm Please call +44 (0) 1279 641 097 or e-mail us at sales@horizonhobby.co.uk with any questions or concerns regarding this product or warranty.

  • Page 36: Declaration Of Conformity

    Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH20090618 Product(s): Losi MultiPro™ Charger Item Number(s): LOSB9606 Equipment Class: The objects of declration described above are in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC: EN 301 489-1 v.1.6.1...
  • Page 37 Registration REGISTER YOUR PRODUCT ONLINE Losi, a division of Horizon Hobby, wants to ensure that you get maximum enjoyment from you Losi and Team Losi Racing products. We strongly encourage you to register your product using the online Product Registration tool so we can notify you when there are updates, tech tips, new options parts, or service bulletins available for your product.
