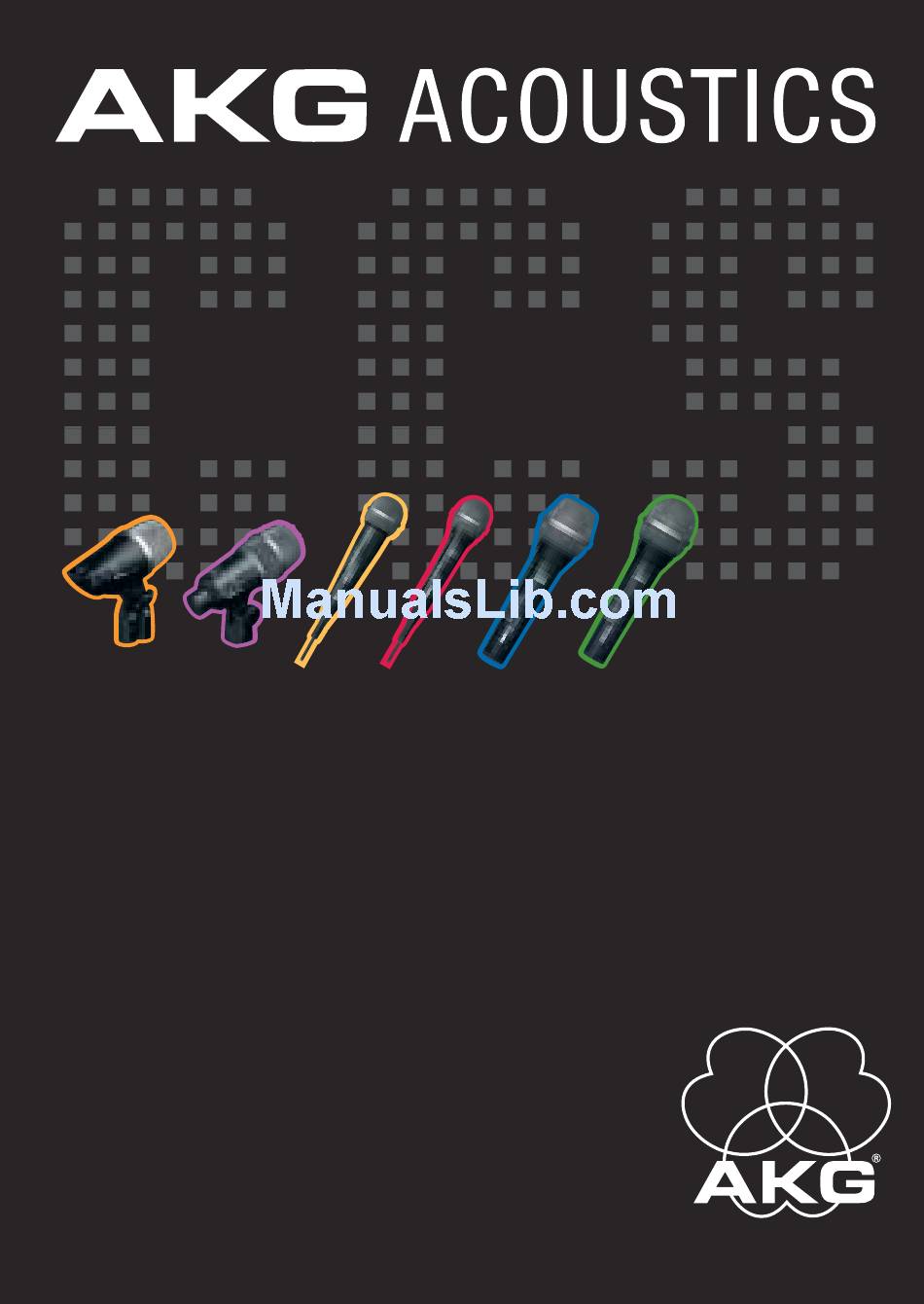

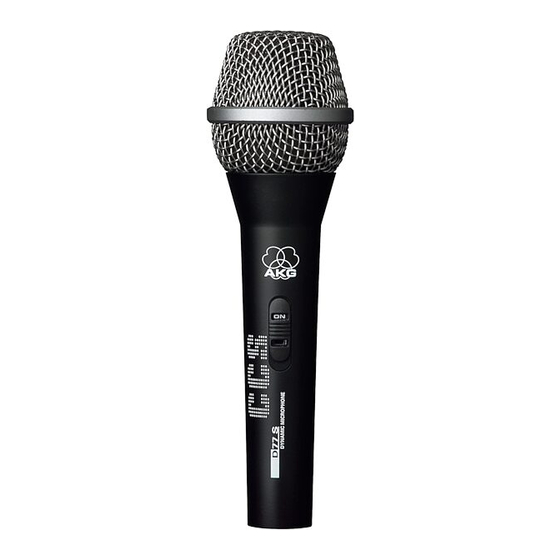

CCS SERIES
Bedienungshinweise . . . . . . . . . . . . . . . S. 2
Bitte vor Inbetriebnahme des Gerätes lesen!
User Instructions . . . . . . . . . . . . . . . . . p. 10
Please read the manual before using the equipment!
Mode d'emploi . . . . . . . . . . . . . . . . . . . p. 18
Veuillez lire cette notice avant d'utiliser le système!
Istruzioni per l'uso . . . . . . . . . . . . . . . . p. 26
Prima di utilizzare l'apparecchio, leggere il manuale!
Modo de empleo . . . . . . . . . . . . . . . . . p. 34
Antes de utilizar el equipo, sírvase leer el manual!
Instruções de uso . . . . . . . . . . . . . . . . p. 42
Favor leia este manual antes de usar o equipamento!
Advertisement
Related Manuals for AKG D11
Summary of Contents for AKG D11
- Page 1 CCS SERIES Bedienungshinweise ....S. 2 Bitte vor Inbetriebnahme des Gerätes lesen! User Instructions ....p. 10 Please read the manual before using the equipment! Mode d’emploi .
- Page 2 1 Description • Dynamic instrument microphone D 11 • Cardioid polar pattern • 16-ft. (5-m) balanced XLR/XLR cable • Rugged clear-plastic carrying case • For kick drum, bass amps, wind instruments • Dynamic instrument microphone D 22 • Cardioid polar pattern •...
-
Page 3: Using Your Microphone
2 Using Your Microphone Please make sure that the piece of equipment 2.1 Precaution your microphone will be connected to fulfills the safety regulations in force in your country and is fitted with a ground lead. D 11, D 22, D 77 S/XLR, D 88 S/XLR 2.2 Connecting Use the supplied balanced cable to connect the the Microphone... - Page 4 2 Using Your Microphone 2.4 Positioning The following sections contain suggestions for the Microphone placing the microphone optimally for a number of for Instruments instruments. Please note that moving the microphone closer to the instrument will boost the bass range. (This is known as “proximity effect”.) 2.4.1 Flute Microphone: D 77 S...
- Page 5 2 Using Your Microphone Microphone: D 22 2.4.5 Guitar Working distance: 0 to 2 inches. Aim the micro- Amplifier phone at a point between the center and the Refer to fig. 10. perimeter of (one of) the speaker diaphragm(s). Microphone: D 11 2.4.6 Bass Working distance Amplifier...
- Page 6 2 Using Your Microphone 4. Align the microphone with the perimeter of the top head. 2.5 Vocals The closer you hold the microphone to your lips, (D 77 S, D 88 S) the louder and darker your voice will sound. As you move away from the microphone, your voice 2.5.1 Working will sound quieter and brighter.
- Page 7 2 Using Your Microphone microphone grill. If you cover the rear sound entries, the microphone will lose its directivity and its gain before feedback would drop sharply. 1. Keep the maximum number of vocalists shar- 2.5.4 Backing ing a microphone to two. Vocals 2.
-
Page 8: Specifications
Furthermore the relevant legal warranties apply. The details of the AKG warranty agreement and the address of the nearest AKG service center can be found on www.akg.com For more information call AKG USA at (+1-615) 6203800... -
Page 9: Troubleshooting
6 Troubleshooting Problem Possible Cause Remedy 1. Power to mixer 1. Switch power to and/or amplifier is mixer or amplifier off. 2. Channel or master 2. Set channel or fader on mixer, or master fader on volume control on mixer or volume amplifier is at zero. - Page 10 Fig. 1 (D 11, D 22, D 77 S/XLR, D 88 S/XLR) Fig. 2 (D 77 S/Jack, D 88 S/Jack) Fig. 3 (D 77 S, D 88 S) Fig. 4 (D 77 S)
- Page 11 Fig. 5 (D 22, D 77 S) Fig. 6 (D 77 S) Fig. 7 (D 22) Fig. 9 Fig. 8 (D 11) (D 11) Fig. 11 (D 11) Fig. 10 (D 22)
- Page 12 Fig. 12 (D 11) Fig. 13 (D 22, D 77 S) Fig. 14 (D 22, D 77 S) Fig. 15 (D 22) Fig. 17 (D 88 S) Fig. 16 (D 88 S, D 77 S) Fig. 18 (D 77 S, D 88 S)
