Page 1: Instruction Manual

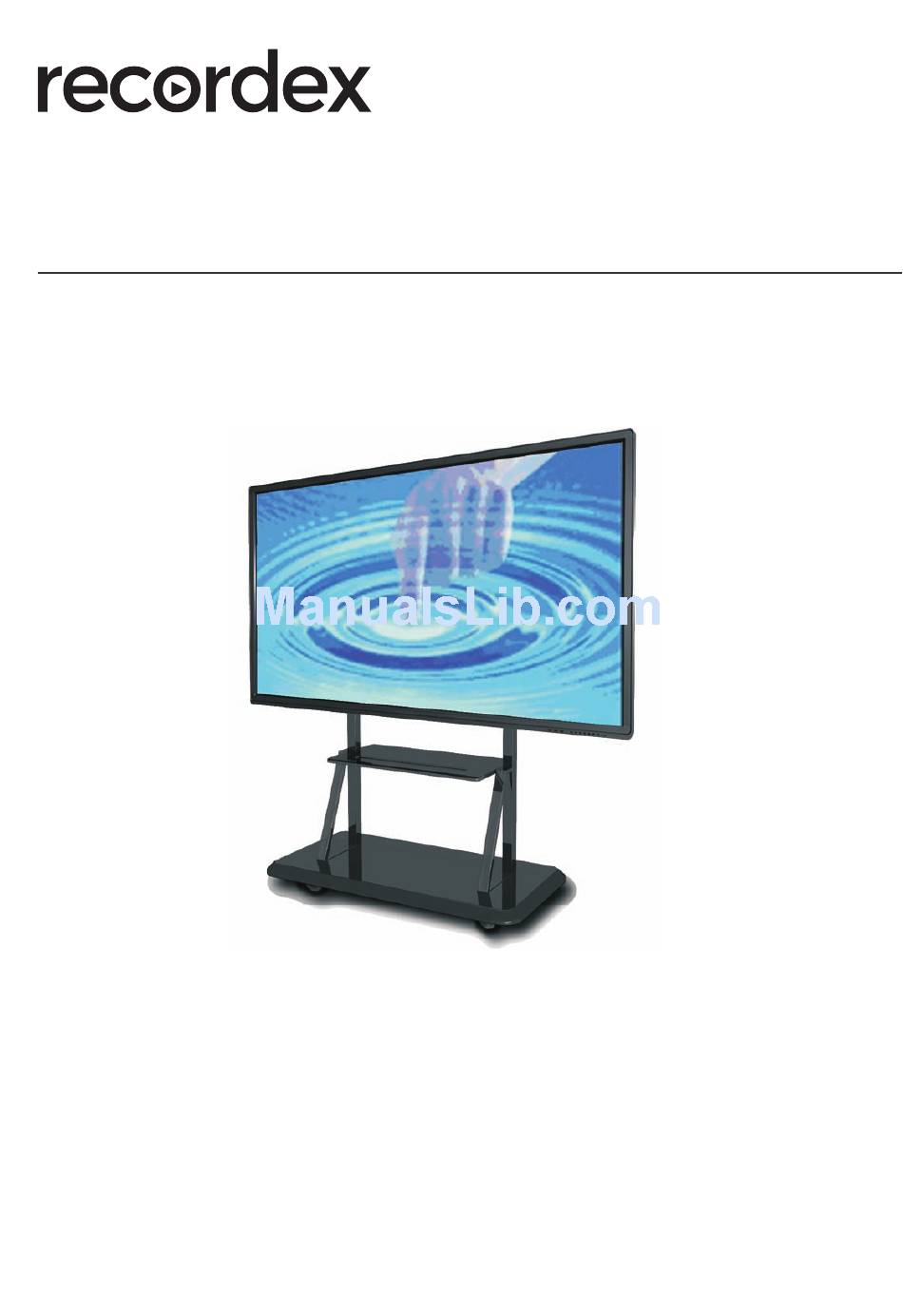

Interactive Flat Panel INSTRUCTION MANUAL ST-650U ST-840U Before connecting, operating or adjusting this product, please read the manual completely. Please keep this manual for future reference. -
Page 2: Table Of Contents
Contents Important Information Important Safety Precautions Important Notice Identification of Controls Remote Control Setting Up Connections Basic Operations System Settings Network Settings Menu List Using USB Multi Media Player Troubleshooting Specifications... -
Page 3: Wall Mounting
CHILD SAFETY It makes a difference how and where you use your flat panel display As you enjoy your new product, keep these safety tips in mind The issue The home theater entertainment experience is a growing trend, and larger IFPs are popular purchases. -
Page 4: Important Safety Precautions
Important Safety Precautions WARNING CAUTION Electric shock hazard RISK OF ELECTRIC SHOCK To reduce the risk of fire or electric shock, do not remove DO NOT OPEN any cover or expose the device to rain or moisture. No user-serviceable parts are inside. Refer servicing to This symbol indicates that qualified service technicians. -
Page 5: Legal Notices
Important Safety Precautions (Continued) CAUTION Legal notices Damage requiring service FCC Statement Unplug this IFP from the power outlet and refer servicing 1. This device complies with Part 15 of the FCC Rules. to qualified service personnel under the following Operation is subject to the following two conditions: conditions: (1) This device may not cause harmful interference. -
Page 6: Important Notice
Important Notice About Location/ Do not use in hot and cold rooms (locations) ! When the unit is used in rooms (locations) with low temperature, the picture may Environment leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal. -
Page 7: Identification Of Controls
Identification of Controls 1. : USB standard interface of the IFP (Android system), enable connection to USB2.0 standard devices. : USB standard interface of the OPS,enable connection to USB2.0 standard devices. Note: If no OPS, the USB port has no function. :Switch the IFP power on or standby. -
Page 8: Remote Control
Remote Control INPUT Switch the IFP power on or Standby Display or exit input source menu 0-9 number buttons Set up the sleep timer SLEEP ZOOM Select the screen size INFO EXIT Display or exit the current Return to previous menu program information or exit the on-screen menu To confirm or enter a sub-menu or... -
Page 9: Setting Up
Setting Up Selecting a location You should select a location for the IFP: Where direct light does not reflect on the screen. · That has indirect and soft lighting. · Where the IFP has access to a power outlet. · Note: Watching IFP in total darkness or with a reflection on the screen may cause eyestrain. -
Page 10: Connections
Connections Cautions Before Connecting When connecting an external device to the IFP , make sure that the IFP and the device are turned off. Check the plugs at the ends of cables to make sure that they are the correct type before you try plugging them into jacks on the IFP . Make sure that all plugs are securely inserted into the jacks. - Page 11 Connections DVI to HDMI cable HDMI 1 Game console HDMI 2 Camcorder Set top box HDMI 3 Satellite signal receiver DVI devices USB 3.0 Use a DVI to HDMI adapter cable to cnnect to the HDMI terminal. Connect the HDMI 4 (4K2K) audio cable to the PC IN 1 AUDIO jack.
-
Page 12: Basic Operations
Basic Operations Turning the IFP on or off Plug the power cord into an AC power outlet. Press Power Switch on the IFP . Now the IFP is in standby mode. Wait a moment until the power indicator lights up, then press POWER to turn on the IFP . - Page 13 Basic Operations Press and drag the MENU to any place of the Touch the bottom of the screen. Touch once to control the screen and drag upward surrounding MENU appear or disappear. to make the MENU Touch once outside the MENU, the MENU appear.
-
Page 14: System Settings
System Settings Wallpaper Setting Press OK to access its edit menu. Force this application to stop Uninstall this application Clear data of this application Display information Network Setting Display system information or restore to factory default. Note: To manually set date and time, you should toggle “Set date and time automatically from the Internet”... -
Page 15: Menu List
Menu List Select your favourite picture mode for each input [Dynamic] Picture Mode [Standard] / [Soft] / [User]. Adjust the contrast. Contrast Brightness Adjust the brightness. Adjust the image hue. (Only for NTSC system) Tint Sharpness Adjust the sharpness. Adjust the color saturation. Saturation Backlight Set up the overall brilliance of the screen. - Page 16 Menu List Date Set current date manually. Set current time manually. Current Time Off Time Set Off timer to switch the IFP to standby at a specified time. On Time Set On timer to turn on the IFP automatically to source at a certain time.
-
Page 17: Using Usb Multi Media Player
Using USB Multi Media Player Using USB multi media player You can connect a USB storage device to your IFP to view compatible photo, movie on the large screen of the IFP or play compatible music so that the sound can be output from the IFP’s speaker. Home To use USB multi media player, please go to USB source by pressing USB button. -
Page 18: Playing Music
Using USB Multi Media Player Playing Photo With the photo viewer, you can view compatible photos (in JPG, BMP or PNG format). Also you can zoom, rotate photo, etc. Note: The photo viewer supports JPG, BMP , PNG format images, but not all JPG, BMP , or PNG files are compatible with the IFP due to technical update. - Page 19 Using USB Multi Media Player Playing Movie With the USB movie player, you can play compatible movie (in AVI, MPG, MPEG, DAT, MP4, TS, RM/RMVB, or MKV/MOV format). Note: The USB movie player supports AVI, MPG, MPEG, DAT, MP4, TS, RM/RMVB, MKV/MOV format video files, but not all AVI, MPG, MPEG, DAT, MP4, TS, RM/RMVB, MKV/MOV files are compatible with the IFP due to technical update.
-
Page 20: Troubleshooting
Troubleshooting If, after reading these operating instructions, you have additional questions related to the use of your IFP , please call the services center in your local area. Before calling service, please check the symptoms and follow suggested solutions. Remote Control Problem Possible Solutions The batteries could be weak. -
Page 21: Specifications
Specifications Model No. ST-650U ST-840U AC 100-240 V, 50 / 60 Hz AC 100-240 V, 50 / 60 Hz Power Source Current Max. 2.6A 6.2A 65 inches(diagonal) 84 inches(diagonal) Visible screen size Number of pixels 3840×2160 3840×2160 Dimensions (W × D × H) 1506×91.5×896(mm) - Page 22 PRINTED ON RECYCLED PAPER...
