Page 1: Product Description
ZXSDR R8984E TDD 4 Path Remote Radio Unit Product Description Version: V1.0 ZTE CORPORATION No. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26771900 Fax: +86-755-26770801 URL: http://support.zte.com.cn E-mail: 800@zte.com.cn... - Page 2 ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners.
-
Page 3: Table Of Contents
6.2 Performance Specifications................. 6-1 6.3 Power Consumption Specifications..............6-1 6.4 Reliability Specifications ..................6-2 Chapter 7 Environmental Specifications..........7-1 7.1 Power Supply Specifications ................7-1 7.2 Operational Environment ..................7-1 7.3 Storage Environment..................7-2 Glossary ......................I SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential... - Page 4 This page intentionally left blank. SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential...
-
Page 5: About This Manual
About This Manual Purpose This manual describes the features, architecture, specifications, network architecture, and operation and maintenance of the ZXSDR R8984E. Intended Audience This manual is intended for: Network planning engineers Software debug engineers System maintenance engineers What Is in This Manual This manual contains the following chapters. - Page 6 This page intentionally left blank. SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential...
-
Page 7: Chapter 1 Product Positioning And Features
ZTE, supports the single-mode TD-LTE 4-path 4-carrier technology, and is used to construct indoor and outdoor macro networks and fill coverage holes. For the positioning of the ZXSDR R8984E in a radio network, see Figure 1-1. Here, the yellow is the ZXSDR R8984E. - Page 8 Green and energy saving Small is size and light in weight, the ZXSDR R8984E is a compact RRU. à Uses multiple efficient power amplifier technologies, for example, CFR, DPD, à...
-
Page 9: Chapter 2 Product Structure

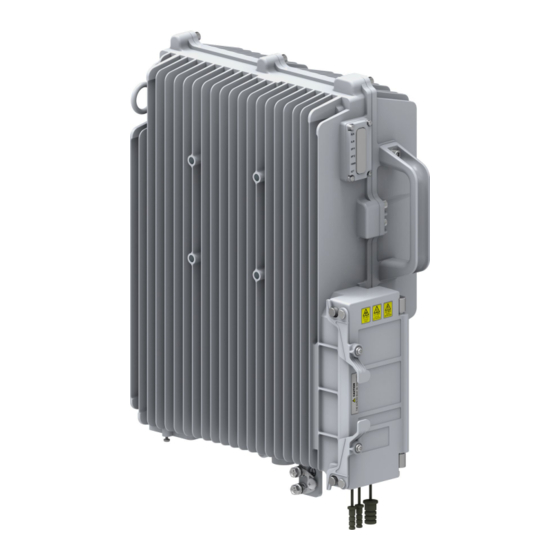

Chapter 2 Product Structure Table of Contents Hardware Structure ....................2-1 Logical Architecture....................2-2 Software Architecture ....................2-2 2.1 Hardware Structure Figure 2-1 shows an external view of the ZXSDR R8984E. Figure 2-1 External View SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential... -
Page 10: Logical Architecture
ZXSDR R8984E Product Description 2.2 Logical Architecture The ZXSDR R8984E is composed of a transceiver, a power amplifier, a duplex filter, and a power supply module. For the logical architecture of the ZXSDR R8984E, see Figure 2-2. Figure 2-2 Logical Architecture... - Page 11 Chapter 2 Product Structure Figure 2-3 Software Architecture For a description of the software architecture of the ZXSDR R8984E, refer to Table 2-2. Table 2-2 Software Architecture Descriptions Software Description Management Implements the RF management function, including RF control and RF path management.
- Page 12 ZXSDR R8984E Product Description This page intentionally left blank. SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential...
-
Page 13: Chapter 3 Operation And Maintenance System
Local Maintenance Mode The Local Maintenance Terminal (LMT), which is installed on a PC, is physically connected to the debug interface of the ZXSDR R8984E through an Ethernet cable to perform operation and maintenance on the ZXSDR R8984E, see Figure 3-2. -
Page 14: Function
ZXSDR R8984E Product Description Figure 3-2 Local Maintenance Mode The local maintenance mode is used to maintain a single base station. 3.2 Function The GUI of the NetNumen N31 network management system is presented in the form of topology, and information about each NE in the network can be viewed on the GUI. A user can select an NE to be maintained, and view detailed performance data, alarm information, and configuration data of the NE. -
Page 15: Chapter 4 Product Features
Chapter 4 Product Features The ZXSDR R8984E supports the following features: TD-LTE 10 MHz, 15 MHz, and 20 MHz bandwidth configurations Operating frequency band of 3650 MHz–3700 MHz Four TD-LTE Tx/Rx paths and MIMO Downlink/uplink time slot configuration RGPS backhaul technology... - Page 16 ZXSDR R8984E Product Description This page intentionally left blank. SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential...
-
Page 17: Chapter 5 Network Topologies
5.1 Star Network Architecture In a star network, the is directly connected to each ZXSDR R8984E, and ZXSDR R8984E devices are end devices. In this network architecture, both maintenance and engineering are easy. Signals are processed by fewer nodes, and the reliability is high, Figure 5-1. - Page 18 ZXSDR R8984E Product Description Figure 5-2 Chain Network Architecture SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential...
-
Page 19: Chapter 6 Technical Specifications
Operating frequency interval 100 kHz 4*100 mw@20 MHz，4*250 mw@20+20+10 Receiver sensitivity –101.5 dBm Carrier shift ± 0.05 ppm 6.3 Power Consumption Specifications For the power consumption specifications of the ZXSDR R8984E, refer to Table 6-3. SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential... -
Page 20: Reliability Specifications
Table 6-3 Typical Power Consumption Slot Ratio Typical Power Consumption = 2: 2 200 W = 3: 1 260 W 6.4 Reliability Specifications For the reliability specifications of the ZXSDR R8984E, refer to Table 6-4. Table 6-4 Reliability Specifications Item Specification Protection rating IP66... -
Page 21: Chapter 7 Environmental Specifications
Environmental Specifications Table of Contents Power Supply Specifications ..................7-1 Operational Environment....................7-1 Storage Environment....................7-2 7.1 Power Supply Specifications For the power supply specifications of the ZXSDR R8984E, refer to Table 7-1. Table 7-1 Power Supply Specifications Item Specification –48 V DC (range: –57 V to –37 V) 7.2 Operational Environment... -
Page 22: Storage Environment
Chemically Substance Item Specification Salt fog Allowed 7.3 Storage Environment The ZXSDR R8984E must be stored with packaging in protected locations to ensure that the device can operate properly after being installed. Climatic Environment Item Specification Temperature –50 ℃ to +70 ℃... - Page 23 Chapter 7 Environmental Specifications Biological Environment Item Specification Plants Mold and fungus allowed Animals Rodents and other animals that may damage the product allowed, except termites Chemically Substance Item Specification Salt fog Allowed SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential...
- Page 24 ZXSDR R8984E Product Description This page intentionally left blank. SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential...
-
Page 25: Glossary
- Global Positioning System - Instantaneous Bandwidth - intermediate Frequency - Internet Protocol - Radio Interface - Local Maintenance Terminal - Low Noise Amplifier - Long Term Evolution MIMO - Multiple-Input Multiple-Output - Mobility Management Entity SJ-20150330163204-001|2015-04-30 (R1.0) ZTE Proprietary and Confidential... - Page 26 ZXSDR R8984E Product Description MTBF - Mean Time Between Failures MTTR - Mean Time To Recovery - Operation, Administration and Maintenance - Occupied Bandwidth - Operating System - Operation Support Subsystem - Personal Computer - Radio Frequency RGPS - Remote GPS...
