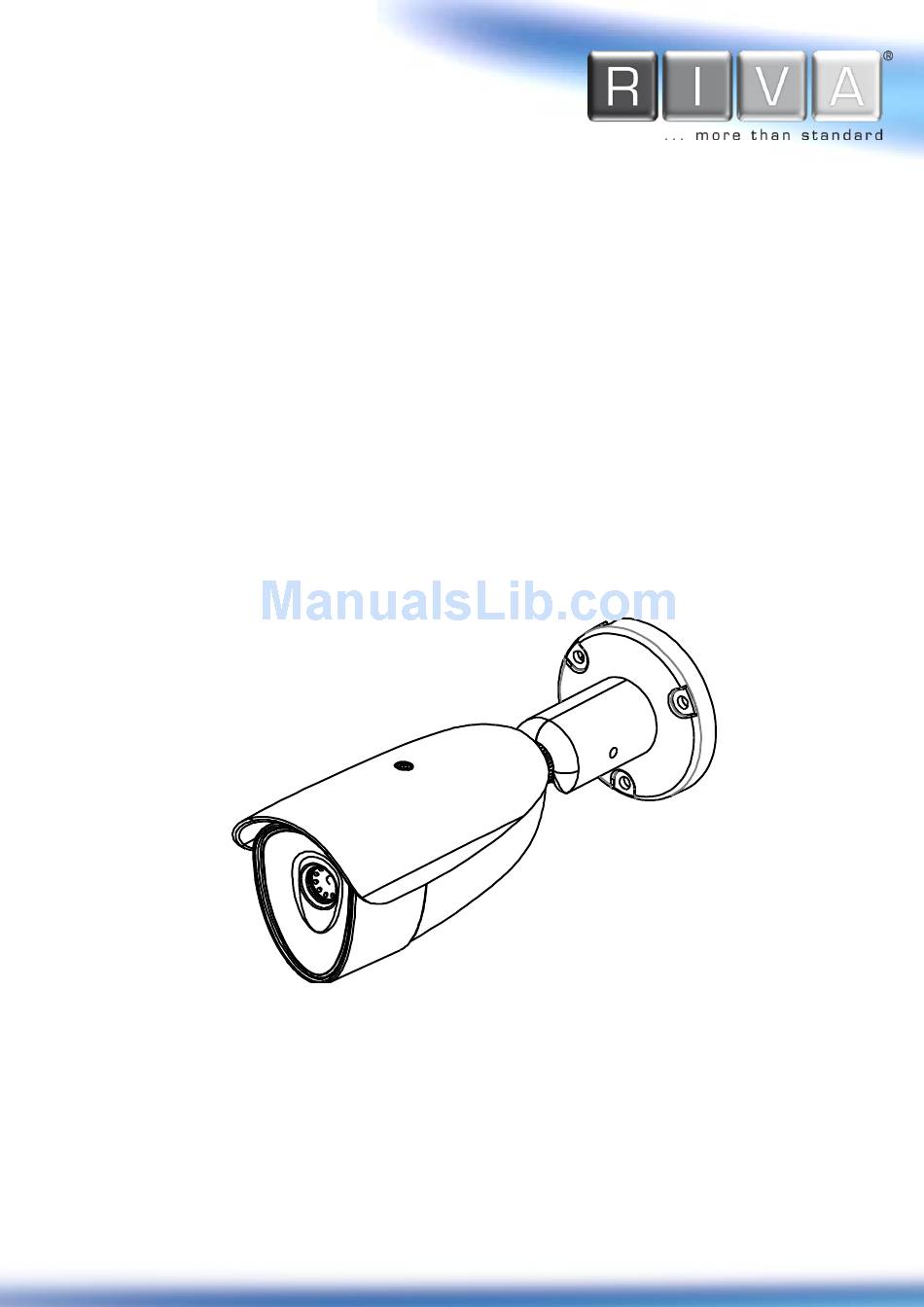

- Page 1 RTS650 Thermal Camera Installation Guide www.rivatech.de Specification subject to change without notice...
-
Page 2: Precaution
RTS Series RTS650 Installation Guide Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. -
Page 3: Table Of Contents
RTS Series RTS650 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. CAMERA INSTALLATION ..................7 4.1. Installing the camera ..................... 7 4.1.1. Installation without bracket ..................7 4.1.2. -
Page 4: Features
RTS Series RTS650 Installation Guide 1. FEATURES Camera 17 ㎛ vanadium oxide mirobolometer technology 206x156 array size / Various resolutions by scale-up 20°, 36° field of view Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) ... -
Page 5: Package Contents
RTS Series RTS650 Installation Guide 2. PACKAGE CONTENTS Torx Wrench Screw & Plastic Anchor-3pcs Please unpack the package carefully and handle the equipment with care. The package contains: Camera DC Power Adaptor & Universal Plugs WALL CUSHION Quick Installation Guide... -
Page 6: Part Names
& astic Anchor-3pcs RTS Series RTS650 Installation Guide 3. PART NAMES allation Template Sunshield BLACK AUD IN BROWN AUD GND AUD OUT Power adaptor connector ORANGE YELLOW DI COM LAN connector GREEN DO1(N.O) Audio|Sensor|Alarm BLUE... -
Page 7: Camera Installation
RTS Series RTS650 Installation Guide 4. CAMERA INSTALLATION 4.1. Installing the camera 4.1.1. Installation without bracket Installation Template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. Caution The correct-size template paper can be found inside the package separately. - Page 8 RTS Series RTS650 Installation Guide Installation Screw & Plastic Anchor-3pcs 1) Drill three holes on the installation surface based on the provided installation template. 2) Insert the plastic anchors into the holes. lation Guide Installation Template 3) Install the provided ferrite core on the cable by referring to the Note below.
-
Page 9: Compatible Accessories
RTS Series RTS650 Installation Guide 4.1.2. Compatible Accessories The compatible accessories to mount this camera model are as follows. Model Names & Combinations PMA-U100 CMA-U100 JBK-U100 Refer to the corresponding accessory model’s installation guide for the instructions. Model Image PMA-U100... -
Page 10: Adjusting Angle Of The Camera
RTS Series RTS650 Installation Guide 4.2. Adjusting angle of the camera 1) Loosen the set screw located on the right side of the camera’s bracket by using the provided Torx(T20 M4x23) wrench. Once the set screw is loosened, you can move the tilting joint and the panning joint of the camera respectively. -
Page 11: Connections
Reset & c Anchor-3pcs RTS Series RTS650 Installation Guide 5. CONNECTIONS tion Template BLACK AUD IN AUDIO BROWN AUD GND AUD OUT Power adaptor ORANGE SENSOR YELLOW DI COM connector LAN connector GREEN DO1(N.O) ALARM 1 BLUE DO1 COM ... - Page 12 RTS Series RTS650 Installation Guide Internal +3.3V Internal Output of Output of Sensor Sensor Relay Type Voltage Type ③ Alarm (DO1 | DO2) connection Only the relay type is supported. - Digital Output 1 Relay Rating: Max 30VDC 1A Normally Open (N.O) at power off...
- Page 13 RTS Series RTS650 Installation Guide ④ LAN connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network. Refer to “Appendix (B). Power over Ethernet”...
-
Page 14: Configuration
RTS Series RTS650 Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 15: Custom Ip Environment
RTS Series RTS650 Installation Guide 6.1.2. Custom IP Environment Please access our website and download necessary IPAdminTool first: http://www.rivatech.de/en/downloads/software IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 16: View Video On Web Page
RTS Series RTS650 Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed. -
Page 17: View Video Using Ipadmin Tool
RTS Series RTS650 Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 18: Reboot
RTS Series RTS650 Installation Guide 6.3. Reboot On the Device Perform the following procedure to reset your device. Press the reset button for 2 seconds when the device is powered on. Wait for the system to reboot. Do not press the reset button for more than 2 seconds. Otherwise, the camera may be switched to its factory default settings. -
Page 19: Safe Mode
RTS Series RTS650 Installation Guide 6.5. Safe Mode What is Safe Mode? There may be certain occasions that your camera repeatedly fails to boot. Then, your camera may enter safe mode to be recovered from the occasions. What may have caused Safe Mode? Here below are the main typical causes. -
Page 20: Appendix (A): Specifications
RTS Series RTS650 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Array Size 206x156 Detection Type Uncooled vanadium oxide microbolometer Sensor pixel size 12um Spectral Response 7.8 ~ 14um RTS650-A20 6.8mm, F1.2(FOV:20°) Lens RTS650-A36 4.0mm, F1.2 (FOV:36 Sensitivity Less than 100mK... -
Page 21: Electrical Characteristics
RTS Series RTS650 Installation Guide DynDNS, NTP, SNMPv2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLSv1/1.2, SRTP, RTMP, IEEE802.1X Storage 1 x microSDHC card embedded Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af Power Consumption Max. 12W@DC 12V Audio Input MIC in, Max2Vp-p, 20K Ω (90dB) Audio Output Line out, 60mW, 16 Ω... -
Page 22: Appendix (B): Power Over Ethernet
RTS Series RTS650 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 23: Appendix (C): Dimensions
RTS Series RTS650 Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 04-2017-A www.rivatech.de... -
Page 24: Appendix (D): Hexadecimal-Decimal Conversion Table
RTS Series RTS650 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 04-2017-A www.rivatech.de... -
Page 25: Revision History
RTS Series RTS650 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 03-2016-A 03/04/2016 First release version 05-2016-A 05/09/2016 Minor update 10-2016-A 10/27/2016 Added 20° lens to the specifications. 04-2017-A 04/03/2017 Added some network protocols to the specification table 04-2017-A www.rivatech.de...
