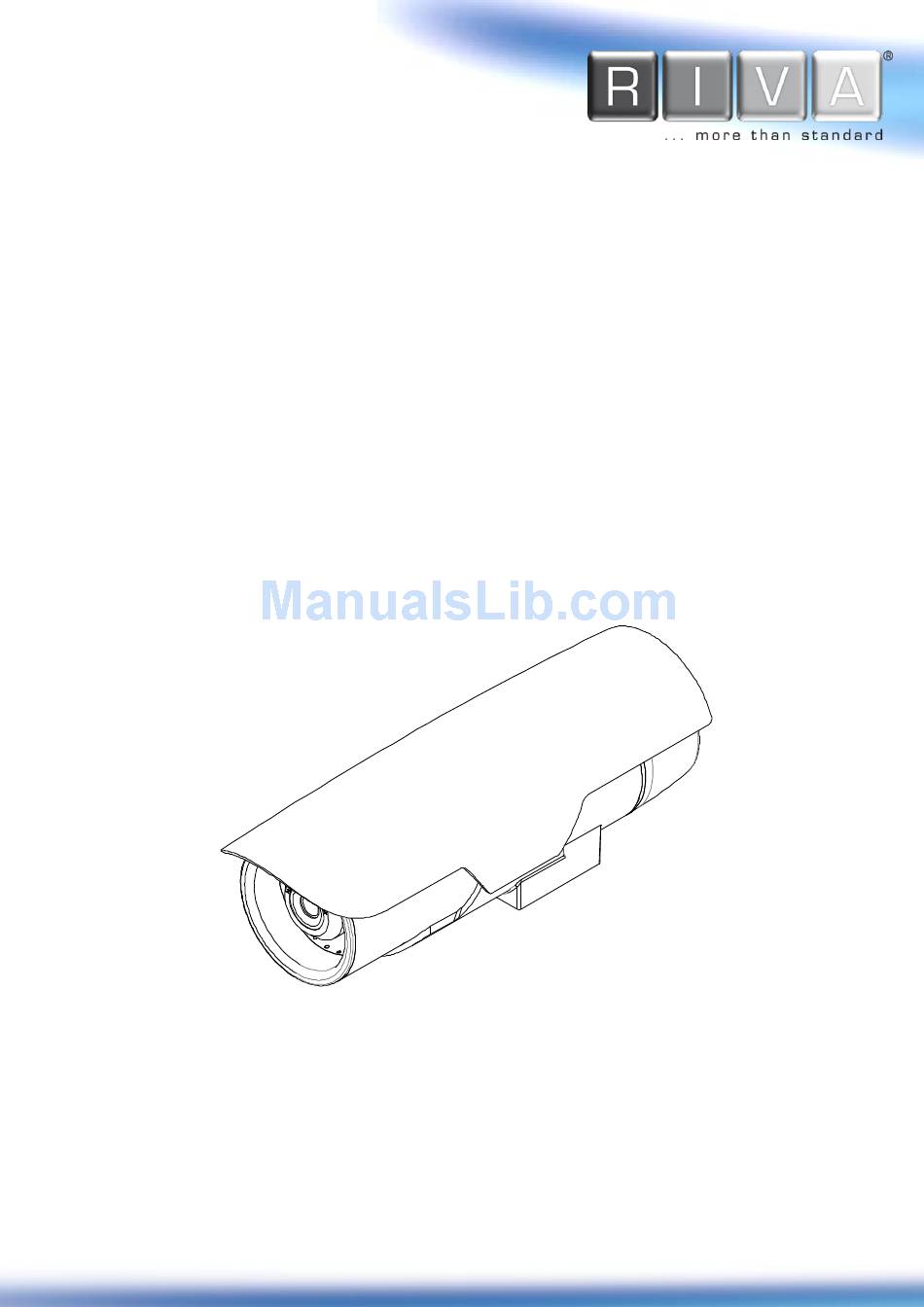

- Page 1 RTC6500 Thermal Camera Series Installation Guide www.rivatech.de Specification subject to change without notice...
-
Page 2: Precaution
RTC Series RTC6500 Series Installation Guide Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. -
Page 3: Table Of Contents
RTC Series RTC6500 Series Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................5 2. PACKAGE CONTENTS..................... 6 3. PART NAMES ......................7 4. INSTALLATION ...................... 9 4.1. Installing Cable Gland .................... 9 4.2. Connecting Cable(s) ..................... 10 4.3. - Page 4 RTC Series RTC6500 Series Installation Guide APPENDIX (D): DIMENSIONS ................... 28 APPENDIX (E): HEXADECIMAL-DECIMAL CONVERSION TABLE ........29 REVISION HISTORY ....................30 04-2017-A www.rivatech.de...
-
Page 5: Features
RTC Series RTC6500 Series Installation Guide 1. FEATURES Camera 17 ㎛ uncooled vanadium oxide micro-bolometer 320x240 / 640x480 resolutions 6, 9, 16, 24, 42,60 degrees field of view (RTC6500Q) 12, 18, 25, 37, 50 degrees field of view (RTC6500V) ... -
Page 6: Package Contents
Screw & Plastic Anchor-3pcs RTC Series RTC6500 Series Installation Guide Quick Installation Guide 2. PACKAGE CONTENTS CABEL CORE Please unpack the package carefully and handle the equipment with care. The package contains: Camera Sunshield DC Power Jack Cable (Below is the sunshield attached image) Screw &... -
Page 7: Part Names
RTC Series RTC6500 Series Installation Guide 3. PART NAMES Sunshield Analogue Video Output RJ45 Socket NTSC / PAL Button Reset Button Terminal Connectors Terminal for DI/DO Connectors Terminal Connectors for power adaptor for Audio In/Out ... - Page 8 RTC Series RTC6500 Series Installation Guide ⑨ Terminal Connector for Power Adaptor Connect terminal blocks for power supply Refer to 5.CONNECTIONS for more information. 04-2017-A www.rivatech.de...
-
Page 9: Installation
RTC Series RTC6500 Series Installation Guide 4. INSTALLATION 4.1. Installing Cable Gland Gland body Electrical nut Hole for gland O-ring Sealing nut 1) Detach the back cover by twisting it counter-clockwise. 2) Disassemble the provided cable gland unit. There will be an electrical nut, a rubber sealing ring inserted inside the cable gland, a gland body, and a sealing nut. -
Page 10: Connecting Cable(S)
RTC Series RTC6500 Series Installation Guide 4.2. Connecting Cable(s) Connect the required cables to the corresponding connectors on the back panel of the camera body. Refer to 5. CONNECTIONS for more information about each connector. Please use a shielded cable for the RJ45 connection to block radio frequency interference. -
Page 11: Closing The
RTC Series RTC6500 Series Installation Guide 4.4. Closing the Back Cover 1) Insert the provided silica gel packet inside the back panel. 2) Close the back panel of the camera by twisting the back cover clockwise on the camera’s back panel. -
Page 12: Installing With Bracket
RTC Series RTC6500 Series Installation Guide 4.7. Installing with Bracket The compatible accessories to mount this camera are as follows. Model Names & Combinations WBOVA2 + (WCWA, WSFPA / DBHWGC / PTCC1, or WCPA) WCM4A2 Refer to the corresponding accessory model’s installation guide for the instructions. -
Page 13: Connections
RTC Series RTC6500 Series Installation Guide 5. CONNECTIONS ANALOGUE RJ45 VIDEO OUT DIDO AUDIO RS-485 POWER DIDO AUDIO IN AUDIO OUT AUDIO OUT GND POWER RS-485 [ Back Panel of Camera ] ① DIDO (Sensor/Alarm) Connection Two Alarms (DO1 | DO2) The camera provides two digital outputs (alarms). - Page 14 Reset RTC Series RTC6500 Series Installation Guide One Sensor (DI) The camera provides one digital input (sensor). Sensor (DI) can be connected to either a voltage type sensor or a relay type sensor as the following figures. Settings can be done through the camera’s webpage.
- Page 15 RTC Series RTC6500 Series Installation Guide ③ RS-485 Connection The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) like the following image. 485 Device ④ Power Connection The camera can be powered by either 12VDC, 24VAC, or PoE. If the camera is powered via PoE, you do not need to connect the power adaptor.
-
Page 16: Configuration
RTC Series RTC6500 Series Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 17: Custom Ip Environment
RTC Series RTC6500 Series Installation Guide 6.1.2. Custom IP Environment Please access our website and download necessary IPAdminTool first: http://www.rivatech.de/en/downloads/software IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 18: View Video On Web Page
RTC Series RTC6500 Series Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed. -
Page 19: View Video Using Ipadmin Tool
RTC Series RTC6500 Series Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 20: Reboot
RTC Series RTC6500 Series Installation Guide 6.3. Reboot On the Device Perform the following procedure to reset your device. Press the reset button for 2 seconds when the device is powered on. Wait for the system to reboot. Do not press the reset button for more than 2 seconds. Otherwise, the camera may be switched to its factory default settings. -
Page 21: Safe Mode
RTC Series RTC6500 Series Installation Guide The factory default settings can be inferred with the following information: IP address: 192.168.xx.yy Network mask: 255.255.0.0 Gateway: 192.168.0.1 Note User ID: root Password: pass 6.5. Safe Mode What is Safe Mode? There may be certain occasions that your camera repeatedly fails to boot. Then, your camera may enter safe mode to be recovered from the occasions. - Page 22 RTC Series RTC6500 Series Installation Guide If your device is still in safe mode after trying to update firmware, please contact your local agency to get further assistance. Note 04-2017-A www.rivatech.de...
-
Page 23: Appendix (A): Specifications
RTC Series RTC6500 Series Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module RTC6500Q: 320x240 Array Size RTC6500V: 640x480 Detection Type Uncooled Vanadium Oxide Microbolometer Sensor pixel size 17um Spectral Response 8-14 μm RTC6500Q: 6°, 9°, 16°, 24°, 42°, 60° Lens RTC6500V: 12°, 18°, 25°, 37°, 50°... -
Page 24: Electrical Characteristics
RTC Series RTC6500 Series Installation Guide Storage 1 x microSDHC card embedded (optional) Electrical Characteristics Power Source DC 12V (CLASS 2, LPS)/ AC 24V / PoE IEEE802.3af (Class 0) Power Consumption Max 10W@12VDC Audio Input MIC in, Max2Vp-p, 20K Ω (90dB) Audio Output Line out, 60mW, 16 Ω... -
Page 25: Appendix (B): Detection Range
RTC Series RTC6500 Series Installation Guide APPENDIX (B): DETECTION RANGE *The detection range is of the maximum values. (Unit: meter) RTC6500Q Lens Object Detection VCA Event Recognition Identification Person 2,105 6° Vehicle 4,740 1100 1,070 Person 1,450 9° Vehicle 3,390 Person 16°... - Page 26 RTC Series RTC6500 Series Installation Guide Person Vehicle 04-2017-A www.rivatech.de...
-
Page 27: Appendix (C): Power Over Ethernet
RTC Series RTC6500 Series Installation Guide APPENDIX (C): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. - Page 28 RTC Series RTC6500 Series Installation Guide APPENDIX (D): DIMENSIONS (Unit: mm) 04-2017-A www.rivatech.de...
- Page 29 RTC Series RTC6500 Series Installation Guide APPENDIX (E): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 04-2017-A www.rivatech.de...
-
Page 30: Revision History
RTC Series RTC6500 Series Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 05-2016-A 05/02/2016 First release version 08-2016-A 08/11/2016 Added 4.6. Adjusting Image Focus 10-2016-A 10/13/2016 Added additional comments in 4.6. Adjusting Image Focus Modified APPENDIX (B): DETECTION RANGE 10-2016-A 10/19/2016 Added more lenses Added a note for RJ45 connection in 4.2.
