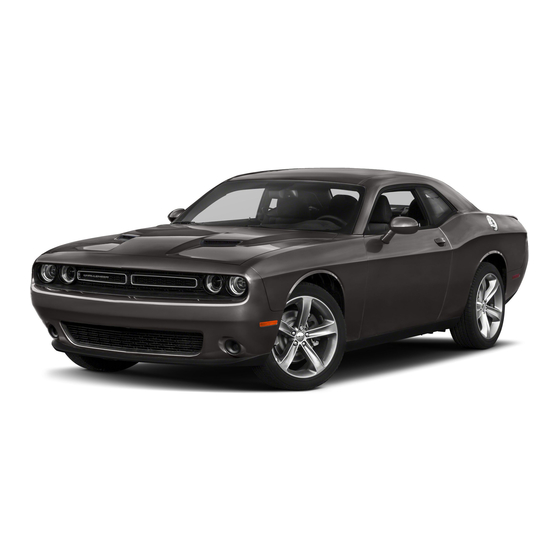

Dodge Challenger 2018 Owner's Manual

Dodge Challenger 2018 Owner's Manual

Hide thumbs Also See for Challenger 2018:

User manual (276 pages)

Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Challenger

2 0 1 8

O W N E R ' S M A N U A L

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the Challenger 2018 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dodge Challenger 2018

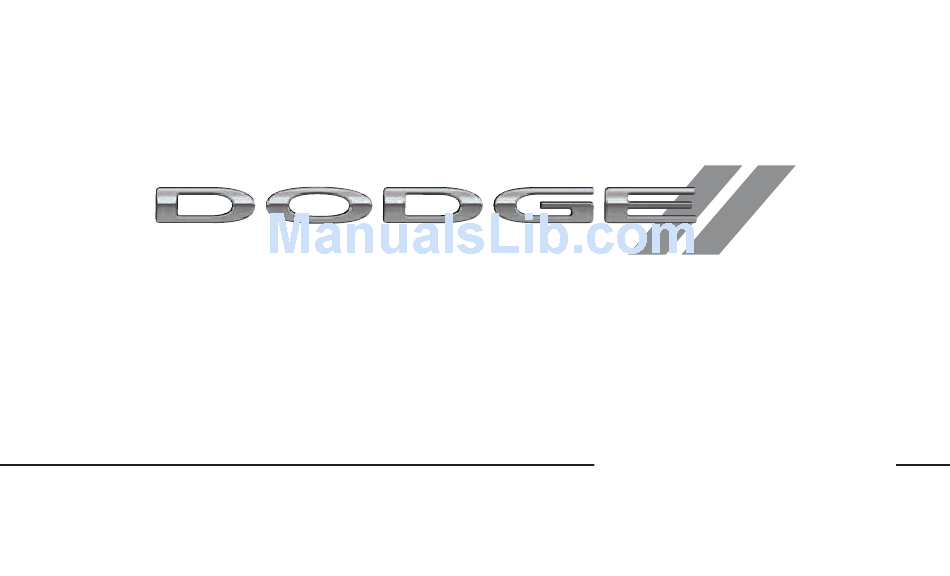

Page 1 Challenger 2 0 1 8 O W N E R ’ S M A N U A L...
Page 2 VEHICLES SOLD IN CANADA This manual illustrates and describes the operation of With respect to any Vehicles Sold in Canada, the name features and equipment that are either standard or op- FCA US LLC shall be deemed to be deleted and the name tional on this vehicle.
Page 3 TABLE OF CONTENTS SECTION PAGE INTRODUCTION ..............3 GRAPHICAL TABLE OF CONTENTS .
Page 5: Table Of Contents
INTRODUCTION CONTENTS INTRODUCTION ......4 WARNINGS AND CAUTIONS ....6 HOW TO USE THIS MANUAL .
Page 6: Introduction
4 INTRODUCTION INTRODUCTION versions are not expressly indicated in the text. Therefore, you should only consider the information which is related Dear Customer, to the trim level, engine, and version that you have Congratulations on selecting your new vehicle. Be assured purchased.
Page 7: Symbols
INTRODUCTION 5 Symbols Since the specification of your vehicle depends on the items of equipment ordered, certain descriptions and illustra- Consult the following table for a description of the symbols tions may differ from your vehicle’s equipment. that may be used on your vehicle or throughout this The detailed index at the back of this Owner’s Manual Owner’s Manual: contains a complete listing of all subjects.
Page 8: Warnings And Cautions
6 INTRODUCTION WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against oper- ating procedures that could result in a collision, bodily injury and/or death. It also contains CAUTIONS against procedures that could result in damage to your vehicle. If you do not read this entire Owner’s Manual, you may miss important information.
Page 9 GRAPHICAL TABLE OF CONTENTS CONTENTS FRONT VIEW ......8 INSTRUMENT PANEL .....10 REAR VIEW .
Page 10: Front View
8 GRAPHICAL TABLE OF CONTENTS FRONT VIEW Front View 1 — Doors 4 — Windshield 2 — Exterior Mirrors 5 — Headlights 3 — Wheels/Tires 6 — Hood/Engine Compartment...
Page 11: Rear View
GRAPHICAL TABLE OF CONTENTS 9 REAR VIEW Rear View 1 — Rear Lights 2 — Trunk...
Page 12: Instrument Panel
10 GRAPHICAL TABLE OF CONTENTS INSTRUMENT PANEL Instrument Panel 1 — Air Vents 4 — Instrument Cluster 2 — Paddle Shifter – 5 — Paddle Shifter + 3 — Steering Wheel 6 — Radio...
Page 13: Interior
GRAPHICAL TABLE OF CONTENTS 11 INTERIOR Interior 1 — Window Switches/Door Locks 4 — Gear Selector 2 — Seats 5 — Switch Panel 3 — Climate Controls 6 — Glove Compartment...
Page 15 GETTING TO KNOW YOUR VEHICLE CONTENTS KEYS ....... . .17 ▫...
Page 16 14 GETTING TO KNOW YOUR VEHICLE ▫ Automatic Unlock Doors On Exit ... .39 MIRRORS ......52 ▫...
Page 17 GETTING TO KNOW YOUR VEHICLE 15 ▫ Headlight Time Delay ....58 WINDOWS ......75 ▫...
Page 18 16 GETTING TO KNOW YOUR VEHICLE ▫ Closing ......83 ▫ Troubleshooting Tips .....89 ▫...
Page 19: Keys
GETTING TO KNOW YOUR VEHICLE 17 KEYS The key fob also contains an emergency key, which stores in the rear of the key fob. Key Fob The key fob allows you to lock or unlock the doors and trunk from distances up to approximately 66ft (20m) using a handheld key fob.
Page 20 18 GETTING TO KNOW YOUR VEHICLE To remove the emergency key, slide the mechanical release The turn signal lights will flash to acknowledge the unlock button on the back of the key fob sideways with your signal. The illuminated entry system will also be activated. thumb and then pull the key out with your other hand.
Page 21 GETTING TO KNOW YOUR VEHICLE 19 1st Press Of Key Fob Unlocks To Unlatch The Trunk This feature lets you program the system to unlock either Push the trunk button on the key fob two times within five the driver’s door or all doors on the first push of the unlock seconds to unlatch the trunk.
Page 22 20 GETTING TO KNOW YOUR VEHICLE Sound Horn With Lock NOTE: • The interior lights will turn off if you place the ignition This feature will cause the horn to chirp when the doors are in the ACC or ON/RUN position while the Panic Alarm locked with the key fob.
Page 23 GETTING TO KNOW YOUR VEHICLE 21 1. Remove the emergency key by sliding the mechanical 2. Separate the key fob halves using the tip of the emer- latch on the back of the key fob sideways with your gency key, a #2 flat blade screwdriver, or a coin and thumb and then pull the emergency key out with your gently pry the two halves of the key fob apart.
Page 24 22 GETTING TO KNOW YOUR VEHICLE Separating Case With A Coin Key Fob Battery Replacement 3. Remove the battery by turning the back cover over (battery facing downward) and tapping it lightly on a solid surface such as a table or similar, and then replace the battery.
Page 25 GETTING TO KNOW YOUR VEHICLE 23 Programming Additional Key Fobs NOTE: When having the Sentry Key Immobilizer System serviced, bring all vehicle keys with you to an authorized Programming the key fob may be performed by an autho- dealer. rized dealer. General Information Request For Additional Remote Controls The following regulatory statement applies to all radio...
Page 26: Ignition Switch
24 GETTING TO KNOW YOUR VEHICLE IGNITION SWITCH Keyless Push Button Ignition This feature allows the driver to operate the ignition with the push of a button as long as the key fob is in the passenger compartment. The Keyless Push Button Ignition has four operating positions, three of which are labeled and will illuminate when in position.
Page 27 GETTING TO KNOW YOUR VEHICLE 25 WARNING! (Continued) • Engine is not started. should be warned not to touch the parking brake, • Some electrical devices are available. brake pedal or the gear selector. • Do not leave the key fob in or near the vehicle, or in a location accessible to children, and do not leave the •...
Page 28: Vehicle On Message
26 GETTING TO KNOW YOUR VEHICLE Vehicle On Message WARNING! (Continued) When opening the driver’s door and the ignition is in • Never leave children alone in a vehicle, or with ON/RUN (engine not running) position, a chime will access to an unlocked vehicle. sound to remind you to place the ignition in the OFF •...
Page 29: Remote Start - If Equipped
GETTING TO KNOW YOUR VEHICLE 27 REMOTE START — IF EQUIPPED • Hazard switch off • Brake switch inactive (brake pedal not pushed) How To Use Remote Start — If Equipped • Battery at an acceptable charge level Push remote start button on the key fob twice •...
Page 30: Remote Start Abort Message On The Instrument Cluster Display - If Equipped
28 GETTING TO KNOW YOUR VEHICLE Remote Start Abort Message On The Instrument NOTE: Cluster Display — If Equipped • If an engine fault is present or fuel level is low, the vehicle will start and then shut down in 10 seconds. The following messages will display in the instrument cluster display if the vehicle fails to remote start or exits •...
Page 31: To Exit Remote Start Mode And Drive The Vehicle
GETTING TO KNOW YOUR VEHICLE 29 To Exit Remote Start Mode And Drive The Vehicle To Cancel Remote Start Before the end of 15-minute cycle, push and release the Remote Starting will also cancel if any of the following unlock button on the key fob to unlock the doors and occur: disarm the vehicle security alarm (if equipped).
Page 32: General Information
30 GETTING TO KNOW YOUR VEHICLE General Information The system uses key fobs that have an embedded electronic chip (transponder) to prevent unauthorized vehicle opera- The following regulatory statement applies to all radio tion. Therefore, only key fobs that are programmed to the frequency (RF) devices equipped in this vehicle: vehicle can be used to start and operate the vehicle.
Page 33: Customer Key Programming
GETTING TO KNOW YOUR VEHICLE 31 CAUTION! CAUTION! (Continued) • For vehicles equipped with Keyless Enter-N-Go — The Sentry Key Immobilizer system is not compatible Ignition, always remember to place the ignition in with some aftermarket remote starting systems. Use of the OFF position.
Page 34: Vehicle Security Alarm - If Equipped
32 GETTING TO KNOW YOUR VEHICLE • Push the lock button on the exterior Passive Entry NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the Door Handle with a valid key fob available in the same user’s authority to operate the equipment.
Page 35: Rearming Of The System
GETTING TO KNOW YOUR VEHICLE 33 NOTE: remain armed when the battery is reconnected; the exterior lights will flash, the horn will sound. If this occurs, disarm • The driver’s door key cylinder and the trunk button on the vehicle security alarm. the key fob cannot arm or disarm the vehicle security alarm.
Page 36: Doors
34 GETTING TO KNOW YOUR VEHICLE DOORS WARNING! Manual Door Locks • For personal security and safety in the event of a To lock each door, push the door lock knob on each door collision, lock the vehicle doors before you drive as trim panel downward.
Page 37: Power Door Locks
GETTING TO KNOW YOUR VEHICLE 35 “Keyless Enter-N-Go — Passive Entry” located in “Doors” WARNING! (Continued) in “Getting To Know Your Vehicle” for further information. ignition of a vehicle equipped with Keyless Enter- If you push the power door lock switch while the ignition N-Go in the ACC or ON/RUN mode.
Page 38 36 GETTING TO KNOW YOUR VEHICLE • If the vehicle is unlocked by Passive Entry and no door is opened within 60 seconds, the vehicle will re-lock and if equipped will arm the security alarm. • The key fob may not be able to be detected by the vehicle Passive Entry system if it is located next to a mobile phone, laptop or other electronic device;...
Page 39 GETTING TO KNOW YOUR VEHICLE 37 To Unlock From The Passenger Side: 3. A lock request is made by the door panel switch while the door is open. With a Passive Entry key fob within 5 ft (1.5 m) of the passenger door handle, grab the front passenger door When any of these situations occur, after all open doors are handle to unlock both doors automatically.
Page 40 38 GETTING TO KNOW YOUR VEHICLE To Enter The Trunk: To Lock The Vehicle’s Doors: With a Passive Entry key fob within 5 ft (1.5 m) of the deck With one of the vehicle’s Passive Entry key fobs within 5 ft lid, push the button located on the center of the light bar (1.5 m) of the driver or passenger front door handles, push which is located on the deck lid above the license plate.
Page 41: Automatic Unlock Doors On Exit
GETTING TO KNOW YOUR VEHICLE 39 Automatic Unlock Doors On Exit The doors will unlock automatically on vehicles with power door locks if: 1. The Automatic Unlock Doors On Exit feature is enabled. 2. The vehicle was in motion, then speed returned to 0 mph (0 km/h) and the transmission is placed in PARK.
Page 42: Child-Protection Door Lock System - Rear Doors
40 GETTING TO KNOW YOUR VEHICLE Child-Protection Door Lock System — Rear Doors WARNING! To provide a safer environment for small children riding in Avoid trapping anyone in a vehicle in a collision. the rear seats, the doors are equipped with Child- Remember that the rear doors can only be opened from Protection Door Lock system.
Page 43: Manual Adjustment (Front Seats) - If Equipped
GETTING TO KNOW YOUR VEHICLE 41 Manual Front Seats Forward/Rearward Adjustment WARNING! (Continued) The adjusting bar is located at the front of the seat, near the • Do not allow people to ride in any area of your floor. Pull the bar upward to move the seat forward or vehicle that is not equipped with seats and seat belts.
Page 44: Power Seats - If Equipped
42 GETTING TO KNOW YOUR VEHICLE Manual Front Seat Recline WARNING! To adjust the seatback, lift the lever located on the outboard Do not ride with the seatback reclined so that the side of the seat, lean back to the desired position and shoulder belt is no longer resting against your chest.
Page 45 GETTING TO KNOW YOUR VEHICLE 43 Adjusting The Seat Forward Or Rearward Power Lumbar — If Equipped The seat can be adjusted both forward and rearward. Push Vehicles equipped with power driver or passenger seats the seat switch forward or rearward. The seat will move in may also be equipped with power lumbar.
Page 46: Heated Seats - If Equipped
44 GETTING TO KNOW YOUR VEHICLE Heated Seats — If Equipped You can choose from HI, LO, or OFF heat settings. The indicator arrows in touchscreen buttons indicate the level On some models, the front seats may be equipped with of heat in use.
Page 47: Front Ventilated Seats - If Equipped
GETTING TO KNOW YOUR VEHICLE 45 Front Ventilated Seats — If Equipped Vehicles Equipped With Remote Start Located in the seat cushion and seat back are fans that On models that are equipped with remote start, the heated draw the air from the passenger compartment and move seats can be programmed to come on during a remote start.
Page 48: Folding Rear Seat
46 GETTING TO KNOW YOUR VEHICLE Vehicles Equipped With Remote Start On models that are equipped with remote start, the venti- lated seats can be programmed to come on during a remote start. This feature can be programmed through the Uconnect system.
Page 49: Head Restraints
GETTING TO KNOW YOUR VEHICLE 47 WARNING! (Continued) • The cargo area in the rear of the vehicle (with the rear seatbacks in the locked-up or folded down position) should not be used as a play area by children when the vehicle is in motion.
Page 50: Reactive Head Restraints - Front Seats
48 GETTING TO KNOW YOUR VEHICLE WARNING! (Continued) • Head restraints should never be adjusted while the vehicle is in motion. Driving a vehicle with the head restraints improperly adjusted or removed could cause serious injury or death in the event of a collision.
Page 51: Rear Head Restraints
GETTING TO KNOW YOUR VEHICLE 49 STEERING WHEEL reinstall the head restraint, put the head restraint posts into the holes while pushing the adjustment button and release Manual Tilt/Telescoping Steering Column button. Then, adjust it to the appropriate height. This feature allows you to tilt the steering column upward or downward.
Page 52: Power Tilt/Telescoping Steering Column - If Equipped
50 GETTING TO KNOW YOUR VEHICLE To unlock the steering column, pull the lever downward. To tilt the steering column, move the steering wheel upward or downward as desired. To lengthen or shorten the steering column, pull the steering wheel outward or push it inward as desired.
Page 53: Heated Steering Wheel - If Equipped
GETTING TO KNOW YOUR VEHICLE 51 Heated Steering Wheel — If Equipped Vehicles Equipped With Remote Start The steering wheel contains a heating element that helps On models that are equipped with remote start, the heated warm your hands in cold weather. The heated steering steering wheel can be programmed to come on during a wheel has only one temperature setting.
Page 54: Mirrors
52 GETTING TO KNOW YOUR VEHICLE MIRRORS Automatic Dimming Mirror The mirror head can be adjusted up, down, left, and right for various drivers. The mirror should be adjusted to center on the view through the rear window. This mirror automatically adjusts for headlight glare from vehicles behind you.
Page 55: Outside Mirrors
GETTING TO KNOW YOUR VEHICLE 53 Outside Mirrors To receive maximum benefit, adjust the outside mirror(s) to center on the adjacent lane of traffic and a slight overlap of the view obtained from the inside mirror. NOTE: The passenger side convex outside mirror will give a much wider view to the rear, and especially of the lane next to your vehicle.
Page 56: Heated Mirrors - If Equipped
54 GETTING TO KNOW YOUR VEHICLE Heated Mirrors — If Equipped These mirrors are heated to melt frost or ice. This feature will be activated whenever you turn on the rear window defroster (if equipped). Refer to “Climate Controls” in “Getting To Know Your Vehicle” for further information.
Page 57: Exterior Lights
GETTING TO KNOW YOUR VEHICLE 55 EXTERIOR LIGHTS “Slide-On-Rod” And Extender Features Of Sun Visor Headlight Switch To use the “Slide-On-Rod” feature of the sun visor, rotate the sun visor downward and swing the sun visor so it is The headlight switch is located on the left side of parallel to the side window, pull the sun visor rearwards the instrument panel.
Page 58: Multifunction Lever
56 GETTING TO KNOW YOUR VEHICLE Daytime Running Lights (DRL) — If Equipped Rotate the headlight switch clockwise to the first detent for parking light and instrument panel light operation. Rotate The Daytime Running Lights will turn on when the engine the headlight switch to the second detent for headlight, is started and will remain on unless the headlamps are parking light and instrument panel light operation.
Page 59: Flash-To-Pass
GETTING TO KNOW YOUR VEHICLE 57 Automatic Headlights NOTE: • The Automatic High Beam Headlamp Control can be This system automatically turns the headlights on or off turned on or off using the Uconnect System. Refer to according to ambient light levels. To turn the system on, “Uconnect Settings”...
Page 60: Headlights On With Wipers
58 GETTING TO KNOW YOUR VEHICLE Headlights On With Wipers NOTE: The lights must be turned off within 45 seconds of turning the ignition OFF to activate this feature. When this feature is active, the headlights will turn on after the wipers are turned on if the headlight switch is placed in If you turn the headlights, park lights or ignition switch the AUTO position and programmable feature is set to on.
Page 61: Fog Lights - If Equipped
GETTING TO KNOW YOUR VEHICLE 59 Fog Lights — If Equipped NOTE: The fog lights will operate with the low beam headlights or parking lights on. However, selecting the The front fog light switch is built into the headlight switch. high beam headlights will turn off the fog lights.
Page 62: Interior Lights
60 GETTING TO KNOW YOUR VEHICLE INTERIOR LIGHTS The interior lights come on when a door is opened. To protect the battery, the interior lights will turn off automatically ten minutes after the ignition is moved to the OFF position. This will occur if the interior lights were switched on manually or are on because a door is open.
Page 63: Dimmer Controls
GETTING TO KNOW YOUR VEHICLE 61 Dimmer Controls The dimmer control is part of the headlight switch and is located on the left side of the instrument panel. Instrument Panel Dimmer Dome Light Position Rotate the dimmer control completely upward to the second detent to turn on the interior lights.
Page 64: Windshield Wipers And Washers
62 GETTING TO KNOW YOUR VEHICLE Wiper Operation Parade Mode (Daytime Brightness Feature) Rotate the instrument panel dimmer control upward to the Rotate the end of the multifunction lever to the first detent, first detent. This feature brightens all text displays such as past the intermittent settings for low-speed wiper opera- the odometer, instrument cluster display, and radio when tion, or to the second detent past the intermittent settings...
Page 65 GETTING TO KNOW YOUR VEHICLE 63 Intermittent Wiper System WARNING! Use the intermittent wiper when weather conditions make Sudden loss of visibility through the windshield could a single wiping cycle with a variable pause between cycles lead to a collision. You might not see other vehicles or desirable.
Page 66: Rain Sensing Wipers - If Equipped
64 GETTING TO KNOW YOUR VEHICLE Rain Sensing Wipers — If Equipped • Use of Rain-X or products containing wax or silicone may reduce Rain Sensing performance. This feature senses rain or snowfall on the windshield and automatically activates the wipers for the driver. The The Rain Sensing system has protection features for the feature is especially useful for road splash or overspray wiper blades and arms, and will not operate under the...
Page 67: Climate Controls
GETTING TO KNOW YOUR VEHICLE 65 CLIMATE CONTROLS Automatic Climate Control Overview Uconnect 4 With 7–inch Display Automatic Climate Controls...
Page 68 66 GETTING TO KNOW YOUR VEHICLE Uconnect 4C/4C NAV With 8.4–inch Display Automatic Climate Controls...
Page 69 GETTING TO KNOW YOUR VEHICLE 67 Automatic Climate Control Descriptions Icon Description MAX A/C Button Press and release to change the current setting, the indicator illuminates when MAX A/C is on. Performing this function again will cause the MAX A/C operation to switch into manual mode and the MAX A/C indicator will turn off.
Page 70 68 GETTING TO KNOW YOUR VEHICLE Icon Description Front Defrost Button Press and release to change the current airflow setting to Defrost mode. The indicator illumi- nates when this feature is on. Air comes from the windshield and side window demist outlets. When the defrost button is selected, the blower level may increase.
Page 71 GETTING TO KNOW YOUR VEHICLE 69 Icon Description Faceplate Knob Blower Control Blower Control is used to regulate the amount of air forced through the climate system. There are seven blower speeds available. The speeds can be selected using either the blower control knob on the faceplate or the buttons on the touchscreen.
Page 72 70 GETTING TO KNOW YOUR VEHICLE Icon Description Floor Mode Floor Mode Air comes from the floor outlets. A slight amount of air is directed through the defrost and side window demister outlets. Mix Mode Mix Mode Air is directed through the floor, defrost, and side window demister outlets. This setting works best in cold or snowy conditions that require extra heat to the windshield.
Page 73: Climate Control Functions
GETTING TO KNOW YOUR VEHICLE 71 Climate Control Functions MAX A/C A/C (Air Conditioning) MAX A/C sets the control for maximum cooling perfor- mance. The Air Conditioning (A/C) button allows the operator to manually activate or deactivate the air conditioning sys- Press and release to toggle between MAX A/C and the tem.
Page 74: Automatic Temperature Control (Atc) - If Equipped
72 GETTING TO KNOW YOUR VEHICLE Automatic Temperature Control (ATC) — If NOTE: Equipped • It is not necessary to move the temperature settings for cold or hot vehicles. The system automatically adjusts Automatic Operation the temperature, mode, and blower speed to provide 1.
Page 75 GETTING TO KNOW YOUR VEHICLE 73 Summer Operation Window Fogging The engine cooling system must be protected with a Vehicle windows tend to fog on the inside in mild, rainy, high-quality antifreeze coolant to provide proper corrosion and/or humid weather. To clear the windows, select De- protection and to protect against engine overheating.
Page 76 74 GETTING TO KNOW YOUR VEHICLE Operating Tips Chart...
Page 77: Windows
GETTING TO KNOW YOUR VEHICLE 75 WINDOWS NOTE: For vehicles equipped with the Uconnect system, the power window switches will remain active for up to Power Window Controls ten minutes after the ignition is placed in the OFF position. The window controls on the driver’s door control all the Opening either front door will cancel this feature.
Page 78: Wind Buffeting
76 GETTING TO KNOW YOUR VEHICLE Auto-Down Feature To stop the window from going all the way up during the Auto-Close operation, pull up on the switch briefly. The driver and, in some models, passenger power window switches have an Auto-Down feature. Push the window Wind Buffeting switch to the second detent, release, and the window will Wind buffeting can be described as the perception of...
Page 79: Power Sunroof - If Equipped
GETTING TO KNOW YOUR VEHICLE 77 POWER SUNROOF — IF EQUIPPED WARNING! (Continued) The power sunroof switch is located between the sun equipped with Keyless Enter-N-Go in the ACC or visors on the overhead console. ON/RUN mode. Occupants, particularly unattended children, can become entrapped by the power sun- roof while operating the power sunroof switch.
Page 80: Closing Sunroof
78 GETTING TO KNOW YOUR VEHICLE Wind Buffeting Manual Mode To open the sunroof, push and hold the switch rearward. Wind buffeting can be described as the perception of The sunroof will move rearward and automatically stop at pressure on the ears or a helicopter-type sound in the ears. full open position.
Page 81: Pinch Protect Feature
GETTING TO KNOW YOUR VEHICLE 79 Pinch Protect Feature HOOD This feature will detect an obstruction in the closing of the To Open The Hood sunroof during the Express Close operation. If an obstruc- Two latches must be released to open the hood. tion in the path of the sunroof is detected, the sunroof will automatically retract.
Page 82 80 GETTING TO KNOW YOUR VEHICLE 2. Move to the outside of the vehicle, the safety catch is 3. Push the safety catch to the left. located under the center front edge of the hood. Hood Safety Catch Hood Safety Catch Location...
Page 83: To Close The Hood
GETTING TO KNOW YOUR VEHICLE 81 To Close The Hood TRUNK Opening WARNING! Be sure the hood is fully latched before driving your vehicle. If the hood is not fully latched, it could open when the vehicle is in motion and block your vision. Failure to follow this warning could result in serious injury or death.
Page 84 82 GETTING TO KNOW YOUR VEHICLE The trunk lid can be released from outside the vehicle by Opening From Inside The Vehicle pushing the trunk button on the key fob twice within five Interior Power Trunk Release seconds or by using the external release switch located on The trunk can be opened from inside the the underside of the decklid overhang.
Page 85: Closing
GETTING TO KNOW YOUR VEHICLE 83 Closing Key Fob Trunk Release Button With one or more hands placed on the outside trunk Push the power trunk button on the key fob surface push the trunk lid down until you hear the trunk twice within five seconds to release the trunk.
Page 86: Garage Door Opener - If Equipped
84 GETTING TO KNOW YOUR VEHICLE GARAGE DOOR OPENER — IF EQUIPPED HomeLink replaces up to three hand-held transmitters that operate devices such as garage door openers, motorized gates, lighting, or home security systems. The HomeLink unit is powered by your vehicle’s battery. The HomeLink buttons that are located in the overhead console designate the three different HomeLink channels.
Page 87: Before You Begin Programming Homelink
GETTING TO KNOW YOUR VEHICLE 85 Before You Begin Programming HomeLink Programming A Rolling Code Be sure that your vehicle is parked outside of the garage For programming garage door openers that were manufac- before you begin programming. tured after 1995. These garage door openers can be identi- fied by the “LEARN”...
Page 88 86 GETTING TO KNOW YOUR VEHICLE 4. Continue to hold both buttons and observe the indicator light. The HomeLink indicator will flash slowly and then rapidly after HomeLink has received the frequency signal from the hand-held transmitter. Release both buttons after the indicator light changes from slow to rapid.
Page 89 GETTING TO KNOW YOUR VEHICLE 87 To program the remaining two HomeLink buttons, repeat 3. Press and hold the HomeLink button you want to each step for each remaining button. DO NOT erase the program while you press and hold the hand-held trans- channels.
Page 90: Canadian/Gate Operator Programming
88 GETTING TO KNOW YOUR VEHICLE 2. Press and hold the desired HomeLink button until the 2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm) indicator light begins to flash after 20 seconds. Do not away from the HomeLink button you wish to program release the button.
Page 91: Using Homelink
GETTING TO KNOW YOUR VEHICLE 89 Security If you unplugged the garage door opener/device for programming, plug it back in at this time. It is advised to erase all channels before you sell or turn in Reprogramming A Single HomeLink Button (Canadian/ your vehicle.
Page 92: General Information
90 GETTING TO KNOW YOUR VEHICLE General Information WARNING! The following regulatory statement applies to all Radio • Vehicle exhaust contains carbon monoxide, a danger- Frequency (RF) devices equipped in this vehicle: ous gas. Do not run your vehicle in the garage while This device complies with Part 15 of the FCC Rules and programming the transceiver.
Page 93: Internal Equipment
GETTING TO KNOW YOUR VEHICLE 91 INTERNAL EQUIPMENT Storage Glove Compartment The glove compartment is located on the passenger side of the instrument panel. To open the glove compartment, pull the release handle. Opened Glove Compartment Console Storage The center console has a storage compartment located underneath the armrest.
Page 94: Cupholders
92 GETTING TO KNOW YOUR VEHICLE Cupholders The front cupholders are located in the center console and in the door panels. Center Console WARNING! Do not operate this vehicle with a console compart- Front Cupholders ment lid in the open position. Driving with the console compartment lid open may result in injury in a colli- sion.
Page 95 GETTING TO KNOW YOUR VEHICLE 93 The rear seat cupholders are located in the center armrest between the rear seats. The cupholders are positioned forward in the armrest and side-by-side to provide conve- nient access to beverage cans or bottles while maintaining a resting place for the rear occupant’s elbows.
Page 96: Electrical Power Outlets
94 GETTING TO KNOW YOUR VEHICLE Electrical Power Outlets The front power outlet is located next to the storage area on the integrated center stack of the instrument panel. Your vehicle is equipped with 12 Volt (13 Amp) power outlets that can be used to power cellular phones, small electronics and other low powered electrical accessories.
Page 97 GETTING TO KNOW YOUR VEHICLE 95 NOTE: All accessories connected to these powered outlets should be removed or turned off when the vehicle is not in use to protect the battery against discharge. Power Outlet — Center Console Power Outlet Fuse Locations 1 —...
Page 98 96 GETTING TO KNOW YOUR VEHICLE WARNING! CAUTION! To avoid serious injury or death: • Many accessories that can be plugged in draw power • Only devices designed for use in this type of outlet from the vehicle’s battery, even when not in use (i.e., should be inserted into any 12 Volt outlet.
Page 99 GETTING TO KNOW YOUR INSTRUMENT PANEL CONTENTS INSTRUMENT CLUSTER ....98 ▫ White Indicator Lights ....119 ▫...
Page 100: Instrument Cluster
98 GETTING TO KNOW YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER Instrument Cluster For 3.6L or 5.7L Engine...
Page 101: Instrument Cluster Descriptions
GETTING TO KNOW YOUR INSTRUMENT PANEL 99 Instrument Cluster For 6.4L Engine Instrument Cluster Descriptions • When the appropriate conditions exist, this display shows the instrument cluster display messages. Refer 1. Tachometer to “Instrument Cluster Display” in “Getting To Know •...
Page 102 100 GETTING TO KNOW YOUR INSTRUMENT PANEL 3. Speedometer WARNING! • Indicates vehicle speed. A hot engine cooling system is dangerous. You or 4. Fuel Gauge others could be badly burned by steam or boiling • The pointer shows the level of fuel in the fuel tank coolant.
Page 103: Instrument Cluster Display
GETTING TO KNOW YOUR INSTRUMENT PANEL 101 INSTRUMENT CLUSTER DISPLAY Your vehicle may be equipped with an instrument cluster display, which offers useful information to the driver. With the ignition in the STOP/OFF mode, opening/closing of a door will activate the display for viewing, and display the total miles, or kilometers, in the odometer.
Page 104 102 GETTING TO KNOW YOUR INSTRUMENT PANEL • Messages Left And Right Arrow Buttons: • Screen Setup Using the left or right arrow button allows you to cycle through the submenu items of the Main menu item. The system allows the driver to select information by pushing the following buttons mounted on the steering NOTE: wheel:...
Page 105 GETTING TO KNOW YOUR INSTRUMENT PANEL 103 • Pushing the left arrow button will exit each submenu Vehicles Equipped With Keyless Enter-N-Go — Ignition layer and return to the main menu. Use the steering wheel instrument cluster display controls For the Trip and Fuel Economy menus (and new Perfor- for the following procedure(s): mance Timers): 1.
Page 106 104 GETTING TO KNOW YOUR INSTRUMENT PANEL Secondary Method Of Resetting Engine Oil Life Instrument Cluster Display Selectable Menu Items Push and release the up or down arrow button until the 1. Without pressing the brake pedal, push the ENGINE desired Selectable Menu item is displayed in the instru- START/STOP button and place the ignition to the ment cluster display.
Page 107 GETTING TO KNOW YOUR INSTRUMENT PANEL 105 • Oil Pressure Push the SET + or the SET- button (located on the steering wheel) and the following will display in the instrument • Oil Life cluster display: • Battery Voltage ACC SET Driver Assist —...
Page 108 106 GETTING TO KNOW YOUR INSTRUMENT PANEL • Distance – Shows the total distance (mi or km) traveled Fuel Economy for Trip A or Trip B since the last reset. Two submenu pages; one with Current Value (instanta- • Average Fuel Economy – Shows the average fuel neous calculation of the fuel economy) displayed and one without the Current Value displayed (toggle the left or economy (MPG, L/100km or km/l) of Trip A or Trip B...
Page 109 GETTING TO KNOW YOUR INSTRUMENT PANEL 107 • Range to Empty Screen Setup • Average (MPG, L/100 km, or km/l) Push and release the up or down arrow button until the • Current (MPG, L/100 km, or km/l) Screen Setup Menu displays in the instrument cluster display.
Page 110 108 GETTING TO KNOW YOUR INSTRUMENT PANEL 4. Current Gear time and distance of the vehicle. This is done by reducing power to or turning off non-essential electrical loads. • On • Off (default) Load reduction is only active when the engine is running. It will display a message if there is a risk of battery 5.
Page 111 GETTING TO KNOW YOUR INSTRUMENT PANEL 109 The electrical loads that may be switched off (if equipped), overloaded power outlets +12V, 115V AC, USB ports) and vehicle functions which can be affected by load during certain driving conditions (city driving, towing, reduction: frequent stopping).
Page 112: Warning Lights And Messages
110 GETTING TO KNOW YOUR INSTRUMENT PANEL WARNING LIGHTS AND MESSAGES What to do when an electrical load reduction action message is present (“Battery Saver On” or “Battery Saver Red Warning Lights Mode”) — Seat Belt Reminder Warning Light During a trip: This light indicates when the driver or passenger seat belt •...
Page 113 GETTING TO KNOW YOUR INSTRUMENT PANEL 111 — Brake Warning Light NOTE: The light may flash momentarily during sharp cornering maneuvers, which change fluid level conditions. This light monitors various brake functions, including The vehicle should have service performed, and the brake brake fluid level and parking brake application.
Page 114 112 GETTING TO KNOW YOUR INSTRUMENT PANEL The light also will turn on when the parking brake is — Battery Charge Warning Light applied with the ignition switch in the ON/RUN position. This light illuminates when the battery is not charging properly.
Page 115 GETTING TO KNOW YOUR INSTRUMENT PANEL 113 — Electronic Throttle Control (ETC) Warning — Transmission Temperature Warning Light — If Light Equipped This light informs you of a problem with the Electronic This light indicates high transmission fluid temperature. Throttle Control (ETC) system. If a problem is detected This may occur with strenuous usage such as trailer while the vehicle is running, the light will either stay on or towing.
Page 116: Yellow Warning Lights
114 GETTING TO KNOW YOUR INSTRUMENT PANEL Yellow Warning Lights — Electric Power Steering Fault Warning Light This light will turn on when there’s a fault with the EPS — Engine Check/Malfunction Indicator Warning (Electric Power Steering) system. Refer to “Power Steering” Light (MIL) in “Starting And Operating”...
Page 117 GETTING TO KNOW YOUR INSTRUMENT PANEL 115 If the “ESC Indicator Light” comes on continuously with WARNING! the engine running, a malfunction has been detected in the ESC system. If this light remains on after several ignition A malfunctioning catalytic converter, as referenced cycles, and the vehicle has been driven several miles above, can reach higher temperatures than in normal (kilometers) at speeds greater than 30 mph (48 km/h), see...
Page 118 116 GETTING TO KNOW YOUR INSTRUMENT PANEL — Low Washer Fluid Warning Light — If Each tire, including the spare (if provided), should be Equipped checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the This indicator will illuminate when the windshield washer vehicle placard or tire inflation pressure label.
Page 119 GETTING TO KNOW YOUR INSTRUMENT PANEL 117 Your vehicle has also been equipped with a TPMS malfunc- CAUTION! (Continued) tion indicator to indicate when the system is not operating damage may result when using replacement equip- properly. The TPMS malfunction indicator is combined ment that is not of the same size, type, and/or style.
Page 120: Yellow Indicator Lights
118 GETTING TO KNOW YOUR INSTRUMENT PANEL — Low Fuel Warning Light — Service Adaptive Cruise Control Warning Light — If Equipped When the fuel level reaches approximately 2 gal (7.5 L), this light will turn on and a chime will sound. The light will This light will turn on when a ACC is not operating and remain on until fuel is added.
Page 121: White Indicator Lights
GETTING TO KNOW YOUR INSTRUMENT PANEL 119 — Turn Signal Indicator Lights — Adaptive Cruise Control (ACC) Set Without Target Light — If Equipped When the left or right turn signal is activated, the turn signal indicator will flash independently and the corre- This will display the distance setting for the ACC system sponding exterior turn signal lamps will flash.
Page 122: Blue Indicator Lights
120 GETTING TO KNOW YOUR INSTRUMENT PANEL Blue Indicator Lights vehicle will usually be drivable and not need towing, see your authorized dealer for service as soon as possible. — High Beam Indicator Light This indicator shows that the high beam headlights are on. CAUTION! With the low beams activated, push the multifunction lever •...
Page 123: Emissions Inspection And Maintenance Programs
GETTING TO KNOW YOUR INSTRUMENT PANEL 121 EMISSIONS INSPECTION AND MAINTENANCE WARNING! PROGRAMS • ONLY an authorized service technician should con- In some localities, it may be a legal requirement to pass an nect equipment to the OBD II connection port in inspection of your vehicle’s emissions control system.
Page 124 122 GETTING TO KNOW YOUR INSTRUMENT PANEL 2. As soon as you cycle the ignition switch to the ON Regardless of whether your vehicle’s OBD II system is position, you will see the “Malfunction Indicator Light ready or not, if the MIL is illuminated during normal (MIL)”...
Page 125 SAFETY CONTENTS SAFETY FEATURES ..... .124 ▫ Supplemental Restraint Systems (SRS) ..160 ▫ Anti-Lock Brake System (ABS) ... . .124 ▫...
Page 126: Safety Features
124 SAFETY SAFETY FEATURES These are all normal characteristics of ABS. Anti-Lock Brake System (ABS) WARNING! The Anti-Lock Brake System (ABS) provides increased • The ABS contains sophisticated electronic equip- vehicle stability and brake performance under most brak- ment that may be susceptible to interference caused ing conditions.
Page 127: Electronic Brake Control System (Ebc)
SAFETY benefits of anti-lock brakes. If the “Anti-Lock Brake Warn- WARNING! (Continued) ing Light” does not come on when the ignition is turned to • The capabilities of an ABS equipped vehicle must the ON/RUN mode, have the light repaired as soon as never be exploited in a reckless or dangerous manner possible.
Page 128 126 SAFETY results in the best BAS assistance. To receive the benefit of If the “Brake System Warning Light” remains on or comes the system, you must apply continuous braking pressure on while driving, it indicates that the brake system is not during the stopping sequence, (do not “pump”...
Page 129 SAFETY NOTE: ERM is disabled anytime the ESC is in “Full Off” ESC uses sensors in the vehicle to determine the vehicle mode (if equipped). Refer to “Electronic Stability Control path intended by the driver and compares it to the actual (ESC)”...
Page 130 128 SAFETY WARNING! WARNING! (Continued) vehicle modification or poor vehicle maintenance • Electronic Stability Control (ESC) cannot prevent the that reduces the effectiveness of the ESC system can natural laws of physics from acting on the vehicle, increase the risk of loss of vehicle control, vehicle nor can it increase the traction afforded by prevailing rollover, personal injury and death.
Page 131 SAFETY To enter the “Partial Off” mode, momentarily push the Full Off – If Equipped “ESC Off” switch and the “ESC Off Indicator Light” will This mode is intended for off-highway or off-road use only illuminate. To turn the ESC on again, momentarily push and should not be used on any public roadways.
Page 132 130 SAFETY 30 mph (48 km/h), see your authorized dealer as soon as WARNING! (Continued) possible to have the problem diagnosed and corrected. Off” mode is only intended for off-highway or The “ESC Activation/Malfunction Indicator Light” (lo- off-road use. cated in the instrument cluster) starts to flash as soon as the •...
Page 133 SAFETY The “ESC OFF Indicator Light” indicates the • HSA will work in REVERSE gear and all forward gears. customer has elected to have the Electronic Sta- The system will not activate if the transmission is in bility Control (ESC) in a reduced mode. PARK or NEUTRAL.
Page 134 132 SAFETY Towing With HSA Disabling And Enabling HSA HSA will also provide assistance to mitigate roll back while This feature can be turned on or turned off. To change the towing a trailer. current setting, proceed as follows: • If disabling HSA using your instrument cluster display, WARNING! refer to “Instrument Cluster Display”...
Page 135 SAFETY 6. Push the “ESC Off” button located in the lower switch Ready Alert Braking (RAB) bank below the climate control four times within 20 Ready Alert Braking may reduce the time required to reach seconds. The “ESC Off Indicator Light” should turn on full braking during emergency braking situations.
Page 136: Auxiliary Driving Systems
134 SAFETY AUXILIARY DRIVING SYSTEMS Automatic Transmission Vehicles The BSM system sensors operate when the vehicle is in any Blind Spot Monitoring (BSM) — If Equipped forward gear or REVERSE. The Blind Spot Monitoring (BSM) system uses two radar Manual Transmission Vehicles sensors, located inside the rear bumper fascia, to detect highway licensable vehicles (automobiles, trucks, motor- The BSM system sensors operate when the vehicle is in any...
Page 137 SAFETY The BSM detection zone covers approximately one lane small object remains at the side of the vehicle for width on both sides of the vehicle 12 ft (3.8 m). The zone extended periods of time (more than a couple of sec- length starts at the outside rear view mirror and extends onds).
Page 138 136 SAFETY The BSM system notifies the driver of objects in the detection zones by illuminating the BSM warning light located in the outside mirrors in addition to sounding an audible (chime) alert and reducing the radio volume. Refer to “Modes Of Operation” for further information. The BSM system monitors the detection zone from three different entry points (side, rear, front) while driving to see if an alert is necessary.
Page 139 SAFETY Entering From The Rear Overtaking Traffic Vehicles that come up from behind your vehicle on either If you pass another vehicle slowly (with a relative speed of side and enter the rear detection zone with a relative speed less than 15 mph (24 km/h) and the vehicle remains in the of less than 31 mph (50 km/h).
Page 140 138 SAFETY The BSM system is designed not to issue an alert on The BSM system will not alert you of objects that are stationary objects such as guardrails, posts, walls, foliage, traveling in the opposite direction of the vehicle in adjacent berms, etc.
Page 141 SAFETY Rear Cross Path — If Equipped The Rear Cross Path (RCP) feature is intended to aid the drivers when backing out of parking spaces where their vision of oncoming vehicles may be blocked. Proceed slowly and cautiously out of the parking space until the rear end of the vehicle is exposed.
Page 142 140 SAFETY RCP monitors the rear detection zones on both sides of the Modes Of Operation vehicle, for objects that are moving toward the side of the Three selectable modes of operation are available in the vehicle with a minimum speed of approximately 3 mph Uconnect System.
Page 143: Forward Collision Warning (Fcw) Operation
SAFETY the visual and audio alerts will be issued. In addition to the 2. This device must accept any interference received, in- audible alert the radio (if on) volume will be reduced so cluding interference that may cause undesired opera- that the alert can be better heard.
Page 144 142 SAFETY • The FCW system is intended for on-road use only. If the vehicle is taken off-road, the FCW system should be deactivated to prevent unnecessary warnings to the surroundings. WARNING! Forward Collision Warning (FCW) is not intended to avoid a collision on its own, nor can FCW detect every type of potential collision.
Page 145 SAFETY Changing the FCW status to off prevents the system from NOTE: warning you of a possible collision with the vehicle in front • The system will retain the last setting selected by the of you. driver after ignition shut down. NOTE: The FCW system’s default state is on.
Page 146: Tire Pressure Monitoring System (Tpms)
144 SAFETY General Information after the vehicle has not been driven for at least three hours, or driven less than 1 mile (1.6 km) after a three hour The following regulatory statement applies to all Radio period. The cold tire inflation pressure must not exceed the Frequency (RF) devices equipped in this vehicle: maximum inflation pressure molded into the tire sidewall.
Page 147 SAFETY NOTE: When filling warm tires, the tire pressure may need CAUTION! (Continued) to be increased up to an additional 4 psi (30 kPa) above the replacement equipment that is not of the same size, recommended cold placard pressure in order to turn the type, and/or style.
Page 148 146 SAFETY • Driving on a significantly under-inflated tire causes the The TPMS consists of the following components: tire to overheat and can lead to tire failure. Under- • Receiver module inflation also reduces fuel efficiency and tire tread life, •...
Page 149 SAFETY NOTE: When filling warm tires, the tire pressure may need to be increased up to an additional 4 psi (30 kPa) above the recommended cold placard pressure in order to turn the Tire Pressure Monitoring Telltale Light off. Tire Pressure Monitor Display Should this occur, you should stop as soon as possible and inflate the tires with a low pressure condition (those shown in a different color in the instrument cluster graphic) to the...
Page 150: Wheels/Tires
148 SAFETY • Using tire chains on the vehicle. Service Tire Pressure System Warning If a system fault is detected, the TPM Telltale Light will • Using wheels/tires not equipped with TPM sensors. flash on and off for 75 seconds and then remain on solid. Vehicles With Compact Spare The system fault will also sound a chime.
Page 151 SAFETY 4. For each subsequent ignition key cycle, a chime will Pressure Monitoring (TPM) Sensors. Then, drive the ve- sound, the “TPMS Telltale Light” will flash on and off hicle for 20 minutes above 15 mph (24 km/h). The TPMS for 75 seconds and then remain on solid, and the will chime, the TPM Telltale Light will flash on and off for instrument cluster will display a “Service Tire Pressure...
Page 152: Occupant Restraint Systems
150 SAFETY General Information Some of the safety features described in this section may be standard equipment on some models, or may be optional The following regulatory statement applies to all radio equipment on others. If you are not sure, ask your autho- frequency (RF) devices equipped in this vehicle: rized dealer.
Page 153: Seat Belt Systems
SAFETY restraints or belt-positioning booster seats should ride WARNING! properly buckled up in a vehicle with a rear seat. • Never place a rear-facing child restraint in front of an 4. Never allow children to slide the shoulder belt behind air bag.
Page 154 152 SAFETY Enhanced Seat Belt Use Reminder System (BeltAlert) BeltAlert) (the outboard front passenger seat BeltAlert is not active when the outboard front passenger seat is Driver and Passenger BeltAlert (if equipped) unoccupied). The BeltAlert warning sequence starts by BeltAlert is a feature intended to remind the driver blinking the Seat Belt Reminder Light and sounding an and outboard front seat passenger (if equipped with intermittent chime.
Page 155 SAFETY pets be restrained in the rear seat (if equipped) in pet WARNING! harnesses or pet carriers that are secured by seat belts, and cargo is properly stowed. • Relying on the air bags alone could lead to more severe injuries in a collision. The air bags work with BeltAlert can be activated or deactivated by your autho- your seat belt to restrain you properly.
Page 156 154 SAFETY WARNING! (Continued) WARNING! (Continued) • Wearing your seat belt incorrectly could make your your authorized dealer immediately and have it injuries in a collision much worse. You might suffer fixed. • A seat belt that is buckled into the wrong buckle will internal injuries, or you could even slide out of the seat belt.
Page 157 SAFETY WARNING! (Continued) • A shoulder belt placed behind you will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together.
Page 158 156 SAFETY Inserting Latch Plate Into Buckle Positioning The Lap Belt 4. Position the lap belt so that it is snug and lies low across 5. Position the shoulder belt across the shoulder and chest your hips, below your abdomen. To remove slack in the with minimal, if any slack so that it is comfortable and lap belt portion, pull up on the shoulder belt.
Page 159 SAFETY Lap/Shoulder Belt Untwisting Procedure position, your authorized dealer can provide you with a Seat Belt Extender. The Seat Belt Extender should be used Use the following procedure to untwist a twisted lap/ only if the existing seat belt is not long enough. When the shoulder belt.
Page 160 158 SAFETY Seat Belts And Pregnant Women Seat Belt Pretensioner The front seat belt system is equipped with pretensioning devices that are designed to remove slack from the seat belt in the event of a collision. These devices may improve the performance of the seat belt by removing slack from the seat belt early in a collision.
Page 161 SAFETY Switchable Automatic Locking Retractors (ALR) ALR is activated, you will hear a clicking sound as the seat belt retracts. Allow the webbing to retract completely in The seat belts in the passenger seating positions are this case and then carefully pull out only the amount of equipped with a Switchable Automatic Locking Retractor webbing necessary to comfortably wrap around the occu- (ALR) which is used to secure a child restraint system.
Page 162: Supplemental Restraint Systems (Srs)
160 SAFETY How To Engage The Automatic Locking Mode WARNING! (Continued) 1. Buckle the combination lap and shoulder belt. • Do not use the Automatic Locking Mode to restrain occupants who are wearing the seat belt or children 2. Grasp the shoulder portion and pull downward until who are using booster seats.
Page 163 SAFETY • Steering Wheel and Column The ORC contains a backup power supply system that may deploy the air bag system even if the battery loses power or • Instrument Panel it becomes disconnected prior to deployment. • Knee Impact Bolsters The ORC turns on the Air Bag Warning Light in the •...
Page 164 162 SAFETY • The Air Bag Warning Light does not come on during the Redundant Air Bag Warning Light four to eight seconds when the ignition switch is first in If a fault with the Air Bag Warning Light is the ON/RUN position.
Page 165 SAFETY WARNING! (Continued) serious injury, including death. Air bags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel. • Never place a rear-facing child restraint in front of an air bag. A deploying passenger front air bag can cause death or serious injury to a child 12 years or younger, including a child in a rear-facing child restraint.
Page 166 164 SAFETY This vehicle may be equipped with a driver and/or front WARNING! (Continued) passenger seat belt buckle switch that detects whether the • Relying on the air bags alone could lead to more driver or front passenger seat belt is buckled. The seat belt severe injuries in a collision.
Page 167 SAFETY Seat belts are necessary for your protection in all collisions, WARNING! and also are needed to help keep you in position, away from an inflating air bag. • Do not drill, cut, or tamper with the knee impact bolsters in any way. When the ORC detects a collision requiring the front air •...
Page 168 166 SAFETY WARNING! Do not use accessory seat covers or place objects between you and the Side Air Bags; the performance could be adversely affected and/or objects could be pushed into you, causing serious injury. Supplemental Side Air Bag Inflatable Curtains (SABICs) This vehicle is equipped with Supplemental Side Air Bag Inflatable Curtains (SABICs).
Page 169 SAFETY positioned in the area where the SABICs inflate. Children are at an even greater risk of injury from a deploying air bag. The SABICs may help reduce the risk of partial or complete ejection of vehicle occupants through side windows in certain side impact events.
Page 170 168 SAFETY Side Impacts Side Air Bags are a supplement to the seat belt restraint system. Side Air Bags deploy in less time than it takes to The Side Air Bags are designed to activate in certain side blink your eyes. impacts.
Page 171 SAFETY The Side Air Bags will not deploy in all rollover events. The WARNING! rollover sensing system determines if a rollover event may be in progress and whether deployment is appropriate. In • Side Air Bags need room to inflate. Do not lean the event the vehicle experiences a rollover or near rollover against the door or window.
Page 172 170 SAFETY • Supplemental Side Air Bags • As the air bags deflate, you may see some smoke-like particles. The particles are a normal by-product of the • Front and Side Impact Sensors process that generates the non-toxic gas used for air bag •...
Page 173 SAFETY NOTE: Enhanced Accident Response System Reset Procedure • Air bag covers may not be obvious in the interior trim, but they will open during air bag deployment. In order to reset the Enhanced Accident Response System functions after an event, the ignition switch must be •...
Page 174 172 SAFETY and safety systems for a short period of time, typically 30 WARNING! (Continued) seconds or less. The EDR in this vehicle is designed to • It is dangerous to try to repair any part of the air bag record such data as: system yourself.
Page 175: Child Restraints
SAFETY To read data recorded by an EDR, special equipment is WARNING! (Continued) required, and access to the vehicle or the EDR is needed. In are. The child and others could be badly injured or addition to the vehicle manufacturer, other parties, such as killed.
Page 176 174 SAFETY Summary Of Recommendations For Restraining Children In Vehicles Recommended Type Of Child Child Size, Height, Weight Or Age Restraint Infants and Toddlers Children who are two years old or Either an Infant Carrier or a Convert- younger and who have not reached ible Child Restraint, facing rearward the height or weight limits of their in the rear seat of the vehicle...
Page 177 SAFETY Infant And Child Restraints WARNING! (Continued) Safety experts recommend that children ride rear-facing in younger, including a child in a rear-facing child the vehicle until they are two years old or until they reach restraint. either the height or weight limit of their rear-facing child •...
Page 178 176 SAFETY should use the seat belt in a rear seat. Use this simple 5-step WARNING! test to decide whether the child can use the vehicle’s seat belt alone: • Improper installation can lead to failure of an infant or child restraint. It could come loose in a collision. 1.
Page 179 SAFETY WARNING! WARNING! (Continued) will not protect a child properly, which may result in Never allow a child to put the shoulder belt under an serious injury or death. A child must always wear both arm or behind their back. In a crash, the shoulder belt the lap and shoulder portions of the seat belt correctly.
Page 180 178 SAFETY Lower Anchors And Tethers For CHildren (LATCH) used with the top tether anchorage to install the child Restraint System restraint. Please see the following table for more information. LATCH Positions For Installing Child Restraints In This Vehicle LATCH Label Your vehicle is equipped with the child restraint anchorage system called LATCH, which stands for Lower Anchors and Tethers for CHildren.
Page 181 SAFETY Frequently Asked Questions About Installing Child Restraints With LATCH What is the weight limit (child’s 65 lbs (29.5 kg) Use the LATCH anchorage system weight + weight of the child re- until the combined weight of the straint) for using the LATCH anchor- child and the child restraint is 65 lbs age system to attach the child re- (29.5 kg).
Page 182 180 SAFETY Frequently Asked Questions About Installing Child Restraints With LATCH Can the rear-facing child restraint The child seat may touch the back of touch the back of the front passenger the front passenger seat if the child seat? restraint manufacturer also allows contact.
Page 183 SAFETY Locating The Upper Tether Anchorages strap. The tether strap will have a hook at the end to attach to the top tether anchorage and a way to tighten the strap There are tether strap anchorages behind each after it is attached to the anchorage. rear seating position located in the panel be- tween the rear seatback and the rear window.
Page 184 182 SAFETY To Install A LATCH-Compatible Child Restraint 3. Attach the lower hooks or connectors of the child restraint to the lower anchorages in the selected seating If the selected seating position has a Switchable Automatic position. Locking Retractor (ALR) seat belt, stow the seat belt, following the instructions below.
Page 185 SAFETY How To Stow An Unused Switchable-ALR (ALR) WARNING! (Continued) Seat Belt: • Child restraint anchorages are designed to withstand When using the LATCH attaching system to install a child only those loads imposed by correctly-fitted child restraint, stow all ALR seat belts that are not being used by restraints.
Page 186 184 SAFETY The seat belts in the passenger seating positions are Lap/Shoulder Belt Systems For Installing Child equipped with a Switchable Automatic Locking Retractor Restraints In This Vehicle (ALR) that is designed to keep the lap portion of the seat belt tight around the child restraint so that it is not necessary to use a locking clip.
Page 187 SAFETY Frequently Asked Questions About Installing Child Restraints With Seat Belts What is the weight limit (child’s Weight limit of the Child Restraint Always use the tether anchor when weight + weight of the child re- using the seat belt to install a for- straint) for using the Tether Anchor ward facing child restraint, up to the with the seat belt to attach a forward...
Page 188 186 SAFETY Installing A Child Restraint With A Switchable 3. Slide the latch plate into the buckle until you hear a Automatic Locking Retractor (ALR): “click.” Child restraint systems are designed to be secured in 4. Pull on the webbing to make the lap portion tight vehicle seats by lap belts or the lap belt portion of a against the child seat.
Page 189 SAFETY 8. If the child restraint has a top tether strap and the WARNING! (Continued) seating position has a top tether anchorage, connect the “Lower Anchors and Tethers for CHildren (LATCH) tether strap to the anchorage and tighten the tether Restraint System”...
Page 190: Transporting Pets
188 SAFETY 3. Route the tether strap to provide the most direct path for 4. Attach the tether strap hook of the child restraint to the the strap between the anchor and the child seat. If your top tether anchorage as shown in the diagram. vehicle is equipped with adjustable rear head restraints, 5.
Page 191: Safety Tips
SAFETY SAFETY TIPS Exhaust Gas Transporting Passengers WARNING! NEVER TRANSPORT PASSENGERS IN THE CARGO Exhaust gases can injure or kill. They contain carbon AREA. monoxide (CO), which is colorless and odorless. Breathing it can make you unconscious and can even- WARNING! tually poison you.
Page 192: Safety Checks You Should Make Inside The Vehicle
190 SAFETY The best protection against carbon monoxide entry into the Air Bag Warning Light vehicle body is a properly maintained engine exhaust The Air Bag warning light will turn on for four to system. eight seconds as a bulb check when the ignition switch Whenever a change is noticed in the sound of the exhaust is first turned to ON/RUN.
Page 193 SAFETY Floor Mat Safety Information WARNING! (Continued) Always use floor mats designed to fit your vehicle. Only use a • ONLY install floor mats designed to fit your vehicle. floor mat that does not interfere with the operation of the NEVER install a floor mat that cannot be properly accelerator, brake or clutch pedals.
Page 194: Periodic Safety Checks You Should Make Outside
192 SAFETY Check the wheel nuts for tightness. Check the tires (includ- WARNING! (Continued) ing spare) for proper cold inflation pressure. • NEVER place any objects under the floor mat (e.g., Lights towels, keys, etc.). These objects could change the position of the floor mat and may cause interference Have someone observe the operation of brake lights and with the accelerator, brake, or clutch pedals.
Page 195 STARTING AND OPERATING CONTENTS STARTING THE ENGINE ....196 ▫ Recommended Shift Speeds....206 ▫...
Page 196 194 STARTING AND OPERATING ▫ To Vary The Speed Setting ....221 ▫ Display Warnings And Maintenance ..234 ▫...
Page 197 STARTING AND OPERATING 195 ▫ Vehicle Certification Label ....253 ▫ Trailer Towing Weights (Maximum Trailer Weight Ratings) ......257 ▫...
Page 198: Starting The Engine
196 STARTING AND OPERATING STARTING THE ENGINE WARNING! (Continued) Before starting your vehicle, adjust your seat, adjust the • Do not leave children or animals inside parked inside and outside mirrors, fasten your seat belt, and if vehicles in hot weather. Interior heat build-up may present, instruct all other occupants to buckle their seat cause serious injury or death.
Page 199: Normal Starting
STARTING AND OPERATING 197 2. Release the button when the engine starts. If the vehicle CAUTION! (Continued) fails to start within 15 seconds, release the button, wait • Do not shift between PARK, REVERSE, NEUTRAL, 10 to 15 seconds, then repeat the “Normal Starting” or DRIVE when the engine is above idle speed.
Page 200 198 STARTING AND OPERATING NOTE: Normal starting of either a cold or a warm engine seconds or three short pushes in a row before the engine is obtained without pumping or pressing the accelerator will shut off. The ignition switch position will remain in pedal.
Page 201: Cold Weather Operation
STARTING AND OPERATING 199 NOTE: If the ignition switch is left in the ACC or RUN WARNING! (Continued) (engine not running) position and the transmission is in • If the vehicle has a discharged battery, booster cables PARK, the system will automatically time out after 30 may be used to obtain a start from a booster battery minutes of inactivity and the ignition will switch to the or the battery in another vehicle.
Page 202: Engine Break-In Recommendations
200 STARTING AND OPERATING which vehicle operations will occur. For the recommended WARNING! viscosity and quality grades, refer to “Fluids And Lubri- cants” in “Technical Specifications”. Remember to disconnect the engine block heater cord before driving. Damage to the 110-115 Volt electrical CAUTION! cord could cause electrocution.
Page 203: Parking Brake
STARTING AND OPERATING 201 It is recommended for the operator to observe the follow- 300 to 500 miles (483 to 805 km): ing driving behaviors during the new vehicle break-in • Exercise the full engine rpm range, shifting manually period: (paddles or gear shift) at higher rpms when possible.
Page 204 202 STARTING AND OPERATING NOTE: Manual Transmission — If Equipped • When the parking brake is applied and the transmission The foot operated parking brake is positioned below the is placed in gear, the “Brake Warning Light” will flash. If lower left corner of the instrument panel.
Page 205 STARTING AND OPERATING 203 Automatic Transmission — If Equipped WARNING! The foot operated parking brake is located below the lower • Never use the PARK position as a substitute for the left corner of the instrument panel. To apply the park parking brake.
Page 206: Manual Transmission - If Equipped
204 STARTING AND OPERATING WARNING! (Continued) WARNING! (Continued) • Be sure the parking brake is fully disengaged before The park brake should always be applied when the driver driving; failure to do so can lead to brake failure and is not in the vehicle, especially on an incline. a collision.
Page 207: Shifting
STARTING AND OPERATING 205 NOTE: During cold weather, you may experience in- creased effort in shifting until the transmission fluid warms up. This is normal. Shift Pattern The six-speed manual transmission has a spring that centers the gear selector near third and fourth gear. This spring helps you know which gear you are in when you are shifting.
Page 208: Recommended Shift Speeds
REVERSE. Failure to do so may shift speed chart. result in transmission damage. You must always use first gear (or REVERSE) when starting from a standing position. MANUAL TRANSMISSION RECOMMENDED SHIFT SPEEDS — DODGE Axle Ratio 3.90 (km/h) (32)
Page 209: 1-4 Skip Shift
STARTING AND OPERATING 207 NOTE: second gear. This is to help you get the best possible fuel economy from your vehicle. This occurs when the engine • Your vehicle is equipped with a transmission reverse coolant (antifreeze) is higher than 106°F (41°C), vehicle inhibitor system.
Page 210: Automatic Transmission - If Equipped
208 STARTING AND OPERATING CAUTION! WARNING! (Continued) complete stop before shifting to PARK, and verify • If you skip more than one gear while downshifting that the transmission gear position indicator solidly or downshift at too high an engine speed, you could indicates PARK (P) without blinking.
Page 211: Ignition Park Interlock
STARTING AND OPERATING 209 WARNING! (Continued) CAUTION! (Continued) • When exiting the vehicle, always make sure the • Do not shift between PARK, REVERSE, NEUTRAL, ignition is in the OFF mode, remove the key fob from or DRIVE when the engine is above idle speed. •...
Page 212: Brake/Transmission Shift Interlock System
210 STARTING AND OPERATING Brake/Transmission Shift Interlock System NOTE: In the event of a mismatch between the gear selector position and the actual transmission gear (for This vehicle is equipped with a Brake Transmission Shift example, driver selects PARK while driving), the position Interlock system (BTSI) that holds the transmission gear indicator will blink continuously until the selector is re- selector in PARK unless the brakes are applied.
Page 213 STARTING AND OPERATING 211 The electronically-controlled transmission adapts its shift NOTE: If the gear selector cannot be moved to the PARK, schedule based on driver inputs, along with environmental REVERSE, or NEUTRAL position (when pushed forward) and road conditions. The transmission electronics are self- it is probably in the MANUAL (AutoStick, +/-) position calibrating;...
Page 214 212 STARTING AND OPERATING When parking on a hill, apply the parking brake before WARNING! (Continued) shifting the transmission to PARK. As an added precau- • The transmission may not engage PARK if the ve- tion, turn the front wheels toward the curb on a downhill hicle is moving.
Page 215 STARTING AND OPERATING 213 WARNING! (Continued) CAUTION! (Continued) transmission is locked in PARK, securing the vehicle brake pedal. Otherwise, damage to the gear selector against unwanted movement. could result. • When exiting the vehicle, always make sure the • DO NOT race the engine when shifting from PARK ignition is in the OFF mode, remove the key fob from or NEUTRAL into another gear range, as this can the vehicle, and lock the vehicle.
Page 216 214 STARTING AND OPERATING NEUTRAL (N) DRIVE (D) Use this range when the vehicle is standing for prolonged This range should be used for most city and highway periods with the engine running. Apply the parking brake driving. It provides the smoothest upshifts and downshifts, and shift the transmission into PARK if you must exit the and the best fuel economy.
Page 217 STARTING AND OPERATING 215 In the event of a momentary problem, the transmission can MANUAL (M) be reset to regain all forward gears by performing the The MANUAL (M, +/-) position (beside the DRIVE posi- following steps: tion) enables full manual control of transmission shifting (also known as AutoStick mode;...
Page 218 216 STARTING AND OPERATING If the transmission cannot be reset, authorized dealer lower gear, or tap the lever rearward (+) (or tap the (+) shift service is required. paddle, if equipped) to command an upshift. AutoStick AutoStick is a driver-interactive transmission feature pro- viding manual shift control, giving you more control of the vehicle.
Page 219 STARTING AND OPERATING 217 NOTE: depressed, the transmission will downshift when pos- sible (based on current vehicle speed and gear, except • Tapping one of the steering wheel-mounted shift paddles 6.4L models). Lack of accelerator pedal activity will (+/-), if equipped, while the gear selector is in DRIVE, will cause the transmission to revert to automatic operation.
Page 220: Sport Mode - Without Performance Control
218 STARTING AND OPERATING • If a requested downshift would cause the engine to WARNING! over-speed, that shift will not occur. Do not downshift for additional engine braking on a • The system will ignore attempts to upshift at too low of slippery surface.
Page 221: Fuel Saver Technology - If Equipped
STARTING AND OPERATING 219 FUEL SAVER TECHNOLOGY — IF EQUIPPED Alternate electric power steering efforts can be selected through the Uconnect System. Refer to ”Customer Pro- This feature offers improved fuel economy by shutting off grammable Features” within “Uconnect Settings” in “Mul- four of the engine’s eight cylinders during light load and timedia”...
Page 222: Speed Control - If Equipped
220 STARTING AND OPERATING If the Steering icon is displayed and the “POWER STEER- ING SYSTEM OVER TEMP” message is displayed on the instrument cluster screen, they indicate that extreme steer- ing maneuvers may have occurred which caused an over temperature condition in the power steering system.
Page 223: To Activate
STARTING AND OPERATING 221 To Activate indicating what speed was set. A cruise indicator lamp, along with set speed will also appear and stay on in the Push the on/off button to activate the Speed Control. instrument cluster when the speed is set. “CRUISE CONTROL READY”...
Page 224: To Accelerate For Passing
222 STARTING AND OPERATING Metric Speed (km/h) Metric Speed (km/h) • Pushing the SET (+) button once will result in a 1 km/h • Pushing the SET (-) button once will result in a 1 km/h increase in set speed. Each subsequent tap of the button decrease in set speed.
Page 225: To Resume Speed
STARTING AND OPERATING 223 ADAPTIVE CRUISE CONTROL (ACC) — IF On steep hills, a greater speed loss or gain may occur so it may be preferable to drive without Speed Control. EQUIPPED Adaptive Cruise Control (ACC) increases the driving con- WARNING! venience provided by cruise control while traveling on highways and major roadways.
Page 226 224 STARTING AND OPERATING The Cruise Control system has two control modes: WARNING! (Continued) • Adaptive Cruise Control mode for maintaining an ap- operation of the vehicle under all road conditions. propriate distance between vehicles. Your complete attention is always required while •...
Page 227: Adaptive Cruise Control (Acc) Operation
STARTING AND OPERATING 225 WARNING! (Continued) • When towing a trailer up or down steep slopes. • When circumstances do not allow safe driving at a constant speed. Adaptive Cruise Control (ACC) Operation The Speed Control buttons (located on the right side of the steering wheel) operates the ACC system.
Page 228: Activating Adaptive Cruise Control (Acc)
226 STARTING AND OPERATING Activating Adaptive Cruise Control (ACC) To Activate/Deactivate You can only engage ACC if the vehicle speed is above Push and release the Adaptive Cruise Control (ACC) 20 mph (32 km/h). on/off button. The ACC menu in the instrument cluster displays “ACC Ready.”...
Page 229: To Set A Desired Acc Speed
STARTING AND OPERATING 227 If the system is set when the vehicle speed is above 20 mph (32 km/h), the set speed shall be the current speed of the vehicle. Remove your foot from the accelerator pedal. If you do not, the vehicle may continue to accelerate beyond the set speed.
Page 230: To Turn Off
228 STARTING AND OPERATING • The vehicle parking brake is applied. WARNING! • Driver seat belt is unbuckled at low speeds. The Resume function should only be used if traffic • Driver door is opened at low speeds. and road conditions permit. Resuming a set speed that is too high or too low for prevailing traffic and road To Turn Off conditions could cause the vehicle to accelerate or...
Page 231 STARTING AND OPERATING 229 • If the button is continually pushed, the set speed will • If the button is continually pushed, the set speed will continue to increase in 5 mph increments until the continue to decrease in 5 mph increments until the button is released.
Page 232: Setting The Following Distance In Acc
230 STARTING AND OPERATING • The ACC system maintains set speed when driving up hill and down hill. However, a slight speed change on moderate hills is normal. In addition, downshifting may occur while climbing uphill or descending downhill. This is normal operation and necessary to maintain set speed.
Page 233 STARTING AND OPERATING 231 Distance Setting 3 Bars (Long) Distance Setting 2 Bars (Medium)
Page 234 232 STARTING AND OPERATING lane, the instrument cluster display will show the “Sensed Vehicle Indicator” icon, and the system adjusts vehicle speed automatically to maintain the distance setting, re- gardless of the set speed. The vehicle will then maintain the set distance until: •...
Page 235: Overtake Aid
STARTING AND OPERATING 233 Overtake Aid A Proximity Warning will alert the driver if ACC predicts that its maximum braking level is not sufficient to maintain When driving with ACC engaged and following a vehicle, the set distance. If this occurs, a visual alert “BRAKE” will the system will provide an additional acceleration up to the flash in the instrument cluster display and a chime will ACC set speed to assist in passing the vehicle.
Page 236: Display Warnings And Maintenance
234 STARTING AND OPERATING Display Warnings And Maintenance Adaptive Cruise Control Set When the SET (+) or the SET (-) button (located on the “Wipe Front Radar Sensor In Front Of Vehicle” steering wheel) is pushed, the display will read “ACC Warning SET.”...
Page 237 STARTING AND OPERATING 235 NOTE: If the “ACC/FCW Unavailable Wipe Front Radar • Do not attach or install any accessories near the sensor, Sensor” warning is active Normal (Fixed Speed) Cruise including transparent material or aftermarket grilles. Control is still available. For additional information refer to Doing so could cause an ACC system failure or malfunc- “Normal (Fixed Speed) Cruise Control Mode”...
Page 238: Precautions While Driving With Acc
236 STARTING AND OPERATING Service ACC/FCW Warning Offset Driving If the system turns off, and the instrument cluster displays ACC may not detect a vehicle in the same lane that is offset “ACC/FCW Unavailable Service Required” or “Cruise/ from your direct line of travel, or a vehicle merging in from FCW Unavailable Service Required”, there may be an a side lane.
Page 239 STARTING AND OPERATING 237 Turns And Bends Using ACC On Hills When driving on a curve with ACC engaged, the system When driving on hills, ACC may not detect a vehicle in may decrease the vehicle speed and acceleration for stabil- your lane.
Page 240 238 STARTING AND OPERATING Lane Changing Narrow Vehicles ACC may not detect a vehicle until it is completely in the Some narrow vehicles traveling near the outer edges of the lane in which you are traveling. In the illustration shown, lane or edging into the lane are not detected until they have ACC has not yet detected the vehicle changing lanes and it moved fully into the lane.
Page 241: General Information
STARTING AND OPERATING 239 General Information Stationary Objects And Vehicles ACC does not react to stationary objects and stationary The following regulatory statement applies to all Radio vehicles. For example, ACC will not react in situations Frequency (RF) devices equipped in this vehicle: where the vehicle you are following exits your lane and the This device complies with Part 15 of the FCC Rules and vehicle ahead is stopped in your lane.
Page 242 240 STARTING AND OPERATING To change between the different control modes, push the set a message “CRUISE CONTROL SET TO MPH (km/h)” Adaptive Cruise Control (ACC) on/off button which turns will appear indicating what speed was set. This light will the ACC and the Normal (Fixed Speed) Cruise Control off.
Page 243 STARTING AND OPERATING 241 • If the button is continually pushed, the set speed will Metric Speed (km/h) continue to decrease in 5 mph decrements until the • Pushing the SET (+) button once will result in a 1 km/h button is released.
Page 244: Parksense Rear Park Assist - If Equipped
242 STARTING AND OPERATING • The braking temperature exceeds normal range (over- parking maneuver. Refer to “ParkSense System Usage heated). Precautions” in this section for limitations of this system and recommendations. • The gear selector is removed from the DRIVE position. ParkSense will retain the last system state (enabled or To Resume Speed disabled) from the last ignition cycle when the ignition is...
Page 245: Parksense Warning Display
STARTING AND OPERATING 243 ParkSense Warning Display single arc moving closer to the vehicle and the sound tone will change from slow, to fast, to continuous. The ParkSense Warning screen will only be displayed if “Sound and Display” is selected from the Customer - If an obstacle is detected in the left and/or right rear Programmable Features section of the Uconnect System.
Page 246 244 STARTING AND OPERATING Slow Tone/Solid Arc Fast Tone/Flashing Arc...
Page 247 STARTING AND OPERATING 245 The vehicle is close to the obstacle when the warning display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert opera- tion when the system is detecting an obstacle: Continuous Tone/Flashing Arc...
Page 248 246 STARTING AND OPERATING WARNING ALERTS Rear Dis- Greater 79-59 inches 59-47 inches 47-39 inches 39-25 inches 25-12 inches Less than tance than (200-150 (150-120 (120-100 (100-65 cm) (65-30 cm) 12 inches (in/cm) 79 inches (30 cm) (200 cm) Audible None Single 1/2- Slow...
Page 249: Enabling And Disabling Parksense
STARTING AND OPERATING 247 Enabling And Disabling ParkSense cluster display will feature the “PARKSENSE OFF” mes- sage for as long as the vehicle is in REVERSE. ParkSense can be enabled and disabled with the ParkSense switch, located on the switch panel below the Uconnect The ParkSense switch LED will be on when ParkSense is display.
Page 250: Cleaning The Parksense System
248 STARTING AND OPERATING ParkSense System Usage Precautions If “PARKSENSE UNAVAILABLE WIPE REAR SENSORS” appears in the instrument cluster display, make sure the NOTE: outer surface and the inside of the rear fascia/bumper is • Ensure that the rear bumper is free of snow, ice, mud, clean and clear of snow, ice, mud, dirt or other obstruction, dirt and debris to keep the ParkSense system operating and then cycle the ignition.
Page 251: Parkview Rear Back Up Camera
STARTING AND OPERATING 249 obstacle behind the fascia/bumper, or it could provide a CAUTION! false indication that an obstacle is behind the fascia/ bumper. • ParkSense is only a parking aid and it is unable to recognize every obstacle, including small obstacles. •...
Page 252 250 STARTING AND OPERATING NOTE: The ParkView Rear Back Up Camera has program- When enabled, active guide lines are overlaid on the image mable modes of operation that may be selected through the to illustrate the width of the vehicle and its projected Uconnect System.
Page 253: Refueling The Vehicle
STARTING AND OPERATING 251 REFUELING THE VEHICLE WARNING! The gas cap is located behind the fuel filler door on the left Drivers must be careful when backing up even when side of the vehicle. Use a finger to pull open the door. If the using the ParkView Rear Back Up Camera.
Page 254: Loose Fuel Filler Cap Message
252 STARTING AND OPERATING WARNING! CAUTION! (Continued) • To avoid fuel spillage and overfilling, do not “top • Never have any smoking materials lit in or near the off” the fuel tank after filling. When the fuel nozzle vehicle when the fuel door is open or the tank is “clicks”...
Page 255: Vehicle Loading
STARTING AND OPERATING 253 VEHICLE LOADING Gross Vehicle Weight Rating (GVWR) The load carrying capacity of your vehicle is shown on the The GVWR is the total allowable weight of your vehicle. “Vehicle Certification Label”. This information should be This includes driver, passengers, and cargo. The total load used for passenger and luggage loading as indicated.
Page 256: Overloading
254 STARTING AND OPERATING Overloading the specified GVWR, you must redistribute the weight. Improper weight distribution can have an adverse effect on The load carrying components (axle, springs, tires, wheels, the way your vehicle steers and handles and the way the etc.) of your vehicle will provide satisfactory service as brakes operate.
Page 257: Common Towing Definitions
STARTING AND OPERATING 255 Common Towing Definitions Gross Axle Weight Rating (GAWR) The following trailer towing related definitions will assist The GAWR is the maximum capacity of the front and rear you in understanding the following information: axles. Distribute the load over the front and rear axles evenly.
Page 258 256 STARTING AND OPERATING Trailer Sway Control for a more level ride, offering more consistent steering and brake control thereby enhancing towing safety. The addi- The trailer sway control can be a mechanical telescoping tion of a friction/hydraulic sway control also dampens link that can be installed between the hitch receiver and the sway caused by traffic and crosswinds and contributes trailer tongue that typically provides adjustable friction...
Page 259: Trailer Hitch Classification
STARTING AND OPERATING 257 Trailer Hitch Classification and should be used to assist you in selecting the correct trailer hitch for your intended towing condition. The following chart provides the industry standard for the maximum trailer weight a given trailer hitch class can tow Trailer Hitch Classification Definitions Class Max.
Page 260: Trailer And Tongue Weight
258 STARTING AND OPERATING Trailer And Tongue Weight NOTE: Remember that everything put into or on the trailer adds to the load on your vehicle. Also, additional Never exceed the maximum tongue weight stamped on factory-installed options or dealer-installed options must your bumper or trailer hitch.
Page 261 STARTING AND OPERATING 259 WARNING! (Continued) WARNING! (Continued) • When hauling cargo or towing a trailer, do not 2. GTW overload your vehicle or trailer. Overloading can 3. GAWR cause a loss of control, poor performance or damage to brakes, axle, engine, transmission, steering, sus- 4.
Page 262 260 STARTING AND OPERATING Towing Requirements — Tires Towing Requirements — Trailer Brakes • Do not attempt to tow a trailer while using a compact • Do not interconnect the hydraulic brake system or spare tire. vacuum system of your vehicle with that of the trailer. This could cause inadequate braking and possible per- •...
Page 263 STARTING AND OPERATING 261 The Trailer Tow Package may include a four- and seven-pin WARNING! wiring harness. Use a factory approved trailer harness and connector. • Do not connect trailer brakes to your vehicle’s hy- draulic brake lines. It can overload your brake sys- NOTE: Do not cut or splice wiring into the vehicle’s wiring tem and cause it to fail.
Page 264 262 STARTING AND OPERATING Four-Pin Connector Seven-Pin Connector 1 — Female Pins 4 — Park 1 — Battery 5 — Ground 2 — Male Pin 5 — Left Stop/Turn 2 — Backup Lamps 6 — Left Stop/Turn 3 — Ground 6 —...
Page 265: Towing Tips
STARTING AND OPERATING 263 Towing Tips AutoStick • When using the AutoStick shift control, select the high- Before setting out on a trip, practice turning, stopping, and est gear that allows for adequate performance and backing up the trailer in an area located away from heavy avoids frequent downshifts.
Page 266: Recreational Towing (Behind Motorhome, Etc.)
264 STARTING AND OPERATING RECREATIONAL TOWING (BEHIND MOTORHOME, the right or left. This phenomenon occurs when there is a ETC.) difference in the surface traction under the rear (driving) wheels. Recreational towing (with all four wheels on the ground, or using a tow dolly) is NOT ALLOWED.
Page 267: Driving Through Water
STARTING AND OPERATING 265 • Replace tires when tread wear indicators first become WARNING! (Continued) visible. cause your vehicle to sink into deeper water. Further- • Keep tires properly inflated. more, flowing and/or rising water can carry your ve- hicle away swiftly. Failure to follow this warning may •...
Page 268 266 STARTING AND OPERATING CAUTION! • Always check the depth of the standing water before driving through it. Never drive through standing water that is deeper than the bottom of the tire rims mounted on the vehicle. • Determine the condition of the road or the path that is under water and if there are any obstacles in the way before driving through the standing water.
Page 269 IN CASE OF EMERGENCY CONTENTS HAZARD WARNING FLASHERS ... .269 TIRE SERVICE KIT — IF EQUIPPED ..297 ASSIST AND SOS MIRROR — IF EQUIPPED ..269 ▫...
Page 270 268 IN CASE OF EMERGENCY ▫ Rear-Wheel Drive (RWD) Models ...315 EVENT DATA RECORDER (EDR) ... .315 ENHANCED ACCIDENT RESPONSE SYSTEM (EARS) .
Page 271: Hazard Warning Flashers
IN CASE OF EMERGENCY 269 HAZARD WARNING FLASHERS ASSIST AND SOS MIRROR — IF EQUIPPED The Hazard Warning flasher switch is located on the instrument panel, below the radio. Push the switch to turn on the Hazard Warning flasher. When the switch is activated, all direc- tional turn signals will flash on and off to warn oncoming traffic of an emergency.
Page 272 270 IN CASE OF EMERGENCY someone who can help. Roadside Assistance will know WARNING! (Continued) what vehicle you’re driving and its location. Additional SiriusXM Guardian features and applications in this fees may apply for roadside Assistance. vehicle. Only use Uconnect features and SiriusXM •...
Page 273 IN CASE OF EMERGENCY 271 3. Once a connection between the vehicle and a SOS NOTE: operator is made, the SOS Call system may transmit the • Your vehicle may be transmitting data as authorized following important vehicle information to a SOS op- by the subscriber.
Page 274 272 IN CASE OF EMERGENCY WARNING! (Continued) WARNING! (Continued) • Modifications to any part of the SOS Call system Emergency Services Agent. All occupants should exit could cause the air bag system to fail when you need the vehicle immediately and move to a safe location. •...
Page 275 IN CASE OF EMERGENCY 273 • LTE (voice/data) or 4G (data) network and/or Global WARNING! Positioning Satellite signals are unavailable or ob- structed. • Ignoring the Rearview Mirror light could mean you will not have SOS Call services. If the Rearview •...
Page 276: Bulb Replacement
274 IN CASE OF EMERGENCY NOTE: NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the • Your vehicle may be transmitting data as authorized by user’s authority to operate the equipment. the subscriber. •...
Page 277 IN CASE OF EMERGENCY 275 Bulb Number Glove Compartment Lamp – If Equipped Door Courtesy Shift Indicator Lamp JKLE14140 Optional Door Map Pocket/Cupholder LED (Serviced At Authorized Dealer) For lighted switches, see your authorized dealer for replacement instructions. Exterior Bulbs Bulb Number Headlamp –...
Page 278: Replacing Exterior Bulbs
276 IN CASE OF EMERGENCY * The headlamps are a type of high-voltage discharge tube. 7. Reinstall headlamp access cap by turning it clockwise High voltage can remain in the circuit even with the and then reinstall headlamp cover. headlamp switch off and the key removed. Because of this, To replace the driver side lamps: you should not attempt to service a headlamp bulb your- self.
Page 279 IN CASE OF EMERGENCY 277 Low Beam Headlamp, High Beam Headlamp, And Front/Rear Side Marker Lamp Park/Turn Lamp — Models With High Intensity The Side Markers use LED lamps that are not serviceable Discharge (HID) Headlamps — If Equipped separately. The Side Markers must be replaced as an The headlamps are a type of high voltage discharge tube.
Page 280: Fuses
278 IN CASE OF EMERGENCY FUSES When a device does not work, you must check the fuse element inside the blade fuse for a break/melt. WARNING! Also, please be aware that when using power outlets for extended periods of time with the engine off may result in •...
Page 281: Underhood Fuses
IN CASE OF EMERGENCY 279 Underhood Fuses CAUTION! The Front Power Distribution Center is located in the • When installing the power distribution center cover, engine compartment. This module contains fuses and it is important to ensure the cover is properly posi- relays.
Page 282 280 IN CASE OF EMERGENCY Cavity Cartridge Fuse Mini-Fuse Description 30 Amp Pink – Starter 40 Amp Green – Anti Lock Brake 30 Amp Pink – Anti Lock Brake 20 Amp Blue – Police Ignition Run / ACC #1 50 Amp Red / 20 –...
Page 283 IN CASE OF EMERGENCY 281 Cavity Cartridge Fuse Mini-Fuse Description 30 Amp Pink – Headlamp Washers – If Equipped 20 Amp Blue – Po- Police Bat Feed #2 lice 40 Amp Green / – Engine Cooling Pump (6.2L Super- 20 Amp Blue – Po- charged) / Police Bat Feed # 3 lice 20 Amp Blue...
Page 284 282 IN CASE OF EMERGENCY Cavity Cartridge Fuse Mini-Fuse Description – 10 Amp Red Engine Controller / Rad Fan Relays (Charger/300) / Electric Power Steering Module (Charger/300) / 5-Speed TCM – 10 Amp Red Airbag Module – 10 Amp Red EPS (Challenger) / EHPS (Police) / AC Clutch Relay / Vacuum Pump Relay / Rad Fan Relays (Challenger)
Page 285: Rear Interior Fuses
IN CASE OF EMERGENCY 283 Rear Interior Fuses There is also a power distribution center located in the trunk under the spare tire access panel. This center con- tains fuses and relays. Fuse cavity location and descrip- tions are printed on the inside of the power distribution center cover.
Page 286 284 IN CASE OF EMERGENCY CAUTION! CAUTION! (Continued) only a fuse having the correct amperage rating. The • When installing the power distribution center cover, use of a fuse with a rating other than indicated may it is important to ensure the cover is properly posi- result in a dangerous electrical system overload.
Page 287 IN CASE OF EMERGENCY 285 Cavity Cartridge Fuse Mini-Fuse Description 30 Amp Pink – Passenger Door Control Module – 20 Amp Yellow Dual USB Center Console Rear/Cigar Lighter IP – If Equipped 40 Amp Green – HVAC Blower 20 Amp Blue –...
Page 288 286 IN CASE OF EMERGENCY Cavity Cartridge Fuse Mini-Fuse Description – 15 Amp Blue Cygnus Transmission Module (Charger/300) / Electronic Shift Module (Charger/300) – 25 Amp Clear Amplifier – If Equipped – 25 Amp Breaker Power Seats – If Equipped –...
Page 289 IN CASE OF EMERGENCY 287 Cavity Cartridge Fuse Mini-Fuse Description 30 Amp Pink – Fuel Pump (6.2L SRT De- mon – If Equipped) 30 Amp Pink – Rear Defrost – 20 Amp Yellow Comfort Seat And Steering Wheel Module (Heated Steering Wheel/RR Heated Seats) –...
Page 290 288 IN CASE OF EMERGENCY Cavity Cartridge Fuse Mini-Fuse Description – – Fuse – Spare – 20 Amp Yellow Front Heated / Vented Seats – If Equipped – 10 Amp Red Heated Cupholders/Rear Heated Seat Switches – If Equipped – 10 Amp Red HVAC Module/In Vehicle Temperature Sensor...
Page 291 IN CASE OF EMERGENCY 289 Cavity Cartridge Fuse Mini-Fuse Description – 10 Amp Red Airbag Module – – Fuse – Spare – 10 Amp Red Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay –...
Page 292: Jacking And Tire Changing
290 IN CASE OF EMERGENCY JACKING AND TIRE CHANGING Jack Location/Spare Tire Stowage The jack and spare tire are both stowed under an access WARNING! cover in the trunk. Follow these steps to access the jack and spare tire. • Do not attempt to change a tire on the side of the vehicle close to moving traffic.
Page 293 IN CASE OF EMERGENCY 291 3. Rotate the fastener securing the spare tire counterclock- wise to remove it. Jack Fastener 6. Remove the jack and lug wrench assembly from under the spare tire. Turn the jack screw to the left to loosen the Spare Tire Fastener lug wrench, and remove the wrench from the jack 4.
Page 294: Preparations For Jacking
292 IN CASE OF EMERGENCY Preparations For Jacking 6. Block both the front and rear of the wheel diagonally opposite the jacking position. For example, if the right 1. Park the vehicle on a firm, level surface as far from the front wheel is being changed, block the left rear wheel.
Page 295 IN CASE OF EMERGENCY 293 WARNING! (Continued) • Never start or run the engine with the vehicle on a jack. • Do not let anyone sit in the vehicle when it is on a jack. • Do not get under the vehicle when it is on a jack. If you need to get under a raised vehicle, take it to a service center where it can be raised on a lift.
Page 296 294 IN CASE OF EMERGENCY NOTE: If the vehicle is too low for jack placement, slide the jack on its side and rotate it up into position. Jack Engagement Locations 1. Remove the spare tire, jack, and lug wrench. 2. If equipped with aluminum wheels where the center cap Front Jacking Location covers the lug nuts, use the lug wrench to pry the center cap off carefully before raising the vehicle.
Page 297 IN CASE OF EMERGENCY 295 6. Remove the lug nuts and tire. 7. Mount the spare tire. CAUTION! Do not attempt to raise the vehicle by jacking on locations other than those indicated. Rear Jacking Location 5. Raise the vehicle just enough to remove the flat tire and install the spare tire.
Page 298: Road Tire Installation
296 IN CASE OF EMERGENCY NOTE: 11. Stow the jack, tools and flat tire. Make sure the base of the jack faces the front of the vehicle before tightening • For vehicles so equipped, do not attempt to install a down the fastener.
Page 299: Tire Service Kit - If Equipped
IN CASE OF EMERGENCY 297 Tire Service Kit Storage 3. Lower the vehicle to the ground by turning the jack handle counterclockwise. The Tire Service Kit is located in the trunk. 4. Refer to “Torque Specifications” in “Technical Specifica- tions” for proper lug nut torque. 5.
Page 300: Tire Service Kit Components And Operation
298 IN CASE OF EMERGENCY Tire Service Kit Components And Operation Using The Mode Select Knob And Hoses Your Tire Service Kit is equipped with the following symbols to indicate the air or sealant mode. Selecting Air Mode Push in the Mode Select Knob (5) and turn to this position for air pump operation only.
Page 301: Tire Service Kit Usage Precautions
IN CASE OF EMERGENCY 299 Tire Service Kit Usage Precautions • When the Tire Service Kit sealant is in a liquid form, clean water, and a damp cloth will remove the material • Replace the Tire Service Kit Sealant Bottle (1) and Sealant from the vehicle or tire and wheel components.
Page 302 300 IN CASE OF EMERGENCY WARNING! WARNING! (Continued) • A loose Tire Service Kit thrown forward in a collision • Do not attempt to seal a tire on the side of the vehicle or hard stop could endanger the occupants of the closest to traffic.
Page 303: Sealing A Tire With Tire Service Kit
IN CASE OF EMERGENCY 301 Sealing A Tire With Tire Service Kit 3. Place the Tire Service Kit flat on the ground next to the deflated tire. (A) Whenever You Stop To Use Tire Service Kit: 4. Remove the cap from the valve stem and then screw the 1.
Page 304 302 IN CASE OF EMERGENCY If the sealant (white fluid) does not flow within 0 – 10 If the sealant (white fluid) does flow through the Sealant seconds through the Sealant Hose (6): Hose (6): 1. Push the Power Button (4) to turn Off the Tire Service 1.
Page 305 IN CASE OF EMERGENCY 303 If the tire inflates to the recommended pressure or is at CAUTION! (Continued) least 26 psi (1.8 Bar) pressure within 15 minutes: also result in sealant contacting internal Tire Service 1. Push the Power Button (4) to turn off the Tire Service Kit components which may cause permanent damage Kit.
Page 306 304 IN CASE OF EMERGENCY (E) After Driving: NOTE: If the tire becomes over-inflated, push the Deflation Button to reduce the tire pressure to the recommended Pull over to a safe location. Refer to “Whenever You Stop inflation pressure before continuing. To Use Tire Service Kit”...
Page 307: Jump Starting
IN CASE OF EMERGENCY 305 JUMP STARTING (F) Sealant Bottle And Hose Replacement: If your vehicle has a discharged battery, it can be jump 1. Uncoil the Sealant Hose (6) (clear in color). started using a set of jumper cables and a battery in another 2.
Page 308: Preparations For Jump Start
306 IN CASE OF EMERGENCY Preparations For Jump Start WARNING! The battery is stored under an access cover in the trunk. • Take care to avoid the radiator cooling fan whenever Remote battery posts are located on the right side of the the hood is raised.
Page 309: Jump Starting Procedure
IN CASE OF EMERGENCY 307 2. Connect the opposite end of the positive (+) jumper WARNING! cable to the positive (+) post of the booster battery. Do not allow vehicles to touch each other as this could 3. Connect the negative (-) end of the jumper cable to the establish a ground connection and personal injury negative (-) post of the booster battery.
Page 310: If Your Engine Overheats
308 IN CASE OF EMERGENCY 6. Once the engine is started, remove the jumper cables in CAUTION! (Continued) the reverse sequence: in use (i.e., cellular devices, etc.). Eventually, if plugged Disconnecting The Jumper Cables in long enough without engine operation, the vehicle’s battery will discharge sufficiently to degrade battery 1.
Page 311: Manual Park Release - 8 Speed Transmission
IN CASE OF EMERGENCY 309 MANUAL PARK RELEASE — 8 SPEED • You can also turn the temperature control to maximum heat, the mode control to floor and the blower control to TRANSMISSION high. This allows the heater core to act as a supplement WARNING! to the radiator and aids in removing heat from the engine cooling system.
Page 312 310 IN CASE OF EMERGENCY In order to move the vehicle in cases where the transmis- 3. Using a small screwdriver or similar tool, fish the tether sion will not shift out of PARK (such as a dead battery), a strap up through the opening in the console base.
Page 313: Freeing A Stuck Vehicle
IN CASE OF EMERGENCY 311 The vehicle is now out of PARK and can be moved. 3. Pull up gently on the tether strap to confirm that the Release the parking brake only when the vehicle is lever is locked in its stowed position. securely connected to a tow vehicle.
Page 314 312 IN CASE OF EMERGENCY CAUTION! WARNING! (Continued) failure, of the axle and tires. A tire could explode and Racing the engine or spinning the wheels may lead to injure someone. Do not spin your vehicle’s wheels transmission overheating and failure. Allow the en- faster than 30 mph (48 km/h) or for longer than 30 gine to idle with the transmission in NEUTRAL for at seconds continuously without stopping when you are...
Page 315: Towing A Disabled Vehicle
IN CASE OF EMERGENCY 313 TOWING A DISABLED VEHICLE This section describes procedures for towing a disabled vehicle using a commercial towing service. Towing Condition Wheels OFF The Ground RWD MODELS AWD MODELS Flat Tow NONE If transmission is oper- NOT ALLOWED able: •...
Page 316: All Wheel Drive (Awd) Models
314 IN CASE OF EMERGENCY All Wheel Drive (AWD) Models Proper towing or lifting equipment is required to prevent damage to your vehicle. Use only tow bars and other The manufacturer recommends towing your vehicle with equipment designed for this purpose, following equipment all four wheels OFF the ground using a flatbed.
Page 317 IN CASE OF EMERGENCY 315 Rear-Wheel Drive (RWD) Models ENHANCED ACCIDENT RESPONSE SYSTEM (EARS) The manufacturer recommends towing your vehicle with all four wheels OFF the ground using a flatbed. This vehicle is equipped with an Enhanced Accident Response System. If flatbed equipment is not available, and the transmission is operable, the vehicle may be flat towed (with all four Please refer to “Occupant Restraint Systems”...
Page 319 SERVICING AND MAINTENANCE CONTENTS SCHEDULED SERVICING ....319 ▫ Engine Air Cleaner Filter ....338 ▫...
Page 320 318 SERVICING AND MAINTENANCE ▫ Temperature Grades .....380 RAISING THE VEHICLE ....356 TIRES .
Page 321: Scheduled Servicing
SERVICING AND MAINTENANCE 319 SCHEDULED SERVICING referring to “Instrument Cluster Display” in “Getting To Know Your Instrument Panel” for further information. 3.6L And 5.7L Engines NOTE: Under no circumstances should oil change inter- Your vehicle is equipped with an automatic oil change vals exceed 10,000 miles (16,000 km), twelve months or 350 indicator system.
Page 322 320 SERVICING AND MAINTENANCE Maintenance Plan — 3.6L And 5.7L At Every Oil Change Interval As Indicated By Oil Change Indicator System: Required Maintenance Intervals • Inspect battery and clean and tighten terminals as Refer to the maintenance chart for the required mainte- required nance intervals.
Page 323 SERVICING AND MAINTENANCE 321 Mileage or time passed (which- ever comes first) Or Years: Or Kilometers: Inspect the rear axle fluid. Inspect the front axle fluid (All Wheel Drive Only). Inspect the manual transmission fluid (if equipped). Inspect the brake linings, replace as necessary.
Page 324 322 SERVICING AND MAINTENANCE Mileage or time passed (which- ever comes first) Or Years: Or Kilometers: Flush and replace the engine cool- ant at 10 years or 150,000 miles (240,000 km) whichever comes first. Change the manual transmission fluid (if equipped) if using your ve- hicle for any of the following: Most of your driving is at sustained speeds during hot weather, above...
Page 325 SERVICING AND MAINTENANCE 323 Mileage or time passed (which- ever comes first) Or Years: Or Kilometers: Change the rear axle fluid and on models equipped with All Wheel Drive (AWD) change the front axle fluid if using your vehicle for any of the following: police, taxi, fleet, off-road, or frequent trailer towing.
Page 326: 6.4L Engine
324 SERVICING AND MAINTENANCE Heavy Duty Use Of The Vehicle is required for your vehicle. Have your vehicle serviced as soon as possible, within the next 500 miles (800 km). Change engine oil at 4,000 miles (6,500 km) or 350 hours of engine run time if the vehicle is operated in a dusty and off NOTE: road environment or is operated predominately at idle or...
Page 327 SERVICING AND MAINTENANCE 325 At Each Stop For Fuel • Check all lights and other electrical items for correct operation. • Check the engine oil level. Refer to “Engine Compart- ment” in this chapter for further information. At Each Oil Change •...
Page 328 326 SERVICING AND MAINTENANCE Miles: Or Months: 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120 126 132 138 144 150 Or Kilometers: Inspect front suspension, tie rod ends, and boot seals, for cracks or leaks and all parts for damage, wear, improper looseness or end play;...
Page 329 SERVICING AND MAINTENANCE 327 Miles: Or Months: 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120 126 132 138 144 150 Or Kilometers: Inspect and replace the PCV Valve if neces- sary Replace the spark plugs –...
Page 330: Engine Compartment
328 SERVICING AND MAINTENANCE ENGINE COMPARTMENT 3.6L Engine 1 — Remote Jump Start (Positive Battery Post) 6 — Engine Coolant Reservoir 2 — Power Distribution Center (Fuses) 7 — Air Cleaner Filter 3 — Remote Jump Start (Negative Battery Post) 8 —...
Page 331: 5.7L Engine
SERVICING AND MAINTENANCE 329 5.7L Engine 1 — Remote Jump Start (Positive Battery Post) 6 — Engine Coolant Reservoir 2 — Power Distribution Center (Fuses) 7 — Air Cleaner Filter 3 — Remote Jump Start (Negative Battery Post) 8 — Engine Oil Fill 4 —...
Page 332: 6.4L Engine
330 SERVICING AND MAINTENANCE 6.4L Engine 1 — Washer Fluid Reservoir 6 — Brake Fluid Reservoir Access Cover 2 — Remote Jump Start (Positive Battery Post) 7 — Engine Coolant Reservoir 3 — Power Distribution Center (Fuses) 8 — Air Cleaner Filter 4 —...
Page 333: Checking Oil Level - 3.6L And 5.7L Engine
SERVICING AND MAINTENANCE 331 Checking Oil Level — 3.6L And 5.7L Engine CAUTION! To assure proper engine lubrication, the engine oil must be Overfilling or underfilling the crankcase will cause maintained at the correct level. Check the oil level at aeration or loss of oil pressure.
Page 334: Adding Washer Fluid
332 SERVICING AND MAINTENANCE Adding Washer Fluid Maintenance-Free Battery The windshield washer fluid reservoir is located in the Your vehicle is equipped with a maintenance-free battery. front of the engine compartment. Be sure to check the fluid You will never have to add water, nor is periodic mainte- level at regular intervals.
Page 335: Dealer Service
SERVICING AND MAINTENANCE 333 WARNING! CAUTION! • Battery fluid is a corrosive acid solution and can • It is essential when replacing the cables on the burn or even blind you. Do not allow battery fluid to battery that the positive cable is attached to the contact your eyes, skin, or clothing.
Page 336: Engine Oil
334 SERVICING AND MAINTENANCE Change Engine Oil — 6.4L Engine WARNING! The oil change indicator system will remind you that it is You can be badly injured working on or around a time to take your vehicle in for scheduled maintenance. motor vehicle.
Page 337 SERVICING AND MAINTENANCE 335 American Petroleum Institute (API) Engine Oil The manufacturer recommends the use of a full synthetic Identification Symbol SAE 0W-40 engine oil or equivalent meeting the require- ments of FCA Material Standard MS-12633. This symbol means that the oil has CAUTION! been certified by the American Pe- troleum Institute (API).
Page 338 336 SERVICING AND MAINTENANCE Lubricants which do not have both the engine oil certifi- Engine Oil Viscosity — 6.4L Engine cation mark and the correct SAE viscosity grade number Use Pennzoil Ultra Platinum 0W-40 engine or equivalent should not be used. Mopar oil meeting the FCA Material Standard MS-12633 for use in all operating temperatures.
Page 339 SERVICING AND MAINTENANCE 337 To do this, you will need follow the procedure below: 5. Empty the bucket filled with dirty water and repeat steps 3 and 4. 1. Remove the four nuts with the Shaker tool located in glove compartment. 6.
Page 340: Engine Oil Filter
338 SERVICING AND MAINTENANCE — Lower water drains located in the lower shaker assem- Engine Oil Filter Selection bly and air box as well as the hood interface areas for the This manufacturer’s engines have a full-flow type dispos- seals. Apply Mopar Leather, Rubber & Vinyl Protectant able oil filter.
Page 341: Air Conditioner Maintenance
SERVICING AND MAINTENANCE 339 Engine Air Cleaner Filter Selection WARNING! (Continued) The quality of replacement engine air cleaner filters varies • The air conditioning system contains refrigerant un- considerably. Only high quality filters should be used to der high pressure. To avoid risk of personal injury or assure most efficient service.
Page 342 340 SERVICING AND MAINTENANCE Refrigerant Recovery And Recycling R-1234yf — If Equipped R–1234yf Air Conditioning Refrigerant is a hydrofluo- roolefin (HFO) that is endorsed by the Environmental Protection Agency and is an ozone-friendly substance with a low global-warming potential. The manufacturer recom- mends that air conditioning service be performed by an authorized dealer using recovery and recycling equipment.
Page 343 SERVICING AND MAINTENANCE 341 Filter Access Cover A/C Air Filter 3. Remove the used filter. 5. Close the filter access cover. 4. Install the new filter with arrows pointing in the direc- Refer to “Scheduled Servicing” in this section for the tion of airflow, which is toward the rear of the vehicle proper maintenance intervals.
Page 344: Accessory Drive Belt Inspection
342 SERVICING AND MAINTENANCE Accessory Drive Belt Inspection WARNING! • Do not attempt to inspect an accessory drive belt with vehicle running. • When working near the radiator cooling fan, discon- nect the fan motor lead. The fan is temperature controlled and can start at any time regardless of ignition mode.
Page 345: Body Lubrication
SERVICING AND MAINTENANCE 343 • Noise (objectionable squeal, squeak, or rumble is heard The external lock cylinders should be lubricated twice a or felt while drive belt is in operation) year, preferably in the Fall and Spring. Apply a small amount of a high quality lubricant, such as Mopar Lock Some conditions can be caused by a faulty component such Cylinder Lubricant directly into the lock cylinder.
Page 346 344 SERVICING AND MAINTENANCE Wiper Blade Removal/Installation CAUTION! Do not allow the wiper arm to spring back against the glass without the wiper blade in place or the glass may be damaged. 1. Lift the wiper arm to raise the wiper blade off of the glass, until the wiper arm is in the full up position.
Page 347 SERVICING AND MAINTENANCE 345 with one hand and separating the wiper blade from the wiper arm with the other hand (move the wiper blade down toward the base of the wiper arm and away from the J hook in the end of the wiper arm). Wiper Locking Assembly 1 —...
Page 348: Exhaust System
346 SERVICING AND MAINTENANCE Installing The Front Wipers have an authorized technician inspect the complete ex- haust system and adjacent body areas for broken, dam- 1. Lift the wiper arm off of the glass, until the wiper arm is aged, deteriorated, or mispositioned parts. Open seams or in the full up position.
Page 349 SERVICING AND MAINTENANCE 347 In unusual situations involving grossly malfunctioning CAUTION! engine operation, a scorching odor may suggest severe and abnormal catalyst overheating. If this occurs, stop the • The catalytic converter requires the use of unleaded vehicle, turn off the engine and allow it to cool. Service, fuel only.
Page 350: Cooling System
348 SERVICING AND MAINTENANCE Cooling System Check the coolant recovery bottle tubing for brittle rubber, cracking, tears, cuts, and tightness of the connection at the WARNING! bottle and radiator. Inspect the entire system for leaks. DO NOT REMOVE THE COOLANT PRESSURE CAP WHEN •...
Page 351 SERVICING AND MAINTENANCE 349 Adding Coolant CAUTION! Your vehicle has been built with an improved engine • Mixing of engine coolant (antifreeze) other than coolant (OAT coolant conforming to MS.90032) that allows specified Organic Additive Technology (OAT) en- extended maintenance intervals. This engine coolant (anti- gine coolant (antifreeze), may result in engine dam- freeze) can be used up to ten years or 150,000 miles age and may decrease corrosion protection.
Page 352 350 SERVICING AND MAINTENANCE • Use only high purity water such as distilled or deionized Cooling System Pressure Cap water when mixing the water/engine coolant (anti- The cap must be fully tightened to prevent loss of engine freeze) solution. The use of lower quality water will coolant (antifreeze), and to ensure that engine coolant reduce the amount of corrosion protection in the engine (antifreeze) will return to the radiator from the coolant...
Page 353 SERVICING AND MAINTENANCE 351 Disposal Of Used Coolant When additional engine coolant (antifreeze) is needed to maintain the proper level, it should be added to the coolant Used ethylene glycol-based coolant (antifreeze) is a regu- bottle. Do not overfill. lated substance requiring proper disposal. Check with your local authorities to determine the disposal rules for your Points To Remember community.
Page 354: Brake System
352 SERVICING AND MAINTENANCE • Maintain engine coolant (antifreeze) concentration at a WARNING! minimum of 50% OAT coolant (conforming to MS.90032) and distilled water for proper corrosion pro- Riding the brakes can lead to brake failure and possi- tection of your engine which contains aluminum com- bly a collision.
Page 355 SERVICING AND MAINTENANCE 353 Add enough fluid to bring the level up to the requirements WARNING! (Continued) described on the brake fluid reservoir. With disc brakes, • To avoid contamination from foreign matter or mois- fluid level can be expected to fall as the brake pads wear. ture, use only new brake fluid or fluid that has been However, low fluid level may be caused by a leak and a in a tightly closed container.
Page 356: Clutch Hydraulic System - Manual Transmission (If Equipped)
354 SERVICING AND MAINTENANCE Clutch Hydraulic System — Manual Transmission Change Transmission Fluid (If Equipped) If contaminated with water, change the fluid immediately. The clutch hydraulic system is fed by a segregated volume of See your authorized dealer for service. fluid within the brake system master cylinder reservoir.
Page 357 SERVICING AND MAINTENANCE 355 Fluid Level Check CAUTION! The fluid level is preset at the factory and does not require Using a transmission fluid other than the manufactur- adjustment under normal operating conditions. Routine er’s recommended fluid may cause deterioration in fluid level checks are not required;...
Page 358: All Wheel Drive (Awd) - If Equipped
356 SERVICING AND MAINTENANCE Rear Axle Routine fluid and filter changes are not required. However, change the fluid and filter if the fluid becomes contami- Fluid Level Check nated (with water, etc.), or if the transmission is disas- Checking the fluid level while the vehicle is on level sembled for any reason.
Page 359 SERVICING AND MAINTENANCE 357 Tire Terminology and Definitions, Tire Pressures, and Tire Tire Markings Loading. Tire Markings 1 — U.S. DOT Safety 4 — Maximum Load Standards Code (TIN) 2 — Size Designation 5 — Maximum Pressure 3 — Service Description 6 —...
Page 360 358 SERVICING AND MAINTENANCE NOTE: tires is the same as for P-Metric tires except for the letters “LT” that are molded into the sidewall preceding the • P (Passenger) — Metric tire sizing is based on U.S. size designation. Example: LT235/85R16. design standards.
Page 361 SERVICING AND MAINTENANCE 359 EXAMPLE: 65, 85, 80 = Aspect ratio in percent (%) – Ratio of section height to section width of tire, or 10.5 = Section width in inches (in) R = Construction code – R means radial construction, or –...
Page 362 360 SERVICING AND MAINTENANCE Tire Identification Number (TIN) the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is not found on the The TIN may be found on one or both sides of the tire; outboard side, then you will find it on the inboard side of however, the date code may only be on one side.
Page 363 SERVICING AND MAINTENANCE 361 Tire Terminology And Definitions Term Definition B-Pillar The vehicle B-Pillar is the structural member of the body located be- hind the front door. Cold tire inflation pressure is defined as the tire pressure after the Cold Tire Inflation Pressure vehicle has not been driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a minimum of three hours.
Page 364 362 SERVICING AND MAINTENANCE Tire Loading And Tire Pressure NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar or the rear edge of the driver’s side door. Check the inflation pressure of each tire, including the spare tire (if equipped), at least monthly and inflate to the recommended pressure for your vehicle.
Page 365 SERVICING AND MAINTENANCE 363 Tire And Loading Information Placard Loading The vehicle maximum load on the tire must not exceed the load carrying capacity of the tire on your vehicle. You will not exceed the tire’s load carrying capacity if you adhere to the loading conditions, tire size, and cold tire inflation pressures specified on the Tire and Loading Information placard in “Vehicle Loading”...
Page 366 364 SERVICING AND MAINTENANCE Steps For Determining Correct Load Limit— this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. (1) Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or Metric Example For Load Limit XXX lbs.”...
Page 367 SERVICING AND MAINTENANCE 365 WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the rec- ommended load capacity for your vehicle. Never over- load them.
Page 368: Tires - General Information
366 SERVICING AND MAINTENANCE Tires — General Information WARNING! (Continued) Tire Pressure • Overinflated or underinflated tires can affect vehicle handling and can fail suddenly, resulting in loss of Proper tire inflation pressure is essential to the safe and vehicle control. satisfactory operation of your vehicle.
Page 369 SERVICING AND MAINTENANCE 367 Fuel Economy CAUTION! Underinflated tires will increase tire rolling resistance After inspecting or adjusting the tire pressure, always resulting in higher fuel consumption. reinstall the valve stem cap. This will prevent moisture Tread Wear and dirt from entering the valve stem, which could damage the valve stem.
Page 370 368 SERVICING AND MAINTENANCE pressure should be increased by 3 psi (21 kPa), which Radial Ply Tires equals 1 psi (7 kPa) for every 12°F (7°C) for this outside temperature condition. WARNING! Tire pressure may increase from 2 to 6 psi (13 to 40 kPa) Combining radial ply tires with other types of tires on during operation.
Page 371 SERVICING AND MAINTENANCE 369 Run Flat Tires — If Equipped Tire Spinning Run Flat tires allow you the capability to drive 50 miles When stuck in mud, sand, snow, or ice conditions, do not (80 km) at 50 mph (80 km/h) after a rapid loss of inflation spin your vehicle’s wheels above 30 mph (48 km/h) or for pressure.
Page 372 370 SERVICING AND MAINTENANCE Tread Wear Indicators worn to the tread wear indicators, the tire should be replaced. Refer to “Replacement Tires” in this section for Tread wear indicators are in the original equipment tires to further information. help you in determining when your tires should be re- placed.
Page 373 SERVICING AND MAINTENANCE 371 It is recommended to replace the two front tires or two rear WARNING! (Continued) tires as a pair. Replacing just one tire can seriously affect You could lose control and have a collision resulting in your vehicle’s handling. If you ever replace a wheel, make serious injury or death.
Page 374: Tire Types
372 SERVICING AND MAINTENANCE tire sidewall. Use all season tires only in sets of four; failure WARNING! (Continued) to do so may adversely affect the safety and handling of • Never use a tire with a smaller load index or capacity, your vehicle.
Page 375: Spare Tires - If Equipped
SERVICING AND MAINTENANCE 373 Spare Tires — If Equipped Snow Tires Some areas of the country require the use of snow tires NOTE: For vehicles equipped with Tire Service Kit instead during the Winter. Snow tires can be identified by a of a spare tire, please refer to “Tire Service Kit”...
Page 376 374 SERVICING AND MAINTENANCE Compact Spare Tire — If Equipped WARNING! The compact spare is for temporary emergency use only. Compact and collapsible spares are for temporary You can identify if your vehicle is equipped with a compact emergency use only. With these spares, do not drive spare by looking at the spare tire description on the Tire more than 50 mph (80 km/h).
Page 377 SERVICING AND MAINTENANCE 375 Do not install a wheel cover or attempt to mount a Limited Use Spare — If Equipped conventional tire on the collapsible spare wheel, since the The limited use spare tire is for temporary emergency use wheel is designed specifically for the collapsible spare tire.
Page 378: Wheel And Wheel Trim Care
376 SERVICING AND MAINTENANCE Wheel And Wheel Trim Care When cleaning extremely dirty wheels including excessive brake dust, care must be taken in the selection of tire and All wheels and wheel trim, especially aluminum and wheel cleaning chemicals and equipment to prevent dam- chrome plated wheels, should be cleaned regularly using age to the wheels.
Page 379: Tire Chains (Traction Devices)
SERVICING AND MAINTENANCE 377 Dark Vapor Chrome, Black Satin Chrome, or Low Gloss • Due to limited clearance, the following traction devices Clear Coat Wheels are recommended: • Rear Wheel Drive (RWD) Models CAUTION! • On a 235/55R18 tire use of a Peerless Chain Super Z6 If your vehicle is equipped with these specialty low profile traction device or equivalent is recom- wheels, DO NOT USE wheel cleaners, abrasives, or...
Page 380: Tire Rotation Recommendations
378 SERVICING AND MAINTENANCE Tire Rotation Recommendations CAUTION! (Continued) Tires on the front and rear axles of vehicles operate at important that only traction devices in good condi- different loads and perform different steering, driving, and tion are used. Broken devices can cause serious braking functions.
Page 381: Department Of Transportation Uniform Tire Quality Grades
SERVICING AND MAINTENANCE 379 The suggested rotation method is the “rearward cross” All passenger vehicle tires must conform to Federal shown in the following diagram. This rotation pattern does safety requirements in addition to these grades. not apply to some directional tires that must not be Treadwear reversed.
Page 382: Temperature Grades
380 SERVICING AND MAINTENANCE WARNING! WARNING! The traction grade assigned to this tire is based on The temperature grade for this tire is established for straight-ahead braking traction tests, and does not a tire that is properly inflated and not overloaded. include acceleration, cornering, hydroplaning, or Excessive speed, under-inflation, or excessive load- peak traction characteristics.
Page 383: Bodywork
SERVICING AND MAINTENANCE 381 BODYWORK • Stone and gravel impact. • Insects, tree sap and tar. Protection From Atmospheric Agents • Salt in the air near seacoast localities. Vehicle body care requirements vary according to geo- graphic locations and usage. Chemicals that make roads •...
Page 384: Preserving The Bodywork
382 SERVICING AND MAINTENANCE Preserving The Bodywork Special Care • If you drive on salted or dusty roads or if you drive near Washing the ocean, hose off the undercarriage at least once a • Wash your vehicle regularly. Always wash your vehicle month.
Page 385: Interiors
SERVICING AND MAINTENANCE 383 INTERIORS WARNING! Seats And Fabric Parts A frayed or torn belt could rip apart in a collision and Use Mopar Total Clean to clean fabric upholstery and leave you with no protection. Inspect the belt system carpeting.
Page 386: Leather Parts
384 SERVICING AND MAINTENANCE Cleaning Plastic Instrument Cluster Lenses NOTE: If equipped with light colored leather, it tends to show any foreign material, dirt, and fabric dye transfer The lenses in front of the instruments in this vehicle are more so than darker colors. The leather is designed for easy molded in clear plastic.
Page 387 TECHNICAL SPECIFICATIONS CONTENTS IDENTIFICATION DATA....386 ▫ Materials Added To Fuel ....391 ▫...
Page 388: Identification Data
386 TECHNICAL SPECIFICATIONS IDENTIFICATION DATA Vehicle Identification Number The Vehicle Identification Number (VIN) is on the left front corner of the instrument panel. The VIN is visible from outside of the vehicle through the windshield. This number also appears on the Automobile Information Disclosure Label affixed to a window on your vehicle, the vehicle registration, and the title.
Page 389: Wheel And Tire Torque Specifications
TECHNICAL SPECIFICATIONS 387 Torque Specifications In the event power assist is lost for any reason (for example, repeated brake applications with the engine Lug Nut/Bolt **Lug Nut/Bolt Lug Nut/Bolt OFF), the brakes will still function. The effort required to Torque Size Socket Size brake the vehicle will be much greater than that required...
Page 390: Fuel Requirements
388 TECHNICAL SPECIFICATIONS Tighten the lug nuts/bolts in a star pattern until each WARNING! nut/bolt has been tightened twice. Ensure that the socket is fully engaged on the lug nut/bolt (do not insert it half- To avoid the risk of forcing the vehicle off the jack, do way).
Page 391: L Engine (With Automatic Transmission)
TECHNICAL SPECIFICATIONS 389 While operating on gasoline with an octane number of 87, While operating on gasoline with an octane number of 87, hearing a light knocking sound from the engine is not a hearing a light knocking sound from the engine is not a cause for concern.
Page 392: L Engine
390 TECHNICAL SPECIFICATIONS While operating on gasoline with the required octane While operating on gasoline with the required octane number, hearing a light knocking sound from the engine is number, hearing a light knocking sound from the engine is not a cause for concern. However, if the engine is heard not a cause for concern.
Page 393: Materials Added To Fuel
TECHNICAL SPECIFICATIONS 391 Materials Added To Fuel CAUTION! Besides using unleaded gasoline with the proper octane DO NOT use E-85, gasoline containing methanol, or rating, gasolines that contain detergents, corrosion and gasoline containing more than 15% ethanol (E-15). Use stability additives are recommended. Using gasolines that of these blends may result in starting and drivability have these additives will help improve fuel economy, problems, damage critical fuel system components,...
Page 394: Cng And Lp Fuel System Modifications
392 TECHNICAL SPECIFICATIONS If a Non-FFV vehicle is inadvertently fueled with E-85 fuel, The manufacturer recommends that gasoline without the engine will have some or all of these symptoms: MMT be used in your vehicle. The MMT content of gasoline may not be indicated on the gasoline pump; •...
Page 395: Carbon Monoxide Warnings
TECHNICAL SPECIFICATIONS 393 Carbon Monoxide Warnings CAUTION! (Continued) these products contain high concentrations of metha- WARNING! nol. Fuel system damage or vehicle performance Carbon monoxide (CO) in exhaust gases is deadly. problems resulting from the use of such fuels or Follow the precautions below to prevent carbon mon- additives is not the responsibility of the manufac- oxide poisoning:...
Page 396: Fluid Capacities
394 TECHNICAL SPECIFICATIONS FLUID CAPACITIES U.S. Metric Fuel (Approximate) 3.6L Engine (87 Octane, 0-15% Ethanol.) 18.5 Gallons 70 Liters 5.7L Engine (Automatic Transmission: 87 Octane or 89 Octane, 0-15% 18.5 Gallons 70 Liters Ethanol. Manual Transmission: 91 Octane or higher, 0-15% Ethanol.) 6.4L Engine (91 Octane or higher, 0-15% Ethanol.) 18.5 Gallons 70 Liters...
Page 397: Fluids And Lubricants
TECHNICAL SPECIFICATIONS 395 FLUIDS AND LUBRICANTS Engine Component Fluid, Lubricant, or Genuine Part Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10 Year/ 150,000 Mile Formula OAT (Organic Additive Technology). Engine Oil – 3.6L & 5.7L Engine We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the requirements of FCA Material Standard MS-6395 such as Mopar, Pennzoil, and Shell Helix.
Page 398 396 TECHNICAL SPECIFICATIONS CAUTION! CAUTION! (Continued) and refilled with fresh OAT coolant (conforming to • Mixing of engine coolant (antifreeze) other than MS.90032), by an authorized dealer as soon as pos- specified Organic Additive Technology (OAT) en- sible. gine coolant (antifreeze), may result in engine dam- •...
Page 399: Chassis
TECHNICAL SPECIFICATIONS 397 Chassis Component Fluid, Lubricant, or Genuine Part 8-Speed Automatic Transmission Use only Mopar ZF 8&9 Speed ATF Automatic Transmission Fluid, or equiva- lent. Failure to use the correct fluid may affect the function or performance of your transmission. Manual Transmission –...
Page 401 MULTIMEDIA CONTENTS UCONNECT RADIOS ....401 RADIO OPERATION AND MOBILE PHONES . . .467 PERSONALIZED MENU BAR ....401 ▫...
Page 402 400 MULTIMEDIA ▫ SiriusXM Travel Link (4C NAV)... . .480 ▫ Additional Information ....484 ▫...
Page 403: Uconnect Radios
MULTIMEDIA UCONNECT RADIOS PERSONALIZED MENU BAR For detailed information about your Uconnect radio, refer The Uconnect features and services in the main menu bar to your Uconnect Owner’s Manual Supplement. are easily changed for your convenience. Simply follow these steps: NOTE: Uconnect screen images are for illustration pur- poses only and may not reflect exact software for your vehicle.
Page 404: Cybersecurity
402 MULTIMEDIA CYBERSECURITY Your vehicle may be a connected vehicle and may be equipped with both wired and wireless networks. These networks allow your vehicle to send and receive informa- tion. This information allows systems and features in your vehicle to function properly. Your vehicle may be equipped with certain security fea- tures to reduce the risk of unauthorized and unlawful access to vehicle systems and wireless communications.
Page 405 MULTIMEDIA NOTE: WARNING! • FCA US LLC or your dealer may contact you directly • It is not possible to know or to predict all of the regarding software updates. possible outcomes if your vehicle’s systems are • To help further improve vehicle security and minimize breached.
Page 406: Uconnect Settings
404 MULTIMEDIA UCONNECT SETTINGS The Uconnect system uses a combination of buttons on the touchscreen and buttons on the faceplate located on the center of the instrument panel that allows you to access and change the customer programmable features. Uconnect 4C/4C NAV Buttons On Touchscreen And Buttons On Faceplate 1 —...
Page 407: Customer Programmable Features - Uconnect 4
MULTIMEDIA Customer Programmable Features — Uconnect 4 a check-mark appears next to the setting, showing that Settings setting has been selected. Once the setting is complete, either press the Back Arrow button on the touchscreen to Press the “Settings” button on the bottom bar, or press the return to the previous menu, or press the “X”...
Page 408 406 MULTIMEDIA Display After pressing the “Display” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Display Mode Manual Auto Display Brightness With Headlights – NOTE: • When in the “Display Brightness With Headlights ON” display, you may select the brightness with the headlights •...
Page 409 MULTIMEDIA Setting Name Selectable Options NOTE: When in the “Set Theme” display, you may select the theme for the display screen. To make your selection, press the Set Theme button on the touchscreen, then select the desired theme option button until a check-mark appears show- ing that the setting has been selected.
Page 410 408 MULTIMEDIA Units equipped). The following selectable units of measure are listed below: After pressing the “Units” button on the touchscreen you may select each unit of measure independently displayed in the instrument cluster display, and navigation system (if Setting Name Selectable Options Units Metric...
Page 411 MULTIMEDIA Setting Name Selectable Options Show Command List Always With Help Never Clock After pressing the “Clock” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Sync Time With GPS — If Equipped NOTE: The “Sync Time With GPS” feature will allow you to automatically have the radio set the time. Set Time Hours –...
Page 412 410 MULTIMEDIA Safety & Driving Assistance After pressing the “Safety & Driving Assistance” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Forward Collision Warn- Near ing — If Equipped NOTE: The Front Collision Warning (FCW) feature provides an audible and/or visual warning to potential forward colli- sions.
Page 413 MULTIMEDIA Setting Name Selectable Options NOTE: The Steering Feel Options feature will allow you to adjust the steering effort and feel. Press the “Sport” button on the touchscreen to provide the greatest amount of steering feel, requiring the highest amount of steering effort. Press the “Normal”...
Page 414 412 MULTIMEDIA Setting Name Selectable Options Blind Spot Alert — If Lights Lights and Chimes Equipped NOTE: • When this feature is selected, the Blind Spot Alert feature Provides alerts, visual and/or audible, to indicate objects in your blind spot. The Blind Spot Alert feature can be activated in “Lights” mode. When this mode is selected, the Blind Spot Monitor (BSM) system is activated and will only show a visual alert in the exterior mirrors.
Page 415 MULTIMEDIA Setting Name Selectable Options NOTE: When the vehicle is shifted out of REVERSE (with camera delay turned OFF), the rear camera mode is exited and the navigation or audio screen appears again. When the vehicle is shifted out of REVERSE (with camera delay turned ON), the rear view image with dynamic grid lines will be displayed for up to ten seconds after shifting out of “RE- VERSE”...
Page 416 414 MULTIMEDIA Lights After pressing the “Lights” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Headlight Off Delay Headlight Illumina- tion On Approach Headlights With Wipers — If Equipped Auto Dim High Beams — If Equipped Daytime Running Lights —...
Page 417 MULTIMEDIA Doors & Locks After pressing the “Doors & Locks” button on the touch- screen, the following settings will be available: Setting Name Selectable Options Auto Unlock On Exit Flash Lights With Lock NOTE: When this feature is selected, the exterior lights will flash when the doors are locked or unlocked with the key fob. This feature may be selected with or without the sound horn on lock feature selected.
Page 418 416 MULTIMEDIA Setting Name Selectable Options Passive Entry — If Equipped NOTE: This feature allows you to lock and unlock the vehicle’s door(s) without having to push the key fob lock or unlock buttons. It automatically unlocks the doors when the outside door handle is grabbed. Auto Comfort Systems —...
Page 419 MULTIMEDIA Engine Off Options After pressing the “Engine Off Options” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Headlight Off Delay Engine Off Power 0 seconds 45 seconds 5 minutes 10 minutes Delay NOTE: When this feature is selected, the power window switches, radio, Uconnect phone system (if equipped), DVD video system (if equipped), power sunroof (if equipped), and power outlets will remain active for up to ten minutes after the ignition is cycled to OFF.
Page 420 418 MULTIMEDIA Compass Settings — If Equipped NOTE: Before compass calibration is performed, the com- pass variance zone should be set for best results. After pressing the “Compass Settings” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Compass Variance NOTE:...
Page 421 MULTIMEDIA Compass Variance Zone Map Compass Calibration NOTE: Press “Compass Calibration” on the touchscreen to enter calibration. To start calibration of the compass, press the “Yes” button on the touchscreen and complete one or more 360-degree turns (in an area free from large metal or me- tallic objects).
Page 422 420 MULTIMEDIA Audio After pressing the “Audio” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Equalizer NOTE: When in the “Equalizer” display you may adjust the Bass, Mid and Treble settings. Adjust the settings with the “+” and “–”...
Page 423 MULTIMEDIA Setting Name Selectable Options Surround Sound — If Equipped NOTE: The “Surround Sound” feature provides simulated surround sound mode. To make your selection, press the “Sur- round Sound” button on the touchscreen, and select “On” or “Off.” AUX Volume Offset –...
Page 424 422 MULTIMEDIA Phone/Bluetooth After pressing the “Phone/Bluetooth” button on the touch- screen, the following settings will be available: Setting Name Selectable Options Paired Phones/Devices List of Paired Phones/Devices NOTE: This feature shows which phones are paired to the Phone/Bluetooth system. For further information, refer to the Uconnect Owner’s Manual Supplement.
Page 425 MULTIMEDIA Setting Name Selectable Options NOTE: New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM Satellite Radio with your radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription Information screen to re-subscribe.
Page 426 424 MULTIMEDIA Clear Personal Data After pressing the “Clear Personal Data Settings” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Clear Personal Data Cancel NOTE: When this feature is selected it will remove all personal data including Bluetooth devices and presets. If “Yes” is se- lected a pop-up will appear asking Are you sure you want to clear all personal data?”...
Page 427: Customer Programmable Features - Uconnect 4C/4C Nav Settings
MULTIMEDIA Customer Programmable Features — Uconnect When making a selection, press the button on the touch- 4C/4C NAV Settings screen to enter the desired mode. Once in the desired mode, press and release the preferred setting “option” until Press the “Apps ”...
Page 428 426 MULTIMEDIA Setting Name Selectable Options • To make changes to the Display Brightness with Headlights ON setting, the headlights must be on and the inte- rior dimmer switch must not be in the party or parade positions. Display Brightness With Headlights –...
Page 429 MULTIMEDIA Setting Name Selectable Options NOTE: When the “Control Screen Time Out” feature is selected, the controls screen will stay open for five seconds before the screen times out. With the feature deselected, the screen will stay open until it is manually closed. Navigation Turn-By-Turn Displayed In Cluster —...
Page 430 428 MULTIMEDIA Language After pressing the “Language” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Set Language English Français Español Units equipped). The following selectable units of measure are listed below: After pressing the “Units” button on the touchscreen, you may select each unit of measure independently displayed in the instrument cluster display, and navigation system (if Setting Name...
Page 431 MULTIMEDIA Voice After pressing the “Voice” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Voice Response Length Brief Detailed Show Command List Never With Help Always Clock After pressing the “Clock” button on the touchscreen, the following settings will be available: Setting Name Selectable Options...
Page 432 430 MULTIMEDIA Setting Name Selectable Options Set Time Hours – Set Time Minutes – Time Format 12 hrs 24 hrs Show Time In Status Bar — If Equipped NOTE: The “Show Time In Status Bar” feature will allow you to turn on or shut off the digital clock in the status bar. Safety &...
Page 433 MULTIMEDIA Setting Name Selectable Options Forward Collision Warn- ing — If Equipped NOTE: Changing the FCW status to “Off” prevents the system from warning you of a possible collision with the vehicle in front of you. The FCW system state is kept in memory from one ignition cycle to the next. If the system is turned OFF, it will re- main off when the vehicle is restarted.
Page 434 432 MULTIMEDIA Setting Name Selectable Options LaneSense Warning — If Early Medium Late Equipped The “Lane Depature Warning (LDW)” setting determines at what distance the LDW system will warn you, through steering wheel feedback, of a possible lane departure. LaneSense Strength — If Medium High Equipped...
Page 435 MULTIMEDIA Setting Name Selectable Options NOTE: The Rear ParkSense Chime Volume settings can be selected from the instrument cluster display or Uconnect System. The chime volume settings include LOW, MEDIUM, and HIGH. The factory default volume setting is MEDIUM. To make your selection, press the “Rear ParkSense Vol.”...
Page 436 434 MULTIMEDIA Setting Name Selectable Options ParkView Backup Camera Active Guidelines NOTE: Your vehicle may be equipped with the ParkView Rear Back Up Camera Active Guidelines that allows you to see ac- tive guidelines over the ParkView Back up camera display whenever the gear selector is put into REVERSE. The im- age will be displayed on the radio touchscreen display along with a caution note to “check entire surroundings”...
Page 437 MULTIMEDIA Setting Name Selectable Options Hill Start Assist — If Equipped NOTE: When this feature is selected, the Hill Start Assist (HSA) system is active. Lights After pressing the “Lights” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Headlight Off Delay...
Page 438 436 MULTIMEDIA Setting Name Selectable Options Steering Directed Lights Flash Lights With Lock Doors & Locks After pressing the “Doors & Locks” button on the touch- screen, the following settings will be available: Setting Name Selectable Options Auto Unlock On Exit NOTE: When the “Auto Unlocks On Exit”...
Page 439 MULTIMEDIA Setting Name Selectable Options Sound Horn With Lock 1st Press 2nd Press Sound Horn With Remote Start 1st Press Of Key Fob Un- Driver Door All Doors locks NOTE: • When Driver Door is selected with 1st Press Of Key Fob Unlocks, only the driver’s door will unlock with the first press of the key fob unlock button.
Page 440 438 MULTIMEDIA Setting Name Selectable Options Personal Settings Linked To Key Fob — If Equipped NOTE: • This feature provides automatic recall of all settings stored to a memory location (driver’s seat, exterior mirrors, steering column position and radio station pre-sets) to enhance driver mobility when entering and exiting the ve- hicle.
Page 441 MULTIMEDIA Engine Off Options After pressing the “Engine Off Options” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Easy Exit Seat — If Equipped NOTE: When the “Easy Exit Seat” feature is selected, the driver’s seat will automatically move rearward once the engine is shut off.
Page 442 440 MULTIMEDIA Setting Name Selectable Options Headlight Off Delay NOTE: When the “Headlight Off Delay” feature is selected, the driver can choose to have the headlights remain on for 0, 30, 60, or 90 seconds when exiting the vehicle. To change the Headlight Off Delay status press the “+” or “–” button on the touchscreen to select your desired time interval.
Page 443 MULTIMEDIA Setting Name Selectable Options • Bass/Mid/Treble allow you to simply slide your finger up or down to change the setting as well as press directly on the desired setting. Speed Adjusted Vol- NOTE: The “Speed Adjusted Volume” feature increases or decreases volume relative to vehicle speed. To change the Speed Adjusted Volume press the “Off,”...
Page 444 442 MULTIMEDIA Setting Name Selectable Options Auto Play NOTE: The Auto Play feature allows a media device to begin playing when the media device is plugged in. To make your selection, press the On or Off buttons to activate or deactivate Auto Play. Phone Settings After pressing the “Phone Settings”...
Page 445 MULTIMEDIA SiriusXM Setup — If Equipped After pressing the “SiriusXM Setup” button on the touch- screen, the following settings will be available: Setting Name Selectable Options Tune Start Channel Skip Name of Channel NOTE: SiriusXM can be programmed to skip channels. To make your selection, press the “Channel Skip” button on the touchscreen, select the channels you would like to skip.
Page 446 444 MULTIMEDIA Restore Settings After pressing the “Restore Settings” button on the touch- screen, the following settings will be available: Setting Name Selectable Options Restore Settings Cancel NOTE: When this feature is selected, it will reset all settings to their default settings. To restore the settings to their default setting, press the “Restore Settings”...
Page 447: Performance Pages - If Equipped
MULTIMEDIA System Information After pressing the “System Information” button on the touchscreen, the following settings will be available: Setting Name Selectable Options System Information System Software Information Screen NOTE: When the “System Information” feature is selected, a “System Software Information” screen will appear, displaying the system software version.
Page 448 446 MULTIMEDIA The Performance Pages include the following: Home • Home • Timers • Gauges • G-Force • Engine • Dyno The following describes each feature and its operation: Performance Pages — Home When Home is selected, a series of widgets (gauges) can be customized by the user.
Page 449 MULTIMEDIA 2. Select the following option from the menu: • Gauge: G-Force • Set Widget: Top Left • Gauge: Steering Angle • Set Widget: Top Right • Gauge: Current Gear • Set Widget: Bottom Left • Gauge: Current Speed • Set Widget: Bottom Right •...
Page 450 448 MULTIMEDIA Timers When the Timers Page is selected, you will be able to select from following “Tickets”: • Current Pressing the “Current” button displays a “real time” sum- mary of performance timers. • Last Pressing the “Last” button displays the last recorded run of performance timers.
Page 451 MULTIMEDIA • Save • Press the “Uconnect” button to save the runs to the Owner web page. Pressing the “Save” button will let you save from the • Press the “Cancel” button to view the last timer “Ticket”. visible page, current/last/best. Any saved run over ten will overwrite the last saved run for Uconnect System The “Tickets”...
Page 452 450 MULTIMEDIA • ⅛ Mile (200 meter) MPH NOTE: Brake Distance and Speed timers will only display ready when vehicle is traveling at greater than 30 MPH Displays the vehicle speed at the time ⅛ mile was reached. (48 km/h). •...
Page 453 MULTIMEDIA When selected, this screen displays the following values: Pressing the left or right arrows will cycle through the details for each gauge. Pressing the lower X button in the • Oil Temperature top right corner will return to the gauge main menu. Shows the actual oil temperature.
Page 454 452 MULTIMEDIA G-Force When G-Force is selected, the following features will be available: • Vehicle Speed: Measures the current speed of the vehicle in either mph or km/h, starting at zero with no maximum value. • Front G-Force: Measures the braking force. •...
Page 455 MULTIMEDIA • Steering Wheel Angle Engine Steering Wheel Angle utilizes the steering angle sensor to measure the degree of the steering wheel relative to zero. The zero degree measurement indicates a steering wheel straight ahead position. When the steering angle value is negative, a turn to the left is indicated, and when the steering angle value is positive, a turn to the right is indicated.
Page 456 454 MULTIMEDIA When selected, this screen displays the following values: Dynamometer (Dyno) • Vehicle Speed Shows the actual vehicle speed. • Instantaneous Power Shows the instantaneous power. • Instantaneous Torque Shows the instantaneous torque. Dyno Page The system will start drawing graphs for Power and Torque.
Page 457: Drive Modes - If Equipped
MULTIMEDIA The following options can be selected: You will be able to enable, disable, and customize the functionality of the Launch Control and Drive Mode • Pressing the STOP button will freeze the graph. Selecting Set-Up features within Performance Control. Play will clear the graph and restart the process over Descriptions of these features are provided below.
Page 458 456 MULTIMEDIA quarter mile and 0–60 times are desired. The system is not intended to compensate for lack of driver experience or familiarity with the race track. Use of this feature in low traction (cold, wet, gravel, etc.) conditions may results in excess wheel slip outside this systems control resulting in an aborted launch.
Page 459: Paddle Shifter
MULTIMEDIA DRIVE MODE SET-UP touchscreen allows the driver to configure their individual drive modes and see how those configurations affect the performance of the vehicle. NOTE: Not all of the options listed in this manual are available on every vehicle, below is a chart with all available Drive Mode vehicle configurations.
Page 460 458 MULTIMEDIA DEFAULT MODE The Paddle Shifters may be enabled or disabled while in this mode. Default Mode Default Mode Set-Up The vehicle will always start in Default Mode. This mode is for typical driving conditions. While in Default Mode, the Engine, Transmission and Traction will operate in their Normal settings and cannot be changed.
Page 461 MULTIMEDIA SPORT MODE Sport button on the instrument panel switch bank to put the vehicle in Sport Mode and activate these settings. The customized settings will only be active when the Sport button is active. Sport Mode Sport Mode is a configuration set-up for typical enthusiast driving.
Page 462 460 MULTIMEDIA Possible Drive Mode configurations are listed below with Engine accompanying descriptions. The information contained in the list below can also be accessed from within the mode Set-Up menus. To access the information, press the “Info” button on the touchscreen from the mode Set-Up menu, and use the left/right arrows to toggle through available descriptions.
Page 463 MULTIMEDIA • Normal • SPORT Press the “Norm” button on the touchscreen for standard Press the “Sport” button on the touchscreen for improved throttle response for normal driving. throttle response and modified shifting for an enhanced driving experience. Engine/Trans • NORMAL Press the “Norm”...
Page 464 462 MULTIMEDIA • ON Paddle Shifters — If Equipped With Automatic Transmission Press the “ON” button on the touchscreen to enable steering wheel Paddle Shifters. • OFF Press the “OFF” button on the touchscreen to disable steering wheel Paddle Shifters. Paddle –...
Page 465 MULTIMEDIA • SPORT Traction Press the “Sport” button on the touchscreen to turn off traction control and reduce stability control. • NORMAL Press the “Norm” button on the touchscreen to provide full traction control and full stability control. Traction Control...
Page 466 464 MULTIMEDIA • SPORT Steering Press the “Sport” button on the touchscreen to provide an increased amount of steering feel, requiring a higher amount of steering effort. • NORMAL Press the “Norm” button on the touchscreen to provide a balanced steering feel and steering effort. This is also your vehicles pre-set steering setting.
Page 467: Steering Wheel Audio Controls - If Equipped
MULTIMEDIA STEERING WHEEL AUDIO CONTROLS — IF The right-hand control is a rocker-type switch with a EQUIPPED push-button in the center and controls the volume and mode of the sound system. Pushing the top of the rocker The remote sound system controls are located on the rear switch will increase the volume, and pushing the bottom of surface of the steering wheel.
Page 468: Media Mode
466 MULTIMEDIA Media Mode Pushing the top of the switch once will go to the next track on the selected media (AUX/USB, Bluetooth). Pushing the bottom of the switch once will go to the beginning of the current track, or to the beginning of the previous track if it is within eight seconds after the current track begins to play.
Page 469: Radio Operation And Mobile Phones
MULTIMEDIA Regulatory And Safety Information iPod control supports Mini, 4G, Photo, Nano, 5G iPod and iPhone devices. Some iPod software versions may not fully USA/CANADA support the iPod control features. Please visit Apple’s Exposure to Radio Frequency Radiation website for software updates. The radiated output power of the internal wireless radio is For further information, refer to the Uconnect Owner’s far below the FCC and IC radio frequency exposure limits.
Page 470 468 MULTIMEDIA The following regulatory statement applies to all Radio NOTE: Frequency (RF) devices equipped in this vehicle: • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to This device complies with Part 15 of the FCC Rules and Part 15 of the FCC Rules.
Page 471: Voice Commands
MULTIMEDIA VOICE COMMANDS Introducing Uconnect Start using Uconnect Voice Recognition with these helpful quick tips. It provides the key Voice Commands and tips you need to know to control your Uconnect system. Uconnect 4C NAV NOTE: If you see the NAV icon on the bottom bar, or in the Apps menus, of your touchscreen, you have the Uconnect Uconnect 4 4C NAV system.
Page 472: Get Started
470 MULTIMEDIA Get Started All you need to control your Uconnect system with your voice are the buttons on your steering wheel. See below for helpful hints when using Voice Recognition: 1. Visit UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instruc- tions.
Page 473: Basic Voice Commands
MULTIMEDIA Basic Voice Commands The basic Voice Commands below can be given at any point while using your Uconnect system. Push the VR button . After the beep, say: • “Cancel” to stop a current voice session • “Help” to hear a list of suggested Voice Commands •...
Page 474: Radio
472 MULTIMEDIA Radio Use your voice to quickly get to the AM, FM or SiriusXM Satellite Radio stations you would like to hear. (Subscrip- tion or included SiriusXM Satellite Radio trial required.) Push the VR button . After the beep, say: •...
Page 475: Media
MULTIMEDIA Push the VR button . After the beep, say one of the following commands and follow the prompts to switch your media source or choose an artist. • “ Change source to” Bluetooth” • “ Change source to” AUX” •...
Page 476 474 MULTIMEDIA TIP: Press the Browse button on the touchscreen to see all of the music on your USB device. Your Voice Command must match exactly how the artist, album, song and genre information is displayed. Uconnect 4C/4C NAV Media Uconnect 4 Media...
Page 477: Phone
MULTIMEDIA Phone Making and answering hands-free phone calls is easy with Uconnect. When the Phonebook button is illuminated on your touchscreen, your system ready. Check UconnectPhone.com for mobile phone compatibility and pairing instructions. Push the Phone button . After the beep, say one of the following commands: •...
Page 478: Climate (4C/4C Nav)
476 MULTIMEDIA Climate (4C/4C NAV) Too hot? Too cold? Adjust vehicle temperatures hands-free and keep everyone comfortable while you keep moving ahead. (If vehicle is equipped with climate control.) Push the VR button . After the beep, say one of the following commands: •...
Page 479: Navigation (4C Nav)
MULTIMEDIA 2. Then follow the system prompts. TIP: To start a POI search, push the VR button . After the beep, say: “ Find nearest coffee shop.” Uconnect 4C/4C NAV Climate Navigation (4C NAV) The Uconnect navigation feature helps you save time and become more productive when you do not know exactly how to get to where you want to go.
Page 480: Siriusxm Guardian (4C Nav) - If Equipped
478 MULTIMEDIA SiriusXM Guardian (4C NAV) — If Equipped Send & Go Vehicle Finder CAUTION! Stolen Vehicle Assistance Some SiriusXM Guardian services, including SOS Call Remote Vehicle Start** and Roadside Assistance Call will NOT work without an operable LTE (voice/data) or 3G or 4G (data) net- Remote Horn &...
Page 481: Mobile App (4C Nav)
MULTIMEDIA 3. Select “Customer Care” to speak with a SiriusXM To use the Uconnect App: Guardian Customer Care agent who will activate ser- • Download the Uconnect App to your mobile device. vices in your vehicle, or select “Enter Email” to activate •...
Page 482: Multimedia Siriusxm Travel Link (4C Nav)
480 MULTIMEDIA SiriusXM Travel Link (4C NAV) Need to find a gas station, view local movie listings, check a sports score or the 5 - day weather forecast? SiriusXM Travel Link is a suite of services that brings a wealth of information right to your Uconnect 4C NAV system.
Page 483: Apple Carplay - If Equipped
MULTIMEDIA Apple CarPlay — If Equipped Apple CarPlay allows you to use your voice to interact with Siri through your vehicle’s voice recognition system, and use your smartphone’s data plan to project your iPhone and a number of its apps onto your Uconnect touchscreen.
Page 484: Android Auto - If Equipped
482 MULTIMEDIA Android Auto — If Equipped Android Auto allows you to use your voice to interact with Android’s best-in-class speech technology through your vehicle’s voice recognition system, and use your smart- phone’s data plan to project your Android powered smart- phone and a number of its apps onto your Uconnect touchscreen.
Page 485 MULTIMEDIA Uconnect 4 Android Auto Uconnect 4C/4C NAV Android Auto Refer to your Uconnect Owner’s Manual Supplement for further information.
Page 486: Additional Information
484 MULTIMEDIA General Information Additional Information The following regulatory statement applies to all Radio © 2017 FCA US LLC. All rights reserved. Mopar and Frequency (RF) devices equipped in this vehicle: Uconnect are registered trademarks and Mopar Owner Connect is a trademark of FCA US LLC. Android is a This device complies with Part 15 of the FCC Rules and trademark of Google Inc.
Page 487: Cd/Dvd Disc Maintenance
MULTIMEDIA CD/DVD DISC MAINTENANCE To keep a CD/DVD in good condition, take the following precautions: 1. Handle the disc by its edge; avoid touching the surface. 2. If the disc is stained, clean the surface with a soft cloth, wiping from center to edge. 3.
Page 489 CUSTOMER ASSISTANCE CONTENTS SUGGESTIONS FOR OBTAINING SERVICE FOR ▫ Customer Assistance For The Hearing Or Speech YOUR VEHICLE ......488 Impaired (TDD/TTY) .
Page 490: Suggestions For Obtaining Service For Your Vehicle
488 CUSTOMER ASSISTANCE SUGGESTIONS FOR OBTAINING SERVICE FOR IF YOU NEED ASSISTANCE YOUR VEHICLE The manufacturer and its authorized dealer are vitally interested in your satisfaction. We want you to be happy Prepare For The Appointment with our products and services. If you are having warranty work done, be sure to have the right papers with you.
Page 491: Fca Us Llc Customer Center
CUSTOMER ASSISTANCE 489 In Mexico Contact Any communication to the manufacturer’s customer center should include the following information: Av. Prolongacion Paseo de la Reforma, 1240 • Owner’s name and address Sante Fe C.P. 05109 • Owner’s telephone number (home and office) Mexico, D.
Page 492: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)
490 CUSTOMER ASSISTANCE Customer Assistance For The Hearing Or Speech questions about the service contract, call the manufactur- Impaired (TDD/TTY) er’s Service Contract National Customer Hotline at 1-800- 521-9922 (Canadian residents, call (800) 465-2001 English / To assist customers who have hearing difficulties, the (800) 387-9983 French).
Page 493: Warranty Information
CUSTOMER ASSISTANCE 491 REPORTING SAFETY DEFECTS WARNING! In The 50 United States And Washington, D.C. Engine exhaust (internal combustion engines only), If you believe that your vehicle has a defect that could some of its constituents, and certain vehicle compo- cause a crash or cause injury or death, you should nents contain, or emit, chemicals known to the State of immediately inform the National Highway Traffic...
Page 494: In Canada
492 CUSTOMER ASSISTANCE In Canada Diagnostic Procedure Manuals If you believe that your vehicle has a safety defect, you Diagnostic Procedure Manuals are filled with diagrams, should contact the Customer Service Department imme- charts and detailed illustrations. These practical manuals diately.
Page 495 INDEX...
Page 496 494 INDEX About Your Brakes ..... .201, 386 Air Conditioning......65 Adaptive Cruise Control (ACC) (Cruise Control) .
Page 497 INDEX 495 Auto Down Power Windows ....76 Location .......332 Automatic Door Locks.
Page 498 496 INDEX Caps, Filler Child Safety Locks ......40 Fuel ........251 Clean Air Gasoline .
Page 499 INDEX 497 Customer Assistance ......488 Driving Customer Programmable Features ...404, 405 Through Flowing, Rising, Or Shallow Standing Water .
Page 500 498 INDEX Compartment ....328, 329, 330 Filler Location Fuel ......251 Compartment Identification .
Page 501 INDEX 499 Additives ......391 Hazard Clean Air ......390 Driving Through Flowing, Rising, Or Shallow Standing Ethanol .
Page 502 500 INDEX Hitches Jump Starting ..... .305, 306, 307 Trailer Towing ......257 HomeLink (Garage Door Opener) .
Page 503 INDEX 501 Life Of Tires ......370 Lights On Reminder ..... . .58 Light Bulbs .
Page 504 502 INDEX Child Protection ......40 Electric Remote ......53 Power Door .
Page 505: Paddle Shifter
INDEX 503 Pressure Warning Light ....112 Power Recommendation .....334, 394 Brakes .
Page 506 504 INDEX Radial Ply Tires ......368 Uconnect Settings ....29, 416, 438 Radiator Cap (Coolant Pressure Cap).
Page 507 INDEX 505 Seat Belt Extender ......157 Seatback Release .....40, 41, 46 Seat Belt Pretensioner .
Page 508 506 INDEX Specifications Storage ........380 Fuel (Gasoline) ......395 Storage, Vehicle .
Page 509 INDEX 507 Life Of Tires ......370 Weight ....... .257 Load Capacity .
Page 510 508 INDEX Trunk Release Remote Control ....81 Warning Lights (Instrument Cluster Description) ..115 Turn Signals ......59, 119 Warnings And Cautions .
Page 511 INSTALLATION OF RADIO TRANSMITTING The antenna cable should be as short as practical and EQUIPMENT routed away from the vehicle wiring when possible. Use Special design considerations are incorporated into this only fully shielded coaxial cable. vehicle’s electronic system to provide immunity to radio Carefully match the antenna and cable to the radio to frequency signals.
Page 512 STICK WITH THE SPECIALISTS ® 18LA-126-AB Second Edition ©2017 FCA US LLC. All Rights Reserved. Dodge is a registered trademark of FCA US LLC. Printed in the U.S.A.

Save PDF
