Scosche IPBCK Manual

IPOD / BLUETOOTH®
MOBILE TRANSMITTER & RECEIVER CAR KIT
Congratulations on your new Scosche Bluetooth® iPod mobile transmitter & receiver car kit!
This kit allows your iPod to play through your aftermarket stereo system using Bluetooth®
wireless digital audio streaming technology.
Features:
● Easy connection and setup with
"Auto" pairing
● Bluetooth® 1.2 compliant
● Universal dash mounting clip included
● Up to 15 hours of battery life
● (1) Bluetooth® Transmitter
● (1) Bluetooth® Receiver
● (1) iPod Mini 4/6G Holster
● (1) iPod 40/60G/Photo Holster
● (1) iPod 10/20/30G Holster
SYSTEM REQUIREMENTS
● Apple iPod Media Player: Gen3/Gen4, Mini4G/6G or Photo Player (Not included)
● Aftermarket Car Stereo with Auxiliary input feature (See note below)
NOTE: Your aftermarket stereo must have an available RCA input function. The optional
Scosche adapters available to convert CD changer inputs into a pair of Auxiliary Audio inputs,
are listed below.
SCOSCHE CD CHANGER AUXILIARY INPUT ADAPTERS:
Part# Description
DCAXAALPAI Alpine AI Net CD Changer Compatible units
DCAXAALPM8 Alpine M Bus (8-Pin) CD Changer Compatible units
DCAXKEN13 Kenwood (13 Pin) CD Changer Compatible units
DCAXAPIO11 Pioneer P bus (11 Pin) CD Changer Compatible units
TECH SUPPORT
If you have any further questions, call our TOLL-FREE Technical HELP line:
1-800-621-3695 x3
IPBCK
FEATURES
● Digital streaming audio transmission
● Can be paired with multiple receivers
● Rechargeable audio transmitter with
3.5mm input jack
● 12 Volt car charger/adapter included
PART LIST
● (1) Receiver Power Plug/Cable
● (1) Universal Dash Mounting Clip
● (1) 12V iPod/Transmitter Charger-Adapter
● (2) Extra Long Cable Zip Ties
● (2) Adhesive Hook & Loop strips
1
INSTALLING THE BLUETOOTH® RECEIVER
LOCATION:
Choosing a proper location for your Bluetooth® receiver unit will have the greatest overall
effect on the performance of this system. We recommend an area at the rear of the stereo,
above the stereo or in the glove box.
operation. Mounting the receiver low in the dash or behind large metal obstructions may
cause signal break-up and reduced range. Once installed, switched on, and level-matched,
the receiver unit does not require further access by the user.

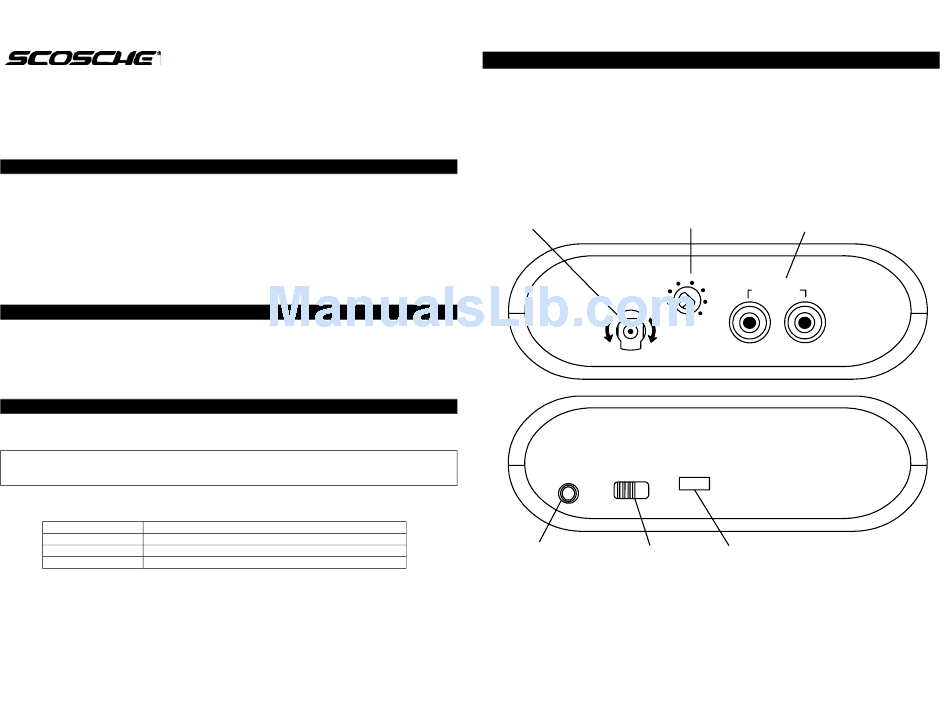

RECEIVER PANELS (FIG.1)
Output Level Control
Power Connection
(Allows level-matching
(Insert, twist power
to existing Stereo/CD
cable to lock in place)
sources)
PWR
OUTPUT
REMOVE LOCK
ON/OFF
MIC
Microphone input
Power Switch
(Not used. For future
expansion.)
Locations higher in the dash will provide better
RCA Audio Outputs
(Connect to Aux input
of car stereo)
OUTPUT
LEVEL
R L
ON
Blue Power LED
2
