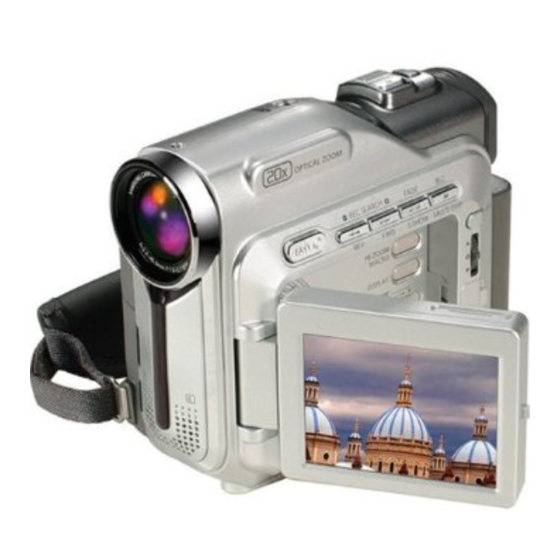

Samsung SCD303 User Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Camcorder
  5. SCD303
  6. User manual
Samsung SCD303 User Manual

Samsung SCD303 User Manual

Hide thumbs Also See for SCD303:

Advertisement

Quick Links

Download this manual
00000? SCD303 SEA (60~106)
ENGLISH
Advanced Recording
AF/MF (Auto Focus/Manual Focus)
✤ The AF/MF function works in CAM, M.REC mode only.
✤ In most situations, it is better to use the automatic focus
feature, as it enables you to concentrate on the creative side of your recording.
✤ Manual focusing may be necessary under certain conditions that make automatic
focusing difficult and/or unreliable.
Auto Focusing
✤ If you are inexperienced in the use of camcorders, we recommend that you
make use of Auto Focus.
Manual Focusing
✤ In the following situations, you may obtain better results by adjusting the focus
manually.
a. A picture containing several objects, some close to the camcorder,
others further away.
b. A person enveloped in fog or surrounded by snow.
c. Very shiny or glossy surfaces like a car.
d. People or objects moving constantly or quickly like an athlete or a crowd.
1. Set the power switch to CAM mode.
2. Move the MENU SELECTOR up or down until the FOCUS is highlighted and then
push the MENU SELECTOR.
I
M. FOCUS(MF) will display.
3. Move the MENU SELECTOR up or down until the object is in focus.
I
Zoom out a little if focusing is difficult.
4. To return to AF (Auto Focus:
60
60
1/12/04 9:12 AM
Page 60
), push the MENU SELECTOR again.
a
b
c
d
1
2
STBY
3
0 : 0 0 : 0 0
5 3 min
M. FOCUS
MF
1 2 : 0 0 A M
J A N . 10 . 2 0 0 4
