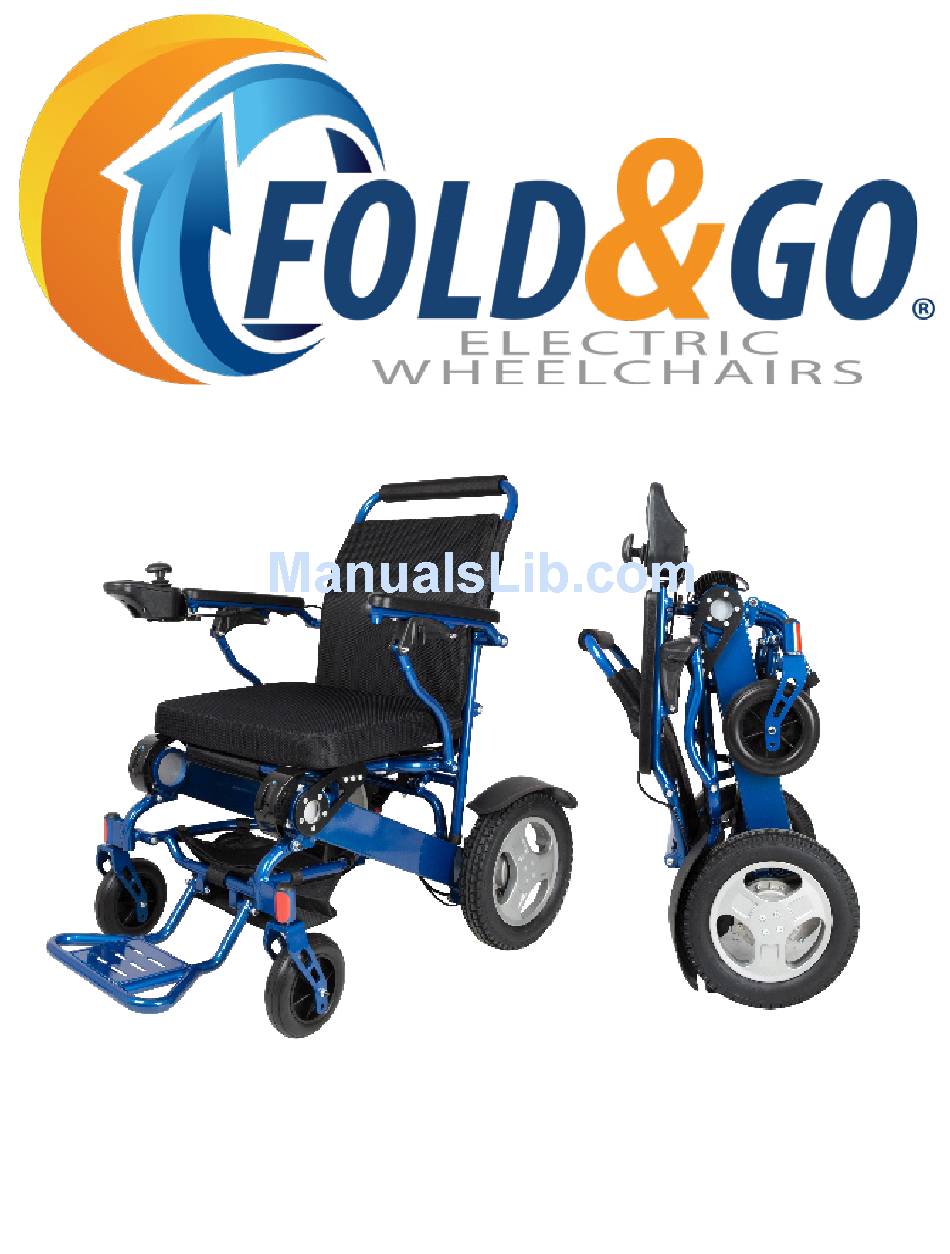

- Page 1 HEAVY-DUTY SIZE MODEL User/Caregiver Manual © 1996-2017 FOLD & GO Wheelchairs® – A Division of OneKubedDESIGNS®, LLC.
-
Page 2: User Safety
INTRODUCTION Thank you for buying the FOLD & GO WHEELCHAIR®, which is designed and manufactured by OneKubedDESIGNS, which is Trademarked. Before operating this electric wheelchair for the first time, please read this manual carefully. This instruction manual will help you to understand the performance, operation, features, and routine maintenance. Please refer to this manual and or our website for how to videos on operating your new chair. -
Page 3: Model Components
MODEL COMPONENTS Please take a moment to make sure you have all of the following parts with your FOLD & GO WHEELCHAIR®. you are missing ANY components please contact us immediately at support@foldandgowheelchairs.com. Accessories are sold separately. HEAVY DUTY WHEELCHAIR SEAT CUSHIONS TWO BATTERIES in your... - Page 4 PARTS OF YOUR FOLD & GO WHEELCHAIR Seat Cushions Joystick Controller Armrest Lock: Turn lever to lock & unlock armrests to lift up for side entry Empty Storage Bag Battery Rear Motor Wheel Foot Plate...
-
Page 5: Joystick Installation
INSTRUCTIONS How to Install & Operate Batteries Already Installed The Heavy-Duty model comes with two lithium-ion batteries. We ship the batteries with your wheelchair. We have already placed each battery inside the frame of the chair. You do not need to remove the batteries in order to charge the chair. - Page 6 How to FOLD the FOLD & GO Electric Wheelchair ● Turn off the Joystick. ● Locate the black safety latch on the back of the wheelchair. ● Flip the black latch up to unlock the frame ● With one hand on the top frame and one hand on the footrest, bring both ends of the wheelchair together. ●...
- Page 7 Specifications of the Heavy-Duty FOLD & GO Electric Wheelchair Net Weight 55 LBS Weight Capacity 365 LBS Motor 250 Watt x2 Brushless Battery Lithium-Ion 24V/10AH Standard Max Speed 4 MPH - 5-Speed Control Modes: 0.5 MPH, 1 MPH, 2 MPH, 3 MPH, 4 MPH Turning Radius 31.5 inches Grade/Slope...
-
Page 8: Joystick Functions
Joystick Functions Battery Life Power ON Power OFF Increase Speed 5-Speed Modes Decrease Speed Movement Direction to Move Joystick FORWARD Move the joystick FORWARD REVERSE Move the joystick BACKWARD RIGHT TURN Move the joystick RIGHT LEFT TURN Move the joystick LEFT STOP Release your hand from the joystick... -
Page 9: Joystick Diagnostics
Joystick Diagnostics When the LED light on the Joystick flickers, it means that there is something wrong with the wheelchair. An alarm may also sound from the rear motor wheels, brakes, batteries, wire connections, or from the wheelchair itself. Below are the diagnostic codes to help you identify any problems you may be experiencing while using your FOLD &... - Page 10 DRIVING CONDITIONS & ENVIRONMENT • Don’t try to drive the when you are on a transport vehicle, like a bus, subway, trains, FOLD & GO WHEELCHAIR® planes, etc. • While using public transportation vehicles, look for a place to fix the wheels to the floor of the bus. This will help you avoid harm that can be caused by the vehicle’s sudden stop or a traffic accident.
