- Page 1 HEAVY-DUTY SIZE MODEL User/Caregiver Manual © 1996-2016 FOLD & GO Wheelchairs – A Division of OneKubedDESIGNS, LLC.
-
Page 2: User Safety
INTRODUCTION Thank you for buying the FOLD & GO Wheelchair, which is designed and manufactured by OneKubedDESIGNS, which is Trademarked. Why limit where you go and what you do? You can see the world, Disneyland, Six Flags or just your local shopping mall. -
Page 3: Model Components

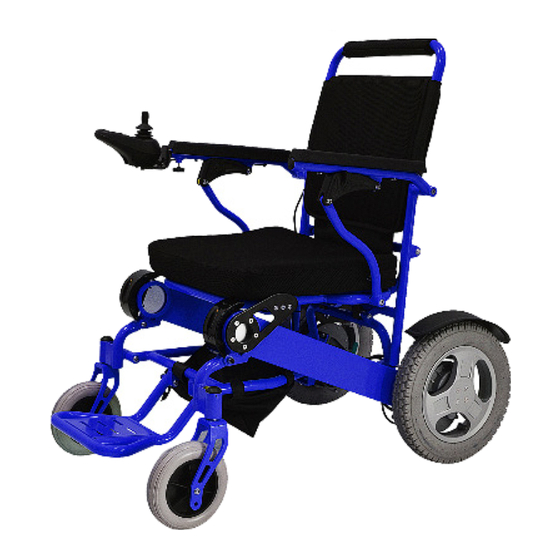

MODEL COMPONENTS Please take a moment to make sure you have all of the following parts with your FOLD & GO Wheelchair. If you are missing ANY components please contact us immediately at support@foldandgowheelchairs.com. Accessories are sold separately. HEAVY DUTY WHEELCHAIR SEAT CUSHIONS TWO BATTERIES FOLD-N-GO Wheelchair in your... - Page 4 PARTS OF YOUR FOLD & GO WHEELCHAIR Seat Cushions Joystick Controller Storage Bag Battery Rear Motor Wheel Foot Plate Front Wheel...
-
Page 5: Joystick Installation
How to Install & Operate Batteries Already Installed The Heavy-Duty model comes with two lithium-ion batteries. We ship the batteries with your wheelchair. We have already placed each battery inside the frame of the chair. You do not need to remove the batteries for any reason. - Page 6 How to FOLD the FOLD & GO Electric Wheelchair ● Turn off the Joystick then remove it and put it in the storage bag under the seat for safe keeping. ● Locate the black safety latch on the back of the wheelchair. ●...
- Page 7 Specifications of the Heavy-Duty FOLD & GO Electric Wheelchair Net Weight 55 LBS Weight Capacity 400 LBS Motor 180 Watt x2 Brushless Battery Lithium-Ion 24V/10AH Standard Max Speed 4 MPH Turning Radius 31.5 inches Grade/Slope 12 degrees Charging Time 5 Hours...
-
Page 8: Joystick Functions
Joystick Functions Decrease Speed Power ON/OFF 5-Speed Modes Increase Speed Horn Battery Life Movement Direction to Move Joystick FORWARD Move the joystick FORWARD BACKWARD Move the joystick BACKWARD RIGHT Move the joystick RIGHT LEFT Move the joystick LEFT STOP Release your hand from the joystick... -
Page 9: Joystick Diagnostics
Joystick Diagnostics When the LED light on the Joystick flickers, it means that there is something wrong with the wheelchair. An alarm may also sound from the rear motor wheels, brakes, batteries, wire connections, or from the wheelchair itself. Below are the diagnostic codes to help you identify any problems you may be experiencing while using your FOLD &... - Page 10 Joystick Programming Every FOLD & GO WHEELCHAIR can be customized to fit your needs and driving style. Our joystick can be programmed to change numerous settings: acceleration, stopping, turning, speed, tire size, power-save mode, and many more. Follow the steps below to program the joystick to best meet your needs. STEP 1: STEP 2: STEP 3:...
- Page 11 Joystick Settings & Functions Battery Light Position Wheelchair Driving Function FOLD & GO Default Setting 1st Light Flashes Electromagnetic Brake turned ON Default=1, (1 is ON, 0 is OFF) 2nd Light Flashes Left motor speed while turning Default=1, (range is 1-5) 3rd Light Flashes Right motor speed while turning Default=1, (range is 1-5)
- Page 12 DRIVING CONDITIONS & ENVIRONMENT • Don’t try to drive the FOLD & GO Wheelchair when you are on a transport vehicle, like a bus, subway, trains, planes, etc. • While using public transportation vehicles, look for a place to fix the wheels to the floor of the bus. This will help you avoid harm that can be caused by the vehicle’s sudden stop or a traffic accident.
