TeVii D200 iCapture User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
D200 iCapture
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D200 iCapture and is the answer not in the manual?

Questions and answers

Related Manuals for TeVii D200 iCapture

Summary of Contents for TeVii D200 iCapture

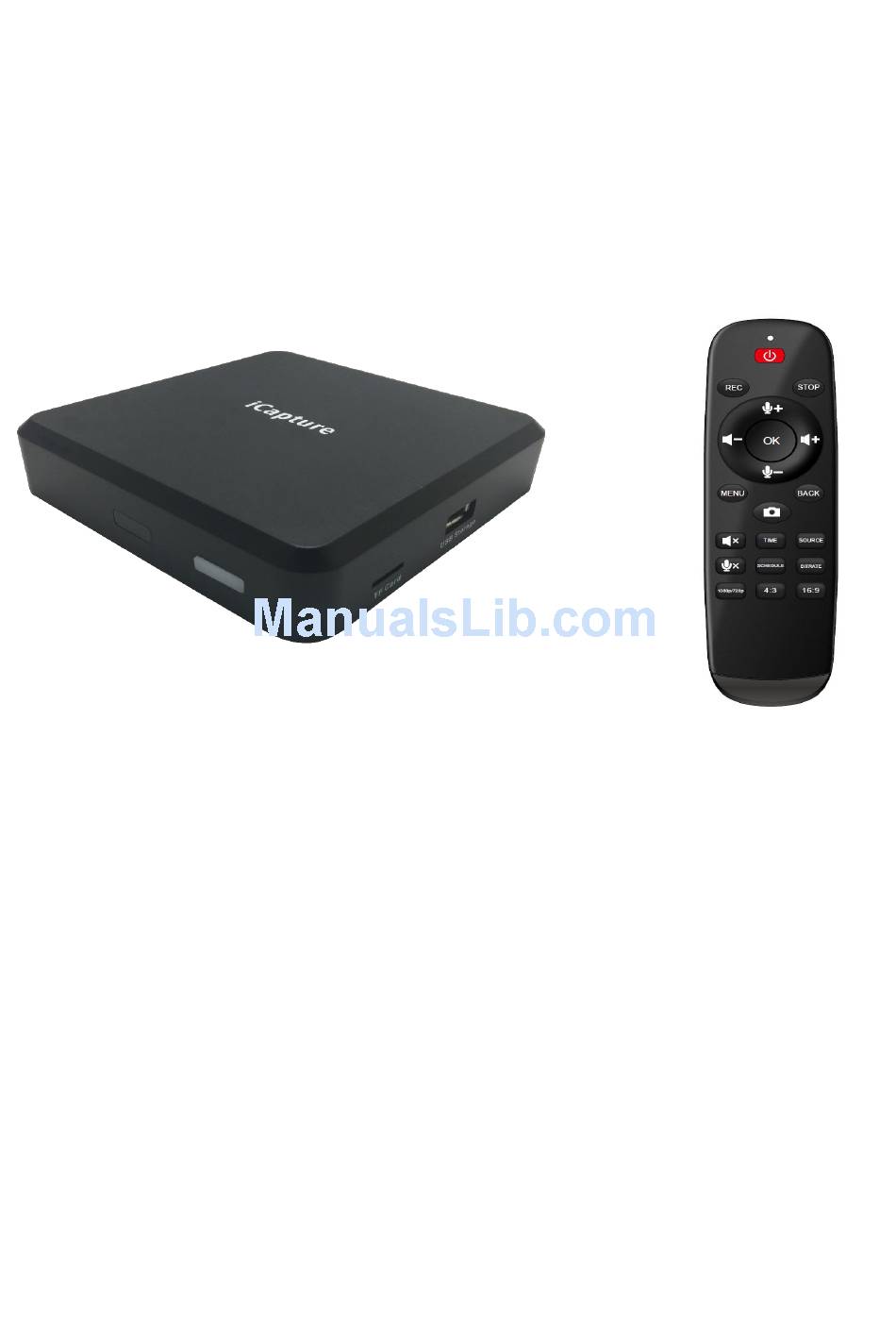

  • Page 1 D200 iCapture User Manual...

  • Page 2: Important Safety Instruction

    Before using D200 iCapture, please ensure that you read and understand the safety precautions below: 1. Do not attempt to open the case of D200 iCapture or modify it in any way, as this will void the warranty. Keep D6200 iCapture Box away from water and other liquids, as this may cause the unit to malfunction.

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instruction ..........…………… Table of Contents ................What’s included ................Product Connectors ................ 4-5 Connection Instruction and installtion ..........6 Connecting iPhone & iOS upgrade instruction........6-8 Standalone Mode 1. Installation ................2. Record / Capture to USB HDD or Pen Drive ....... 3.

  • Page 4: What's Included

    What's included...

  • Page 5: Product Connectors

    Product Connectors Power on and REC/STOP button 1. LED indicator for recording: - Blue: Recording videos in 1080p - Green: Recording videos in 720p 2. DC input 12V/1A : DC jack for power adaptor 3. Lightning IN : USB input for lightning cable (iPhone / iPad) 4.

  • Page 7: Connection Instruction And Installtion

    HDMI OUT to TV via HDMI cable. (4) Plug the USB storage device into the USB D200 iCapture Connecting iPhone & iOS upgrade instruction 1. Connection to iPhone: Plug & Play Connect D200 to iPhone by lightning cable and select “Trust” on screen,...
  • Page 8 2. Set up mode: Upgrade firmware for new iOS Personal A. Open Personal Hotspot on iPhone，Setting Hotspotopen B. Use a pin to press switch button (on the bottom of D200 case) C. Connect D200 to iPhone D. Open iPhone browser and input IP address shown on the TV screen E.

  • Page 10: Record/Capture To Usb Hdd Or Pen Drive

    2. Record/Capture to USB HDD or Pen Drive (1) After all devices are connected properly, the power will switch on automatically. (2) Press the REC/STOP button on the capture box or press the REC button on the remote control to start recording. (3) Press the REC/STOP button again on the capture box or press the STOP button on the remote control to stop recording.
  • Page 11 OSD Language: Set the language to be displayed on the menu. English, Japanese, Simplified Chinese & Traditional Chinese are available. Aspect Ratio: Auto, 4:3, 16:9, Zoom 1, Zoom 2 and Just Scan are available. The default is set as 16:9.
  • Page 12 Software Update: Upgrade the firmware when there is a new version available. You need to download new firmware & save in USB storage, then connect to D200 iCapture Restore factory default: Restore the factory settings. Version: Shows the current version info.

  • Page 13: Pc Mode

    PC Mode 1. Software Installation & Connection <1> Install GXPlayer on PC Download the software GXPlayer from http://www.tevii.com/Support.asp or get it from the installation CD. Make sure you install the plugin for 3rd party streaming software (OBS, OBS studio, XSplit).
  • Page 14 <2> Connect the devices (1) Connect power adapter to DC jack of D200 (2) Connect video source (PS, Xbox, DVD player) to D200 by HDMI: HDMI in Connect iPhone to D200 by Lightning cable: AV: Connect to AV/L/R for if the video source is AV Note: Only one video source could be deteced by D200 (3) Connect the Micro USB cable from D200 to...

  • Page 15: Pc Software(Gxplayer) Registration & Key Features

    2. PC Software(GXPlayer) registration & Key features Please register GXPlayer online before using it or you can only record up to 10 minutes. Run GXPlayer. Click on screen up-right corner to open the "About" window. Then click on the "Register" button to open the "Register" window. Fill in your Email address, Name and Code (The Code-CD key can be found on the CD cover as below) Then click on "OK"...
  • Page 16 The software CD comes with famous video editing software Power Director licensed from Cyberlink. You can find the CD key on the back of CD cover...

  • Page 17: Upload Video To Youtube

    Upload Video to YouTube  1. GXPlayer Open below folder marked in red 2. Click below mark in red to stream recorded video to YouTube...
  • Page 18 3. Input google ID & Password 4. Edit the name & description of video which you paln to stream  Upload...
  • Page 19 5. Uploading completed  OK 6. Open YouTube  My channel  You can find the video file you just uploaded...

  • Page 20: Live Streaming Via Xsplit

    Live Streaming via XSplit 1. Download & open XSplit on your PC  add  webcam, capture card, video devices GXPlayer Box 2. Outputs --> set up a new output --> (for example) Twitch 3. Enter ID, Password to Log In (please apply a new account for Twitch beforehand)
  • Page 22 1. After set up completed，Click Outputs  Twitch- tevii123 to start streaming...

  • Page 23: Live Streaming Via Obs

    Live Streaming via OBS Download & install the latest version of OBS and open it  Select “Settings” Select “Stream “ “Service” (website) Streamer Key OK...
  • Page 24 How to find your Stream Key (taking Twitch as example) Open TwitchSelect Dashboard (A)Setings (B)Show Key (C) Sources  Add video capture device Device  select GXPlayer Box ...
  • Page 25 Audio Output Mode  Output desktop audio (DirectSound)  OK Press “Start Streaming”...

  • Page 26: Record/Capture To Pc

    Record/Capture to PC 1. After all devices are connected properly, run GXPlayer on your PC. 2. Click on to start recording; click again to stop recording. You can also click on to capture a screenshot...

  • Page 27: Schedule Recording & Set Up

    3. Click on to view the recorded video files. You can click on to play back selected recorded video. Schedule Recording & Set up...
  • Page 28 Video Resolution: Set the recording resolution. 1080p, 720p and 480p are available. Video Bitrate: 6Mbps, 8Mbps, 10Mbps, 12Mbps, 15Mbps and 18Mbps are available. Video Render: Define the video render. Video Mix Render9 and Internal YUV Render are available. Hotkey for Recording: Set the hotkey for starting and stopping recording videos. MP4 Format: You are free to select MP4 Format as below: MP4(H264, AAC), MP4(H264, AC3), MP4(H264, MP3), MPEGTS (H264, AAC) Language: Set the language to be displayed on the screen.

  • Page 29: New Firmware Upgrade Instruction

    New Firmware Upgrade Instruction Upgrade Tool: please use a FAT32 formatted USB flash drive 1. Download & unzip the compressed file and copy the "MERGE.bin" to USB Flash Drive 2. Connect USB Flash Drive to D200 3. Turn on power of D200. Under OSD, select “Software Update (USB)” & press Yes 4.

  • Page 30: Product Specification

    Power supply DC 12V, 1A Weight 120g Dimensions 10.96 (L) x 10.96(W) x 2.5(H) CM CONTACT • If you encounter problems about using and upgrading hardware and software, please contact our support team: sales@tevii.com Please download the software GXPlayer http://www.tevii.com/Support.asp...
