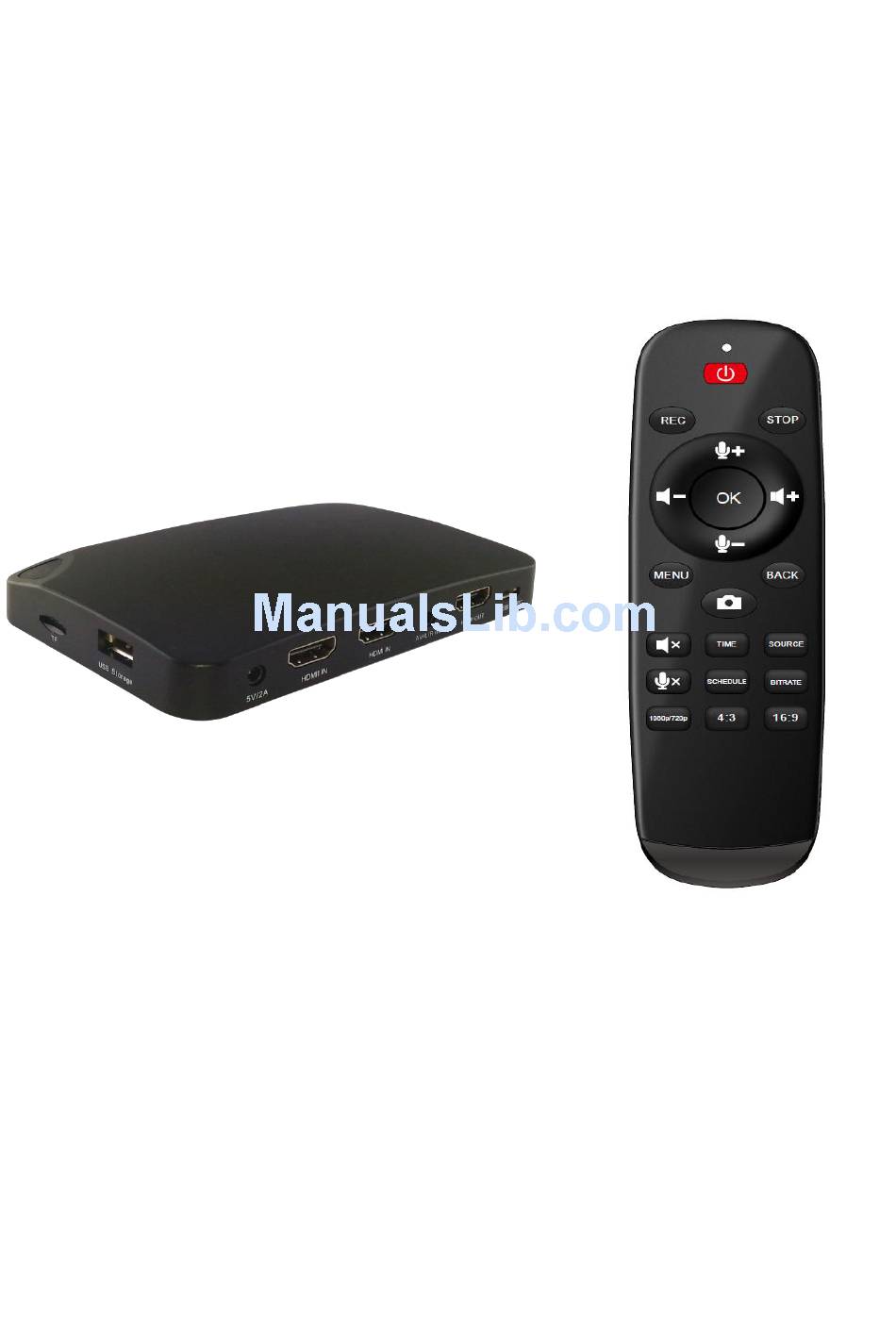

- Page 1 D616/D640 4K Capture Box User Manual...
-
Page 2: Important Safety Instruction
1. Do not attempt to open the case of D616/D640 4K Capture Box or modify it in any way, as this will void the warranty. Keep D616/D640 4K Capture Box away from water and other liquids, as this may cause the unit to malfunction. -
Page 3: Table Of Contents
Table of Contents Important Safety Instruction ..............………… Table of Contents ....................2 What’s included ....................3 Product Connectors ................... 4-5 Connection Instruction and installtion ..............6 Standalone Mode 1. Installation ....................6 2. Record / Capture to USB or TF Card ............ -
Page 4: What's Included
What's included... -
Page 5: Product Connectors
1. Power on and REC/STOP button 2. DC input 5V/2A : DC jack for power adaptor 3. HDMI IN : HDMI input 1 4. HDMI input 2 (D616) / YPbPr input (D640) 5. AV/L/R IN: AV/Audio L/R cable 6. HDMI OUT : HDMI output 7. -
Page 7: Connection Instruction And Installtion
○ ○ HDMI: HDMI in ( D616: / D640: ○ AV: AV/L/R ○ YPbPr: D640 ○ Connect D616/D640 from HDMI OUT to TV via HDMI cable. ○ (4) Plug the USB storage device into the USB D616/D640 4K Capture Box. -
Page 8: Record/Capture To Usb Or Tf Card
2GB capacity, the maximun is 32GB for FAT; in NTFS there is no 2GB per file limitation D616/D640 will record as long as needed. When HDD or USB storage is full, D616/D640 stops recording and LED will go off. - Page 9 Schedule Recording: Allow you to preset recording up to 4 different schedules OSD Language: Set the language to be displayed on the menu. English, Japanese, Simplified Chinese & Traditional Chinese are available.
- Page 10 16:9. Software Update: Upgrade the firmware when there is a new version available. You need to download new firmware & save in USB storage, then connect to D616/D640 4K Capture Box Restore factory default: Restore the factory settings. Version: Shows the current version info.
-
Page 11: Pc Mode
After the installation completed, please restart your computer first before using GXPlayer. <2> Connect the devices ○ (1) Connect power adapter to DC jack of D616/D640 (2) Connect video source (PS, Xbox, Blu-ray player) to D616/D640 by ○ ○ ○ HDMI: HDMI in ( D616: / D640: ○... -
Page 13: Pc Software(Gxplayer) Registration & Key Features
2. PC Software(GXPlayer) registration & Key features Please register GXPlayer online before using it or you can only record up to 10 minutes. Run GXPlayer. Click on screen upright corner to open the "About" window. Then click on the "Register" button to open the "Register" window. Fill in your Email address, Name and Code (The Code can be found on the CD cover as below) Then click on "OK"... - Page 14 The software CD comes with famous video editing software Power Director licensed from Cyberlink. You can find the CD key on the back of CD cover...
-
Page 15: Upload Video To Youtube
Upload Video to YouTube 1. GXPlayer Open below folder marked in red 2. Click below mark in red to stream recorded video to YouTube... - Page 16 3. Input google ID & Password 4. Edit the name & description of video which you paln to stream Upload...
- Page 17 5. Uploading completed OK 6. Open YouTube My channel You can find the video file you just uploaded...
-
Page 18: Live Streaming Via Xsplit
Live Streaming via XSplit 1. Download & open XSplit on your PC add webcam, capture card, video devices GXPlayer Box 2. Outputs --> set up a new output --> (for example) Twitch 3. Enter ID, Password to Log In (please apply a new account for Twitch beforehand) - Page 20 1. After set up completed，Click Outputs Twitch- tevii123 to start streaming...
-
Page 21: Live Streaming Via Obs
Live Streaming via OBS Download & install the latest version of OBS and open it Select “Settings” Select “Stream “ “Service” (website) Streamer Key OK... - Page 22 How to find your Stream Key (taking Twitch as example) Open TwitchSelect Dashboard (A)Setings (B)Show Key (C) Sources Add video capture device Device option, select GXPlayer Box...
- Page 23 Audio Output Mode Output desktop audio (DirectSound) OK Press “Start Streaming”...
-
Page 24: Record/Capture To Pc
Record/Capture to PC 1. After all devices are connected properly, run GXPlayer on your PC. 2. Click on to start recording; click again to stop recording. You can also click on to capture a screenshot... -
Page 25: Schedule Recording & Set Up
3. Click on to view the recorded video files. You can click on to play back selected recorded video. Schedule Recording & Set up... - Page 26 Video Resolution: Set the recording resolution. 1080p, 720p and 480p are available. Video Bitrate: 6Mbps, 8Mbps, 10Mbps, 12Mbps, 15Mbps and 18Mbps are available. Video Render: Define the video render. Video Mix Render9 and Internal YUV Render are available. Hotkey for Recording: Set the hotkey for starting and stopping recording videos. MP4 Format: You are free to select MP4 Format as below: MP4(H264, AAC), MP4(H264, AC3), MP4(H264, MP3), MPEGTS(H264, AAC) Language: Set the language to be displayed on the screen.
-
Page 27: New Firmware Upgrade Instruction
1. Download & unzip the compressed file and copy the "MERGE.bin" to USB Flash Drive 2. Connect USB Flash Drive to D616/D640 3. Turn on power of D616/D640. Under OSD, select “Software Update (USB)” & press Yes 4. OSD will show the process of upgrading by percentage, do NOT unplug USB Flash Drive 5. -
Page 28: Product Specifications
MP4 (H.264) Video standards (input) NTSC, PAL, Supported recording FAT32, NTFS formats Input HDMI, AV, Audio L/R, MIC / YPbPr (for D640) HDMI (pass-through), USB, Micro USB, Line Output Bit Rate Max: 16Mbps Recording capacity Maximum 2GB per file or unlimited Maximum storage 2TB (HDD), 32GB (USB Flash drive &...
