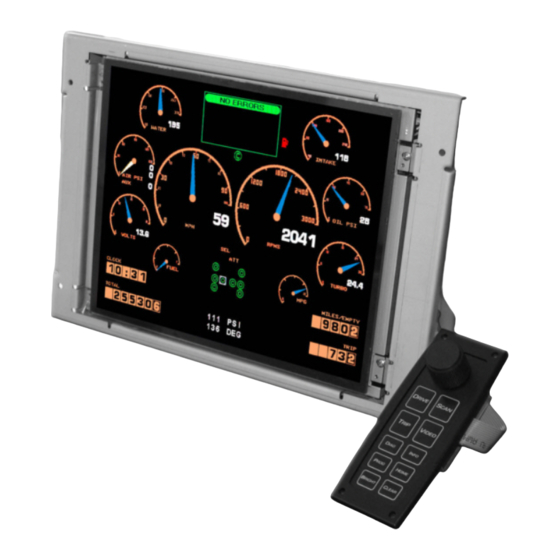

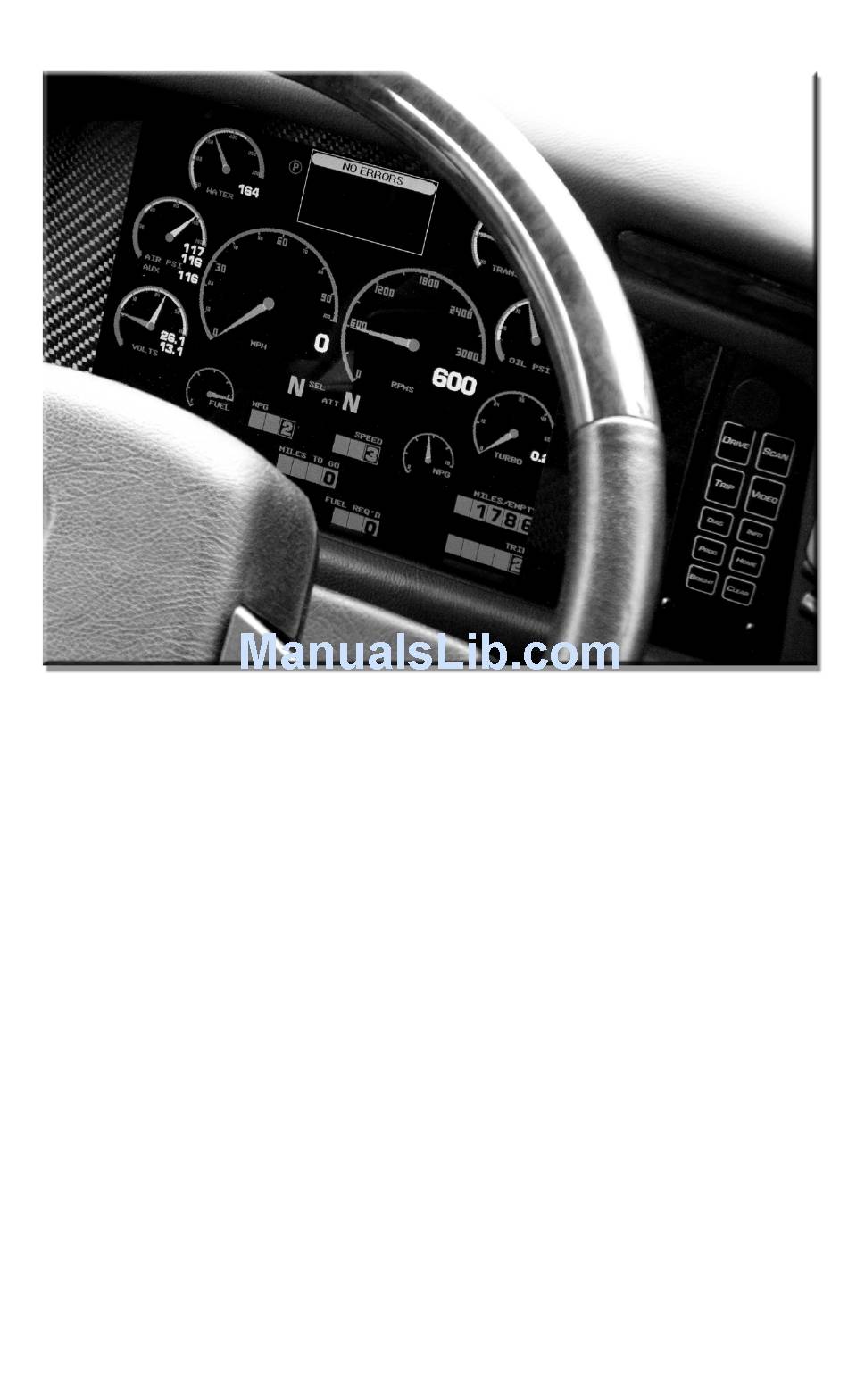

- Page 1 VMS 645 CL™ Owner’s Manual RV Version 4.1 SilverLeaf Electronics, Inc. SilverLeaf Electronics, Inc. 2490 Ferry St SW • Albany, OR 97322 • (888) 741-0259 2490 Ferry St SW • Albany, OR 97322 • (888) 741-0259 www.silverleafelectronics.com www.silverleafelectronics.com...
- Page 2 Quick Start Guide To Operate The Keypad And Knob Press the corresponding button for the function you wish to perform. For screens with selectable options, turn the knob to highlight the item you wish to change and press the knob to select, turn the knob to change, then press the knob again to confirm change.
-
Page 3: Table Of Contents
Table Of Contents Main Drive Screen............ 4 Scan Screen/Gauge Items.......... 5 Trips/MPG............... 6 Engine and Transmission Diagnostics/History....7 Maintenance Manager/Pre-Drive Checklist....8 VMS 645 Programming Screens......9-10 Scan Preferences/Daily Data Screens......11 Hidden Screen............ 12-13 House Monitoring And Control Screens....14-15 Warranty And Contact Information......16... -
Page 4: Main Drive Screen
Accessory Screen When the key is 1st turned to the ignition position, the Accessory Screen will appear. This displays applicable indicator lights as well as a few important gauges and trip info. Once the engine is started the Default Drive Screen will appear. -
Page 5: Scan Screen/Gauge Items
Scan Screen The Scan Screen is accessed by pressing the S button. This screen provides the equivalent of over a dozen gauges in one package. The specific gauges that give data depend on the engine model and configuration. Press S to switch between stopped and scanning. -
Page 6: Trips/Mpg
Rolling MPG, Recent MPG, Instantaneous MPG, and Power Factor Instantaneous MPG indicates the fuel economy calculated on a moment-by-moment basis. It generally fluctuates too rapidly to be useful for guiding your driving, so the VMS calculates a Rolling MPG. Rolling MPG considers fuel consumption over roughly a one minute time interval, while ignoring very low speed driving and idling. -
Page 7: Engine And Transmission Diagnostics/History
Diagnostic Screen Whenever the engine detects a problem, it activates the Check Engine light on the dashboard. At the same time it transmits a series of codes which a mechanic can pick up using his “scan tool”. The VMS also picks up those codes, stores them, and translates them for you to read. -
Page 8: Maintenance Manager/Pre-Drive Checklist
Information Screen Included on this screen is data on the engine hours, fuel, miles, and idle time. These values are from the engine’s internal memory, and are accurate from the moment the engine was built, regardless of when the engine or VMS was installed. The Net MPG value is calcu- lated from the total engine miles and hours, less idle hours. -
Page 9: Vms 645 Programming Screens
Programming Screens VMS Settings Screen Press p to activate the VMS Settings Screen. Here is where a variety of parameters can be adjusted to match your coach configu- ration and personal preferences. Use the K to adjust each item. Turn the knob to highlight the parameter name, press the K , and turn the K again to adjust... - Page 10 Scanning Speed This is the number of seconds that the Scan Screen will spend on each gauge when in Scan Mode. A lower number will make it scan faster. Engine This indicates the engine make and model. This must be set cor- rectly to allow all features to function properly.
-
Page 11: Scan Preferences/Daily Data Screens
Scan Preferences Screen Press p a second time to activate the Scan Preferences Screen. A list of gauges available in the Scan Screen will appear, with their settings for the Watch and Scan modes. Each gauge may be set to Watch or Hide, and Scan or Skip. A gauge set to Hide will not ap- pear in the Watch mode at all, while if it set to Watch it will be acces- sible in the Watch mode by turning the knob. -
Page 12: Hidden Screen
Select this to reset all VMS settings to the selected OEM’s factory default values. Special Modes There are some Special Modes that are activated from the Hidden Screens, under the Miscellaneous section, these Special Modes do not require any additional purchases from Silverleaf Electronics. - Page 13 Cruise Monitor When the Cruise Monitor is activated, the Display will switch automatically to the Cruise Set Speed screen while you are setting your Cruise Control, and them return to the screen visible before the switch. Recent M.P.G. Recent M.P.G. is calculated over roughly a ten minute time interval, the Rolling M.P.G.
-
Page 14: House Monitoring And Control Screens
House Monitoring and Control Screens: For motorcoach factory installed VMS 645’s there is also additional func- tionality to control and monitoring many of the “House” systems. Pressing H brings up the status and control functions for the onboard “House” systems. This screen displays Tank Levels, allows control of the Generator, Invert- er, Autofill, Water pump, and Automatic Generator Start parameters. - Page 15 Individual Device Control Screens: Pressing H repeatedly will bring up various control screens for de- vices on the network. Tanks Display Inverter Control Display House Systems Display Auto Genstart Settings...
-
Page 16: Warranty And Contact Information
In no event shall SilverLeaf Electronics, Inc. be liable for any special, incidental, or consequential damages for breach of this or any other war- ranty, expressed or implied, whatsoever.
