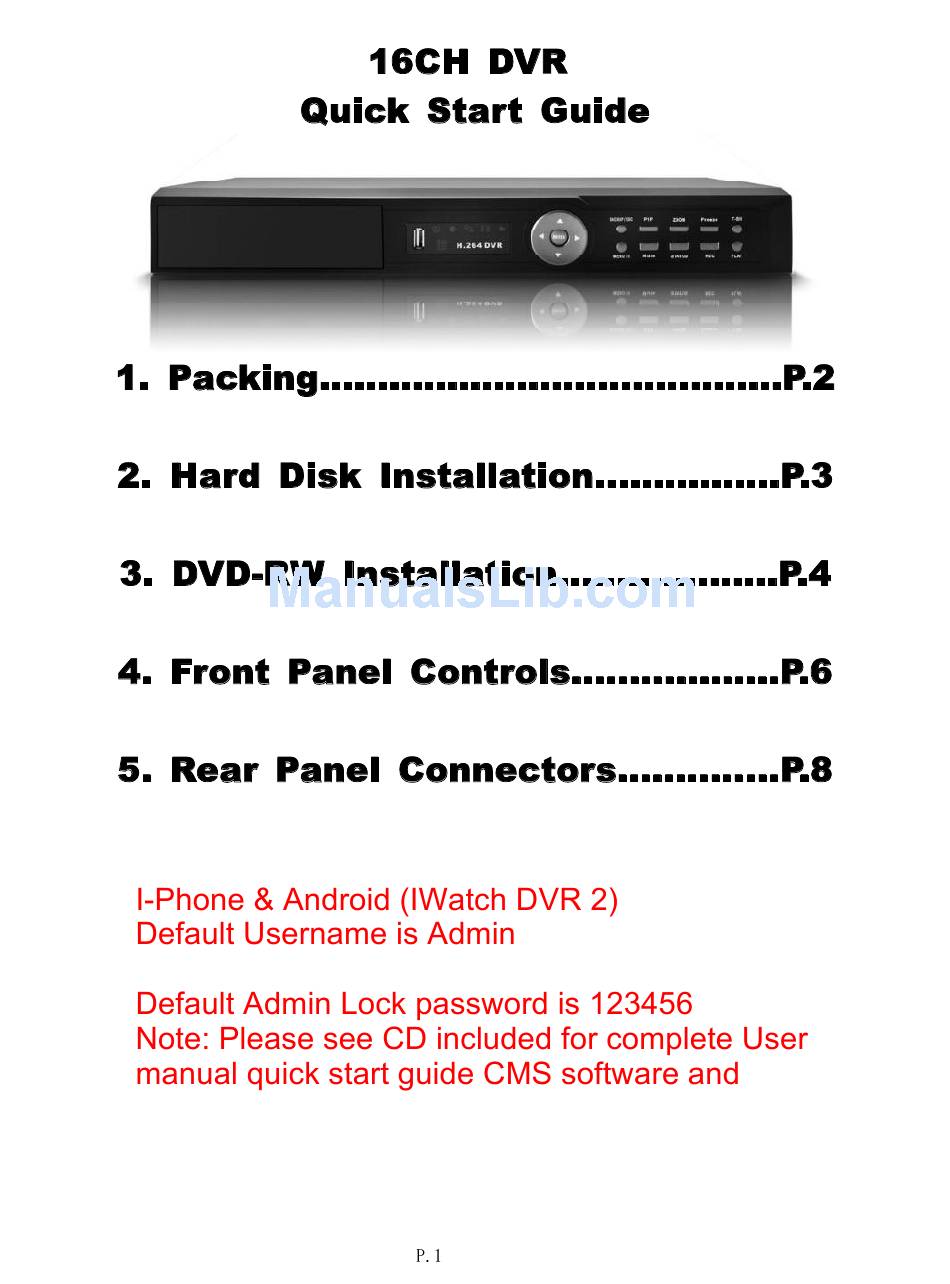

- Page 2 1. DVR 2. Quick Start 3. IR Remote Control Pressed "DVR1" Button before use 4. Battery 5. CD 6. Hard Disk Mount 7. Screws 8. IDE to SATA Power Cord 9. Power Cord 10. SATA Cord Note: Standard shipping products do not include HDD...
- Page 3 Step 1) Fix the HDD to rack mount with the screws as indicated. Step 2) Place the HDD on the HDD plate and screw it as indicated. Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record.
- Page 4 Standard shipping products do not include HDD and DVD-RW) Step 1:Remove the front cover from DVR. Step 2:Put the DVD-RW into the unit as indicated.
- Page 5 Step 3:Put DVR bottom up, screw to fix the DVD-RW as indicated. Step 4:Connect the power and the flat cables as indicated.
- Page 6 Control Keys Description DVD Writer Optional DVD-RW backup device. Port for USB external devices (USB flash drive devices use, the mouse USB 2.0 Port behind the back of the USB ports installed).. Power: Power is on. LED Display HDD: Hard disk is in use. LAN: Connected to the internet (in red): Remote user logged in.
- Page 7 Start or stop recording. Play back in normal speed. PLAY...
- Page 8 BNC port for the main monitor. You can switch to SPOT MAIN monitor monitor by GUI setting. VIDEO IN BNC input ports for cameras, 16 in total. AUDIO OUT RCA output port for audio signal. EXTERNAL I/O port. EXTERNAL I/O DC 12V 40mm X 40mm fan.
