Quick Start Guide
FR.
Guide de démarrage rapide
ES.
Guía rápida
PT.
Guia de Início Rápido
JP.
CS.
CT.
KO.
TR.
Kullanim
Model No.型号 MF8145
PN: 03MF814500000 Rev A
© 2012 All rights reserved. Creative and the Creative Logo are trademarks or registered trademarks of Creative Technology Ltd in
the United States and/or other countries. iPad, iPhone and iPod are trademarks of Apple, Inc., registered in the U.S. and other
countries. "Made for iPod" and made for iPhone" means that an electronic accessory has been designed to connect specifically to
iPod or iPhone respectively and has been certified by the developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance with safety and regulatory standards. The Bluetooth
®
word mark and
logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Creative Technology Ltd is under license. aptX is a
trademark of CSR plc. All other trademarks are the property of their respective owners and are hereby recognized as such. All
specifications are subject to change without notice. Use of this product is subject to a limited warranty. Actual contents may differ
slightly from those pictured.
FR
Présentation du produit / Diagramme de connectivité
1
DC - IN
(Tous les voyants s'allument pendant quelques secondes une fois le D5xm sous tension. C'est tout à fait normal.)
2
Mise sous tension / Mise en veille / Bouton principal de réinitialisation
3
Aux - IN
4
Tube de port de basses
5
Service - utilisé uniquement pour la mise à niveau du firmware
(Consulter le site web www.creative.com/speakers pour plus d'informations)
6
- indique le niveau de volume actuel
Indicateur de volume
- indique l'état de marche / veille du haut parleur
7
Indicateur d'état CONNECT (connexion)
- Clignotement rapide
- Reste allumé
(Mode de couplage)
(Bluetooth activé)
8
- Couple les périphériques Bluetooth
Bouton / Pavé tactile CONNECT (connexion)
- Annule le processus de couplage
- Affiche la page des périphériques Bluetooth
9
Indicateur d'état LINK (liaison)
Clignotement
Remarque:
(Processus de liaison des hauts-parleurs)
Lumière du voyant activée
Mode multi-canaux
(Le haut-parleur est en cours de
démarrage La durée du démarrage
est fonction de la configuration.)
Haut-parleur gauche
Haut-parleur central
Haut-parleur droit
Lumière du voyant grisée
(Les haut-parleurs liés sont en
Mode party (fête)
mode veille réseau)
10
- Lie les haut-parleurs
Bouton / Pavé tactile LINK (liaison)
- Annule le processus de liaison
- Permet de basculer en mode multi-canaux ou party
- Désactive / active le système de liaison
(ne s'applique pas à la configuration 1.0, 1.1)
Remarques :
Pour une configuration 1.1, le voyant du haut-parleur central du Creative D5xm s'allumera pour
indiquer qu'il est connecté dans une configuration 1.1.
La fonction de liaison du D5xm est uniquement compatible avec les autres haut-parleurs Creative
D5xm et le caisson de basse Creative DSxm.
CS
产品概览/连接示意图
产品概览/连接示意图
1
DC 输入
(D5xm 打开后,所有 LED 都将亮起数秒钟。 这属于正常现象。)
2
电源开启/待机/主复位按钮
3
辅助输入
4
低音倒相管
服务 - 仅用于固件升级
5
(访问 www.creative.com/speakers 获取更多信息)
- 显示当前音量级别
6
音量状态指示灯
- 显示音箱开启 / 待机状态
7
- 快速闪烁
- 呈长亮状态
CONNECT(连接)LED 状态指示灯
(配对模式)
(
藍牙
功能已启用)
- 配对
设备
8
CONNECT(连接)触摸板/按钮
藍牙
- 取消配对操作
- 初始化
藍牙
设备连接
9
LINK(链接)LED 状态指示灯
闪烁
(音箱链接过程)
注意:
注意:
亮起的 LED 灯
多声道模式
(音箱正在启动。 启动时间取决于
配置。)
变暗的 LED
左音箱
中置音箱
右音箱
(已链接的音箱处于联网待机模式)
聚会模式
10
- 在音箱之间建立链接
LINK(链接)触摸板/按钮
- 取消建立链接操作
- 切换多声道或聚会模式
- 关闭 / 打开链接系统
(不适用于 1.0、1.1 配置)
注意:
注意
针对 1.1(一个主音箱、一个低音炮)设置,Creative D5xm 将亮起中置音箱 LED,指示连接状态为 1.1 设置。
这款 D5xm 音箱的 Link 链接功能只兼容其他 Creative D5xm 音箱以及 Creative DSxm 无线低音炮。

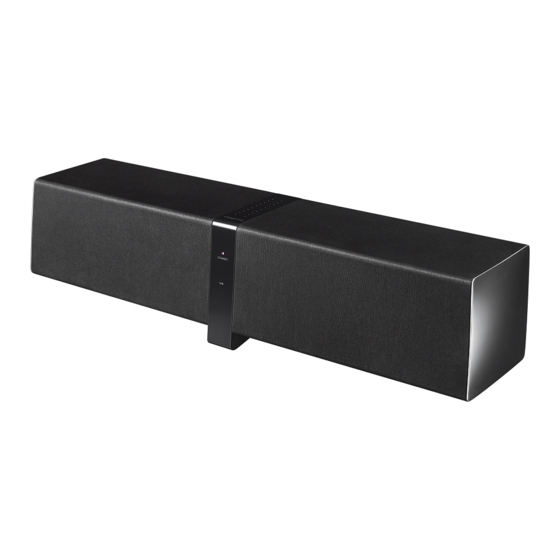

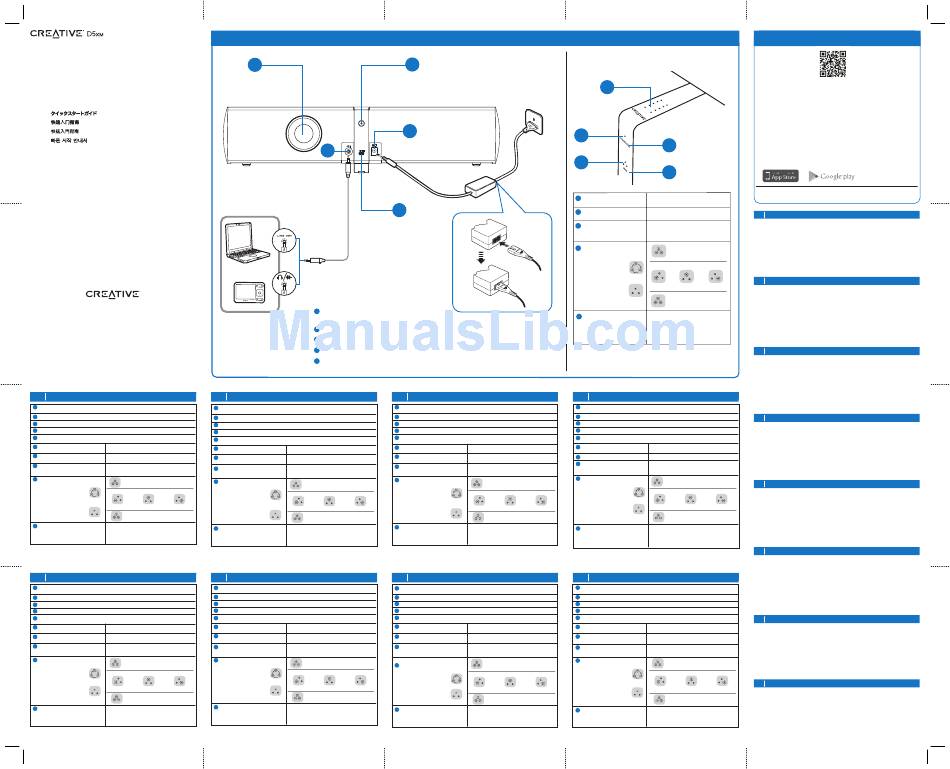

Product Overview / Connectivity diagram

4
3
1
DC - IN
(All LEDs will light up for a few seconds when the mains
are supplied to the D5xm. This is normal.)
2
Power ON / Standby / Master reset button
3
Aux - IN
4
Bass port tube
Service - used only for firmware upgrade
5
Visit www.creative.com/speakers for more information.
ES
Información general del producto / Diagrama de conectividad
1
DC - IN
(Todos los LED se iluminarán durante unos segundos al conectar la alimentación al D5xm. Esto es normal.)
2
Botón Encendido / Suspensión / Reconfiguración maestra
3
Aux - IN
4
Tubo del puerto graves
Servicio - se utiliza sólo para actualizar el firmware
5
(Visite www.creative.com/speakers para más información)
6
- indica el nivel del volumen actual
Indicador de estado del volumen
- indica gue el altavoz está encendido / modo de suspensión
7
Indicador LED de estado CONNECT
- Parpadea rápidamente
- Encendido fijo
(CONECTAR)
(Modo de emparejamiento)
(Bluetooth habilitado)
8
Botón / almohadilla táctil CONNECT
- Emparejar dispositivos Bluetooth
(CONECTAR)
- Cancelar proceso de emparejamiento
- Llamar dispositivos Bluetooth
9
Indicador de estado del LED LINK (ENLACE)
Parpadeando
Nota:
(proceso de enlace del altavoz)
Luz LED habilitada
Modo multicanal
(El altavoz está arrancando. La
duración del arranque depende da
la configuración.)
Altavoz izquierdo
Altavoz central
Altavoz derecho
LED atenuado
(Los altavoces enlazados están en
Modo fiesta
el modo de suspensión en red)
10
Botón / almohadilla táctil LINK (ENLACE)
- Enlazar altavoces
- Cancelar proceso de enlace
- Alternar entre multicanal o modo fiesta
- Apagar / encender sistema de enlace
(no aplicable para la configuración 1.0,1.1)
Notas :
Para la instalación 1.1 , Creative D5xm iluminará el LED del altavoz central para indicar que está
conectado a una instalación 1.1 .
La función de enlace en este D5xm solo es compatible con otros altavoces Creative D5xm y subwoofer
inalámbricos Creative DSxm.
CT
產品概覽/連接示意圖
產品概覽/連接示意圖
1
DC 輸入
(當電源加到 D5xm 上時,所有的 LED 將會亮起數秒。 這是正常現象。)
2
電源開啟/待命/主重設按鈕
3
輔助輸入
4
低音倒相管
5
服務 - 僅用於韌體升級
(詳情請訪問 www.creative.com/speakers
www.creative.com/speakers)
6
- 顯示目前的音量級數
音量狀態指示
- 顯示喇叭開啟 / 待命狀態
- 快速閃爍
- 穩定亮起
7
CONNECT(連接)LED 狀態指示
(配對模式)
藍牙
已啟用)
8
- 配對
藍牙
裝置
CONNECT(連接)觸控板/按鈕
- 取消配對操作
- 初始化
藍牙
裝置連接
9
LINK(連結)LED 狀態指示
閃爍
(喇叭連結過程)
注意
注意:
亮起的 LED 指示燈
多聲道模式
(喇叭正在啟動。 啟動時間取決於組
態。)
變暗的 LED
左喇叭
中置喇叭
右喇叭
(已連結喇叭處於網路待命模式)
派對模式
- 連結喇叭
10
LINK(連結)觸控板/按鈕
- 取消連結操作
- 切換多聲道或派對模式
- 關閉 / 開啟連結系統
(不適用於 1.0、1.1 組態)
注意:
注意
對於 1.1 組合,Creative D5xm 將會亮起中置喇叭 LED,表明它已按 1.1 組合連接。
此 D5xm 上的連結功能僅與其他 Creative D5xm 喇叭和 Creative DSxm 無線低音喇叭相容。
2
1
5
PT
Descrição geral do produto / Diagrama de conectividade
1
Entrada CC
(Todos os LED's acendem durante alguns segundos quando é fornecida alimentação eléctrica à D5xm. É normal.)
2
Ligar / Modo de espera / Reinicialização
3
Aux -IN (ENTRADA AUXILIAR)
4
Tubo de saída de graves
5
Assistência - utilizado apenas para atualização do firmware
(Visite www.creative.com/speakers para mais informações)
6
- indica o nível de volume atual
Indicador do estado do volume
- indica estado ligado / modo de espera
7
- Piscar rápido
- Permanentemente aceso
Indicador do estado CONNECT LED
(Led de Ligação)
(Modo de emparelhamento)
(Bluetooth ativo)
8
- Emparelhar dispositivos Bluetooth
Painel Táctil/Botão CONNECT (Ligar)
- Cancelar processo de emparelhamento
- Memorizar emparelhamento de dispositivos Bluetooth
9
Indicador do estado do LED LINK (Conexão)
A piscar
Nota:
(processo de ligação das colunas)
LED de funcionamento
Modo multi-canal
(As colunas estão a arrancar. O
tempo de arranque depende da
configuração.)
Coluna esquerda
Coluna central
Coluna direita
LED com luz fraca
(As colunas ligadas estão em modo
Modo festa
de espera)
10
Painel Táctil/Botão LINK (Conexão)
- Ligar colunas
- Cancelar processo de ligação
- Alternar modos multi-canal e festa
- Ligar/desligar sistema de ligação
(não aplicável às configurações 1.0 e 1.1)
Notas :
Para uma configuração 1.1 , o Creative D5xm irá acender o LED da coluna central para indicar que está
ligado numa configuração 1.1 .
A funcionalidade de conexão neste D5xm apenas é compatível com outras colunas Creative D5xm e
subwoofer sem fios Creative DSxm.
KO
제품 개요/연결 그림
제품 개요/연결 그림
DC - 입력
1
(모든 LED는 메인 장치가 D5xm에 적용되면 몇 초동안 점등합니다. 이는 정상적인 현상입니다.)
2
전원 켜짐 / 대기 / 마스터 재설정 버튼
3
Aux - 입력
4
저음 포트 튜브
서비스 - 펌웨어 업그레이드 시에만 사용됨
5
(자세한 내용은 www.creative.com/speakers
www.creative.com/speakers 를 방문하여 확인하십시오)
6
볼륨 상태 표시기
- 현재 볼륨 레벨을 표시합니다
- 스피커 켜짐/대기 상태를 표시합니다
7
CONNECT (연결) LED 상태 표시기
- 빠르게 깜박임
- 점등 유지
(페어링 모드)
(Bluetooth 사용)
8
- Bluetooth 장치 페어링
CONNECT (연결) 터치 패드/버튼
- 페어링 프로세스 취소
- Bluetooth 장치 호출
깜박임
9
LINK LED 상태 표시기
(스피커 연결 프로세스)
참고:
참고:
LED 등 실행 중
멀티 채널 모드
(스피커가 부팅되고 있습니다. 부팅
시간은 구성에 따라 다릅니다.)
흐릿하게 점등된 LED
왼쪽 스피커
중앙 스피커
오른쪽 스피커
(연결된 스피커가 네트워크된 대기
모드에 있습니다)
파티 모드
10
LINK 터치 패드/버튼
- 스피커 연결
- 연결 프로세스 취소
- 멀티 채널 또는 파티 모드 토글
- 연결 시스템 끄기/켜기
(1.0,1.1 구성은 해당되지 않음)
참고:
참고
1.1 또는 1.x 설치의 경우, Creative D5xm는 중앙 스피커 LED를 점등하여 1.1 또는 1.x 설치에 연결되었음을
표시합니다.
이 D5xm의 연결 기능은 다른 Creative D5xm 스피커와 Creative DSxm 무선 서브우퍼와만 호환 가능합니다.
6
7
8
9
10
6
- indicate current volume level
Volume status indicator
- indicate speaker on / standby status
7
CONNECT LED Status Indicator
- Rapidly blinking
- Steady Lit
(Pairing mode)
(Bluetooth enabled)
8
CONNECT Touchpad / Button
- Pair Bluetooth devices
- Cancel pairing process
- Page Bluetooth devices
9
Blinking
LINK LED status indicator
(speaker linking process)
Note:
Running LED light
Multi channel mode
(The speaker is booting up.
Length of booting depends
on configuration.)
Dimmed LED
Left Speaker
Center Speaker
Right Speaker
(Linked speakers are in
networked standby mode)
Party mode
10
LINK Touchpad / Button
- Link speakers
- Cancel linking process
- Toggle multi channel or party mode
- Turn off / on link system
(not applicable for 1.0,1.1 configuration)
Notes:
For a 1.1 setup, the Creative D5xm will light up the Center Speaker LED
to indicate it is connected in a 1.1 setup.
The Link feature on this D5xm is only compatible with other Creative
D5xm speakers and Creative DSxm wireless subwoofer.
JP
製品概要 / 接続図
1
DC入力
(D5xmに電源を接続するとすべてのLEDが数秒間点灯します。 これは正常な動作です。 )
2
[電源オン/スタンバイ/マスターリセッ ト] ボタン
3
AUX 入力
4
バスポートチューブ
5
サービス端子 − ファームウェアアッ プデートに使用します
(詳細は www.creative.com/speakers をご覧ください)
6
音量ステータスインジケータ
- 現在の音量レベルの表示
- スピーカーのステータス (オン/スタンバイ) を示します
7
CONNECT LEDステータスインジケータ
- 高速に点-滅 (ペアリングモード) - 点灯 (Bluetooth有効)
8
- Bluetooth デバイスとペアリングします
[CONNECT] タッチパッ ド / ボタン
- ペアリング処理をキャンセルします
- ペアリング済みのデバイスを切り替えます
9
LINK LED ステータスインジケータ
点滅 (スピーカーのリンク処理中)
メモ :
メモ
循環して点滅
マルチチャンネルモード
(スピーカーの起動中です。 起動時間は
スピーカー構成によって変化します。 )
薄暗く点灯
左スピーカー
中央スピーカー
右スピーカー
(スピーカーがリンク済みの状態でネッ
トワークスタンバイモードであることを
パーティーモード
表します。 )
- スピーカーをリンク
10
[LINK] タッチパッ ド / ボタン
- リンク処理をキャンセルします
- マルチチャンネル / パーティーモードを切り替えます
- スピーカーのリンクシステムをオン/オフします
(1スピーカーおよび1.1リンク構成には適用されません)
メモ :
1.1 ( 1台のD5xmと1台のDSxm) セッ トアッ プの場合、 Creative D5xmの中央スピーカーLEDが点灯します。
このD5xmのリンク機能は他のCreative D5xmスピーカーとCreative DSxmワイヤレスサブウー ファーとだけ適合し
ます。
TR
Ürüne Genel Bakış / Bağlantı şeması
1
DC - IN
(Şebeke enerjisi D5xm'ye geldiğinde tüm LED'ler birkaç saniyeliğine yanar. Bu normaldir.)
2
Güç AÇIK / Bekleme / Ana sıfırlama düğmesi
3
Aux-in Girişi
4
Bas bağlantı kablosu
5
Servis - sadece ürün yazılımının yükseltilmesi için kullanılır
(Daha fazla bilgi için www.creative.com/speakers adresini ziyaret edin)
6
- mevcut ses seviyesini gösterir
Ses seviyesi durumu göstergesi
- hoparlör açık/bekleme durumunu gösterir
7
- Hızlı yanıp sönen
- Sabit Yanan
CONNECT (BAĞLAN) LED Durum
Göstergesi
(Eşleştirme modu)
(Bluetooth etkin)
- Bluetooth aygıtlarını eşleştirir
8
CONNECT (BAĞLAN) Dokunmatik Pedi /
- Eşleştirme işlemini iptal eder
Düğmesi
- Bluetooth aygıtlarını gösterir
9
LINK (BAĞLANTI) LED durum göstergesi
Yanıp sönen
(hoparlör bağlama işlemi)
Not:
Yanan LED ışık
Çok kanallı mod
(Hoparlör başlatılıyor. Başlama
süresinin uzunluğu yapılandırmaya
bağlıdır.)
Soluk Yanan LED
Sol Hoparlör
Orta Hoparlör
Sağ Hoparlör
(Bağlanan hoparlörler ağ bağlantılı
bekleme modundadır)
Parti modu
- Hoparlörleri bağlar
10
LINK (BAĞLANTI) Dokunmatik Pedi /
- Bağlama işlemini iptal eder
Düğmesi
- Çok kanallı mod ile parti modu arasında geçiş yapılmasını sağlar
- Bağlantı sistemini kapatır / açar
(1.0 ve 1.1 yapılandırması için geçerli değildir)
Notlar :
1.1 kurulumu için, Creative D5xm, bir 1.1 kurulumuna bağlı olduğunu göstermek üzere Orta Hoparlör
LED'ini açacaktır.
Bu D5xm'teki Bağlantı özelliği yalnızca diğer Creative D5xm hoparlörler ve Creative DSxm kablosuz
subwoofer ile uyumludur.
Creative Central app
Download the Creative Central app to take full advantage of
your speaker.
Access features such as:
– Room Calibration
To experience how the speaker sounded in our labs, in your
environment
– Sound Mode
Dramatically improves the playback of different downloaded,
streaming or recorded materials
– Easy Modular Setup
Intuitive setup wizard helps you link additional speakers and
subwoofer easily.
For detailed product information, instructions or to find out more about our
speakers, visit www.creative.com/speakers
FR
Creative Central app
Téléchargez l'application Creative Central pour profiter pleinement de votre haut-parleur.
Découvrez les fonctionnalités telles que :
– Calibration acoustique
Permet d'apprécier la qualité du son dans nos laboratoires et dans votre environnement.
– Modes sons
Améliore considérablement la lecture de différents supports téléchargés, continus ou enregistrés.
– Configuration modulaire facile
L'assistant de configuration intuitif vous permet de relier facilement les hauts-parleurs et le
caisson de basses supplémentaires.
Pour obtenir des informations et des instructions détaillées sur les produits ou pour en savoir plus
sur nos haut-parleurs, consultez le site Web www.creative.com/speakers
ES
Creative Central app
Descargar la aplicación Creative Central para obtener todos los beneficios de su altavoz.
Funciones de acceso como:
– Calibración del espacio
Para experimentar como sonaba el altavoz en nuestros laboratorios, en su ambiente.
– Modos Sonido
Mejora significativamente la reproducción de diferentes materiales descargados, difundidos o
grabados.
– Fácil Configuración modular
El asistente de configuración intuitivo le ayuda a enlazar altavoces adicionales y el subwoofer
fácilmente.
Para obtener información detallada del producto, instrucciones o para más información sobre
nuestros altavoces, visite www.creative.com/speakers
PT
Creative Central app
Transfira a aplicação Creative Central e aproveite ao máximo as suas colunas.
Utilize funcionalidades como :
– Room Calibration
Tenha em sua casa a mesma experiência que nós no laboratório.
– Sound Modes
Melhoram de forma radical a reprodução de streams ou materiais gravados transferidos.
– Modular Setup
Um programa de configuração intuitivo que o ajuda a interligar mais colunas e subwoofers, com a
maior das facilidades.
Para informações técnicas sobre o produto, instruções, ou para saber mais acerca das suas
colunas, vá a www.creative.com/speakers
JP
Creative Central app
Creative Centralアプリをダウンロードしてスピーカーをフル活用しましょう。
次のような機能にアクセスできます。
‒ ルームキャリブレーション
当社のラボで、 お客様の環境でどのようにスピーカーが響くかを体験するために。
‒ サウンドモード
さまざまなダウンロード、 ストリーミング、 または録音データの再生音質が劇的に改善。
‒ 簡単モジュラーセットアップ
直感的なセッ トアッ プウィザードで追加のスピーカーやサブウー ファーと簡単にリンクできます。
詳細な製品情報ならびに注意事項について、 あるいは当社スピーカーに関する詳しくお知りになりたい場
合は、 www.creative.com/speakersをご覧ください。
CS
Creative Central app
下载 Creative Central 应用程序来充分使用您的音箱。
使用如下功能:
–房间校准
房间校准
在您的环境中畅享在实验室里才能实现的音箱声音效果。
–声音模式
声音模式
极大地提升下载、传输或录制的多种内容的播放效果。
–简便模块化设置
简便模块化设置
直观的设置向导助您轻松地在其他音箱与低音炮之间建立链接。
要获得产品的详细信息与说明,或搜索更多的音箱产品,请访问
www.creative.com/speakers
CT
Creative Central app
下載 Creative Central 應用程式以充分利用您的喇叭。
存取功能,例如:
–房間校準
房間校準
在您的環境中體驗在實驗室才能實現的喇叭聲音效果。
–聲音模式
聲音模式
極大地提升下載、傳輸或錄製的多種內容播放效果。
–簡便組裝設定
簡便組裝設定
直觀的設定精靈幫助您輕鬆連結其他喇叭和低音喇叭。
如要瞭解產品詳情、指示或有關喇叭的更多資訊,請訪問
www.creative.com/speakers
KO Creative Central app
Creative Central
앱을 다운로드하여 스피커를 충분히 이용하십시오.
다음과 같은 기능에 액세스 :
– 공간 보정
공간 보정
실험실 환경에서 스피커가 어떻게 들리는지 경험해 보려면
– 사운드 모드
사운드 모드
다양한 다운로드, 스트리밍 또는 녹음한 자료의 재생을 크게향상시킵니다
– 쉬운 모듈식 설치
쉬운 모듈식 설치
직관적인 설치 마법사가 추가 스피커와 서브우퍼를 쉽게 연결할 수 있도록 도움을 줍니다.
자세한 제품 정보, 지시 사항 또는 스피커에 대해 자세히 알아보려면 www.creative.com/speakers
www.creative.com/speakers
를 방문하십시오.
TR
Creative Central app
Hoparlörünüzün tüm özelliklerinden faydalanabilmek için Creative Central uygulamasını indirin.
Aşağıdaki Özelliklere erişin:
– Room Calibration
Hoparlörden laboratuarlarımızda elde ettiğimiz sesi, siz kendi ortamınızda elde edin.
– Sound Modes
Farklı şekilde indirilen, yayınlanan veya kaydedilen öğelerin oynatılmasını büyük ölçüde geliştirir.
– Kolay Modular Setup
Kullanımı kolay kurulum sihirbazı, ek hoparlörleri ve subwoofer'ı kolayca bağlamanızı sağlar.
Ayrıntılı ürün bilgileri, talimatlar veya hoparlörler hakkında daha fazlasını öğrenmek için,
www.creative.com/speakers web sitesini ziyaret edin.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D5xm and is the answer not in the manual?

Questions and answers

Summary of Contents for Creative D5xm

  • Page 1 Visit www.creative.com/speakers for more information. Utilize funcionalidades como : logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Creative Technology Ltd is under license. aptX is a D5xm speakers and Creative DSxm wireless subwoofer.
  • Page 2 Ensure the subwoofer is in standby (LED Dimmed or Off). Press & hold the LINK button till LED blinks twice. Subwoofer is reset. • Remember to pair your smart device with your speaker after each set-up, alternatively, you can use Creative Central app for iPhone and android devices to reset your speakers.
  • Page 3 CSR plc. All * For a 1.1 setup, the Creative D5xm will light up the Center Speaker LED to indicate it is connected in a 1.1 setup.
  • Page 4 Que apagan después de 1 minuto. ¿Qué debo hacer? quando o Creative D5xm está LIGADO. Esta é a melhor indicação de que a desligam após 1 minuto. O que devo fazer? ですか...

Table of Contents
