Main Door "Steel" Assembly - ADC AD-330 Installation Manual

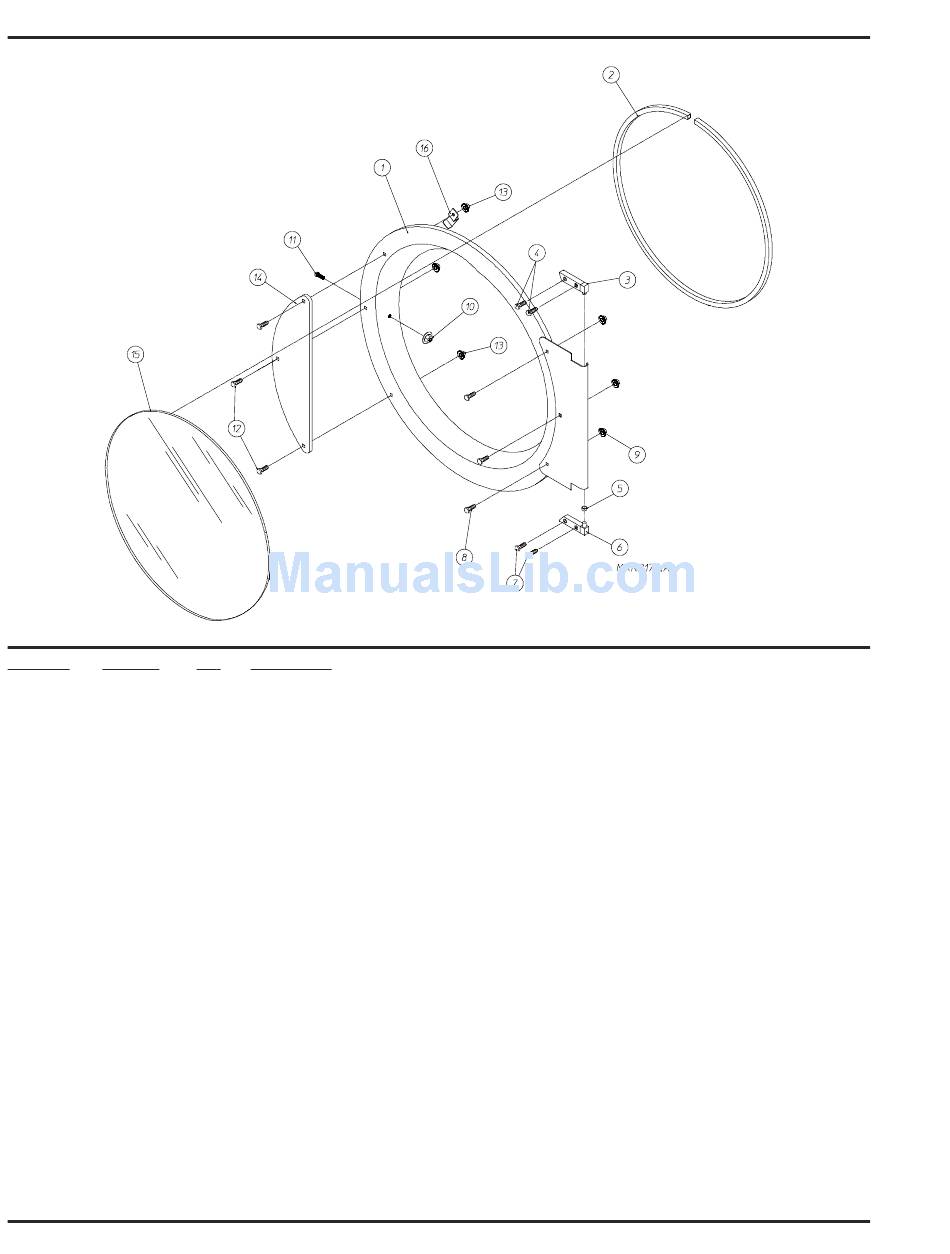

Main Door "Steel" Assembly

Illus. No. Part No.
1 822661
881150
2 102354
401010
3 881152
4 150445
5 153031
6 881151
7 150445
8 150683
9 152014
10 151010
11 150120
12 150683
13 152014
14 881210
15 102211
170730
16 319298
16
Qty. Description
1 Magnet Black Main Door Assembly Complete
(for AD-330 / AD-320 models mfd. as of August 14, 2007)
(includes illus. nos. 1, 2, 8, 9, and 12 through 16)
1 Latch Black Main Door Assembly Complete
(for AD-330 / AD-320 models mfd. prior to August 14, 2007)
(includes illus. nos. 1, 2, 8, and 9 through 15)
1 Door Gasket
1 Mastic Adhesive (5 oz. tube)
1 Black Top Hinge Block Assembly
(includes illus. nos. 3 and 4)
2 1/4-20 x 3/4" Black Cap Head Setscrew
1 1/4" Nylon Washer
1 Black Bottom Hinge Block Assembly
(includes illus. nos. 5 through 7)
2 1/4-20 x 3/4" Black Cap Head Setscrew
3 1/4-20 x 5/8" Black Carriage Bolt
3 1/4-20 Free Spin Wash Nut
1 #10-32 Black Hex Acorn Nut (latch models Only)
1 Door Screw (latch models Only)
3 1/4-20 x 5/8" Black Carriage Bolt
3 1/4-20 Free Spin Wash Nut
1 Black Main Door Handle ONLY
1 20-7/16" Door Glass
1 Adhesive (10.3 oz. cartridge)
2 Magnet Bracket
(for AD-330 / AD-320 models mfd. as of August 14, 2007)
American Dryer Corporation 450239 - 4
