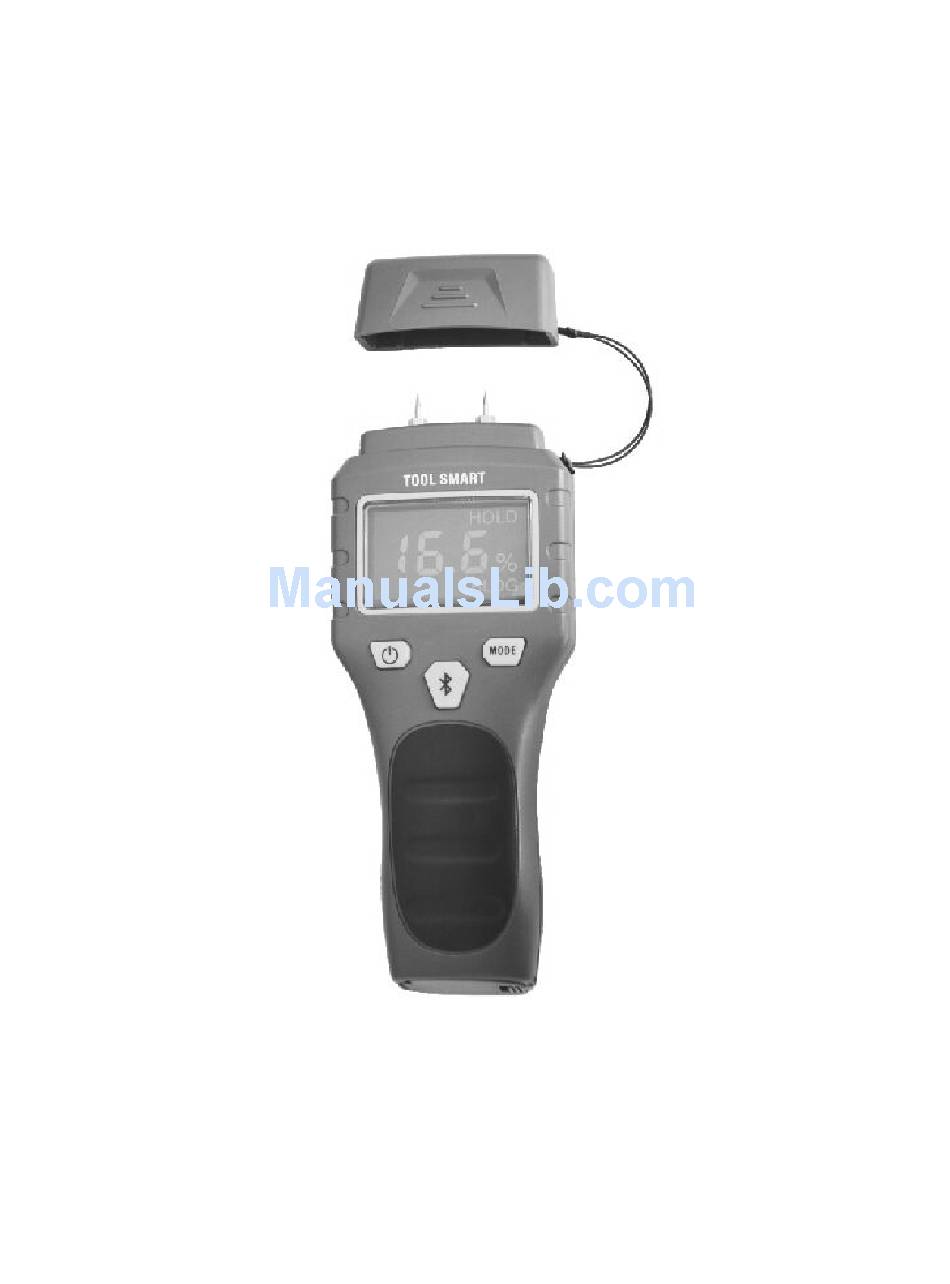

- Page 1 ToolSmart Digital Moisture Meter Model: TS06 User’s Manual...

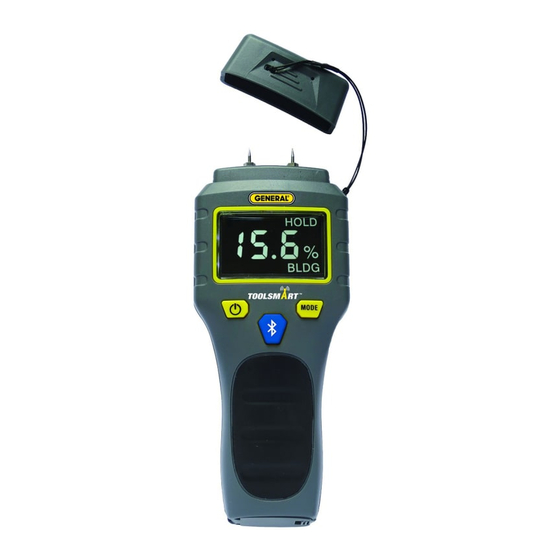

- Page 2 Model： ： ： ： TS06 Overview TS06 ToolSmart Digital Moisture Meter measures the moisture content by detecting the electrical resistivity of the target material using two pins. The unit has adopt low consumption single chip smart design, through the probe head automatically detect wood or building materials moisture content, low-power single-chip intelligent instrument design, screen displays measurement results, with Bluetooth wireless transmission function, through the intelligent platform APP to display the measurement data, remote data transmission.
- Page 3 ● Please install the batteries properly as the instructions of the positive and negative charges ● Please dispose the batteries properly. High temperature will cause explosions and do not burn the batteries. Strap insulated tape around the battery charges to avoid unsafe contacts with other objects. Please follow the local regulations of battery disposing.
- Page 4 LCD Screen Illustration A：Low battery indication B：Measuring result C：Wood mode indication D：Data hold indication E：Building material mode indication F: Bluetooth connection indicators Operation Notes ● Install battery Remove the battery lid on the end of the unit, place one 9V block battery（6F22 or 6LR61） according to the correct sign marked in the compartment, then put back the lid.
- Page 5 up to 15.9% or under building material, up to 19.9% ), there will always buzzer sound indication. The sound will be disappeared if the reading is lower; Holding the mode switch key, to turn off the buzzer sound . 8、 Each short press the , inform APP to save the current data;...
- Page 6 ● Do not operate the tool in the water and dust, avoid to damage the tool. ● Check the battery regularity, avoid deterioration. ● Remove the battery when not in use for an extended period of time. Technical Specifications Product name ToolSmart Digital Moisture Meter Model TS06 Wood 5~50%...
- Page 7 Key tone function Automatic power saving mode No operation about 20s semi-bright backlight time Auto power off No operation about 3min Bluetooth transmission function Can connect IOS (Iphone and Ipad)、Android platform based on 4.0 device Low battery indication <5.5V Power supply One 9V block battery(6F22 or 6LR6) not included MAX power consumption...
