Summary of Contents for Ford FE1-23

  • Page 2: Table Of Contents

    FE1-23 APPLICATION ............3 DESCRIPTION (FIG. A) ..........3 PACKAGE CONTENT LIST ......... 3 SYMBOLS ..............4 GENERAL POWER TOOL SAFETY WARNINGS .... 4 Work area safety................4 Electrical safety ................4 Personal safety ................5 Power tool use and care ............... 5 Service ..................
  • Page 3 FE1-23 12.3 Flange arrangement when using a straight cutting wheel ..11 OPERATION ............12 13.1 Switching on and off (fig 10) ............. 12 USE ................ 12 14.1 Grinding ..................12 14.2 Splitting (fig 13) ................ 13 CLEANING AND MAINTENANCE ......13 15.1...

  • Page 4: Application

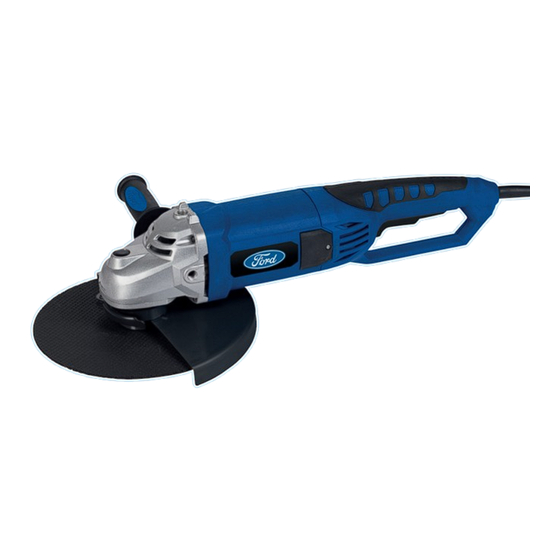

    FE1-23 ANGLE GRINDER 2150W – 230MM FE1-23 1 APPLICATION This machine is developed for cutting, grinding and roughing of metal and stone. With help of the correct accessories the machine can also be used for brushing and sanding. It is not designed for commercial use.

  • Page 5: Symbols

    FE1-23 4 SYMBOLS The following symbols are used in this manual and/or on the machine: In accordance with essential requirements of the European directive(s). Class II - The machine is double insulated; Earthing wire is therefore not necessary. Read manual before use.

  • Page 6: Personal Safety

    FE1-23 Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

  • Page 7: Service

    FE1-23 accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

  • Page 8: Additional Safety Warnings Specific For Abrasive Cutting-Off Operations

    FE1-23 accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

  • Page 9: Further Safety Instructions For All Operations

    FE1-23 wheel binding. d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

  • Page 10: Special Safety Regulations

    FE1-23 positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel. Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel.

  • Page 11: Preparation For Use

    FE1-23 PREPARATION FOR USE WARNING: Prior to assembly and adjustment always switch off the grinder and pull out the power plug from the mains socket. 11.1 Fitting the auxiliary handle (Fig 2) The auxiliary handle (8) can be attached to the angle grinder in three different positions: left, on top and right.

  • Page 12: Flange Arrangements When Using Grinding Wheels And Cutting Wheels

    FE1-23 FLANGE ARRANGEMENTS WHEN USING GRINDING WHEELS AND CUTTING WHEELS 12.1 Flange arrangements when using a depressed centre or straight grinding wheel Backing flange outer flange Fig 7 12.2 Flange arrangement when using a depressed-centre cutting wheel Backing flange outer flange Fig 8 12.3 Flange arrangement when using a straight cutting wheel...

  • Page 13: Operation

    FE1-23 OPERATION 13.1 Switching on and off (fig 10) Attention! Before working with the angle grinder, check that the voltage shown on the machine’s model plate is the same as the mains voltage being used. Before engage the ON/OFF switch trigger, check that the grinding disc is properly fitted and run smoothly, the outer flange is well tightened.

  • Page 14: Splitting (Fig 13)

    FE1-23 14.2 Splitting (fig 13) Great danger of injury! Splinters of splitting disc may be ejected at a very high speed. Do not apply any side pressure to the wheel, as the cutting wheel can jam and burst. Fit the cutting disc.

  • Page 15: Faults

    FE1-23 FAULTS Should a fault occur e.g. wear of a part, please contact your local Ford dealer. TECHNICAL DATA MODEL FE1-23 Voltage / frequency 230V ~50Hz Power input 2150W No-load speed 6500 min Disc diameter 230 mm Spindle dimension NOISE Noise emission values measured according to relevant standard.

  • Page 16: Environment

    FE1-23 We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. Repairs may only be carried out by an authorised customer service centre for FORD tools. You can always obtain more information at the number : 032 2 15 75 75.

  • Page 17: Declaration Of Conformity

    BORUN AGRO CHEMISTRY Ltd, Kvemo Ponichala, Marneuli Street N°44, Tbilisi, Georgia, declares that, Product : Angle grinder 2150W Trade mark : Ford Model : FE1-23 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
