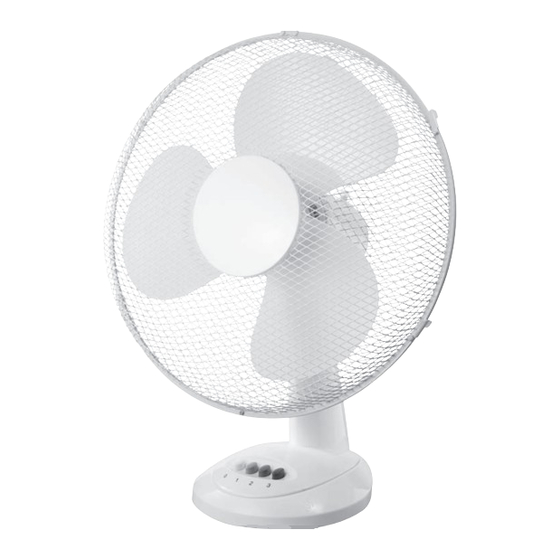

- Page 1 INSTRUCTION MANUAL 40CM DESK FAN...
- Page 2 Contents Guide to the Appliance Caring for the Environment Safety Information and Warnings Items in the Box Assembly and Operation Operation of Your Desk Fan Technical Speci cations Care and Cleaning...
- Page 3 Guide to the Appliance 1. Front safety grille 2. Blade nut 3. Blade 4. Guard locking nut 5. Rear safety grille 6. Motor shaft 7. Motor housing 8. Oscillation clutch knob 9. Stand 10. Speed switch 11. Base 12. Screws Caring for the Environment Responsible disposal of the packaging The packaging of your appliance has been selected from environmentally friendly materials and can...
- Page 4 Safety Warnings Read this Instruction Manual carefully before assembling or operating the appliance and keep it for future reference. If you pass the product on to a third party, include these instructions. When using electrical appliances, basic precautions should always be followed to reduce the risk of re, electric shock and injury to persons, including the following: 1.
- Page 5 17. Do not leave the appliance running or operable in a place where young children or animals could have access to it without supervision. 18. Turn the fan OFF and unplug it from the outlet when it is not in use, when moving fan from one location to another and before cleaning.
- Page 6 Items in the Box Contents included in the box Instruction Manual Main Unit Assembly and Operation Your Desk Fan has been boxed unassembled to minimise packaging waste. Fix the stand(item 9) into the base(item 11) with provided 4 screws. To assemble the safety grille and blade assembly, remove the locking nut (item 4) (by turning it anticlockwise) from the motor housing (item 7).
-
Page 7: Care And Cleaning
Operation of Your Desk Fan Remove the cable tie and unravel the cordset before operation. To adjust the angle of the motor head, securely holding the shaft of the pedestal tube, simply lift or lower the motor head housing, the head will click as it is being adjusted. Press Speed switch button 1 for Low speed, button 2 for Medium speed, button 3 for High speed, and press button 0 to switch the Desk Fan off. - Page 8 M.E.W. (Australia) Pty Ltd. 15 Vaughan Street Essendon Fields, Vic 3041 ACN 152 719 036 After sales support: Aus - 1300 725 885 customercare@gvaproducts.com.au gvaproducts.com.au While every effort has been made in the preparation of this Instruction Manual, the publishers can not be held responsible for the accuracy of the information contained herein or any consequences arising from it.
