Cable Installation

Warning
•
Do not connect USB cable and Ethernet cable at the
same time.
•
Newer NetDisk does not have dip switches on them.
However, NetDisk has the capability of automatically
recognizing NetDisk Mode without the dip switch.
In such case, please skip step 1 (dip switch setting)
from the NetDisk Cable Installation.

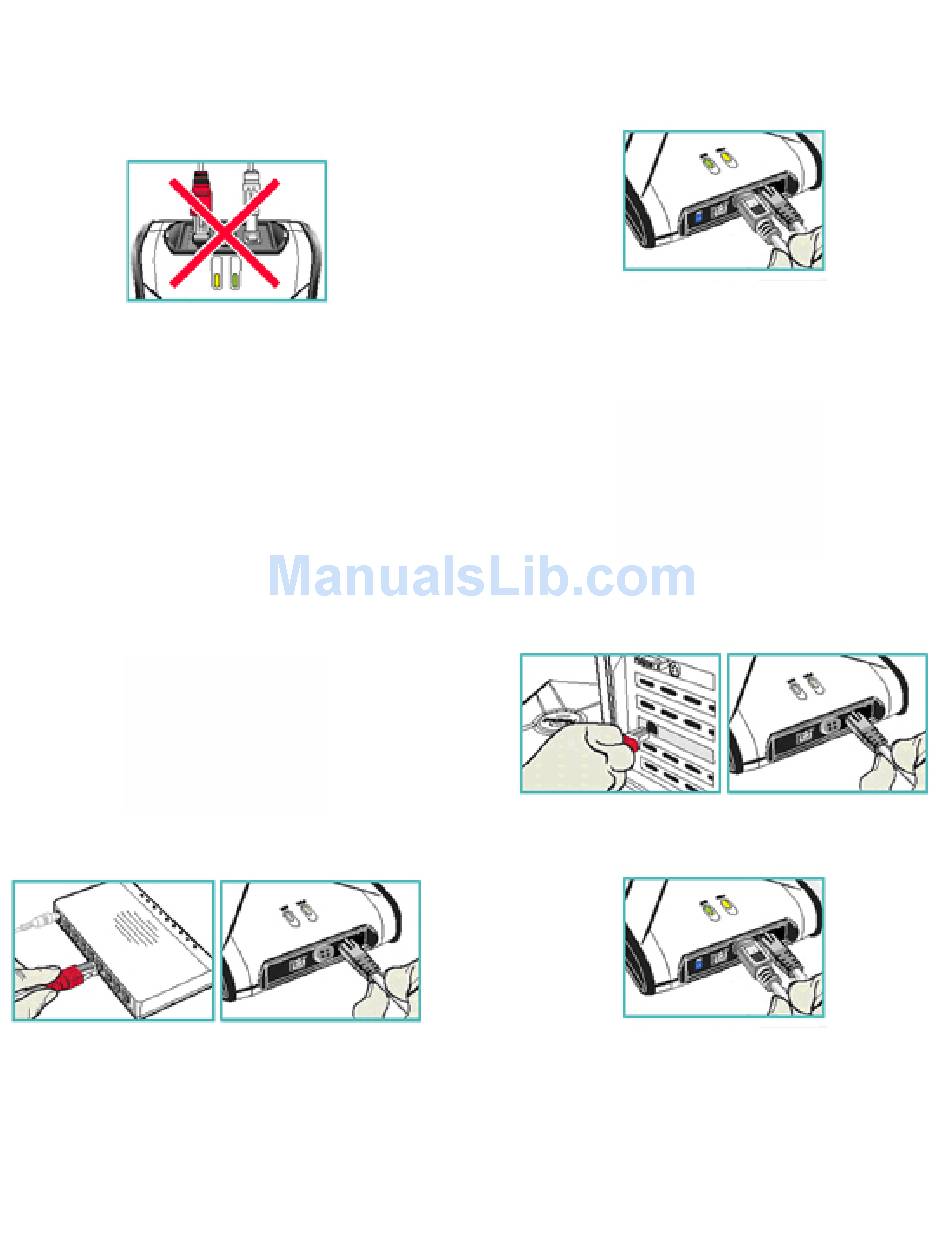

NetDisk Cable Installation
NDAS Mode
•
Flip both dip switches down for NDAS Mode.
•
Connect NetDisk to your switch (100 Base-TX) with
included Ethernet cable (straight through).
•
For wireless users - Connect NetDisk to your
wireless router or access point with included Ethernet
cable.
XIMETA, Inc.
—————————————————————————————————————————————
Network Direct Attached Storage / NDAS
•
Make sure the power connector is connected firmly.
Ethernet Mode
•
Flip both dip switches down for NDAS Mode.
•
Connect NetDisk directly to your PC's Ethernet port
using crossover cable (not included).
•
Make sure the power connector is connected firmly.
