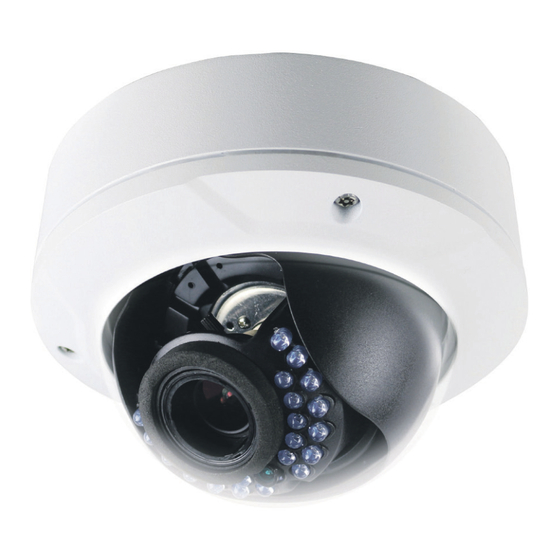

- Page 1 TDV IP 3.0MP Varifocal IR Dome Network Camera Model Item no. TDV IP 301040 triax.com Version...
- Page 2 To prevent fire or shock hazard do not expose the WARNING insides of the unit to rain or moisture. This symbol alerts the user to the presence of important operating and maintenance issues according to the manual. This symbol alerts the user to the presence of uninsulated dangerous voltage within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
- Page 3 TDV IP 3.0MP IR Varifocal Dome Camera Part No. 301040 • 3.0MP (2048 x 1536) High Resolution • 2.8 - 12mm Lens • Full HD 1080p Real-Time Video • IP66 Weather Proof • DWDR & 3D DNR & BLC •...
-
Page 4: Ceiling Mounting
1. Lower Dome 2. Black Liner 3. Reset Button 4. AUX Video Output Interface 5. Serial Port 6. Power Interface 7. Ethernet Interface 8. Adapter Plate 9. Lens Note: Please make sure that the wall is strong enough to withstand three times the weight of the camera. -
Page 5: Axis Adjustment
W (Wide) to obtain the appropriate angle of view. Tighten the zoom lever. Loosen the focus lever and move the lever between F (Far) and N (Near) to obtain the optimum focus. Tighten the focus lever. For detailed instructions please visit www.triax.co.uk... -
Page 6: Specifications
Specifications Camera Image Sensor 1/3” Sensor Min. Illumination 0.07 Lux@F1.2 (AGC On) 0 Lux with IR Shutter Speed 1/25s ~ 1/100,000s Lens 2.8 - 12mm@F1.4, Angle of View 80°~28.7° Lens Mount ɸ14 Auto Iris DC Drive Day & Night Dig. Noise Reduction 3D DNR Wide Dynamic Range Digital WDR Backlight Comp. - Page 7 Weather Proof Rating IP66 Dimensions ɸ140 x 99.9mm (5.5 x 3.9”) Weight 750g (1.7lb) Triax reserves the right to change the specifications without prior notification. Triax accepts no liability in respect of loss arising from errors in changes to the information provided.
- Page 8 Copyright © 2016 TRIAX. All rights reserved. The TRIAX Logo and TRIAX, TRIAX Multimedia are registered trademarks or trademarks of the TRIAX Company or its affiliates. All specifications in this guide are subject to change without further notice. TRIAX A/S | Bjørnkærvej 3 | DK-8783 Hornsyld | Denmark...
