Summary of Contents for Weinmann FW7405M/14

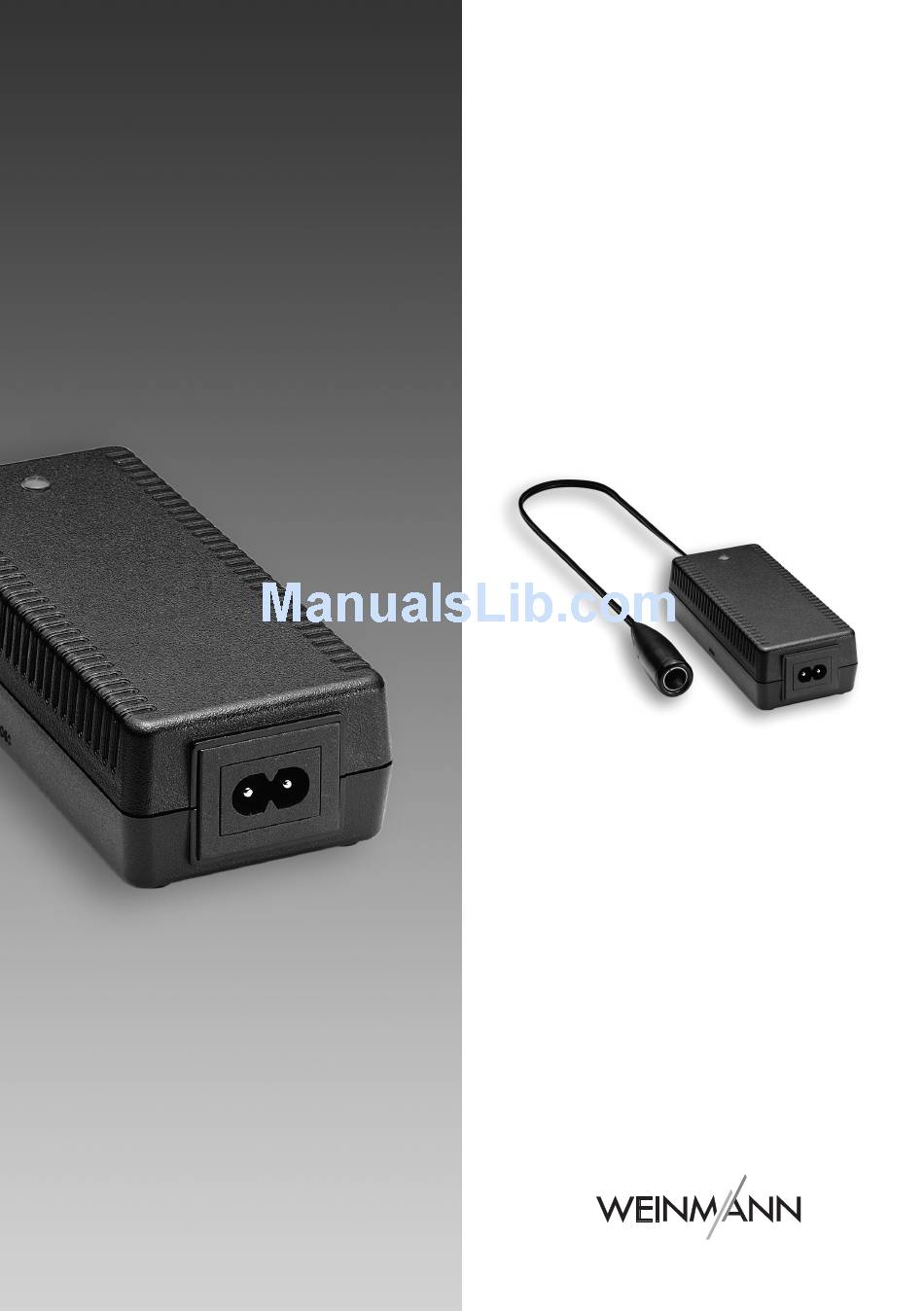

- Page 1 Description and Operating Instructions Mains/charger unit FW7405M/14 WM 2610...
- Page 2 Overview 1 Mains charger 2 Pilot lamp 6 Power supply 3 Adapter cable Negative pole (external Positive pole (internal) 5 Power plug 4 Connecting socket for power supply cable...
-
Page 3: Table Of Contents
3. Unit Combinations ..... . . 7 3.1 Weinmann units..... 7 4. -
Page 4: Description Of Unit
1. Description of Unit 1.1 Intended purpose The mains charger FW7405M/14 is an accessory for medical devices. It can be used to operate or charge units which require a DC voltage of 12 - 13.8 V as the supply voltage. A list of the units permit- ted can be found in „3. -
Page 5: Safety Instructions
The mains charger FW7405M/14 should only be used for the intended purpose described (see "1.1 Intended purpose" on page 4). • Only have repair work carried out by Weinmann or specialist staff. • Please do not use the unit if damaged. Cables, plugs and housings must be in perfect condition. -
Page 6: Special Markings On The Unit
2.2 Special markings on the unit Nameplate Year built Serial number of the unit Input voltage Output voltage CE marking according to 93/42/EEC relating to medical devices Observe operating instructions Protection by use of class II equipment Applied part type CF Only for use indoors Do not dispose of unit as domestic waste Safety Instructions... -
Page 7: Unit Combinations
3. Unit Combinations 3.1 Weinmann units The mains charger FW7405M/14 can be used to operate the following Weinmann units with the optimal supply and charging voltage: Suction pumps: – ACCUVAC – ACCUVAC Basic – ACCUVAC Rescue Emergency respirator: – MEDUMAT Elektronik Modules: –... -
Page 8: Operation
4. Operation 4.1 Start-up 1. Connect the power supply cable to the socket of the mains charger FW7405M/14. 2. Then insert the power plug in a mains socket. Note: Illumination of the pilot lamp 2 indicates that the required DC voltage of 13.8 V has been gen- erated. -
Page 9: Hygiene Treatment
(e.g. house- hold or disposable gloves). Unit The housing, output line and power supply cable of the charger FW7405M/14 are cleaned by being simply wiped over with disinfectant. We recommend TERRALIN for this purpose. 6. Functional Check Each time before use •... -
Page 10: Troubleshooting
Environmental Officer or municipal authorities. 8. Maintenance The mains charger FW7405M/14 is maintenance- free. You should nevertheless perform regular function- al checks (see "6. Functional Check" on page 9). We recommend only having repair work carried out by Weinmann. -
Page 11: Scope Of Supply
9. Scope of Supply 9.1 Standard scope of supply Mains charger FW7405M/14, complete WM 2610 Name Article no. Mains charger FW7405M/14 Power supply cable WM 24133 Operating instructions WM 66036 9.2 Spare parts In order to operate the units listed under “3. Unit Combinations” on page 7 you re- quire the appropriate connecting cables. -
Page 12: Technical Data
10. Technical Data Mains charger Device class as per 93/42/EEC Dimensions WxHxD in mm 130 x 36 x 60 Weight approx. 280 g Temperature range – operation 0 °C to +40 °C – storage -40 °C to +70 °C 100 to 240 V ~, Electrical connection 50 to 60 Hz Power consumption... -
Page 13: Warranty
• Weinmann is not liable for consequential harm caused by a defect if it is not ba- sed on intention or gross negligence. Weinmann is also not liable for minor phy- sical injury to life or limb resulting from negligence. - Page 14 Warranty...
- Page 16 For decades Weinmann has been developing, producing and marketing medical devices for markets around the world. In cooperation with our partners we design economic health systems for diagnosis and therapy in Sleep Medicine, Home Mechanical Ventilation, Oxygen Medicine and Emergency Medicine.
