Topp Music Gear Soho FLX series User Manual

Hide thumbs

Advertisement

Table of Contents

SOHO FLX
FLX 3 / FLX 5 / SOHO S12 FLX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Soho FLX series and is the answer not in the manual?

Questions and answers

Related Manuals for Topp Music Gear Soho FLX series

Summary of Contents for Topp Music Gear Soho FLX series

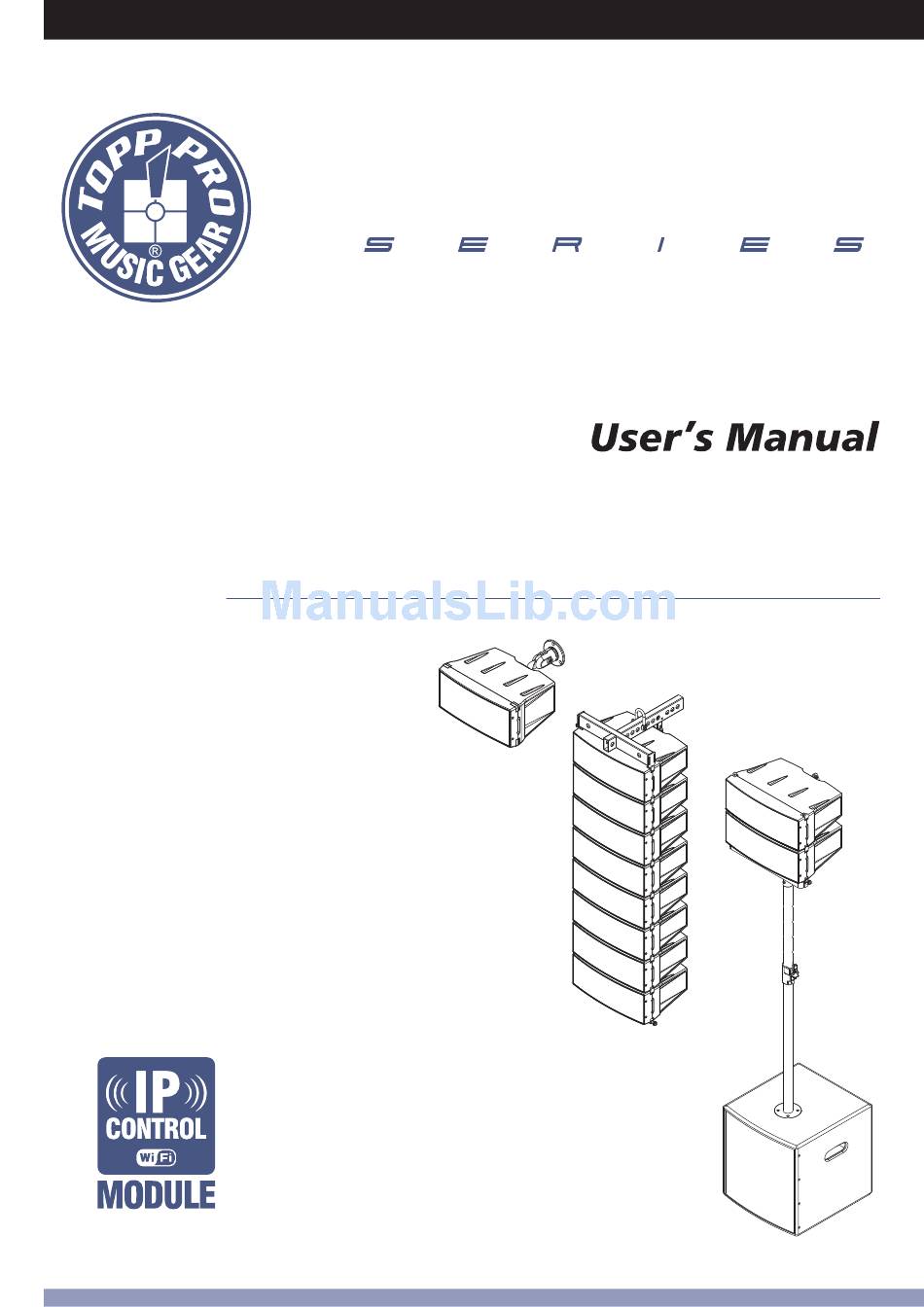

  • Page 1 SOHO FLX FLX 3 / FLX 5 / SOHO S12 FLX...

  • Page 3: Table Of Contents

    1. Introduction 2. Installation Tips 3. Usefull Data 4. Quick Start 5. Satellite Layout of The Connector Panel 6. Satellite Back Panel Description 7. Satellite Down Connection 8. Satellite Up Connection 9. Subwoofer Back Panel Description 10. Technical Specifications 11. System Connection Plate 12.

  • Page 4: Introduction

    Introduction Thank you for choosing TOPP PRO. The new TOPP PRO ARRAY SERIES cabinets have been designed to provide a cost effective high grade solution while maintainig high quality cabinet construction and optimum components. The array series, can be used for all types of applications including, but not limited to, churches, conference centers and discos.

  • Page 5: Quick Start

    Quick Start When mounting a speaker onto any stand, always ensure that the stand is on a flat, level sur-face, with the legs fully extended. Be sure to check that the maximum load weight for the stands is greater than the weight of the ARRAY SYSTEMS loudspeaker. Never use a stand with a maximum load weight lower than the speaker.

  • Page 6: Satellite Layout Of The Connector Panel

    Satellite Layout of The Connector Panel One module The direction of the bracket can be adjusted from any side. More module Versatile mounting options Compared to many other speaker designs, the satellite Series is remarkably easy to install in several ways. It can be hung easily with chains, strong wires and cables using the accessory brackets.
  • Page 7 Satellite Layout of The Connector Panel Connect Manner Align two units to make the latch hole in the same line. Insert the latch and lock the screw tightly. Adjust the angles of the unit (seven angles: 0° -1.5° -3.0° -4.5° -6.0° -8.0° -10° for FLX 3,nine angles: 0°...
  • Page 8 Satellite Layout of The Connector Panel Small Array Configuration This is an example of the HFC application with two Satellite’s in a small array, Do not stack more than two Satellite speakers on the pole. NOTE: Be sure to lock the two speaker cabinets with the original hardware. Suspension Safety Warning Research and understand the local regulations and requirements of the country where you intend to install the line array.
  • Page 9 Satellite Layout of The Connector Panel Bracket Angles 0° angles for FLX 3 angles for FLX 5 (10° 8° 6° 3° 0° -3° -6° -8° -10°) (12° 9° 6° 3° 0° -3° -6° -9° -12°) bracket Angles angles for FLX 3 angles for FLX 5 (0°...

  • Page 10: Satellite Back Panel Description

    Satellite Back Panel Description FLX 3 1) INPUT: Receive the power coming from an external power amplifier. 2) PARALLEL: power output for another product to parallel, parallel and input are link. 3) SERIES: Power output for another satellite speaker to series. 4) Slide Switch: Parallel or Series Transform Switch a.

  • Page 11: Satellite Down Connection

    Satellite Down Connection (FLX 3) INPUT 1 Module.array. (8.ohms) INPUT Module 1: 2 Module.array. (4.ohms) Module (1-2): INPUT 4 Module.array. (8.ohms) Module (1-3): INPUT 6 Module.array. (5.33.ohms) Module (2-4): Module (1-3-5): INPUT 8 Module.array. (4.ohms) Module (2-4-6): Module (1-3-5-7): Module (2-4-6-8): - Power output for satellite speaker down connection...

  • Page 12: Satellite Up Connection

    Satellite Up Connection (FLX 3) INPUT INPUT INPUT INPUT INPUT INPUT 1 Module.array. (8.ohms) INPUT Module 1: 2 Module.array. (4.ohms) Module (1-2): INPUT 4 Module.array. (8.ohms) Module (1-3): INPUT 6 Module.array. (5.33.ohms) Module (2-4): Module (1-3-5): INPUT 8 Module.array. (4.ohms) Module (2-4-6): Module (1-3-5-7): Module (2-4-6-8):...

  • Page 13: Subwoofer Back Panel Description

    Subwoofer Back Panel Description (1) AC POWER SOCKET WITH MAIN FUSE. (2) ON-OFF MAIN POWER SWITCH. (3) IP CONTROL (4) Preset Selector: FLX 3 / FLX 5 / User (Custom Sound) FLX 3: Allow use this subwoofer with the 2 speaker satellite. Defaults Factory preset FLX 5: Allow use this subwoofer with the 2 speaker satellite.

  • Page 14: Technical Specifications

    Technical Specifications FLX-3 Model System Type 3" 2-way Passive System Output Power 40W Continuous , 80W Program Sensitivity (1W/1M) 90dB Maximum SPL @ 1m 106dB Max.(calauated) Frequency Response 100Hz-20kHz (-10dB) Impedance 8 ohms Transducer Low 2 x 3'' Woofer , 0.75'' (19mm) Voice Coil Transducer High 3xΦ13mm (V.C) Neodymium Tweeter Crossover Frequency...
  • Page 15 Technical Specifications SOHO S12 FLX φ 1 x 12", 320mm-2.5" Voice Coin 700 W Continuous /1400 W Program/2800 W Peak Class-D@4ohms 350 W Continuous /700 W Program/1400 W Peak Class-D@4ohms 350 W Continuous /700 W Program/1400 W Peak Class-D@4ohms 96dB / 130dB Max...

  • Page 16: System Connection Plate

    System Connection Plate Make your initial connections with all the equipment powered off, and ensure that all the main volume controls are turned completely down. Two Active Subwoofers & Two Passive Satellite Speakers 1) Connect one side of the signal cable to the output of your mixer (left / right) with a TRS or XLR connector and the other side of the cable to the line input (combo) in the active subwoofer (with a TRS to XLR connector).
  • Page 17 System Connection Plate Satellite Satellite Line Line Input Input Subwoofer Subwoofer Mixer...

  • Page 18: Wire Connections

    Wire Connections Either the 1/4" TRS phone jack or XLR connector can be wired in balanced and unbalanced modes, which will be determined by the actual application status, please wire your system as the following wiring examples: The series speaker connections are made via the rear panel 1/4" and/or Speakon connectors for easy interface with industry standard cables.

  • Page 19: Guarantee

    Guarantee...

  • Page 20: Notes

    Notes...
