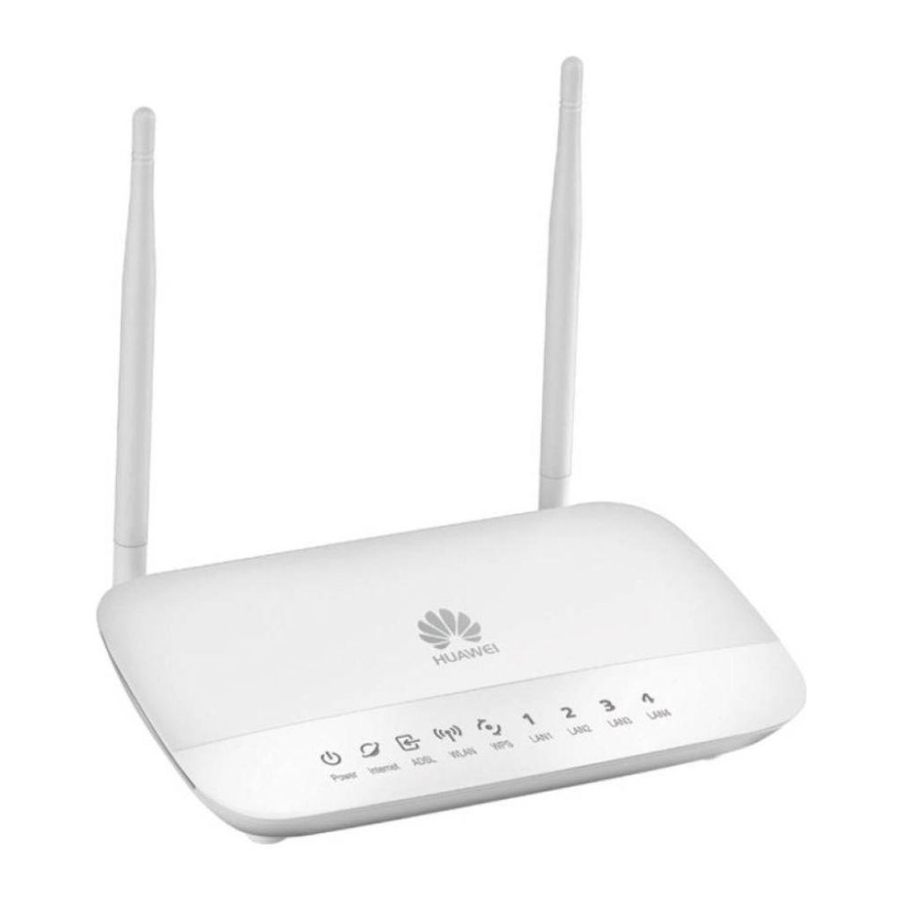

HG532d Home Gateway

User Guide

HUAWEI TECHNOLOGIES CO., LTD.

Advertisement

Table of Contents
loading

Related Manuals for Huawei HG532d

Summary of Contents for Huawei HG532d

  • Page 1: User Guide

    HG532d Home Gateway User Guide HUAWEI TECHNOLOGIES CO., LTD.
  • Page 2 User Guide Issue Date 2012-12-31 Part Number 202563 Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang...
  • Page 3 Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation.

  • Page 4: Table Of Contents

    1 Warnings and Precautions ............1 2 Connecting the Cables and Getting Started ........8 2.1 Connecting Cables ................ 8 2.2 Powering On the HG532d ............. 9 3 Setting Network Access Parameters ..........9 3.1 Logging In to the Web-Based Configuration Utility ......9 3.2 Configuring a Wireless Account ...........

  • Page 5: Warnings And Precautions

    1 Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device" refers to the device and its accessories. Basic Requirements During storage, transportation, and operation of the device, keep it dry and prevent ...
  • Page 6 During thunderstorms, power off the device, and then remove all the cables  connected to it to prevent it from getting damaged due to lightning strikes. Precautions for Using Wireless Devices When using the device, ensure that the antenna of the device is at least 20 cm away ...
  • Page 7 Safety of Children Keep the device and its accessories out of the reach of children. Otherwise, they may damage the device and its accessories by mistake, or they may swallow the small components of the device, causing suffocation or other dangerous situations. Maintenance If the device is not used for a long time, power it off, and then remove all the cables ...
  • Page 8 съответства на основните изисквания и другите разпоредби на Директива 1999/5/EC. Česky: Huawei Technologies Co., Ltd., tímto prohlašuje, že toto zařízení je ve shodě se základními požadavky a dalšími souvisejícími opatřeními směrnice 1999/5/EC. Dansk: Huawei Technologies Co., Ltd. erklærer hermed at denne enhed er i overensstemmelse med de obligatoriske krav og andre relevante bestemmelser i direktiv 1999/5/EF.
  • Page 9 Magyar: Jelen nyilatkozaton keresztül a Huawei Technologies Co., Ltd. kijelenti, hogy a készülék megfelel az EC/5/1999 Irányelv összes lényeges követelményének és vonatkozó előírásának. Gaeilge: Fograíonn Huawei Technologies Co., Ltd leis seo go bhfuil an fheiste seo i gcomhlíonadh leis na fíor-riachtanais agus na forálacha eile maidir le Treoir 1999/5/AE.

  • Page 10: Fcc Statement

    Notice: Observe the national local regulations in the location where the device is to be used. This device may be restricted for use in some or all member states of the European Union (EU). Notice: This device can be operated in all European countries. Norway: This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund.
  • Page 11 Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC - PART 68 This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.

  • Page 12: Connecting The Cables And Getting Started

    HG532d). 2.1 Connecting Cables The following figure shows an example of how to connect the cables. In this example, the HG532d is connected to a desktop computer, a laptop computer, and a telephone. 1. Telephone wall jack 2. Power adapter 3.

  • Page 13: Powering On The Hg532D

    40 seconds to 3 minutes. When the ADSL indicator stops blinking and remains on, indicates that the HG532d is working correctly. To power off the HG532d, press the On/Off button on the side panel, and then unplug the power adapter.

  • Page 14: Configuring A Wireless Account

    3.3 Configuring a Dial-Up Connection for Internet Access The HG532d works in bridge mode by default. To set up a dial-up connection for Internet access, you must install and configure PPP dial-up software. The following example uses a computer running the Windows XP operating system...

  • Page 15: Setting Up A Wireless Connection

    For details, see the installation guide provided by the vendor of your wireless adapter. The wireless network function is enabled on the HG532d before delivery. To check the function status, see section 4.2 "Enabling or Disabling the Wireless Network Function".

  • Page 16: Setting Up A Wireless Connection Using The Wps Button

    Step 2 Within 2 minutes, enable the WPS negotiation function on the computer. Wait for a while. The WPS indicator of the HG532d stops blinking and remains on, indicating that a wireless connection is set up between the HG532d and the computer.
  • Page 17 You need to set up a wireless connection only once. Then you can access the wireless network anytime you want as long as that the wireless network name and password are not changed. When the HG532d is working properly, your computer connects to the HG532d automatically after its wireless function is enabled.

  • Page 18: Configuring The Hg532D

    There are two methods for enabling or disabling the wireless network function. Using the WLAN Button To enable or disable the wireless network function, press the WLAN button on the side panel of the HG532d. The WLAN indicator indicates the status of the wireless network function.

  • Page 19: Using The Web-Based Configuration Utility

    You must remember the wireless network name and password you set. You will be prompted to enter this password when connecting wireless devices, such as a computer, to the HG532d's wireless network. Connection to the HG532d's wireless network fails if you enter an incorrect password.

  • Page 20: Restoring Default Settings

    Reset button on the rear panel for over 6 seconds, and then release the button. You can also do the following to restore the HG532d to its default settings from the web-based configuration utility: Step 1 Log in to the web-based configuration utility.

  • Page 21: Faqs

    How can I quickly restore the HG532d to its default settings? To restore the HG532d to its default settings, press and hold the Reset button on the HG532d's rear panel for over 6 seconds when the HG532d is powered on, and then release the button.
  • Page 22 Step 7 Check that you can use the PPP dial-up software to set up dial-up connection. If the dial-up connection fails, perform further checks as follows: 1. Close the PPP dial-up software, and power off the HG532d. After 5...
  • Page 23 LAN (These settings will not apply to dial-up or VPN connections). check box is cleared. Step 9 Try to access more websites to check whether the HG532d can access these websites. If the problem persists, contact your network service provider.
  • Page 24 For details, see "How can I quickly restore the HG532d to its default settings?" What can I do if I cannot access the Internet over a wireless connection? Step 1 Check that all cables are securely connected, such as the power adapter cable and the telephone line.
  • Page 25 Step 9 Try to access more websites to check whether the HG532d can access these websites. If you still cannot access the websites, restore the HG532d to its default settings. If the problem persists, contact your network service provider.
  • Page 26 SSID is set to SSID1. It is recommended that you set the security mode to WPA-PSK/WPA2-PSK. What can I do if I cannot set up a wireless connection between the HG532d and the computer by pressing the WPS button? Step 1 Check that only one computer tries to connect to the HG532d using the WPS function at a time.

  • Page 27: Technical Specifications

    The HG532d is powered off or faulty. Internet Blinking  The HG532d is working in routing mode, and it is connected to the Wide Area Network (WAN).  Data is being transmitted.  The HG532d is working in routing mode, and it is connected to the WAN.
  • Page 28 The wireless function is disabled, or the WLAN module is faulty. Blinking  The HG532d is connecting to a wireless client such as a computer installed with a wireless network adapter using the WPS function.  This process lasts no longer than 120 seconds.

  • Page 29: Ports And Buttons

    Reset Restores the HG532d to its default settings. To restore the HG532d to its default settings, press and hold the Reset button for over 6 seconds. After the HG532d is restored to its default settings, all user customized data will be lost.

  • Page 30: Default Settings

    Password for web-based user configuration utility login Wireless network name See the label printed on the HG532d's rear (SSID) for wireless panel. connection Password (WLAN Key) See the label printed on the HG532d's rear for wireless connection panel.
  • Page 31 Item Specifications Standards ADSL  ITU G.992.1 (G.dmt) Annex A standards  ITU G.994.1 (G.hs)  ANSI T1.413 Issue 2 ADSL2  ITU G.992.3 (G.dmt.bis) Annex A standards  ITU G.992.3 (G.dmt.bis) Annex L  ITU G.992.3 (G.dmt.bis) Annex M ADSL2+ ...
  • Page 32 HUAWEI TECHNOLOGIES CO., LTD. Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China www.huawei.com...
