GREEN SERIES FITNESS CIR-RB7000E-G1 Owner's Manual

Full commercial recumbent bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

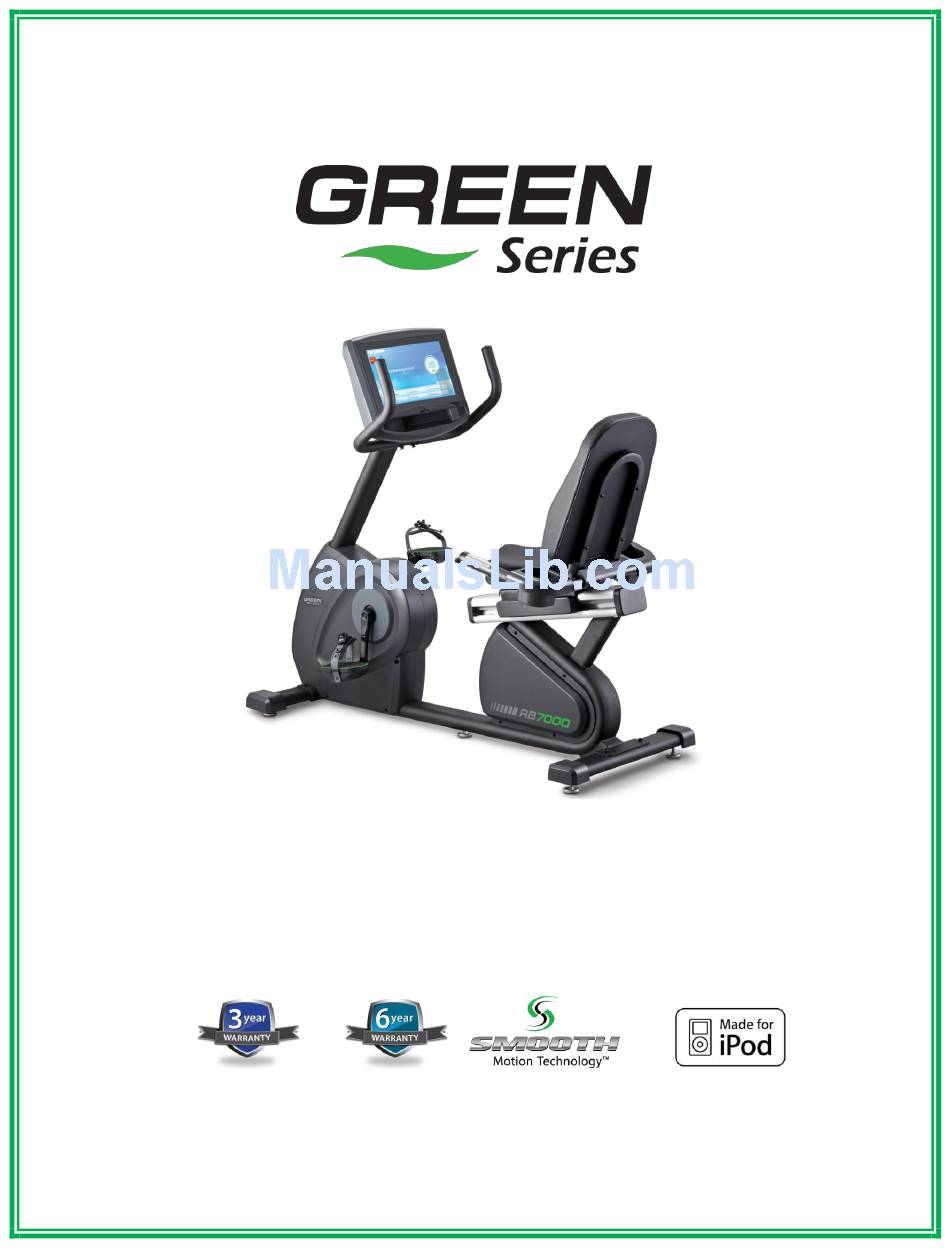

Owner's Manual
CIR-RB7000E-G1
Full Commercial Recumbent Bike
Full Commercial
Light Commercial
Install Date: _________________________
Serial Number: ________________________
www.GreenSeriesFitness.com
©April 2017
Call Toll free at (800) 269-7130
CIR-RB7000E-G1
Revision 1.0
John C. Jensen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIR-RB7000E-G1 and is the answer not in the manual?

Questions and answers

Related Manuals for GREEN SERIES FITNESS CIR-RB7000E-G1

Summary of Contents for GREEN SERIES FITNESS CIR-RB7000E-G1

  • Page 1 Owner's Manual CIR-RB7000E-G1 Full Commercial Recumbent Bike Full Commercial Light Commercial Install Date: _________________________ Serial Number: ________________________ www.GreenSeriesFitness.com ©April 2017 Call Toll free at (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 2: Table Of Contents

    DOWN ……………………………………………………….….…………………….…….30 SETTINGS ………………………………………………………………………….………31 WiFi and TV PROGRAMS ……………………………………………….……………………….…..32-42 Control panel function and programs OPERATION …………………………………………………………………….…..…43-44 CARE & MAINTENANCE ……………………………………………………………...…....45 PARTS ……………………………………………………………………………….……..46 EXPLODED DRAWINGS ……………………………………………………….…….47-49 WARRANTY ……………………………………………………………………..…..50-52 www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 3: Safety Precautions

    These spacing recommendations should be used when positioning equipment away from sources of heat, such as radiators, heat registers, and stoves. Avoid temperature extremes. 12” 300mm 24” 24” 24” 600mm 600mm 600mm 79” 2000mm www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 4 ‧ The unit is designed to function in an environment with an ambient temperature range of 50°F (10°C) to 104°F (40°C). The unit can be shipped and stored in an environment with an ambient temperature range of 32°F (0°C) to 140°F (60°C). www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 5 Sustained exercise conditions your heart, lungs and muscles. The longer you are able to sustain exercise within your target heart range, the greater the aerobic benefits. To begin maintain 2~3 minutes of steady, rhythmic exercise, then check your heart rate. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 6: Technical Specifications

    Weight of product：89kg Program: 6 Preset Programs, 3 Goal, 4 HRC, Physical Test, Virtual GO Standard features: Time, Speed, Incline, Heart Rate, Distance, Calories, Program Profile www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 7 X 1pc X 1pc #3-5 #5-30 #5-7 #5-6 #5-5 #3-13 #3-10 Console set Console upright tube Pedal with strap X 1pc X 1pc X 1set #3-12 www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 8 X 1pc #5-20 #5-23 #5-25 #5-26 #5-21 Backrest rear cover Water bottle holder Left/ Right track cover Lower handlebar X 1pc X 1set X 1pc X 1pc www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 9: Hardware Kit

    UNPACKING & ASSEMBLY Hardware Kit #5-14 #5-15 #5-16 #5-10 #5-18 #5-19 #5-19 #5-37 #5-24 #5-18 #5-19 #5-24 www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 10 UNPACKING & ASSEMBLY Hardware kit #5-27 #5-28 #1-10 # 5-34、5-36 Adjust lever Recline Handle Adjust pad Recline Lever #1-34 Non-slip sticker www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 11: Assembly

    3). Using (2) M8x20mm screws and (2) and washers, fix the rear base tube with the main frame. (The wheel of the back affixed poles should not make any difference of forward or backward.) #5-1 #5-2 #5-3 #5-10 #5-4 Allen wrench (6mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 12 1). Use provided wrench(15mm) to clockwise fix right pedal set to crank set. 2). Use provided wrench(15mm) to counterclockwise fix left pedal set to crank set. #5-6 #5-5 Wrench (15mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 13 1). Please take off pre-lock screws on the mast cover. 2). Please take off pre-lock screws on the mast main frame. Allen wrench (6mm) Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 14 1).Take front cover joint into handle bar post. 2).Take the console wire, heart rate wire, AIR wire and CABLE wire through handle bar post. #5-7 #5-8 www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 15 2). Use Allen wrench (5mm) to lock (4) M8x20mm screws and (4) M8 flat washers on the both sides of mast. #5-9 #5-44 #5-43 #5-41 #5-9 #5-3 #5-41 #5-3 Allen wrench (6mm) Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 16 Step 6: Assemble Main Frame and Handle Bar Post. 1). Use Allen wrench (5mm) to lock (2) M4x15mm screws on the cover of mast. #5-11 Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 17 3). Use Allen wrench (6mm) to lock (4) M5x12mm screws on the console mast. Upper console wire #5-30 CABLE wire Upper handle pulse wire #4-30 Lower console wire Lower handle Allen wrench pulse wire (6mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 18 S washers, (2) M8 arc washers, (1) M8x15mm screw, (1) M8 S washer for fixing the handlebar to the mast. #5-12 #5-13 #5-14 #5-44 #5-15 Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 19 2). Place the backrest to the main frame, use Allen wrench (8mm) to lock on (6) M10x25mm screws, (6) M10 S washers for attaching the backrest to the main frame. #5-33 #5-31 #5-32 Allen wrench (8mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 20 3).Place the hand pulse wire of lower handlebar through the hole and connect to the one on the backrest frame. #5-20 #5-14 #5-44 Allen wrench (6mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 21 1). Place the seat bottom to the backrest, use Allen wrench (6mm) to lock on (4) M6x45mm screws, (4)pcs M6 S washers for attaching the seat cover to the backrest. #5-16 #5-17 #5-18 Allen wrench (4mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 22 1). Use Allen wrench (4mm) and wrench (10mm) to lock on (2) M6 nuts, (2) M6 S washers for attaching the Adjustable Lever to the Seatback. #5-34, 5-36 #5-35 #5-18 Allen wrench (4mm) Wrench (10mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 23 1) Assemble the seat frame cover to the lower handlebar, use Allen wrench (5mm) to lock on (2) M4x12mm screws, first lock the upper one and then lower one. #5-37 #5-22 Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 24 1). Put the seatback cushion to the backrest frame, use Allen wrench (4mm) to lock on (4) M6x45mm screws and (4) M6 S washers for fixing the seatback cushion to the backrest frame. #5-19 #5-17 #5-18 Allen wrench (4mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 25 2). Put the right bottle holder into the lower handlebar, use Allen wrench (5mm) to lock on (2) M4x12mm screw for fixing the right bottle holder to the lower handlebar. #5-21 #5-22 Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 26 1). Use Allen wrench (5mm) to lock on (2) M4x10mm screw for fixing the backrest rear cover to the seat set. #5-23 #5-24 Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 27 2). Use Allen wrench (5mm) to lock on (2) M4x10mm screws for fixing the right track cover to the seat set. #5-26 #5-25 #5-24 Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 28 Step 18: Assemble Seat Adjust Lever and Seat Set. 1).Use Allen wrench (3mm) to lock on (2) M4x18mm screws for fixing the adjust lever to the seat set. #5-27 #5-28 #5-29 Allen wrench (3mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 29 Step 19: Assemble Adjust Pad and Main Frame. 1). Left up the main frame. 2). Fasten the adjust pad under the main frame. #1-10 Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 30 Step 19: Assemble Adjust Pad and Main Frame. 1). Left up the main frame. 2). Fasten the adjust pad under the main frame. #1-10 Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 31: Warm Up & Cool Down

    Keep your right leg straight and the left foot on the floor; try to stretch your right hand toward the toe, hold this posture for 15 seconds. Relax, and then repeat the action for left leg. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 32: Settings

    2. Press the Green Series logo for 5 seconds to enter engineering mode. Select TV and choose MENU, press the UP/Down button to AUTO TUNING then press OK to start SCAN TV channel. (For European Countries, before scan please choose your located country). www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 33: Programs

    2.1.1 Resistance adjustment: Use slide bar or handle button to adjust resistance. Touch screen again and showing “v” to confirm resistance. Or change by UP/DOWN button. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 34 Puts elliptical into Cool Down mode. Cool Down time is dependent on the Cool Down length of the workout. After 5 min end of cool down. 2.1.1. SPORT Mode： 2.1.1.1. PROFILE：shows workout information and graphic www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 35 PROGRAMS 2.1.1.2. LAP: Shows workout information via Lap 2.1.1.3. SIMPLE: Shows simple workout information. Press arrow to change display from side to main display. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 36 8Pin-Lightning, but some function may not able to operate. Note 2 . Few Android device do not support music select function but able to charging. Un-locked Android device before connecting. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 37 Screen, press button on top of the screen to show workout information. Information will disappear after 3 seconds. Also able to adjust Resistance and Watts from Handle Bar Resistance Level Control or Slide Bar. 2.1.5. BULLETIN BOARD：Information about club news and courses. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 38 2.3.1.2. Enter the desired workout length using the NUMBER KEYPAD and press ENTER. 2.3.1.3. Enter the desired intensity level using the QUICK KEY choose EASY, MEDIUM, HARD. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 39 AEROBIC: Set 75% of your maximum heart rate, program will adjust the intensity to reach the target heart rate. 2.6.1.3. PERFORMANCE: Set 85% of your maximum heart rate, program will adjust the intensity to reach the target heart rate. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 40 2.7.2. Choose Physical Test by selecting the physical test workout button and press GO to begin the workout. 2.7.2.1. Weight：Enter user weight by NUMBER KEYPAD 2.7.2.2. Age：Enter user age by NUMBER KEYPAD 2.7.2.3. Gender: Select gender by press MALE or FEMALE. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 41 INTER ACTIVE set up: INTER ACTIVE ON - elevation change according to video/ INTER ACTIVE OFF - elevation adjust manually. Note: Change video during workout, inter active set up will turn INTER ACTIVE OFF. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 42 2.9.3. Bulletined Board: Review AD and Classes information. Same as Bulletined Board in Quick Start Mode. 2.9.4. Internet ICONs：Preset webpage link from treadmill, press the ICON and directly open the webpage. Same function as INTERNET at QUICK START MODE. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 43: Programs

    As a general rule you should be able to reach the pedal with your heel when straightening your leg and aligning it with the pipe supporting the seat. ‧Body position Your handlebars should be set to a position in which you can reach them with slightly bent arms. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 44: Operation

    D. The transportation wheels on the front foot caps allow for easy maneuvering. Simply pull back on the handle bars until the wheels touch the floor. Then roll the unit to a desired location. Draw www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 45 Saving and Software Updated 2.Cell Phone Music iOS Compatible: Supported i -Phone 4S, Android compatible: i -Phone 4, Cell Phone support i -Phone 3GS i -Pod touch Generation www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 46: Preventative Maintenance

    " 0 ", then redoing the test. Don't do this test while running. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 47: Parts

    S washer M10 3-21 Bolt M5x10mm 3-22 Nylon nut M8 Bolt M8x25mm 3-23 3-24 Spring 3-25 M8 washer 3-26 Bolt M8x15mm 3-27 Bolt M4x10mm 3-28 Bolt M6x8mm www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 48: Exploded Drawing

    EXPLODED DRAWING www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 49 EXPLODED DRAWING (CONSOLE SET) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 50: Exploded Drawings

    EXPLODED DRAWING (CONSOLE MAST SET) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...

  • Page 51: Limited Warranty

    The warranty and remedies set forth below are exclusive and in lieu of all others, oral or written, expressed or implied. No reseller, agent or employee is authorized to make any modification, extension or addition to this warranty. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 52 13. GREEN SERIES™ makes no warranty either expressed or implied regarding third-party (non-GREEN SERIES™) installed parts, accessories or modifications. 14. All GREEN SERIES™ equipment shall be properly cleaned and cared for in accordance to the procedures outlined the in the owner’s manual. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
  • Page 53 ➢ By using this product, I indicate that I understand and agree to the terms of this warranty. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-RB7000E-G1 Revision 1.0 John C. Jensen...
