Description

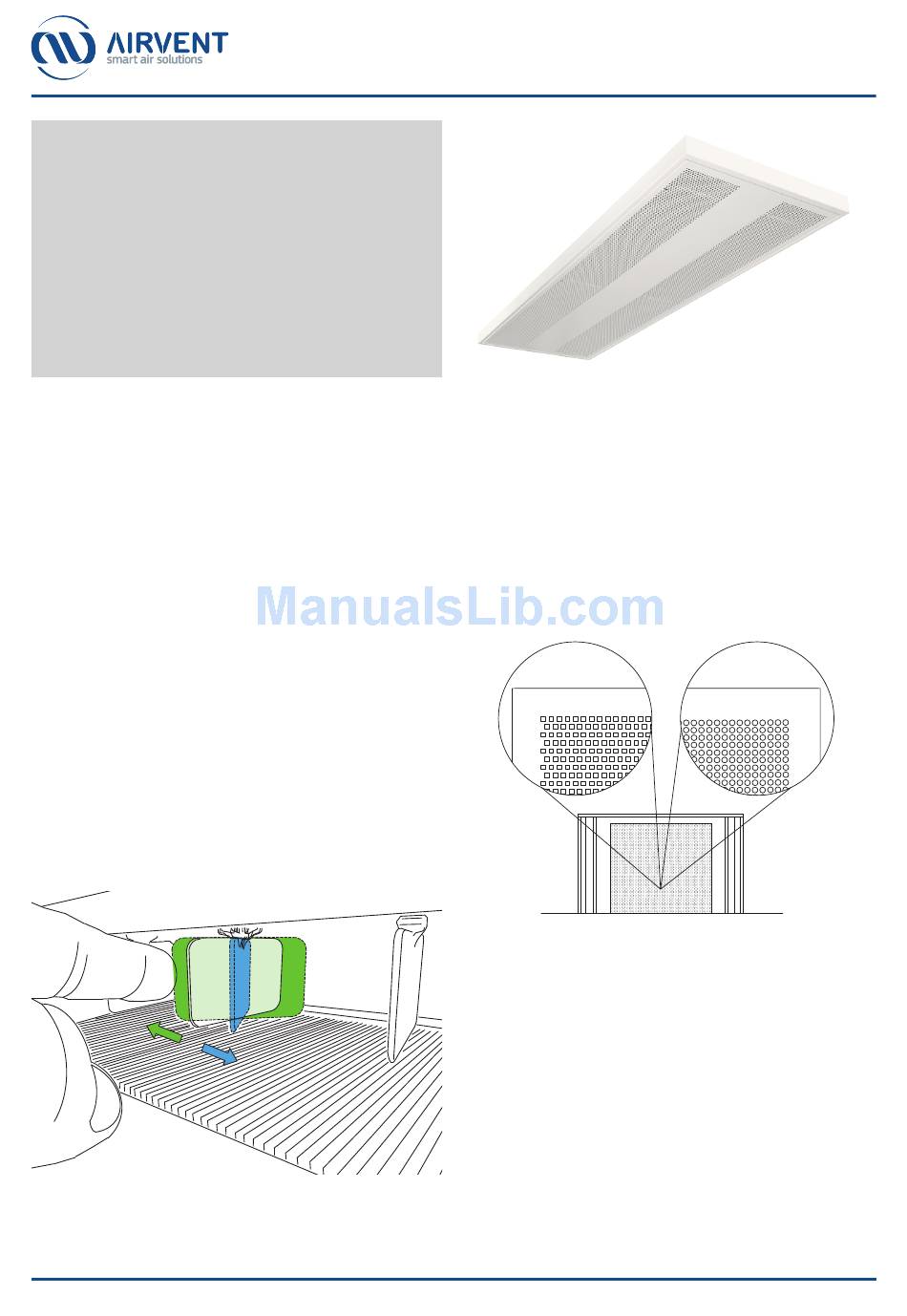

The FreeAir active chilled beam is a two-way induction type
air-conditioning unit that is designed for exposed installation,
mounted directly against the ceiling. It is suitable for ventila-
tion, cooling and heating. The primary air from the air han-
dling unit is injected through the specially shaped nozzles and
discharged into the room along the ceiling. Causing induction
of the room air to flow through the cooling and/or heating
coil, which then mixed with the primary air flows back into the
room through the linear slot openings on the two sides of the
beam. The conditioned/mixed air discharged along the ceiling
provides the optimal coanda effect which is always the objec-
tive when the occupied zone requires low air velocities.
Air duct connection: Ø100 mm
AirFlex- adjustable air deflectors
FreeAir is equipped with AirFlex air deflectors, which can be
manually and individually adjusted on each side of the air
slots, as a standard option. AirFlex allows the operator to easily
adjust the direction and throw distance of the discharged
conditioned air. With the fine-tuning capabilities of the AirFlex
deflectors, a highly flexible, pleasant and draft-free indoor
climate can be achieved.
AirFlex
- Less risk of draft
- Shorter throw length
- Individually adjustable
15-12-04
Materials
The duct and plenum air box are made of galvanized steel.
The visible front plate and side panels are powder coated
sheet steel painted in standard white RAL 9003 colour (or
in any other RAL colour requested by the customer). The
heat exchanger fins are made of aluminium, and the pipes
are made of copper. The AirFlex air deflectors are made of
polyamid plastic. Square or circular perforation as standard
options.
Airvent reserves the right to change specifications.
www.airvent.eu
Square or circular perforation as standard options
