Summary of Contents for Airvent FreeAir

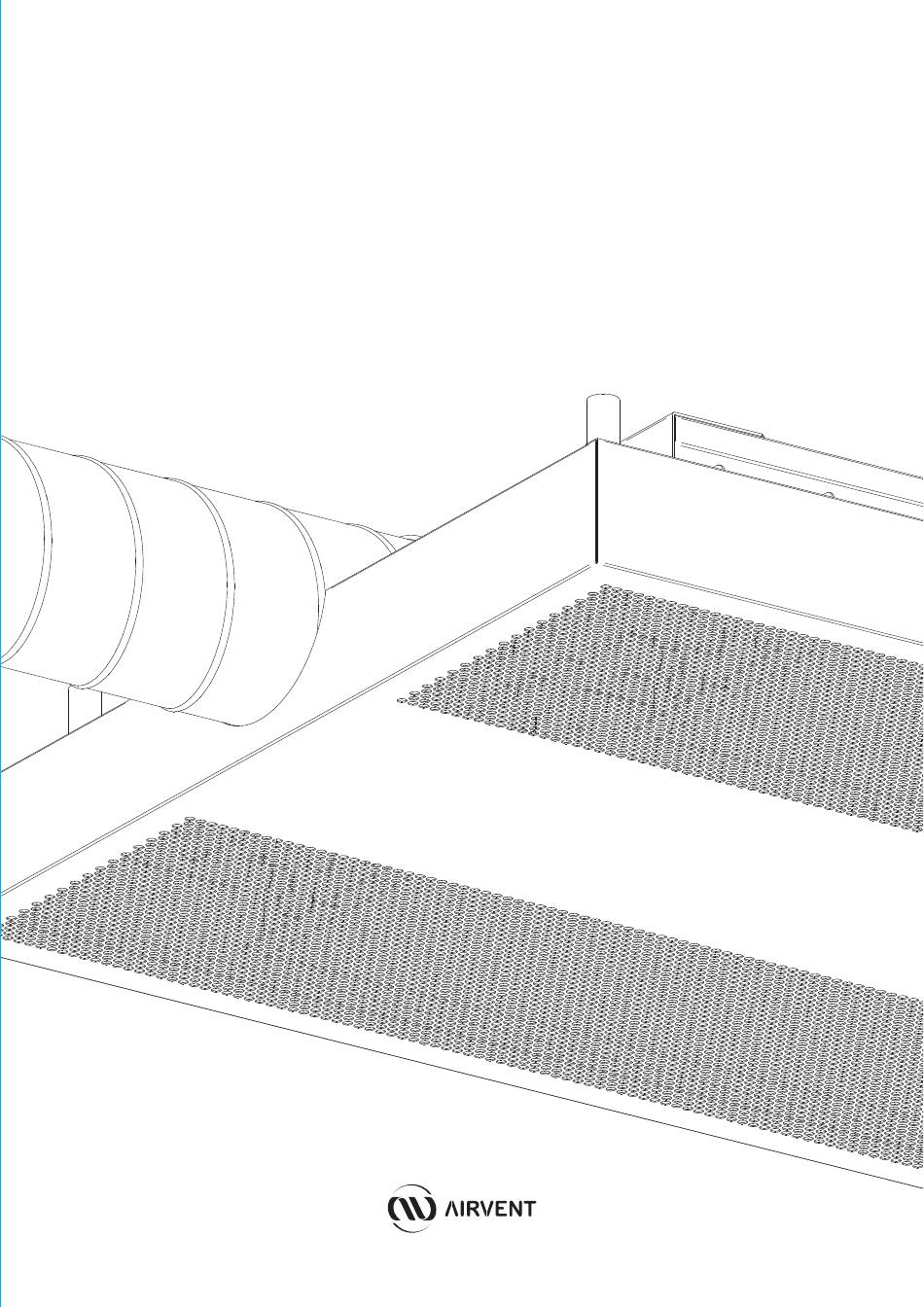

- Page 1 FreeAir Active chilled beam for exposed installation Manual...
-
Page 2: Table Of Contents
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4 FreeAir – Active chilled beam for exposed installation – Manual | Eng, 02/12/2024 | C V17 . ID V2 . -
Page 3: Transportation
.airvent . e u Transportation Safety precautions Protective gloves We recommend wearing protective gloves during the installation and maintenance of the product to avoid potential injuries . Required personnel and tools The following number of persons are required for the transportation of the product . -
Page 4: Packaging
FreeAir – Active chilled beam for exposed installation – Manual Packaging The right packaging materials have been chosen in order to protect the product against various external impacts . For shorter products with a front panel without division, there is a 5 mm cardboard sheet between the front panel and the frame (See: Figure 02) . -
Page 5: Front Panel
.airvent . e u Front panel Safety precautions Protective gloves We recommend wearing protective gloves during the installation and maintenance of the product to avoid potential injuries . . Required personnel and tools The following number of persons and tools are rquired for handling the front panel . -
Page 6: Removing The Front Panel
FreeAir – Active chilled beam for exposed installation – Manual Figure 05 – Product with front panel opened Removing the front panel Unlock the latches on the ‘b’ side as well, then lift off the front panel . The cables will hold it in a suspended position . (See: Figure 06) Figure 06 –... -
Page 7: Reinstalling The Front Panel
.airvent . e u Reinstalling the front panel Lift the front panel back into place on the ‘b’ side, then secure the latches . Figure 07 – Lifting the front panel back Closing the front panel When closing the front panel, make sure that the latches are properly secured: they should snap back into place with an audible click . -
Page 8: Installation
FreeAir – Active chilled beam for exposed installation – Manual Installation Safety precautions Protective gloves We recommend wearing protective gloves during the transport, installation, and maintenance of the product to avoid potential injuries . Required personnel and tools The following number of persons and tools are required for the installation of the product . -
Page 9: Drilling The Mounting Points
.airvent . e u Drilling the mounting points For securing the product, we recommend using an M8 threaded rod or an 8 mm screw . The diameter of the product’s mounting point is 9 mm . Drill the holes in the ceiling for the screws that will hold the product . Insert wall plugs suitable for the wall type into the holes . - Page 10 FreeAir – Active chilled beam for exposed installation – Manual Figure 13 – Installing the fasteners Tighten the fasteners using a manual or powered screwdriver . Figure 14 – Securing the fasteners After securing the product, place and then close the front panel(s) (See: Front panel) .
-
Page 11: Commissioning
.airvent . e u Commissioning Safety precautions Protective gloves We recommend wearing protective gloves during the transport, installation, and maintenance of the product to avoid potential injuries . Required personnel The following number of persons and tools are required for the commissioning of the product . -
Page 12: Maintenance
FreeAir – Active chilled beam for exposed installation – Manual Maintenance Safety Protective gloves We recommend wearing protective gloves during the transport, installation, and maintenance of the product to avoid potential injuries . Work and tools The following number of persons and tools are required for the maintenance of the product . -
Page 13: Dimensions
.airvent . e u Dimensions 50,5 Figure 19 – FreeAir dimensions FreeAir dimensions Dimensions (mm) Type Mass (kg) 1500 1500 – 1800 1800 – 2100 2100 – 2400 2400* 2700 2700* 3000 3000* 41,5 Water connection Water-side connection (mm) -
Page 14: Notes
FreeAir – Active chilled beam for exposed installation – Manual Notes .................. - Page 15 .airvent . e u ..................
- Page 16 .airvent . e u...
