Page 1: User Instructions

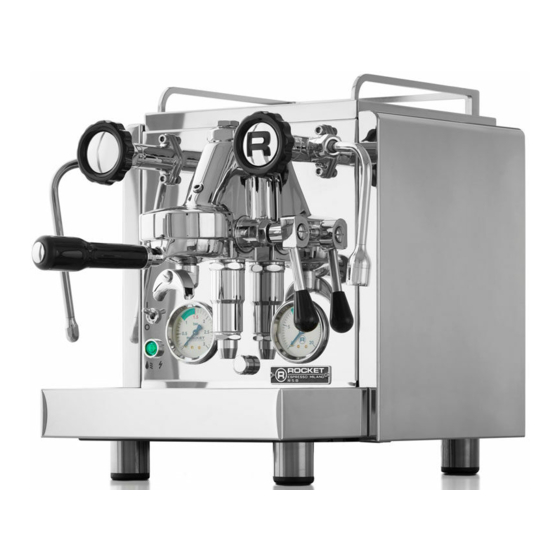

Rocket R 58 Dual Boiler Espresso Machine User Instructions _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 1... -
Page 2: Description Of Components
Hot water valve Boiler pressure gauge Hot water wand On / off switch Pump pressure gauge Control light machine “on” Lever _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 2... -
Page 3: Table Of Contents
Declaration of CE conformity for European Community countries Information for the authorized service technician: Electrical diagram Hydraulic diagram Contact details _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 3... -
Page 4: General Data
31 cm x 44 cm x 41 cm (WxDxH) 12.2 in x 17,32 in x 16.14 in Weight 29 kg / 64 lb _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 4... -
Page 5: Introduction
Children do not understand the danger involved in using electric appliances. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 5... - Page 6 ■ Never use warm or hot water to fill the water reservoir. Use cold water only. ■ The machine should not be operated with temperatures lower than 6 °C and hotter than 36 °C. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 6...
-
Page 7: Installation
Please refer to the technical data plate on the machine. Power: 1.550 W (please refer also to the technical data plate on the machine). _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 7... - Page 8 Connection to water inlet pipe 70 mm 91 mm 200 mm 90 mm 440 mm 10 mm diameter Diameter of drain pipe connection _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 8...
- Page 9 Water connection pipe from mains to machine Connector to water inlet pipe. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 9...
-
Page 10: Start-Up
4. Fit the coffee filled filter handle (Fig. A/9) firmly into the brewing head (Fig.A/8) and put the cup(s) under the filter handle’s spout(s). _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 10... -
Page 11: Dispensing Steam
When you’re done, close the steam valve (Fig. A/2). After the steam valve has been closed pull the steam nozzle out of the liquid. Clean and burp the steam wand if necessary. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 11... -
Page 12: How To Texture Milk
As the volume of the milk increases, lower the milk jug to keep the steam nozzle always in the same position with respect to the milk level. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 12... -
Page 13: Proper Care And Maintenance
Proper care and maintenance The importance of a clean espresso machine can not be under estimated when trying to produce great espresso. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 13... - Page 14 The brewing head (“group”) With the nylon brush supplied with the machine give the inside of the group a good scrub. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 14...
- Page 15 Repeat the process until the product runs clean into the drip tray. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 15...
- Page 16 ■ The pressure of the service boiler. It’s factory set to 1,1 Bar. It can be changed in a range in between 0,8 Bar and 1,3 Bar. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 16...
- Page 17 Key 1 Brew boiler temperature 105°C Key 3 Key 2 This means the machine is in normal operation mode. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 17...
- Page 18 _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 18...
-
Page 19: Alarm Messages
In both cases turn the machine off and then on again. If this doesn’t solve the problem please contact the authorized Rocket Espresso Ltd. technical service. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 19... -
Page 20: Setting The Pump Pressure
Please do not set lower than 8 Bar or higher than 10 Bar. Please check pump pressure with pressure gauge (Fig. A/6). _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 20... -
Page 21: Trouble Shooting
(if machine is hard plumbed) and turn on again. Water from water Milk in boiler. Please contact your authorized technical nozzle smells bad service. and is brown _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 21... - Page 22 Grind to coarse. Please set grinder. inconsistent crema Coffee is not fresh and/or freshly ground. Please provide. (=emulsion on top of the espresso) _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 22...
-
Page 23: Some Espresso Recipes
One shot of espresso topped with whipped cream. ■ Espresso Romano One shot of espresso served with a twist of lemon. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 23... - Page 24 EN 292-2 (1991) Noise level IEC 60335-2-75 The noise level during normal operation of the machine is 70 dB or lower. _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 24...
- Page 25 Service boiler temperature probe SSR relay service boiler Level probe service boiler SSR relay brew boiler Level probe water reservoir _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 25...
-
Page 26: Hydraulic Diagram
Service boiler pressure gauge Solenoid valve water reservoir Pump pressure gauge Drain hopper Commercial rotary pump Connection pipe to mains _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 26... - Page 27 Rocket Espresso Limited Via Curiel 13 20052 Liscate (Milano, Italy) Italy Phone +39 02 953 513 34 Email info@rocket-espresso.com www.rocket-espresso.com _____________________________________________________________________________________________ © Rocket Espresso Ltd. IT05846260965.Espresso machine mod. R 58. User manual Ed. 03.2012. Subject to change without notice # 27...
