Seiko 6G27A Technical Manual
Seiko 6G27A Technical Manual

Seiko 6G27A Technical Manual

Advertisement

Parts Catalogue / TECHNICALGUIDE

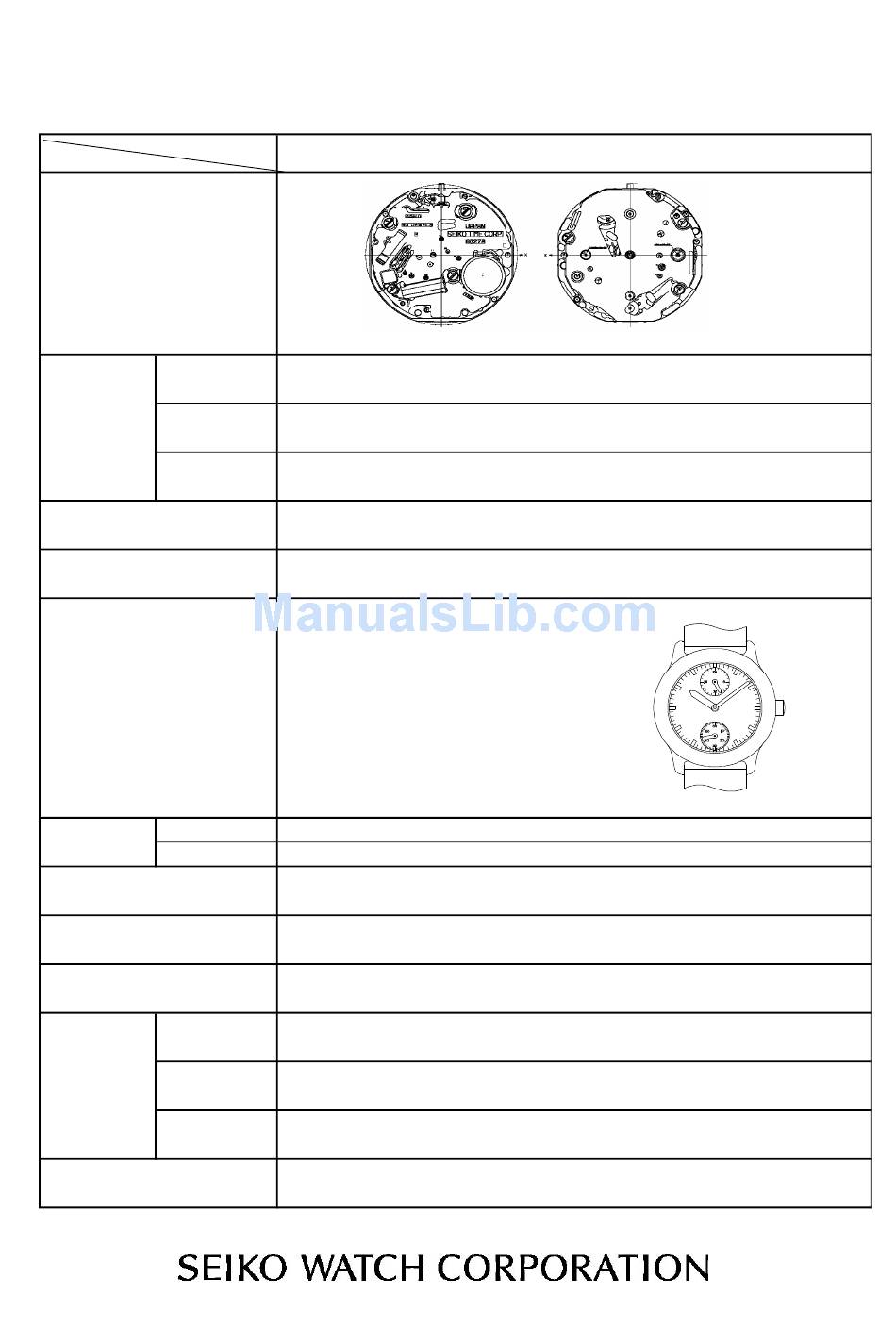

[SPECIFICATIONS]

Cal. No.
Item
Movement
Outside diameter
Movement size
Casing diameter
(mm)
Total height
Time indication
Driving system
Additional mechanism
Original
Crown Operation
First click
Accuracy
Loss/gain
Measuring gate by quartz tester
Battery No.
Battery
Voltage
Battery life
Number of jewels
Cal. 6G27A
● 24 cities (12H)
● Second setting device
● Electronic circuit reset switch
● Free
● Tiime setting (turn clockwise to move forward and counterclockwise to move back)
Less than 15 seconds: Monthly rate at normal temperature range
6G27A
Ф23.7mm
Ф23.3mm
3.45mm
2 hands (hour, minute)
Step motor
Nil
10-second gate
SR626SW (Silver oxide battery)
1.55V
Approx. 3 years
Nil
