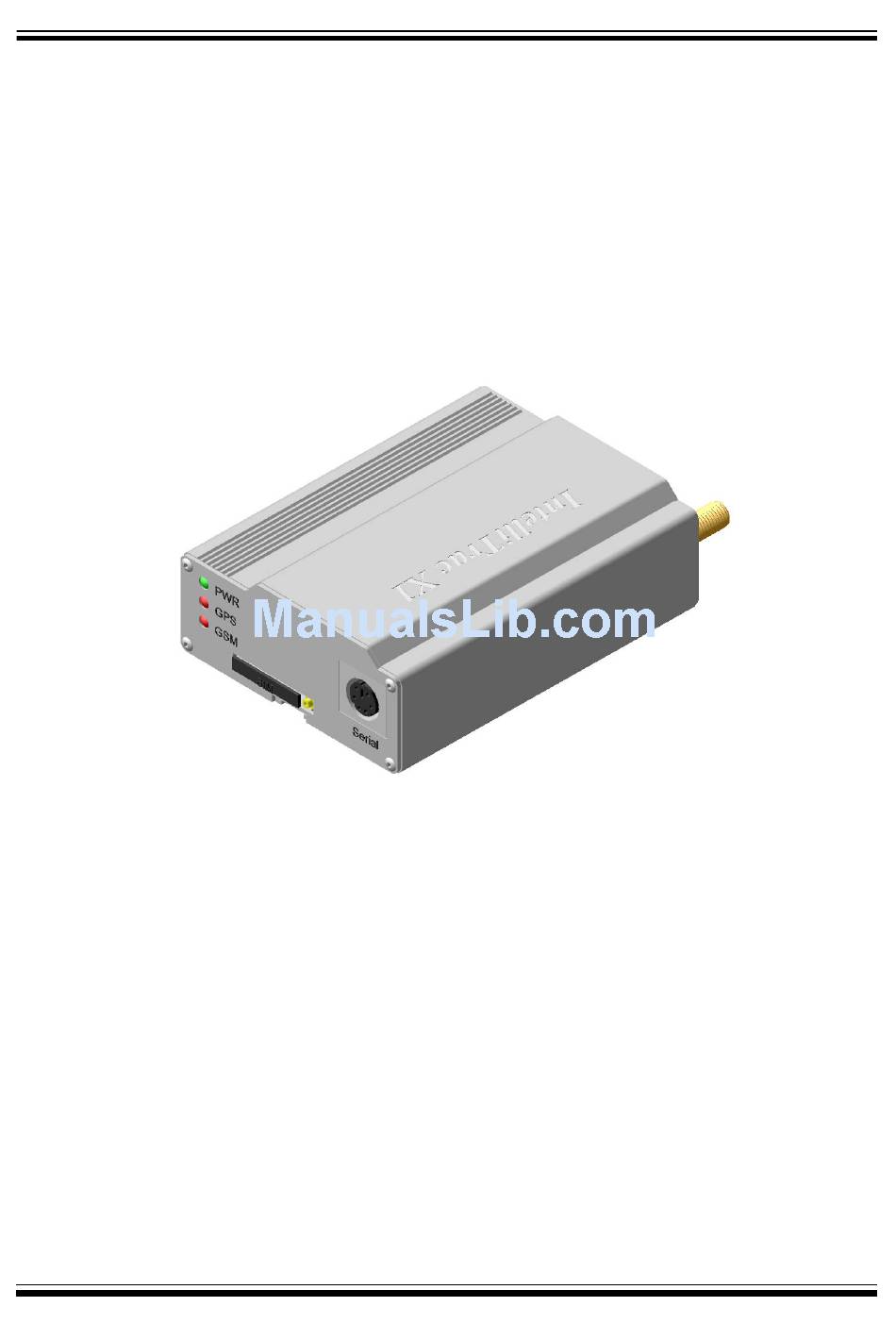

- Page 1 ’ ’ Version: Date: Nov, 14 2006 Status: Preliminary © Systems & Technology Corp. All rights reserved.
- Page 2 General notes With respect to any damages arising in operation with the described product or this document, S&T shall be liable according to the General Conditions on which the delivery of the described product and this document are based. This product is not intended for use in life support appliances, devices or systems where a malfunction of the product can reasonably be expected to result in personal injury.
-
Page 3: Table Of Contents
IntelliTrac X1-PRO User’s Manual Features ...........................1 System Requirements ......................1 Product Contents ........................1 Hardware Installation ......................2 4.1 Install SIM card ..........................2 4.2 Install Cables..........................2 4.3 Mounting the unit ......................... 3 Software Installation ......................4 5.1 Configuration Software ........................ 4 5.2 Firmware Download Software...................... 5 Specifications...........................6... -
Page 4: Features
Intelligent real time tracking mode High capacity Li-Polymer backup battery Advanced power management Journey logging for thousands position Remote configuration and firmware upgrade The IntelliTrac X1-PRO configuration software is based on Microsoft Windows systems. Windows Systems：Win98/Me/2000/XP IntelliTrac X1-PRO device Power I/O Cable Serial Cable... -
Page 5: Hardware Installation
IntelliTrac X1-PRO User’s Manual Install SIM card Press the yellow button to enject the SIM card holder and insert the SIM card. If you would like to disable the PIN code, please use general GSM cellular phone to disable the PIN code in advance. -
Page 6: Mounting The Unit
IntelliTrac X1-PRO User’s Manual Output4 (Internal 2A Relay) Install GSM Antenna Connect the GSM antenna to the SMA connector with lable “GSM”. Install GPS Receiver Connect the GPS receiver to the Mini DIN connector with label “GPS”. Use a nylon cable tie to prevent unexpected come off. -
Page 7: Software Installation
IntelliTrac X1-PRO User’s Manual Configuration Software © Systems & Technology Corp. All rights reserved. - 4 -... -
Page 8: Firmware Download Software
IntelliTrac X1-PRO User’s Manual Firmware Download Software © Systems & Technology Corp. All rights reserved. - 5 -... -
Page 9: Specifications
PDU mode Data mode CS Data Voice mode HR/FR/EFR Absolute maximum ratings Absolute maximum rating for power supply and voltage on digital input pins of the IntelliTrac X1-PRO are list in following table： Parameter Unit Supply Voltage Positive trigger Input Voltage... -
Page 10: Led Indicators
IntelliTrac X1-PRO User’s Manual LED Indicators PWR LED Status Function Power off 20 ms On / 2 secs Off The device is running in power saving mode. 500ms On / 500ms Off Reset procedure is in progress 20ms ON / 20ms Off... -
Page 11: About Systems & Technology Corporation
IntelliTrac X1-PRO User’s Manual & & IntelliTrac X Series AVL device is produced by Systems & Technology Corporation. The company is a key developer and supplier of advanced systems in the Automatic Vehicle Location (AVL), Digital Map and Car Navigation Systems.
