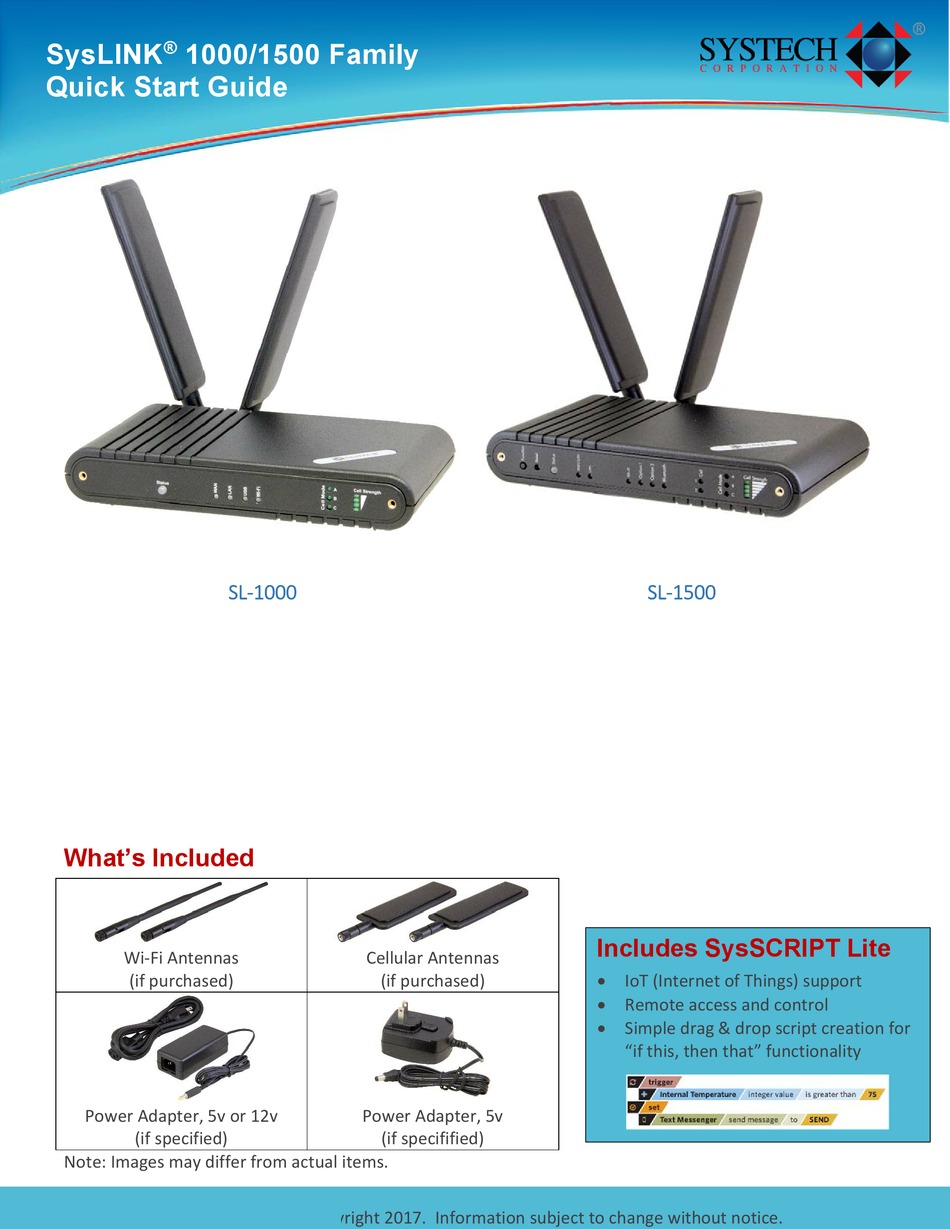

SysLINK
1000/1500 Family
Quick Start Guide

What's Included
Wi‐Fi Antennas
(if purchased)
Power Adapter, 5v or 12v
(if specified)
Note: Images may differ from actual items.
QS001‐004‐1706.  Copyright 2017.  Information subject to change without notice.
SL‐1000

Cellular Antennas
(if purchased)

Power Adapter, 5v
(if specifified)
SL‐1500

Includes SysSCRIPT Lite
 IoT (Internet of Things) support
 Remote access and control
 Simple drag & drop script creation for
"if this, then that" functionality



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Systech Corporation SL-1000

  • Page 1 ® SysLINK 1000/1500 Family Quick Start Guide SL‐1000  SL‐1500    What’s Included     Includes SysSCRIPT Lite Wi‐Fi Antennas  Cellular Antennas   IoT (Internet of Things) support  (if purchased)  (if purchased)   Remote access and control   Simple drag & drop script creation for  “if this, then that” functionality      Power Adapter, 5v or 12v  Power Adapter, 5v    (if specified)  (if specifified)  Note: Images may differ from actual items.  1  QS001‐004‐1706.  Copyright 2017.  Information subject to change without notice. ...
  • Page 2: Function Button

      Front  SL‐1000    Back    Front  SL‐1500    Back  Interfaces and Features LAN light  Flickering green during normal operation.  Off if LAN  Function button  port is disconnected.  Button used for special features of the gateway.  Wi‐Fi light  Reset button  Solid green during normal operation.  Off if Wi‐Fi  Button used to reset the gateway.  Use paper clip, or  port is disabled.  similar device, to press.  To reboot the gateway,  press the reset button momentarily.  The status light  USB light  will alternate between orange and red during the  Not used.  This light may be on or off, but should be  reboot.  ignored.    To reset the gateway back to factory defaults, hold  Option 1 light (SL‐1500)  for about 10 seconds.  When the status light  Reserved for plug‐in option card operation.  alternates between red and green, you may release  Option 2 light (SL‐1500)  the reset button.  Reserved for plug‐in option card operation.  Status light  Bluetooth light (SL‐1500)  Indicates current gateway status.  Solid amber at ...
  • Page 3 light is off if cellular is disabled or not currently in  connector.  This differentiates Wi‐Fi antennas from  use.    cellular antennas.  If dual cellular option installed, then Cell 1 or Cell 2  USB port  indicates which cellular option is currently active.   USB 2.0 type A connector.  Used for optional external  Both lights will be off if cellular is disabled or not  devices.  currently in use.    LAN port  Cell Mode lights  Local Ethernet connectivity, usually used to attach  If cellular option installed, then these lights indicate  additional local LAN devices (or local network hub) to  the current cellular operating mode.  the network.    A  B  C  WAN/LAN port  1xRTT  Off  Off  On  Source for Internet connectivity, usually connected  EVDO/HSPA  Off  On  On  to broadband modem or a local network that  LTE  On  On  On  provides Internet access.  May optionally be    configured for local Ethernet connectivity, usually  used to attach additional local LAN devices (or local ...
  • Page 4 Set Up Your New Gateway DHCP, then connect the other end of the Ethernet  cable to your Internet router or hub.  Then go  Hardware directly to the next step.  STEP 1 ‐ Antennas  If your network requires the use of a static IP  If your gateway includes cellular or Wi‐Fi, please  addresses, then review the “Access Local  install the included antennas.  The cellular antennas  Configuration Settings” section (below), and  must be screwed into the terminals of the gateway  configure the appropriate network settings.    labeled “Cell Main” and “Cell Aux”.  The two cellular  antennas look identical.  To differentiate between  STEP 3 ‐ Power  the cellular and Wi‐Fi antennas, take a look at the  Connect the included power supply to the gateway,  screw connector at the end of the antenna.  The  and apply power.    screw connector of the cellular antenna includes a  When first powered, the Status LED will initially be  single prong sticking out in the center of the  orange.  Other LEDs will turn on or off during the  connector.    initialization sequence.  After a few minutes, the  Status LED will blink green about once per second.   This indicates that the gateway has completed its  core initialization.  Other LEDs may also be turned on  at this point.  Your gateway may include other, specialized    software or hardware.  If this is the case, the  initialization process may require additional time.   Cellular Antenna (with prong)  For example, if you have a Z‐Wave radio installed,  The Wi‐Fi antennas must be screwed into the ...
  • Page 5: Ssh Access

    Access Local Configuration Options Most applications do not require access to the local    configuration options, and the gateway can be used  To access the SIM slot, open the case by carefully  immediately.  If you would like to configure features  prying the top cover away from the case with a small  such as the IP address or Wi‐Fi settings, then follow  flat screwdriver or similar tool.  Insert the tool and  these steps.  pry the top cover slightly outward from the case.  1. Connect a PC directly to the SysLINK gateway  Ethernet LAN port.  2. Point your web broswer to  https:\\192.168.1.1.  Note: You must use  HTTPS as this provides enhanced security.   Ignore any warning screen that may appear.  3. A page titled “Welcome to the SysLINK”  appears. This is the SysLINK User Interface  (UI).  4. Once you select any menu option, you will be    asked to provide login information.  5. The default user name is “admin”.  The  The SIM connector is on the bottom of the cellular  default password is “sysl1nk” (with the  carrier board.  Note the SIM should be inserted with  number one between the letters “l” and “n”).  the metal side up, and the notch entering the  6. It is suggested you change the password to  connector first.  The SIM card will click into place.  enhance security. ...
  • Page 6: Wi-Fi Access Point

    Wi-Fi Access Point If you previously created a SysSCRIPT account for any  gateway in the past, then simply use your existing  If Wi‐Fi is an installed option and configured as an  user credentials to log in.  Otherwise, select the  access point (AP or “hot spot”), the SSID is “SysLINK”  “Register a new user” option.  and the Wi‐Fi password is “Systech1”. The IP address  to access the unit via Wi‐Fi is https://192.168.1.1,  Account Activation  and the DHCP server is configured to provide IP  Activation Code: sysscript lite  addresses in the range 192.168.1.10 – 192.168.1.100.  Gateway Activation Password: See the bottom of  the gateway.  If no Gateway Activation Password is  SysSCRIPT present, then use the 6‐digit serial number.  For IoT (Internet of Things) support, your SysLINK  If you received a separate activation code, perhaps  Gateway includes SysSCRIPT (licensed) or SysSCRIPT  for a full SysSCRIPT license, use that activation code  Lite.  SysSCRIPT Lite provides remote access and  instead.  control of many properties of the gateway, such as  network IP address, number of bytes transferred,  If you register as a new user, please include your  and other gateway details.  If your gateway includes  activation code when asked.  Your activation code  temperature and motion hardware, SysSCRIPT Lite  will apply the appropriate access rights to your  also provides remote access to this information.  SysSCRIPT account.    SysSCRIPT is a simple graphical user interface that  If you would like to add an activation code to an  provides the ability to program scripts that execute  existing account, simply log in to your account, then  locally on the gateway.  select the “Use Activation Code” menu option.  The licensed version of SysSCRIPT provides ...
  • Page 7 Also, you must set the initial time zone and location  of the gateway.  This is required to enable time‐ based scripts.  Select and edit the Latitude,  Longitude, and Time Zone properties of the gateway.   Select the pencil icon near the property you intend to  change.  Edit the Time Zone property last, since  editing the Time Zone will cause the gateway to  automatically reboot.  This is normal, and you can  continue to explore the SysSCRIPT interface while the  gateway reboots.    Device Access and Control  From the Menu, select “Devices”.  This will bring you  to a screen showing the devices currently attached to  that gateway.  New gateways will typically have only  a single device – which is the gateway itself.    While you are viewing this screen, you can see many  of the accessible gateway properties.  These are  properties that you can access remotely, or  properties you can create scripts for.  For example,  you can access the current gateway internal  temperature, the local IP address, the cellular signal  strength, and other attributes.  For more information regarding SysSCRIPT, including  help regarding programming scripts that execute  locally on the gateway, please go to the following  URL.  https://sso.systech.com   Support For technical support, please contact your reseller.   Or if desired, contact Systech Corporation at:  Email: support@systech.com  Phone: 858‐674‐6500, ext 711  www.systech.com     7   ...
