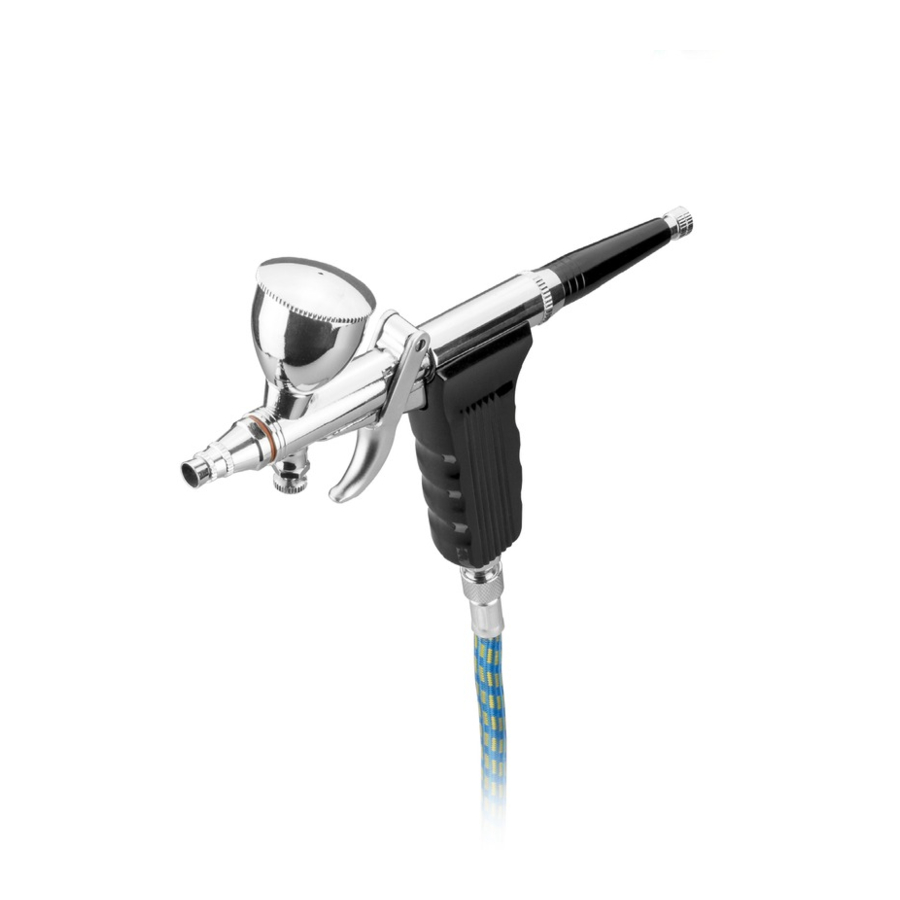

- Page 1 Airbrush MODEL NUMBER: BD-116C USER GUIDE After Sales Support UK/N.IRELAND HELPLINE N 01270 508530 YEAR WEBSITE: www.airbrushheaven.co.uk EMAIL: enquiries@airbrushheaven.co.uk WARRANTY...
-
Page 2: Table Of Contents
Contents 1. Welcome Section 2. General Information & Safety Instructions 3. Contents & Features 4. Parts & Assembly 4. Changing the Needle 5. General Maintenance 6. Using the Airbrush 7. Specifications 7. Trouble Shooting After Sales Support 01270 508530 UK/N.IRELAND HELPLINE N WEBSITE: www.airbrushheaven.co.uk EMAIL:... - Page 3 Airbrush Heaven. We want you to be completely satisfied with your purchase so this AIRBRUSH HEAVEN product is backed by a comprehensive manufacturer’s 1 year warranty and outstanding after sales service through our helpline.
-
Page 4: General Information & Safety Instructions
General Information & Safety Instructions • Industrial applications must follow OSHA requirements. • Maintain a safe working environment. Keep the work area well lit and make sure there is adequate work space. • Use the product only in a well ventilated area. •... -
Page 5: Contents & Features
Contents & Features Contents 1 x Single Action Airbrush 3 x nozzles (0.3mm, 0.5mm & 0.8mm) 3 x needles (0.3mm, 0.5mm & 0.8mm) 1 x 2cc Metal Reservoir Cup 1 x 5cc Metal Reservoir Cup & Cap 1 x 13cc Metal Reservoir Cup & Cap 1 x Hose 1 x Hose Adaptor Ring 2 x Hose Connectors... -
Page 6: Parts & Assembly
Parts & Assembly Needle Cap Spring Case Screw for Valve Nozzle Cap Needle Check Net Spring Head Cap Valve Spindle O-Ring Standard Handle Adjusting Hex Nut Nozzle Adjusting Screw Holder O-Ring for Needle Guide Guide Screw Trigger Needle Guide O-Ring Trigger Bolt Needle Nut Seal Screw... -
Page 7: General Maintenance
General Maintenance Storage • Always disconnect the airbrush from its air supply source before any maintenance on the airbrush body. • When not in use, tools and equipment should be kept in a dry location to inhibit rust. Basic Cleaning •... -
Page 8: Using The Airbrush
Using the Airbrush Setting up & using the Airbrush • Attach the hose to the compressor. (We recommend our AS-18A or AS-186 compressor for this model) • Set air pressure to 2-40 PSI on the compressor. • Remove the protection cap from the airbrush. •... -
Page 9: Specifications
Specifications • Single action trigger • 3, 5 & 13cc Metal reservoir cups • 0.3, 0.5 & 0.8mm Fluid nozzle • 50 Psi maximum • 1/8th” BSP (9mm) & 5mm screw connectors Trouble Shooting PROBLEM CAUSE SOLUTION Medium leaking. Head of needle bent or Repair or replace parts. - Page 10 Warranty Certificate Warranty This product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
- Page 11 Warranty Card Airbrush Model Number: BD-116C Please keep your purchase receipt/invoice together with your warranty card Name: Address: Date of purchase: Location of purchase: Fault Description: We recommend that you attach a photocopy of your receipt/invoice, showing the date of purchase, to this warranty card and keep it for your reference.
