1. Description

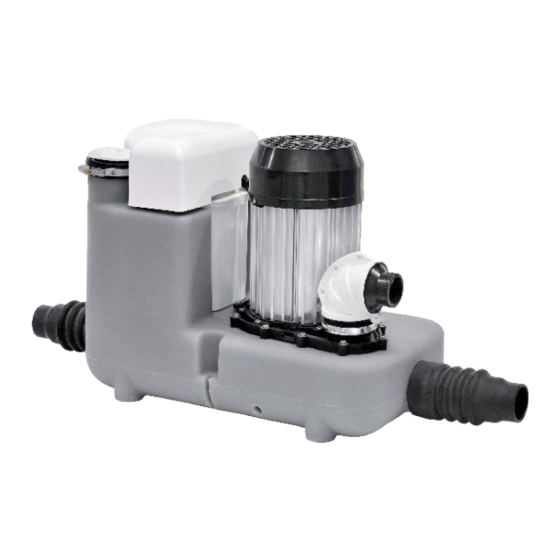

Sanicom is a lifting pump for wastewater used in commercial applications (restaurants, hairdressing salons, the catering industry etc.). The unit
operates automatically, has a high performance level, and is safe and reliable, provided all the rules for installation and maintenance in this
notice are strictly followed. Especially those indicated by:
Failure to comply with this instruction could endanger the safety of persons
Indication that a risk of electrical origin exists
Electrical installation must be carried out by a professional electrician.
Please also see "10 golden rules" for correct Saniflo installation on www.saniflo.co.uk
"Attention" Failure to comply with this instruction could endanger the safe functioning of the apparatus.
For any additional information, please contact our customer service department.
2. List of Accessories included
A
Flexible inlet connector
E
Inlet Cover
I
Elbow
x2
B
Hose clip
x1
F
Hose clip
x1
x1
C
25 x 40
Hose clip
x1
G
40 x 60
Screw
x2
D
32 x 50
Hose clip
x2
H
Plug
x2
50 x 70
x2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SFA Sanicom FF03-P95
Summary of Contents for SFA Sanicom FF03-P95
- Page 1 1. Description Sanicom is a lifting pump for wastewater used in commercial applications (restaurants, hairdressing salons, the catering industry etc.). The unit operates automatically, has a high performance level, and is safe and reliable, provided all the rules for installation and maintenance in this notice are strictly followed.
- Page 2 3. Dimensions and overall measurements 420mm 230mm ø 60 330mm 490mm 4. How it works The Sanicom contains 1 pump. The tank is equipped with a sensor tube which controls the automatic activation of the motor when waste enters the unit. As soon as the waste enters the tank, the pump starts. 5.
-
Page 3: Installation
6. Technical Data & Application Application Commercial sink, washing machine, dishwasher or shower* or bath* Type FF03-P95 Maximum vertical pumping height Voltage 220 – 240 V Frequency 50 Hz Maximum power consumption 750 W Maximum current consumption 3.3 A Electrical class Protection index IP44 Max temp with intermittent functioning... - Page 4 9. Connection to sanitary ware To connect a bathtub (or shower), make sure the waste trap height is raised by at least 15cm above floor level. Connection must be made using 40mm or 50mm diameter pipework, with minimum slope of 1%. 2.5% 2.5% 150mm min...
- Page 5 11. In case a service is needed Allow for a drain-off point at the bottom of the rising discharge pipe. Ensure that the unit is easily accessible for possible maintenance. 12. Electrical connection The electrical installation should be carried out by a qualified person. CANADA All wiring must conform to BS7671, 1992 requirements for electrical installations.
-
Page 6: 17. Troubleshooting
Clean or change the valve or call a • Intermittent start-up of pumps • The non-return valve broken or leaking service engineer 18. Warranty Sanicom SFA is guaranteed for 2 years for labour and parts, subject to correct installation and use of the apparatus. - Page 7 19. Parts...
