Monster Digital CAMVA-1080-A User Manual

Wifi video camera
Hide thumbs

Advertisement

Quick Links

Download this manual
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CAMVA-1080-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monster Digital CAMVA-1080-A

Summary of Contents for Monster Digital CAMVA-1080-A

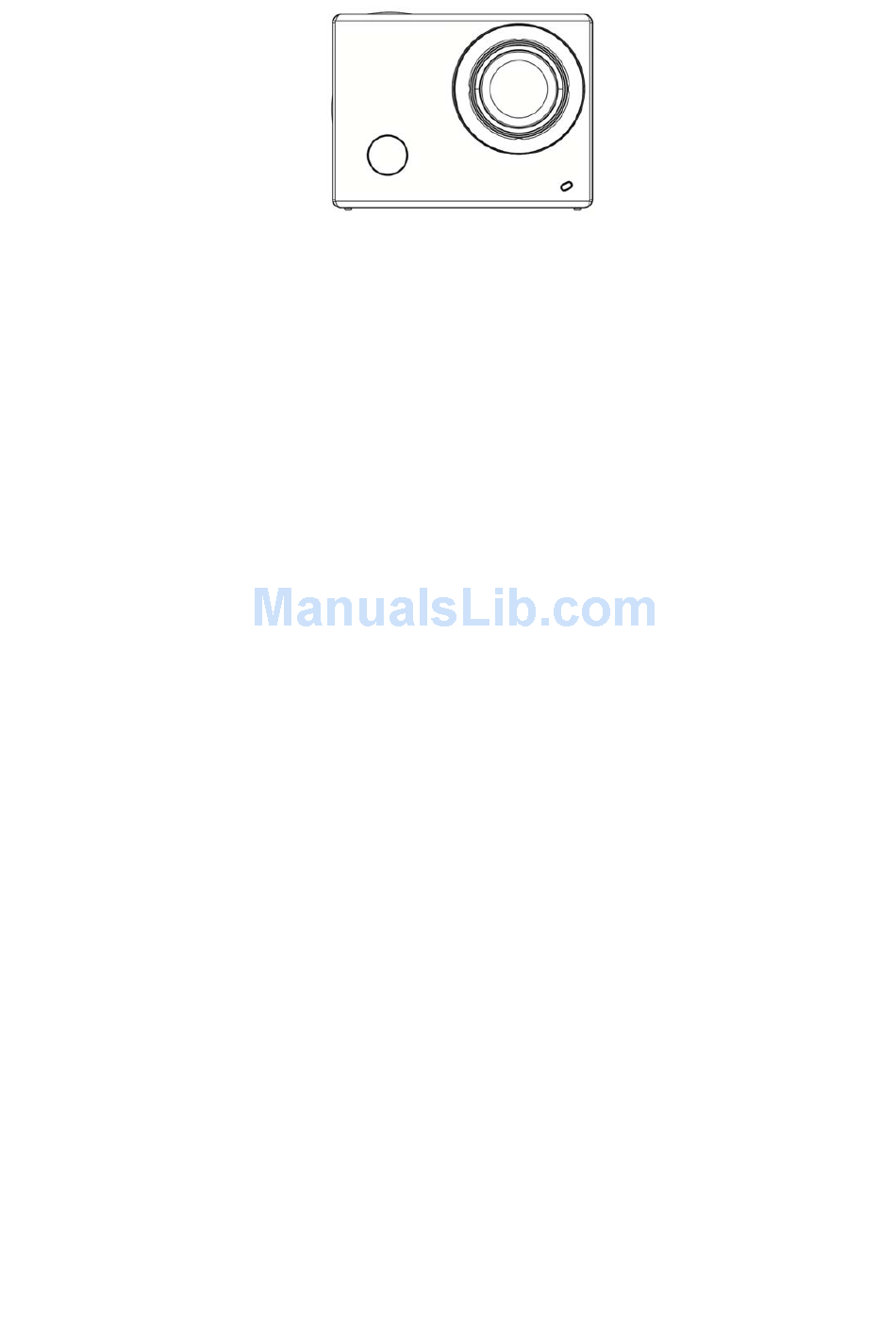

  • Page 1 User’s Manual...
  • Page 2 Thank you for purchasing this WiFi video camera. It has an elegant appearance, many functions and can be used for wide-angle shooting. Prior to use, please read this user’s manual carefully so as to show its performance and extend its service life to maximum. We hope that this product can meet your needs and accompany you at your side all the time.

  • Page 3: System Requirements

    System Requirements System Requirements Microsoft Window XP(SP3), Vista, 7，8 PCCAM Mac OS X ver: 10.8.0 or above version Operating Microsoft Window 2000，XP, Vista, 7，8 System MSDC Mac OS X ver: 10.0.0 or above version Intel Pentium of more than 1GB Hz or other CPU with equivalent performance Internal Memory Larger than 1GB...
  • Page 4 Lens Infrared remote control lamp Charging /Busy indicator Busy indicator Display/Menu key 2.0’’ HD LCD Microphone...
  • Page 5 Shutter/OK key Power/Mode key Battery door Speaker Wifi/Down key Micro SD Card Micro USB port HDMI port...
  • Page 6 1. Charge the built-in lithium battery USB cable Connect the camera to the computer for charging, at this time, the charging indicator will be in red, and it will be off after charging. Generally, it takes 2-4 hours to charge the battery.
  • Page 7 2. Use the storage card 1. Push the TF card into the slot till it is in place as per the instruction in concavely engraved words by the storage card slot. 2. To take out the TF card, press the tail of the storage card inwardly softly and it will be popped out. Note: There’s no built-in memory unit in the camera, so make sure to insert a storage card into it prior to use ( it is recommended at least Class 6 high speed TF card ).
  • Page 8 3. Power on/off 3.1 Power on: Press Power key for 3 seconds, the screen will be on and the camera will be started. 3.2. Power off: Hold on Power key for 3 seconds when the camera is in the idle state to turn it off. 3.3.
  • Page 9 4. Shift among functional modes The camera has 4 modes, namely video recording mode, car-carrying mode, shooting mode and replay mode. After power is on, press Power key to shift among them. Video recording mode Shooting mode Car-carrying mode Replay mode Note: after the shutdown of the system will save the current setting pattern, the next open opportunity automatically entered into the model.
  • Page 10 5. Indicator Busy indicator (red): When the camera is busy such as recording videos, shooting photos and turning off screen automatically, the work indicator will flicker. Charging indicator (blue): When it is on, the user is prompted that the camera is being charged and it will be off after charging is completed.
  • Page 11 7. Car-carrying mode After power is on, press Power key to enter car-carrying mode 1. Icon of mode, indicating car-carrying mode; 2. Indicate quality of video; 3. Indicate size of video, and FHD(30FPS)/HD(60FPS)/HD(30FPS) is optional; 4. Recording time, indicating recordable length of time. 5.
  • Page 12 8. Shooting mode After power is on, press Power key twice to enter shooting mode, and in preview state, press Shutter key to take a photo: 1. Icon of mode, indicating the current is shooting mode; 2. Size of video, and 3M/5M/8M/10M/12M is optional; 3.
  • Page 13 9.2 Introduction to play screens 9.2.1 Screens of video files 1. Icon of replay mode; 2. Indicate serial number of current file/ total number of files; 3. Indicate parameter of recording time; 4. Indicate recording time point. 5. Playback timer When a video file is being played, click Ok key to pause play, and click Menu key to stop playing.
  • Page 14 9.2.2 Screen of photos 1. Icon of replay mode; 2. Indicate serial number of current file/ total number of files; In replaying, Press WIFI key to select other file type， in a circulating way. 10. Menu operation There is a different menu in each working mode as shown in the following figures: Menu for video recording Menu for shooting mode Menu for setting mode...
  • Page 15 Operation: Press Menu key, the menu for this mode will be displayed on the LCD. At this time, press Power key to move the cursor leftward or rightward and select on the menu, and press WIFI key to move the cursor upward or downward and select on the menu in a circulating way.
  • Page 16 2. Use of remote controller: Using the remote controller, you can achieve functions ofvideo recording, shooting and power off without operating on the camera. Just point the signal transmission port of the remote controller at IR signal receiving lamp of the camera, and press corresponding keys to achieve functions of video recording, shooting and power off.

  • Page 17: Diagram Of Connection

    Connect device to HDTV: Connect the video camera to an HDTV with a HD cable as shown in the following figure, display signals in the camera will be output into the HDTV automatically, and you can browse HD videos and photos that are recorded or taken in the HDTV.
  • Page 18 APP (for Android and iOS System) I. How to Obtain the APP Installation Program 1. For the Android System, you can search “SYMAGIX” in the Play Store to obtain corresponding installation programs, and then you can install them according to the indicated steps or through scanning the two-dimensional code 2.
  • Page 19 II. Camera WIFI and System Applications Android Applications 1. Please install the SYMAGIX application program (provided by the Supplier or the Internet) for the Android mobile phone or tablet PC, and then the Display Screen will show the Icon 2. Insert a Storage Card into the Camera and then power it on. Press the WIFI key to conduct WIFI connection, and the Screen of the Camera will show the WIFI signal Icon with the external screen revealing WIFI Connecting.
  • Page 20 1. Resolution 2. White Balance 3. Settings (Enter Settings Menu) 4. Enter the Playback Mode 5. Shutter Button 6. Photo Mode 7. Video Mode 8. Wi-Fi Signal Icon 9. Camera’s Battery Status Icon IOS Applications 1. Please install the SYMAGIX application program (provided by the Supplier or the Internet) for the IOS mobile phone or tablet PC, and then the Display Screen will show the Icon 2.
  • Page 21 4. Tap and enable the Application Program Icon on the IOS mobile phone or tablet PC; you can directly view the preview picture transmitted by the Camera (see the following picture), and then conduct relevant operations. 1. DV battery icon 2.
  • Page 22 Application on PC 1. The camera has a plug-and-play function. Connect the power-on device to the computer with the USB cable, and the mode can be automatically switched to the removable hard disk. Removable disk icon will appear in the "My Computer"...
  • Page 23 Technical Parameters Image Sensor 5.0 Million Image Sensor Function Modes Video recording mode, car-carrying mode, shooting mode and replay mode Lens F2.4, f=3.1mm LCD Display Screen 2.0 inch HD LCD Screen Photo Definition Ratio 12M，10M，8M, 5M，3M. FHD (1920x1080 30fps), HD (1280X720 30fps), HD (1280X720 60fps), Video Definition Ratio VGA(640X480 120fps) Storage Media...
  • Page 24 Note: 1. A TF card must be inserted if you need to take a photo, record a video, or download files on the terminal; 2. The Wi-Fi indicator will remain on when the terminal is connected to DV. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 25 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ...
  • Page 26 Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. FCC ID：This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
