Wiring Diagram - Omegalink OL-MDB-ALL Install Manual

MODULE
A
B
F
C
E DATA
D
A
1 01 GRAY/YELLOW (NC) GRAY/YELLOW (NC)
2 02 GRAY/RED (NC)
3 03 GREEN/YELLOW (NC) GREEN/YELLOW (NC)
04 GREEN/RED (NC)
4
05 BLUE/YELLOW - PTS (-) OUTPUT - PTS (-) OUTPUT
5
6 06 BLUE/RED - GROUND (-) INPUT INPUT
B
1 01 PINK - IGNITION (+) INPUT PINK - IGNITION (+) INPUT
2 02 PINK/BLACK (NC) PINK/BLACK (NC)
03 ORANGE (NC)
3
04 ORANGE/WHITE (NC)
4
5 05 ORANGE/BLACK - GROUND (-) INPUT - GROUND (-) INPUT
6 06 BROWN/YELLOW - CANL BROWN/YELLOW - CANL
7 07 BROWN/RED - CANH BROWN/RED - CANH
C
01 YELLOW (NC)
1
02 YELLOW/RED (NC)
2
03 YELLOW/BLACK (NC)
3
D
01 WHITE - IGNITION (+) INPUT - IGNITION (+) INPUT
1
02 WHITE/RED (NC)
2
03 WHITE/BLACK - STSW (+) OUTPUT WHITE/BLACK - STSW (+) OUTPUT
3
E
01 BLUE/WHITE (NC)
1
02 WHITE (NC)
2
03 BLACK - GROUND
3
04 RED - 12V (+)
4
1
2
DATA CABLE
3
4
F
01 GREEN/BLACK - HOOD STATUS (-) INPUT
1
02 BLUE/BLACK (NC)
2
03 RED/WHITE (NC)
3
4 04 BROWN (NC)
5 05 PURPLE/YELLOW (NC)
6 06 PURPLE/BLACK (NC)
7 07 WHITE (NC) WHITE
08 BLACK/WHITE (NC)
8
09 GREEN - PARKING LIGHT (-) OUTPUT GREEN
9
10 10 PURPLE/WHITE (NC)
IMPORTANT:
1- NO TAKEOVER AVAILABLE.
UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN.
2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE.
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2015
WITHOUT A
COMPATIBLE
ACCESSORY
OR
WITH A COMPATIBLE
ACCESSORY.
COMPATIBLE
IMPORTANT: SEE THE
ACCESSORY
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.

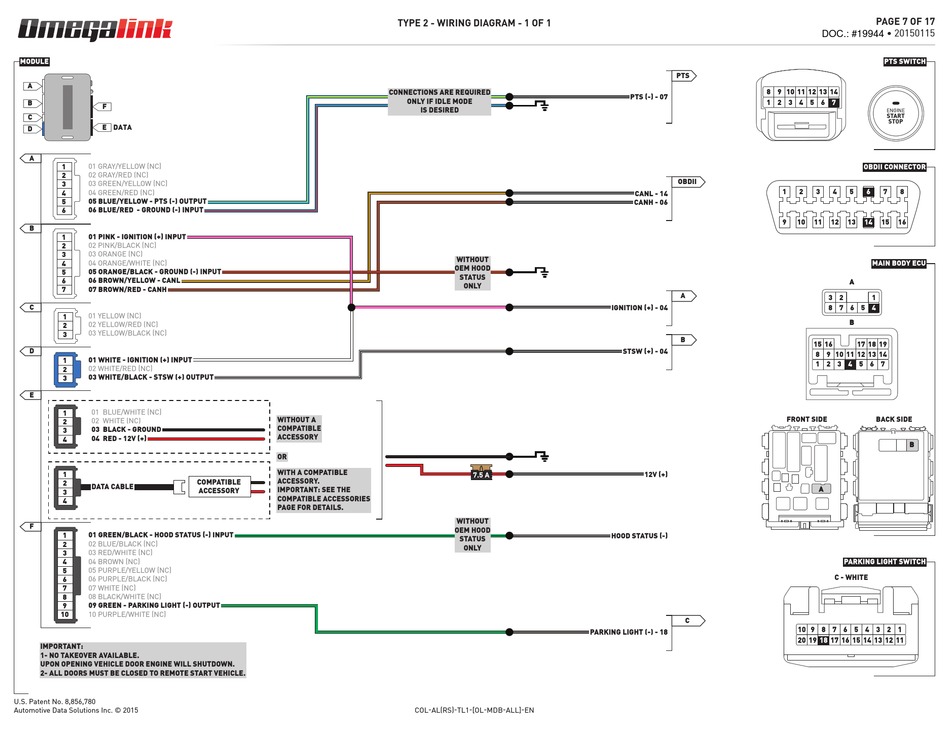

TYPE 2 - WIRING DIAGRAM - 1 OF 1
CONNECTIONS ARE REQUIRED
ONLY IF IDLE MODE
IS DESIRED
WITHOUT
OEM HOOD
STATUS
ONLY
7.5 A
WITHOUT
OEM HOOD
STATUS
ONLY
COL-AL(RS)-TL1-[OL-MDB-ALL]-EN
PTS
8 9 10 11 12 13 14
PTS (-) - 07
1 2 3 4 5 6
OBDII
CANL - 14
CANH - 06
A
IGNITION (+) - 04
B
STSW (+) - 04
12V (+)
HOOD STATUS (-)
C
PARKING LIGHT (-) - 18
Page 7 oF 17
• 20150115
DOC.: #19944
PTS SWITCH
7
OBDII CONNECTOR
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
MAIN BODY ECU
A A
3 2 1
8 7 6 5 4
B B
15 16 17 18 19
8 9 10 11 12 13 14
1 2 3 4 5 6 7
FRONT SIDE BACK SIDE
B B
A A
PARKING LIGHT SWITCH
C - WHITE
10 9 8 7 6 5 4 3 2 1
20 19 18 17 16 15 14 13 12 11
