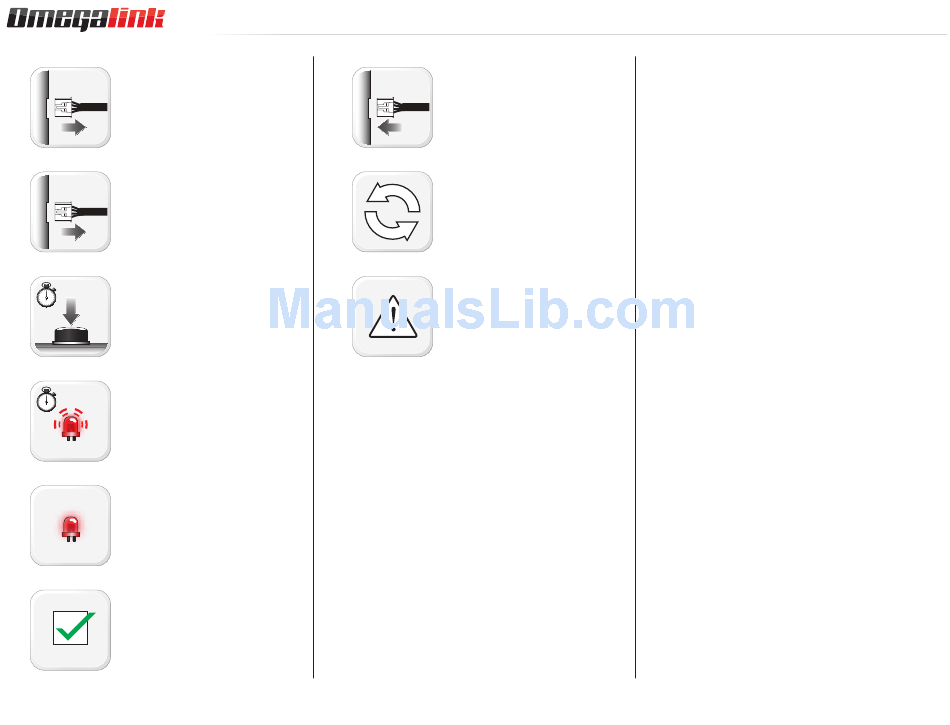

Module Reset Procedure - Omegalink OL-MDB-ALL Install Manual

01
Disconnect all connectors from module except
the BLACK 4-PIN connector.
02
Disconnect the BLACK 4-PIN connector.
03
PRESS AND HOLD programming button while
connecting the BLACK 4-PIN connector.
04
Wait, LED 1 will flash RED. RELEASE
programming button.
05
LED 1 will turn RED for 2 seconds.
06
Module RESET completed.
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2015
MODULE RESET PROCEDURE - 1 OF 1
07
Reconnect all connectors.
08
Repeat programming procedure.
>>
Failure to follow procedure may result with a
DTC or a CHECK ENGINE error message.
COL-AL(RS)-TL1-[OL-MDB-ALL]-EN
Page 16 oF 17
• 20150115
DOC.: #19944
